Isuzu WW
▶
SUV
▶
UCR
▶
51577 - UCR/UCS(THAILAND)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-66 - MANUAL TRANSFER GEAR; OUTPUT
▶

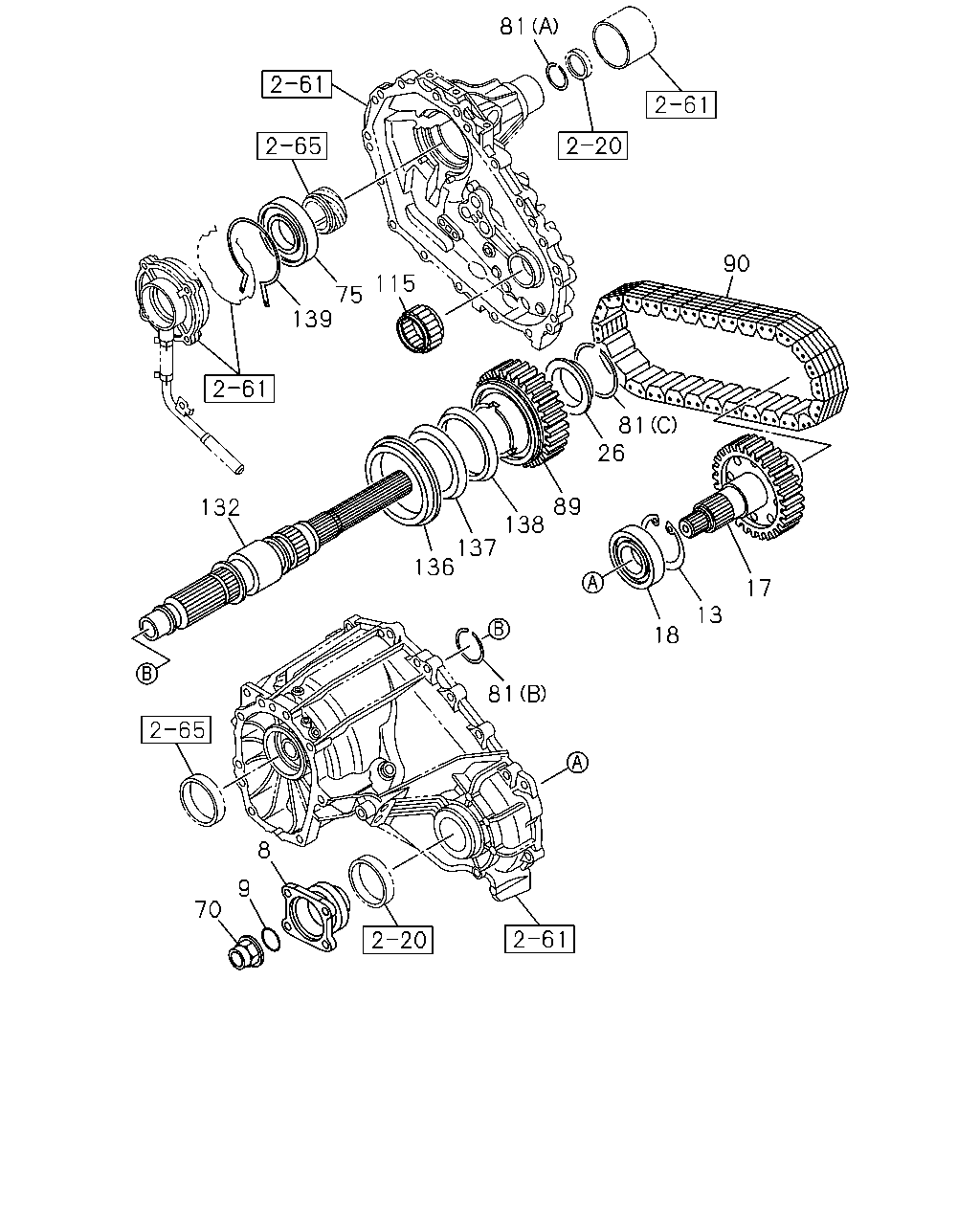

2-66 — MANUAL TRANSFER GEAR; OUTPUT
(#147254) — 24 parça
90
81
26
89
138
17
13
18
137
136
115
81
75
139
132
81
8
9
70
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
FLANGE; OUTPUT
IMA
8-97319-825-2
01
1
1409-
9
GASKET; SHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=29.7 OD=36.1 IMA
8-94483-035-0
01
1
1409-
13
RING; SNAP,OUTPUT,FRT
ID=67 IMA
8-97305-402-0
01
1
1409-
17
SHAFT; OUTPUT
IMA
8-97231-853-0
01
1
1409-
18
BEARING; BALL,OUTPUT,FRT
NSK IMA
8-94422-172-1
01
1
1409-
26
WASHER; THRUST
IMA
8-97239-774-0
01
1
1409-
70
NUT; RR OUTPUT SHAFT,TRANSFER
M36 FLANGE IMA
8-97358-603-0
01
1
1409-
75
BEARING; BALL,RR OUTPUT
IMA
8-97234-737-0
01
1
1409-
81
RING; SNAP
(A) T=1.9 IMA
8-97305-404-1
01
1
1409-
81
RING; SNAP
(B) T=1.4 IMA
8-97305-405-0
01
1
1409-
81
RING; SNAP
(C) T=2.15 RED IMA
8-97305-407-0
01
1
1409-
81
RING; SNAP
(C) T=2.10 NON COLOR IMA
8-97305-408-0
01
1
1409-
81
RING; SNAP
(C) T=2.05 BLUE IMA
8-97305-409-0
01
1
1409-
81
RING; SNAP
(C) T=2.00 WHITE IMA
8-97305-410-0
01
1
1409-
89
SPROCKET; DRIVE
Z=48 IMA
8-98013-525-0
01
1
1409-
90
CHAIN; DRIVE
IMA
8-98275-645-0
01
1
1409-
115
BEARING; NEEDLE
IMA
8-97234-747-0
01
1
1409-
132
SHAFT; MAIN,TRANSFER
A/T 5 SPEED-AISIN<MA1> Z=34-36-26-27 IMA
8-98316-370-0
01
1
1509-
132
SHAFT; MAIN,TRANSFER
Z=34-36-26-27 IMA
8-98013-925-1
01
1
1409-1508
132
SHAFT; MAIN,TRANSFER
M/T MUX 5 SPEED 5S<MZJ> Z=34-36-26-27 IMA
8-98013-925-1
01
1
1509-
136
BLOCK RING; 2-4
Z=48 IMA
8-94363-054-1
01
1
1409-
137
RING; OUTSIDE,2-4
OD=90.0 IMA
8-94363-055-1
01
1
1409-
138
RING; INSIDE,2-4
OD=95.8 IMA
8-94363-056-0
01
1
1409-
139
RING; RETAINING,RR OUTPUT
ID=76 IMA
8-97305-012-0
01
1
1409-
