Isuzu WW
▶
SUV
▶
UCR
▶
51577 - UCR/UCS(THAILAND)
▶
2 - Clutch, Transmission, Trans Axle
▶

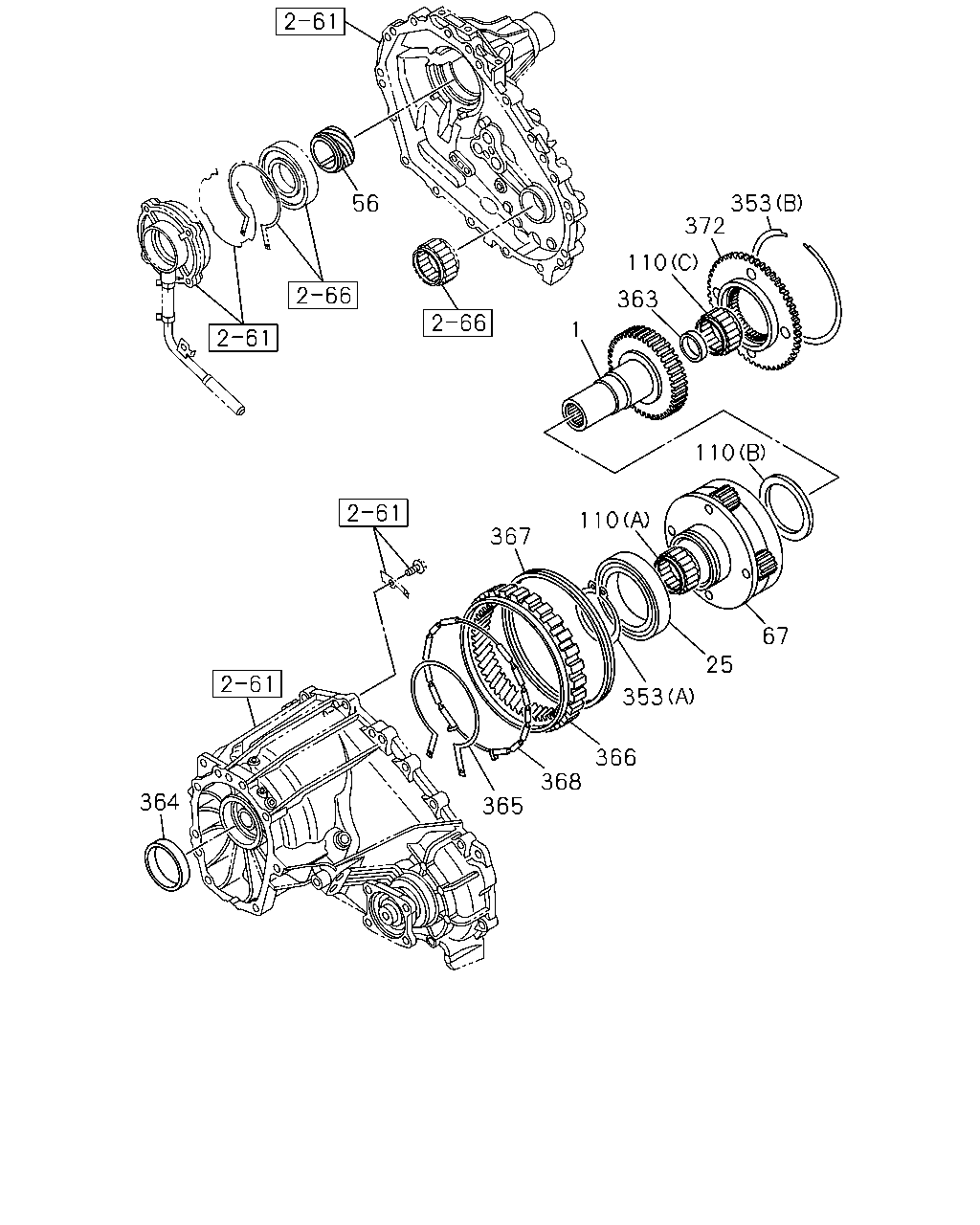

2-65 - MANUAL TRANSFER GEAR; INPUT AND IDLE
▶
2-65 — MANUAL TRANSFER GEAR; INPUT AND IDLE
(#147253) — 17 parça
56
1
363
110
372
353
110
67
25
110
353
366
367
368
365
364
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHAFT; GEAR,INPUT
M/T MUX 5 SPEED 5S<MZJ> IMA
8-97373-467-0
01
1
1409-
1
SHAFT; GEAR,INPUT
A/T 5 SPEED-AISIN<MA1> IMA
8-98118-924-1
01
1
1409-
25
BEARING; BALL,INPUT SHAFT
NSK IMA
8-97234-735-0
01
1
1409-
56
GEAR; SPD DRIVE,TRANSFER
Z=6 IMA
8-97238-581-0
01
1
1409-
67
CARRIER; TRANSFER
IMA
8-98158-116-0
01
1
1409-
110
BEARING; NEEDLE
(A) IMA
8-97234-739-0
01
1
1409-
110
BEARING; NEEDLE
(B) IMA
8-97234-741-0
01
1
1409-
110
BEARING; NEEDLE
(C) IMA
8-97234-743-0
01
1
1409-
353
RING; SNAP,CARRIER
(A) ID=65.5 IMA
8-97305-403-0
01
1
1409-
353
RING; SNAP,CARRIER
(B) ID=137 IMA
8-97305-406-0
01
1
1409-
363
CAP; SEAL,INPUT SHAFT
IMA
8-97238-725-0
01
1
1409-
364
SEAL; OIL,COVER,INPUT
NOK IMA
8-97238-999-0
01
1
1409-
365
RING; RETAINING,OUTER INPUT
ID=97 IMA
8-97305-010-1
01
1
1409-
366
GEAR; INTERNAL,HIGH-LOW
Z=27 IMA
8-97231-831-2
01
1
1409-
367
RING; RETAINING,SPIRAL TYPE
ID=162 OD=176 IMA
8-97247-459-0
01
1
1409-
368
RING; DAMPER,TRANSFER
ID=168.4 OD=178 IMA
8-97320-914-0
01
1
1409-
372
TEETH; DOG,PLANETARY
Z=56 IMA
8-97358-244-0
01
1
1409-
