Isuzu WW
▶
SUV
▶
UCR
▶
51577 - UCR/UCS(THAILAND)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-53 - TRANSMISSION OIL COOLER SYSTEM
▶

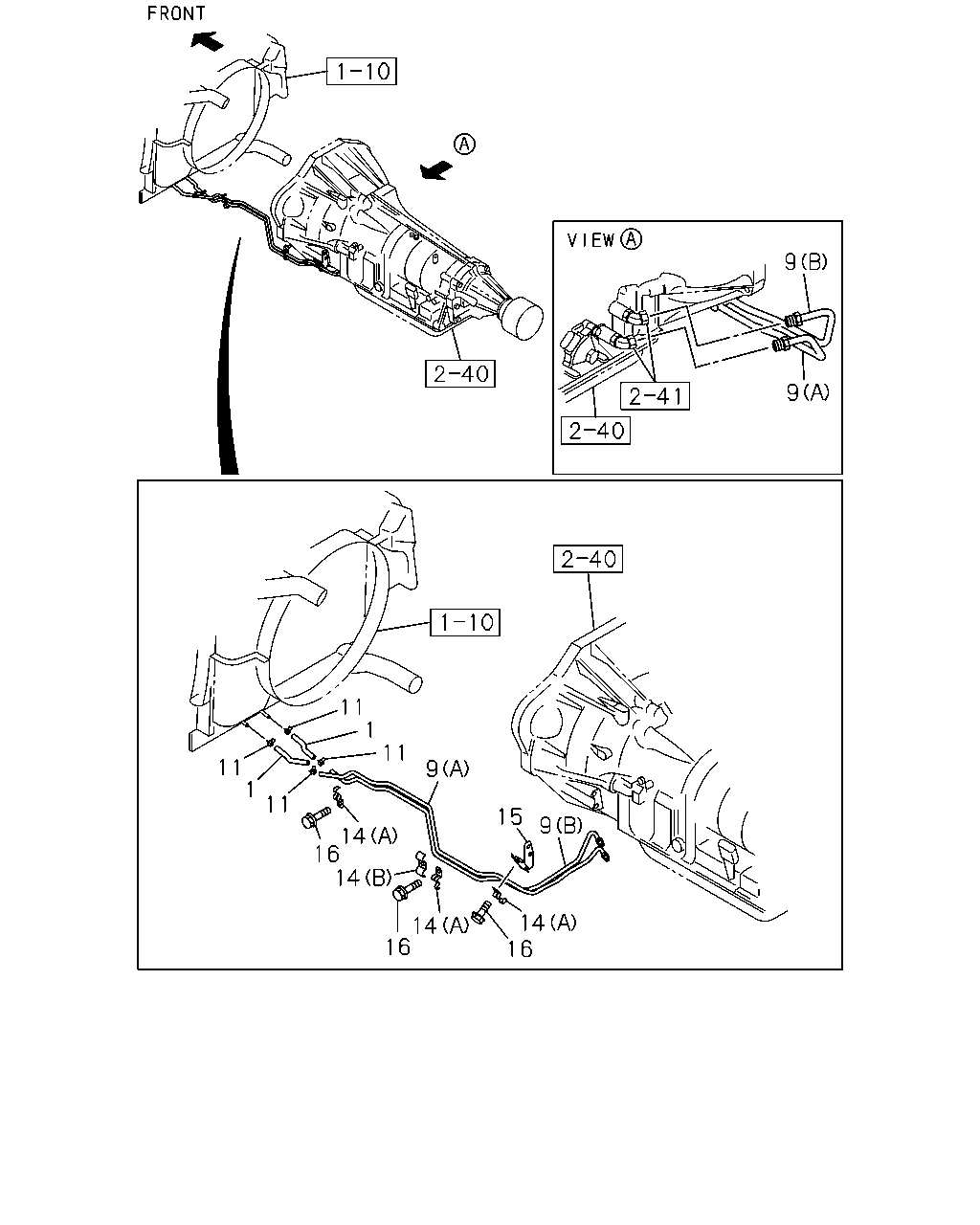

2-53 — TRANSMISSION OIL COOLER SYSTEM
(#147247) — 11 parça
9
9
9
9
14
16
16
14
16
11
1
11
11
1
11
14
14
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; ATF
L=180 SERVICED BY L=3000 IMA
0-02259-300-0
02
1
1409-
9
PIPE; ATF,INL,A/T
4X2<UCB***> (A) INLET THA
8-98100-272-2
01
1
1409-
9
PIPE; ATF,INL,A/T
4X2<UCB***> (B) RETURN THA
8-98100-274-2
01
1
1409-
9
PIPE; ATF,INL,A/T
4X4<UCS***> (A) INLET THA
8-98221-531-2
01
1
1409-
9
PIPE; ATF,INL,A/T
4X4<UCS***> (B) RETURN THA
8-98221-532-2
01
1
1409-
11
CLIP; PIPE
IMA
8-98008-165-0
04
1
1409-
14
CLIP; PIPE TO ENG SIDE
4X2<UCB***> (A) IMA
8-98008-163-0
03
1
1409-
14
CLIP; PIPE TO ENG SIDE
4X4<UCS***> (A) IMA
8-98008-163-0
02
1
1409-
14
CLIP; PIPE TO ENG SIDE
4X4<UCS***> (B) THA
8-98232-374-0
01
1
1409-
15
BRACKET; ATF PIPE
THA
8-98100-277-0
01
1
1409-
16
BOLT; CLIP,ENG SIDE
M8X16 FLANGE THA
0-28050-816-0
03
1
1409-
