2-47 — AUTO TRANS PLANETARY GEAR AND GOVERNOR (#147244) — 54 parça

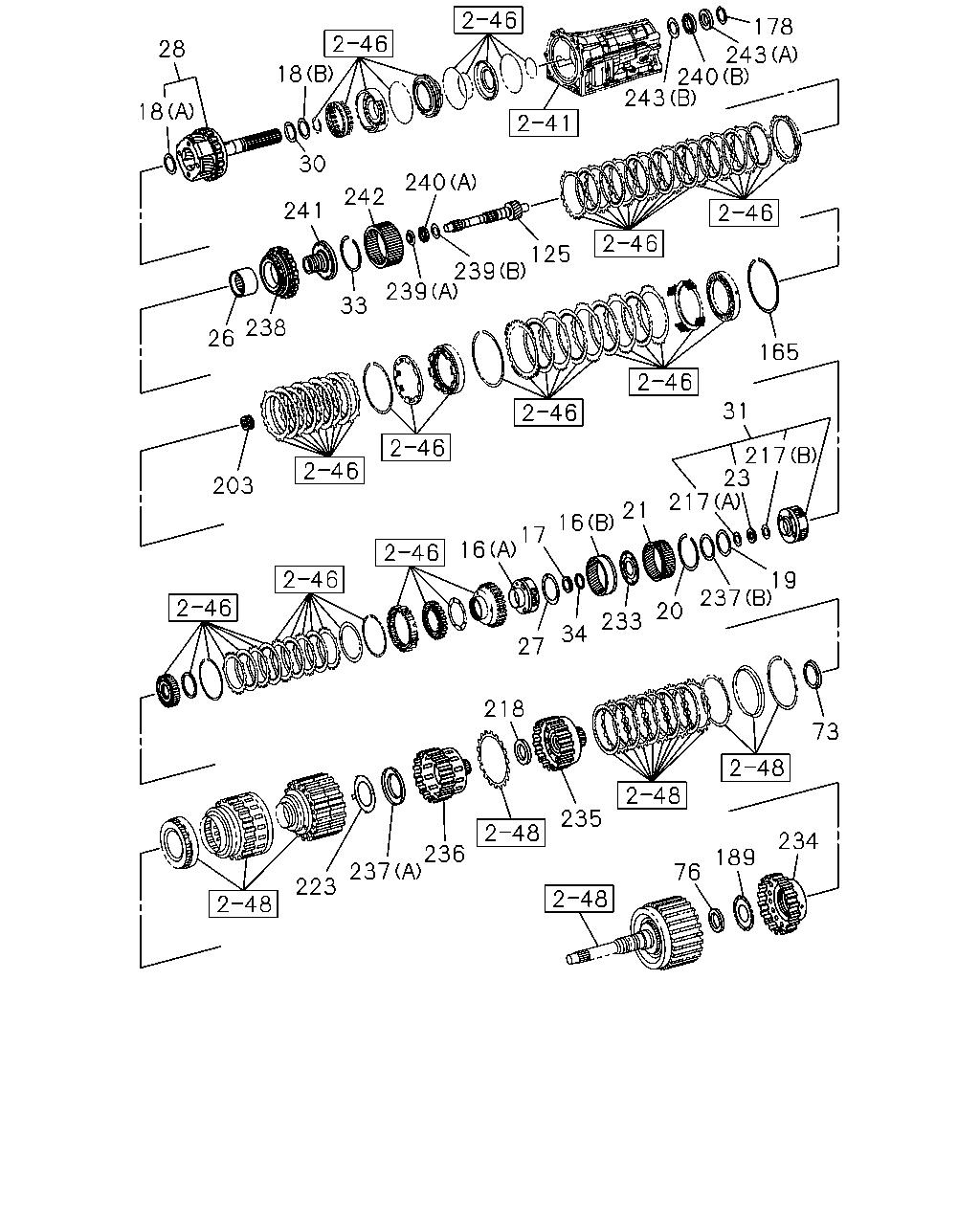

çizim 439280
28 18 18 30 241 242 240 125 239 239 33 238 26 203 16 17 16 21 217 23 217 31 165 243 240 243 178 19 237 20 233 34 27 218 235 76 189 234 73 236 237 223
BalonParca AdiParca NoAdetTipApplied Date
16 GEAR ASM; FRT PLANETARY,A/T
(A) THA 		8-98189-682-0 01 1 1409-
16 GEAR ASM; FRT PLANETARY,A/T
(B) THA 		8-98189-686-0 01 1 1409-
17 RACE; THRUST BRG,PLANETARY SHAFT,A/T
ID=38 THA 		8-98189-684-0 01 1 1409-
18 BEARING; THRUST,RR PLANETARY GEAR,A/T
(A) THA 		8-98189-708-0 01 1 1409-
18 BEARING; THRUST,RR PLANETARY GEAR,A/T
(B) IMA 		8-98189-712-0 01 1 1409-
19 RACE; THRUST BRG,PLANETARY SHAFT,A/T
IMA 		8-98189-692-0 01 1 1409-
20 RING; RET,PLANETARY GEAR,A/T
T=1.4 THA 		8-98189-691-0 01 1 1409-
21 GEAR; PLANETARY,INTERNAL FRT,A/T
THA 		8-98189-688-0 01 1 1409-
23 BEARING; THRUST,PLANETARY SHAFT,A/T
THA 		8-98189-695-0 01 1 1409-
26 RACE; ONEWAY CLU,A/T
IMA 		8-98189-701-0 01 1 1409-
27 WASHER; THRUST,FRT PLANETARY,A/T
ID=64 THA 		8-98189-683-0 01 1 1409-
28 GEAR ASM; RR PLANETARY,A/T
4X2<UCB***> THA 		8-98189-707-0 01 1 1409-
28 GEAR ASM; RR PLANETARY,A/T
4X4<UCS***> THA 		8-98189-784-0 01 1 1409-
30 RACE; THRUST BRG,RR PLANETARY FLANGE
IMA 		8-98189-711-0 01 1 1409-
31 GEAR ASM; INTERNAL,PLANETARY,A/T
THA 		8-98189-694-0 01 1 1409-
33 RING; RET,PLANETARY GEAR,A/T
T=1.4 IMA 		8-98189-710-0 01 1 1409-
34 BEARING; THRUST,FRT PLANETARY SHAFT,A/
THA 		8-98189-685-0 01 1 1409-
73 WASHER; THRUST,CARRIER
ID=74 THA 		8-98189-679-0 01 1 1409-
76 BEARING; THRUST,CARRIER
IMA 		8-98189-673-0 01 1 1409-
125 SHAFT ASM; INTERMEDIATE,PLANETARY GEAR
THA 		8-98189-698-0 01 1 1409-
165 RING; RET
ID=151 IMA 		8-98189-702-0 01 1 1409-
178 RING; RET
4X2<UCB***> ID=34 IMA 		8-98189-730-0 01 1 1409-
189 RACE; INNER,LOW CLU
ID=23 THA 		8-98189-670-0 01 1 1409-
203 GEAR; SUN
Z=31 THA 		8-98189-699-0 01 1 1409-
217 RACE; THRUST BRG,INTERNAL GEAR
(A) THA 		8-98189-696-0 01 1 1409-
217 RACE; THRUST BRG,INTERNAL GEAR
(B) THA 		8-98189-697-0 01 1 1409-
218 BEARING; THRUST,INTERNAL GEAR
THA 		8-98189-680-0 01 1 1409-
223 RACE; BRG,CARRIER
IMA 		8-98189-675-0 01 1 1409-
233 FLANGE; FR PLANETARY
THA 		8-98189-687-0 01 1 1409-
234 HUB; FORWARD CLUTCH
THA 		8-98189-674-0 01 1 1409-
235 HUB; REVERSE CLUTCH
THA 		8-98189-681-0 01 1 1409-
236 HUB; CLUTCH
THA 		8-98189-678-0 01 1 1409-
237 BEARING; THRUST
(A) IMA 		8-98189-676-0 01 1 1409-
237 BEARING; THRUST
(B) IMA 		8-98189-693-0 01 1 1409-
238 CLUTCH ASM; 1WAY
THA 		8-98189-700-0 01 1 1409-
239 RACE; INTERMEDIATE SHAFT
(A) IMA 		8-98189-703-0 01 1 1409-
239 RACE; INTERMEDIATE SHAFT
(B) IMA 		8-98189-704-0 01 1 1409-
240 BEARING; THRUST NEEDLE ROLLER
4X2<UCB***> (B) IMA 		8-98189-729-0 01 1 1409-
240 BEARING; THRUST NEEDLE ROLLER
(A) IMA 		8-98189-705-0 01 1 1409-
241 FLANGE; RR PLANETARY
THA 		8-98189-706-0 01 1 1409-
242 GEAR; RR PLANETARY
THA 		8-98189-709-0 01 1 1409-
243 RACE; THRUST BEARING
4X2<UCB***> (A) T=3.8 IMA 		8-98189-716-0 AR 1 1409-
243 RACE; THRUST BEARING
4X2<UCB***> (A) T=3.9 IMA 		8-98189-717-0 AR 1 1409-
243 RACE; THRUST BEARING
4X2<UCB***> (A) T=4.0 IMA 		8-98189-718-0 AR 1 1409-
243 RACE; THRUST BEARING
4X2<UCB***> (A) T=4.1 IMA 		8-98189-719-0 AR 1 1409-
243 RACE; THRUST BEARING
4X2<UCB***> (A) T=4.2 IMA 		8-98189-720-0 AR 1 1409-
243 RACE; THRUST BEARING
4X2<UCB***> (A) T=3.85 IMA 		8-98189-721-0 AR 1 1409-
243 RACE; THRUST BEARING
4X2<UCB***> (A) T=3.95 IMA 		8-98189-722-0 AR 1 1409-
243 RACE; THRUST BEARING
4X2<UCB***> (A) T=4.05 IMA 		8-98189-723-0 AR 1 1409-
243 RACE; THRUST BEARING
4X2<UCB***> (A) T=4.15 IMA 		8-98189-724-0 AR 1 1409-
243 RACE; THRUST BEARING
4X2<UCB***> (A) T=4.25 IMA 		8-98189-725-0 AR 1 1409-
243 RACE; THRUST BEARING
4X2<UCB***> (A) T=4.30 IMA 		8-98189-726-0 AR 1 1409-
243 RACE; THRUST BEARING
4X2<UCB***> (A) T=4.35 IMA 		8-98189-727-0 AR 1 1409-
243 RACE; THRUST BEARING
4X2<UCB***> (B) T=2.0 THA 		8-98189-728-0 01 1 1409-
