2-46 — AUTO TRANS SUPPORT AND PLANETARY GEAR (#147243) — 68 parça

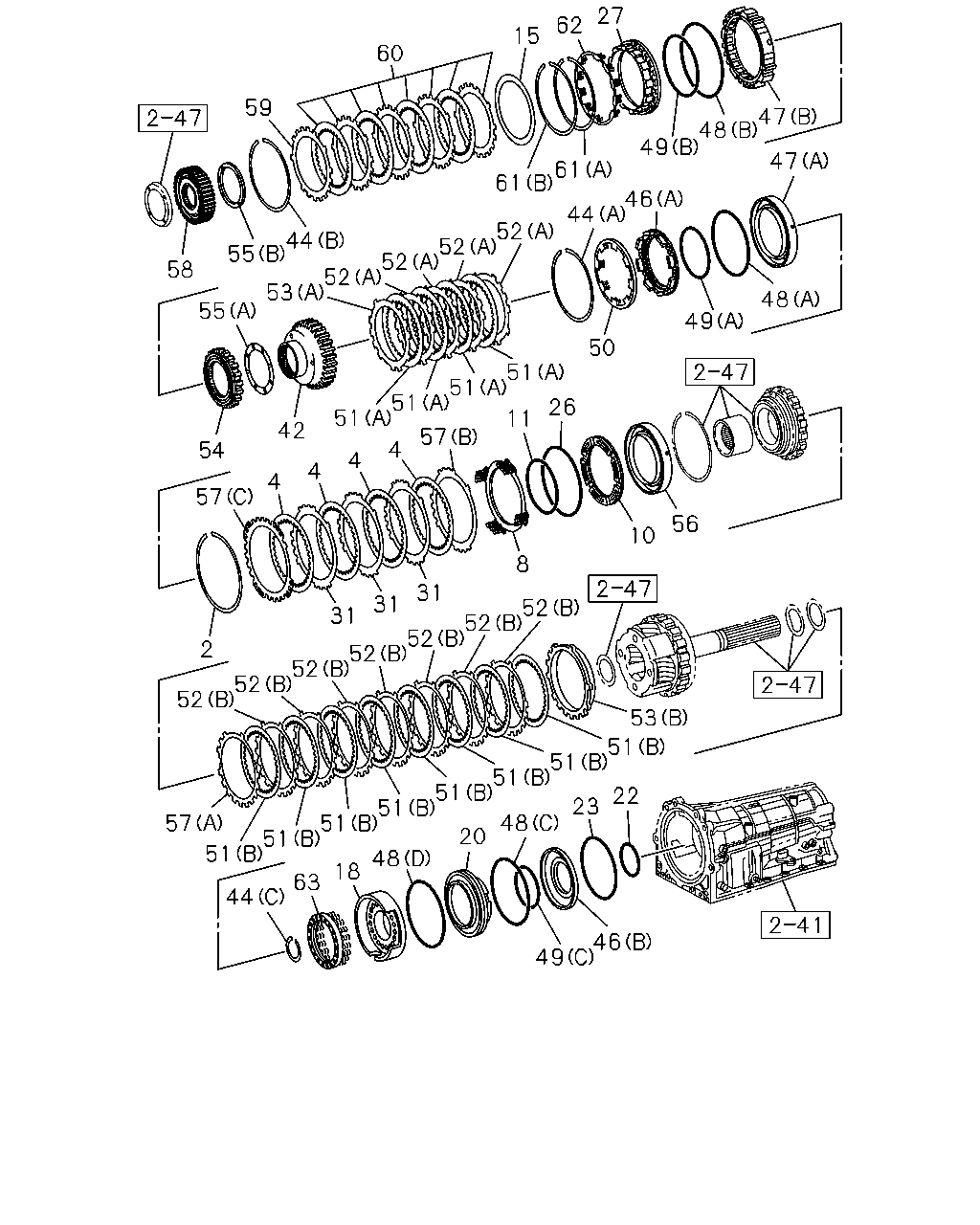

çizim 439400
60 59 55 58 55 53 52 52 44 52 52 61 61 44 46 49 48 47 47 15 62 27 48 49 50 26 11 51 51 51 51 42 54 57 4 4 4 4 57 8 31 31 31 2 52 52 52 52 52 52 52 57 51 44 18 63 51 51 48 51 51 51 51 51 53 22 23 48 20 49 46 56 10
BalonParca AdiParca NoAdetTipApplied Date
2 RING; RET,FRT BRK,2ND BRK,A/T
ID=148 THA 		8-98189-627-0 01 1 1409-
4 DISC ASM; CLU & FACING,2ND BRK,A/T
4JK1-TCX ENG<LR0> THA 		8-98189-625-0 03 1 1409-
4 DISC ASM; CLU & FACING,2ND BRK,A/T
4JJ1-TCX ENG<LS0> THA 		8-98189-625-0 04 1 1409-
8 SPRING; RETURN,FRT BRK,A/T
4JK1-TCX ENG<LR0> THA 		8-98189-769-0 01 1 1409-
8 SPRING; RETURN,FRT BRK,A/T
4JJ1-TCX ENG<LS0> THA 		8-98189-622-0 01 1 1409-
10 PISTON; BRK,FRT,2ND BRK,A/T
4JK1-TCX ENG<LR0> THA 		8-98189-768-0 01 1 1409-
10 PISTON; BRK,FRT,2ND BRK,A/T
4JJ1-TCX ENG<LS0> THA 		8-98189-618-0 01 1 1409-
11 GASKET; BRK PISTON,FRT,INNER,A/T
ID=117 THA 		8-98189-621-0 01 1 1409-
15 PLATE; BRK CUSHION,A/T
THA 		8-98189-635-0 01 1 1409-
18 PISTON; LOW & REV BRK,A/T
THA 		8-98189-644-0 01 1 1409-
20 SLEEVE; BRK REACTION,A/T
THA 		8-98189-652-0 01 1 1409-
22 GASKET; BRK PISTON,RR,INNER,A/T
ID=67 IMA 		8-98189-645-0 01 1 1409-
23 GASKET; BRK PISTON,RR,OUTER,A/T
ID=116 THA 		8-98189-646-0 01 1 1409-
26 GASKET; BRK PISTON,FRT,OUTER,A/T
ID=137 THA 		8-98189-620-0 01 1 1409-
27 PISTON; BRK,RR,2ND BRK,A/T
THA 		8-98189-629-0 01 1 1409-
31 PLATE; CLU BACKING,2ND BRK,A/T
T=2.0 THA 		8-98189-626-0 03 1 1409-
42 RACE; THRUST BRG,A/T
THA 		8-98189-614-0 01 1 1409-
44 RING; RET
(A) ID=160 THA 		8-97184-521-0 01 1 1409-
44 RING; RET
(B) ID=162 THA 		8-98189-637-0 01 1 1409-
44 RING; RET
(C) ID=61 IMA 		8-98189-655-0 01 1 1409-
46 PISTON; BRK
4JK1-TCX ENG<LR0> (A) THA 		8-98189-767-0 01 1 1409-
46 PISTON; BRK
4JJ1-TCX ENG<LS0> (A) THA 		8-98189-600-0 01 1 1409-
46 PISTON; BRK
(B) THA 		8-98189-643-0 01 1 1409-
47 CYLINDER; BRK
(A) THA 		8-98189-601-0 01 1 1409-
47 CYLINDER; BRK
(B) THA 		8-98189-630-0 01 1 1409-
48 GASKET; BRK
(A) ID=143 THA 		8-98189-604-0 01 1 1409-
48 GASKET; BRK
(B) ID=149 IMA 		8-98189-631-0 01 1 1409-
48 GASKET; BRK
(C) ID=128 THA 		8-98189-649-0 01 1 1409-
48 GASKET; BRK
(D) ID=132 IMA 		8-98189-650-0 01 1 1409-
49 GASKET; BRK PISTON
(A) ID=127 THA 		8-98189-605-0 01 1 1409-
49 GASKET; BRK PISTON
(B) ID=137 THA 		8-98189-620-0 01 1 1409-
49 GASKET; BRK PISTON
(C) ID=79 IMA 		8-98189-647-0 01 1 1409-
50 SPRING; BRK PISTON RETURN
THA 		8-98189-606-0 01 1 1409-
51 DISC; BRK
4JK1-TCX ENG<LR0> (A) OD=158 THA 		8-98189-607-0 03 1 1409-
51 DISC; BRK
4JJ1-TCX ENG<LS0> (A) OD=158 THA 		8-98189-607-0 04 1 1409-
51 DISC; BRK
(B) OD=140 THA 		8-98189-656-0 08 1 1409-
52 PLATE; BRAKE
4JK1-TCX ENG<LR0> (A) T=2.4 THA 		8-98189-608-0 03 1 1409-
52 PLATE; BRAKE
4JJ1-TCX ENG<LS0> (A) T=2.4 THA 		8-98189-608-0 04 1 1409-
52 PLATE; BRAKE
(B) ID=125 IMA 		8-98189-657-0 07 1 1409-
53 FLANGE; BRAKE
(A) T=2.0 THA 		8-98189-609-0 AR 1 1409-
53 FLANGE; BRAKE
(A) T=2.2 THA 		8-98189-610-0 AR 1 1409-
53 FLANGE; BRAKE
(A) T=2.4 THA 		8-98189-611-0 AR 1 1409-
53 FLANGE; BRAKE
(A) T=2.6 THA 		8-98189-612-0 AR 1 1409-
53 FLANGE; BRAKE
(B) T=9.0 THA 		8-98189-658-0 01 1 1409-
54 CLUTCH ASM; 1WAY
THA 		8-98189-613-0 01 1 1409-
55 WASHER; THRUST
(A) THA 		8-98189-615-0 01 1 1409-
55 WASHER; THRUST
(B) THA 		8-98189-640-0 01 1 1409-
56 CYLINDER; BRAKE
THA 		8-98189-619-0 01 1 1409-
57 FLANGE; BRAKE
4JJ1-TCX ENG<LS0> (B) T=2.3 THA 		8-98189-623-0 01 1 1409-
57 FLANGE; BRAKE
(C) T=4.6 THA 		8-98189-624-0 01 1 1409-
57 FLANGE; BRAKE
(A) T=1.8 IMA 		8-98189-659-0 AR 1 1409-
57 FLANGE; BRAKE
(A) T=1.97 IMA 		8-98189-660-0 AR 1 1409-
57 FLANGE; BRAKE
(A) T=2.11 IMA 		8-98189-661-0 AR 1 1409-
57 FLANGE; BRAKE
(A) T=2.25 IMA 		8-98189-662-0 AR 1 1409-
57 FLANGE; BRAKE
(A) T=2.39 IMA 		8-98189-663-0 AR 1 1409-
57 FLANGE; BRAKE
(A) T=2.53 IMA 		8-98189-664-0 AR 1 1409-
57 FLANGE; BRAKE
(A) T=2.67 IMA 		8-98189-665-0 AR 1 1409-
57 FLANGE; BRAKE
(A) T=2.81 IMA 		8-98189-666-0 AR 1 1409-
57 FLANGE; BRAKE
(A) T=2.95 IMA 		8-98189-667-0 AR 1 1409-
57 FLANGE; BRAKE
(A) T=3.09 IMA 		8-98189-668-0 AR 1 1409-
57 FLANGE; BRAKE
(A) T=3.23 IMA 		8-98189-669-0 AR 1 1409-
58 CLUTCH ASM; 1WAY
THA 		8-98189-639-0 01 1 1409-
59 FLANGE; BRAKE NO3
THA 		8-98189-636-0 01 1 1409-
60 DISC ASM; BRAKE
THA 		8-98189-634-0 01 1 1409-
61 RING; SNAP,BRK
(A) ID=125 THA 		8-98189-632-0 01 1 1409-
61 RING; SNAP,BRK
(B) ID=173 THA 		8-98189-633-0 01 1 1409-
62 SPRING; BRK PISTON
THA 		8-98189-628-0 01 1 1409-
63 SPRING; 1ST & REVS BRAKE RETURN
IMA 		8-98189-654-0 01 1 1409-
