2-44 — AUTO TRANS CONTROL VALVE; LOWER BODY (#147242) — 30 parça

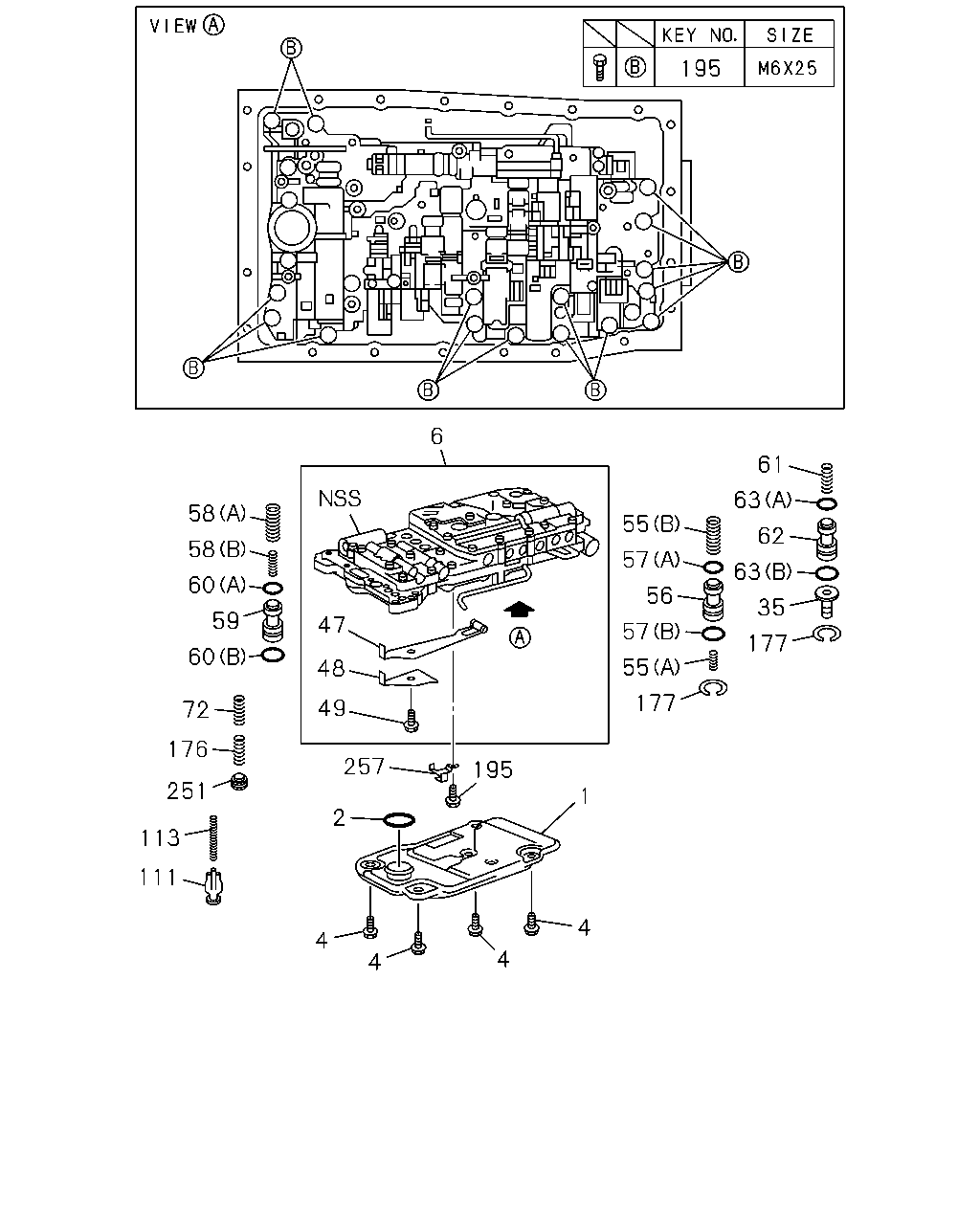

çizim 439305
195 6 58 111 113 251 176 72 60 59 60 58 47 48 49 257 2 4 4 4 4 1 195 177 55 57 56 57 55 177 35 63 62 63 61
BalonParca AdiParca NoAdetTipApplied Date
1 STRAINER ASM; OIL,A/T
THA 		8-98189-731-0 01 1 1409-
2 GASKET; OIL STRAINER,A/T
THA 		8-98189-732-0 01 1 1409-
4 BOLT; OIL STRAINER,A/T
M6X12 THA 		8-94479-927-0 04 1 1409-
6 BODY ASM; VLV LWR,A/T
THA 		8-98189-497-0 01 1 1409-
35 SPRING; LWR VLV BODY
THA 		8-98189-477-0 01 1 1409-
47 SPRING; DETENT,A/T
THA 		8-98189-498-0 01 1 1409-
48 PLATE; DETENT SPR,A/T
IMA 		8-98189-499-0 01 1 1409-
49 BOLT; DETENT SPR PLATE,A/T
M6X14 IMA 		8-98189-500-0 01 1 1409-
55 SPRING; ACCUMLATOR PISTON
(A) THA 		8-98189-480-0 01 1 1409-
55 SPRING; ACCUMLATOR PISTON
(B) THA 		8-98189-481-0 01 1 1409-
56 PISTON; ACCUMLATOR
THA 		8-98189-735-0 01 1 1409-
57 GASKET; 2ND SPD PISTON,A/T
(A) ID=24 THA 		8-97184-889-0 01 1 1409-
57 GASKET; 2ND SPD PISTON,A/T
(B) ID=34 THA 		8-98189-737-0 01 1 1409-
58 SPRING; DIRECT CLU (C-2 ACCUM),A/T
(A) THA 		8-97184-330-0 01 1 1409-
58 SPRING; DIRECT CLU (C-2 ACCUM),A/T
(B) THA 		8-98189-479-0 01 1 1409-
59 PISTON; DIRECT CLU,A/T
THA 		8-98189-734-0 01 1 1409-
60 GASKET; DIRECT CLU PISTON,A/T
(A) ID=27 THA 		8-97184-886-0 01 1 1409-
60 GASKET; DIRECT CLU PISTON,A/T
(B) ID=34 THA 		8-98189-737-0 01 1 1409-
61 SPRING; FWD CLU,(C-1 ACUUM),A/T
THA 		8-98189-478-0 01 1 1409-
62 PISTON; FWD CLU,A/T
THA 		8-98189-733-0 01 1 1409-
63 GASKET; FWD CLU,A/T
(A) ID=20 THA 		8-97184-885-0 01 1 1409-
63 GASKET; FWD CLU,A/T
(B) ID=29 THA 		8-98189-736-0 01 1 1409-
72 SPRING; ACCUMLATOR PISTON
THA 		8-98189-483-0 01 1 1409-
111 BODY; CHECK BALL
THA 		8-94479-931-0 01 1 1409-
113 SPRING; CHECK BALL
THA 		8-94479-930-0 01 1 1409-
176 SPRING; ACCUM INNER
THA 		8-98189-482-0 01 1 1409-
177 RING; SNAP
ID=19 THA 		8-97025-821-0 02 1 1409-
195 BOLT; CLAMP
M6X25 IMA 		8-94473-624-0 16 1 1409-
251 VALVE; ACCUMULATOR
THA 		8-98189-739-0 01 1 1409-
257 CLAMP; HARNESS
THA 		8-98189-740-0 01 1 1409-
