51577 - UCR/UCS(THAILAND)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-42 - AUTO TRANS OIL PAN AND OIL CONTROL
▶

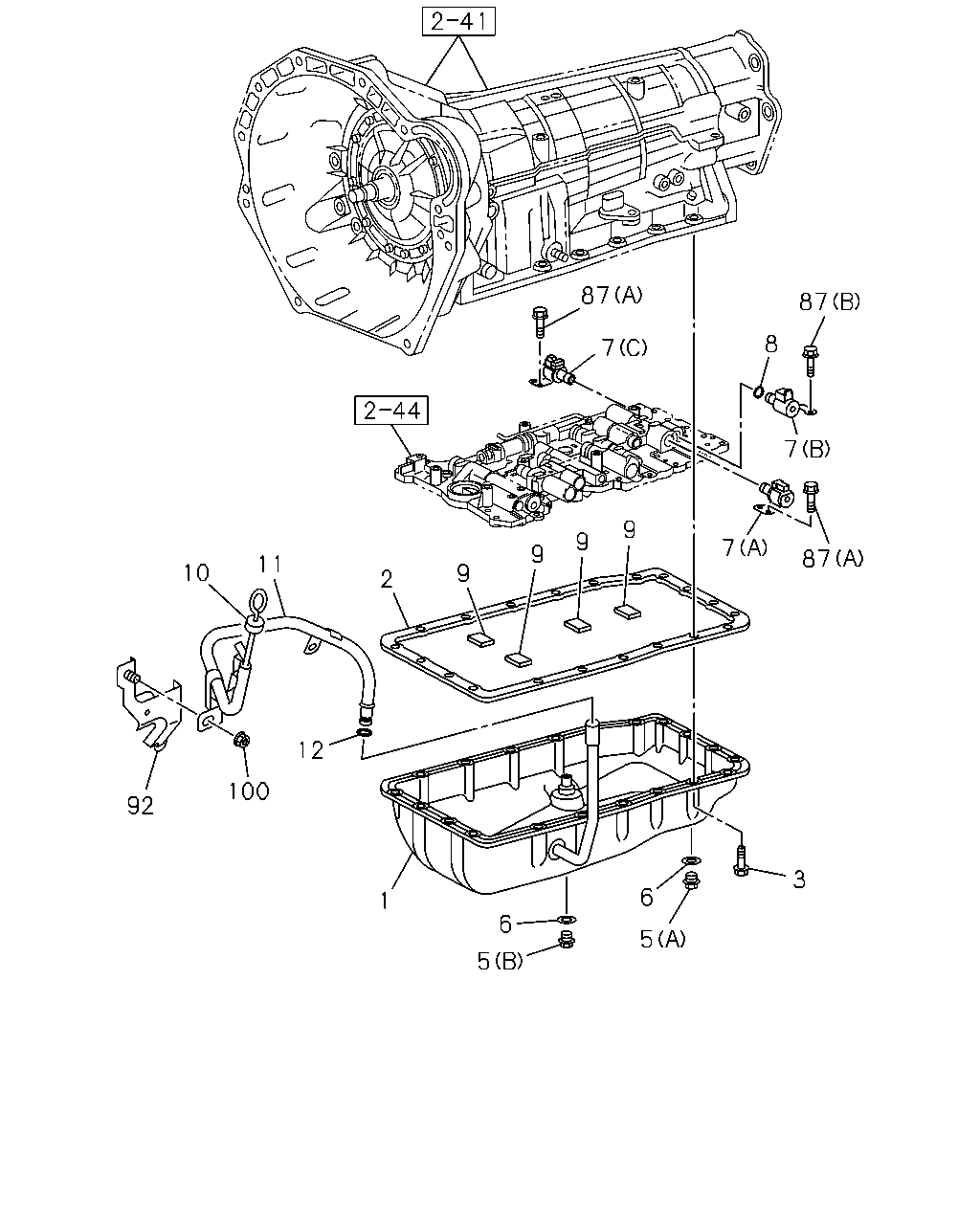

2-42 — AUTO TRANS OIL PAN AND OIL CONTROL
(#147241) — 18 parça
87
7
8
87
7
7
87
9
9
9
9
2
11
10
92
100
12
1
6
5
5
6
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAN ASM; OIL,A/T
THA
8-98189-750-0
01
1
1409-
2
GASKET; OIL PAN,A/T
THA
8-98189-738-0
01
1
1409-
3
BOLT; OIL PAN TO CASE
M6X15 THA
8-98189-751-0
20
1
1409-
5
PLUG; OIL PAN
(A) M10X9 IMA
8-97367-573-0
01
1
1409-
5
PLUG; OIL PAN
(B) M10X9 IMA
8-98189-752-0
01
1
1409-
6
GASKET; OIL PAN TO PLUG
ID=12 IMA
5-34132-002-0
02
1
1409-
7
SOLENOID; DOWN SHIFT,A/T
(A) THA
8-98189-501-0
01
1
1409-
7
SOLENOID; DOWN SHIFT,A/T
(B) THA
8-98189-502-0
01
1
1409-
7
SOLENOID; DOWN SHIFT,A/T
(C) THA
8-98189-503-0
01
1
1409-
8
GASKET; DOWN SHIFT SOLENOID,A/T
ID=6.1 THA
8-94480-101-0
01
1
1409-
9
MAGNET; OIL PAN
IMA
5-34138-004-0
04
1
1409-
10
GAUGE; OIL LEVEL
THA
8-98161-864-0
01
1
1409-
11
TUBE; OIL FILLER
THA
8-98161-918-1
01
1
1409-
12
GASKET; OIL FILLER TUBE TO A/T
ID=9.8 THA
9-09561-110-0
01
1
1409-
87
BOLT; SOLENOID
(A) M5X12 THA
8-94405-335-0
03
1
1409-
87
BOLT; SOLENOID
(B) M6X12 THA
8-94479-927-0
01
1
1409-
92
BRACKET; OIL FILLER
THA
8-98170-153-0
01
1
1409-
100
NUT; FILLER TUBE
M8 FLANGE THA
0-91180-108-0
01
1
1409-
