◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51577 - UCR/UCS(THAILAND) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-26 - MANUAL TRANSMISSION GEAR ▶

2-26 — MANUAL TRANSMISSION GEAR (#147236) — 178 parça

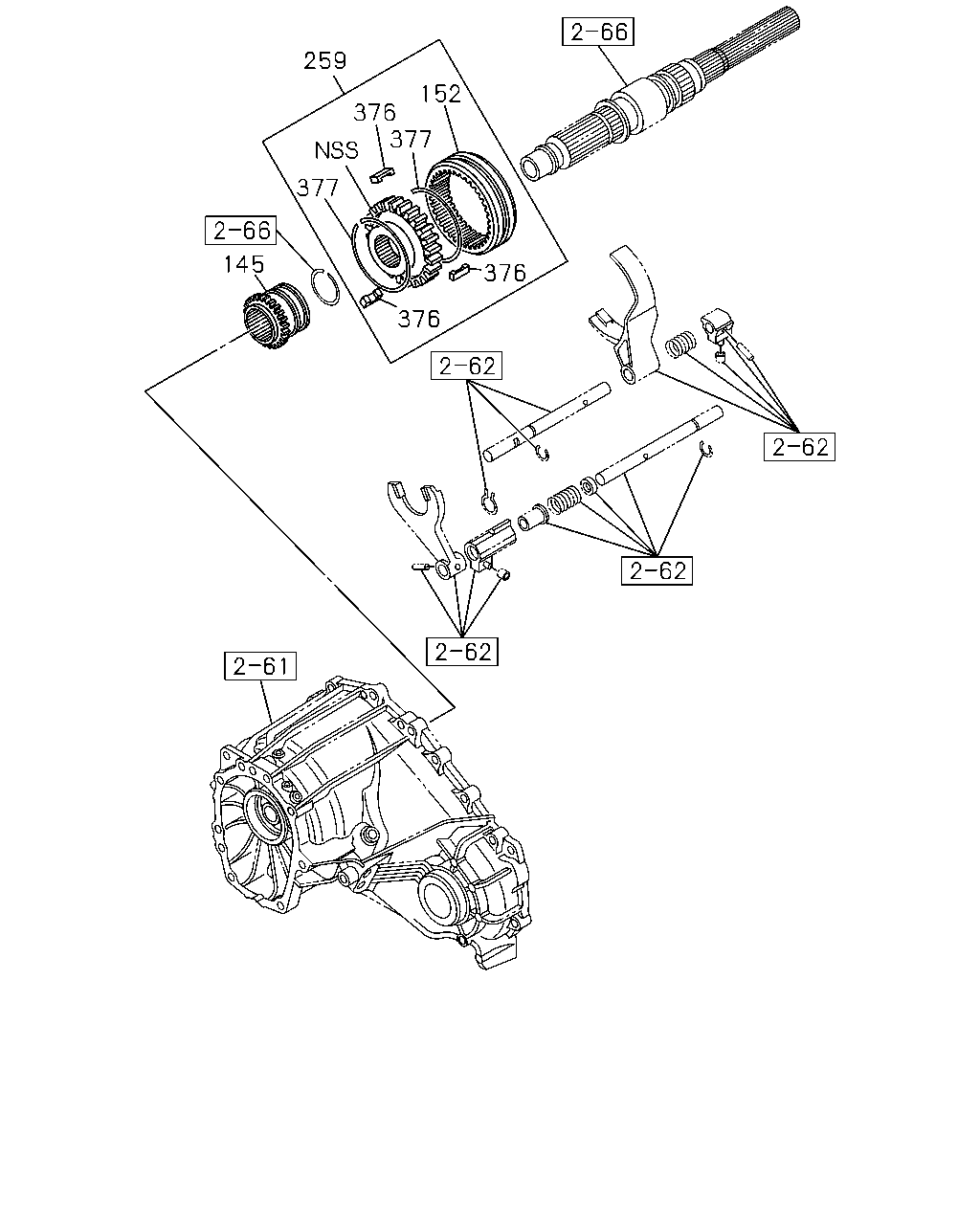

259 152 376 145 377 377 376 376

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
145	SLEEVE; HIGH-LOW SHIFT,TRANSFER IMA	8-98063-369-1	01	1	1409-	●
145	SLEEVE; HIGH-LOW SHIFT,TRANSFER 4X4<UCS***> IMA	8-98063-369-1	01	1	1409-		●
152	SLEEVE; 4X2-4X4 SHIFT,TRANSFER IMA	8-94363-060-0	01	1	1409-	●
152	SLEEVE; 4X2-4X4 SHIFT,TRANSFER 4X4<UCS***> IMA	8-94363-060-0	01	1	1409-		●
259	SYNCHRONIZER; 4X2-4X4,TRANSFER IMA	8-97234-225-0	01	1	1409-	●
259	SYNCHRONIZER; 4X2-4X4,TRANSFER 4X4<UCS***> IMA	8-97234-225-0	01	1	1409-		●
376	INSERT; 4X2-4X4 SYN,TRANSFER IMA	8-97238-590-0	03	1	1409-	●
376	INSERT; 4X2-4X4 SYN,TRANSFER 4X4<UCS***> IMA	8-97238-590-0	03	1	1409-		●
377	SPRING; INSERT,4X2-4X4 SYN,TRANSFER IMA	8-94448-045-0	02	1	1409-	●
377	SPRING; INSERT,4X2-4X4 SYN,TRANSFER 4X4<UCS***> IMA	8-94448-045-0	02	1	1409-		●

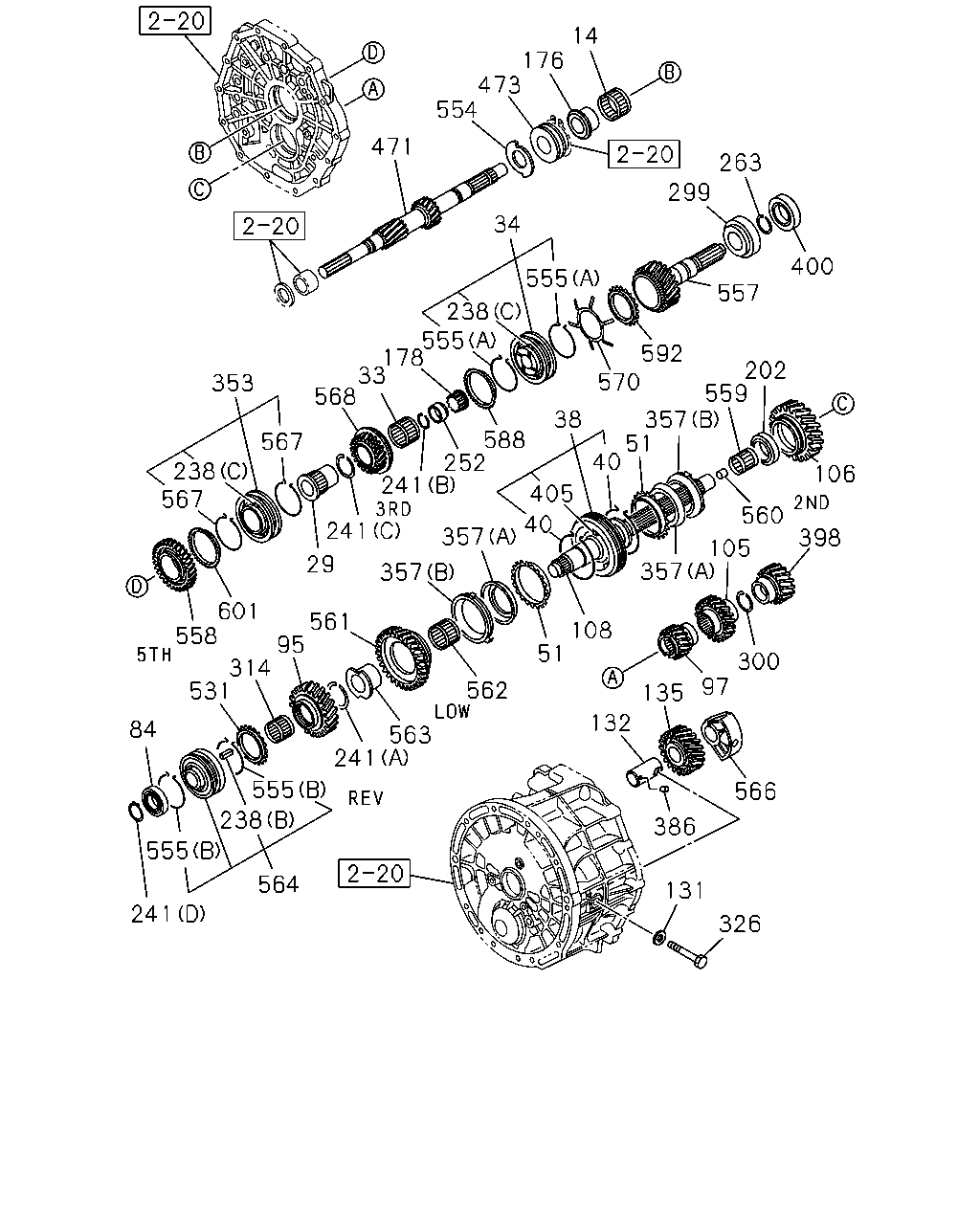

471 554 473 176 14 263 299 34 400 557 592 202 559 357 51 40 405 40 357 357 561 95 314 531 84 555 241 564 238 241 555 563 562 108 51 135 132 386 131 326 566 97 357 560 105 300 398 106 570 38 588 252 241 241 29 601 558 567 238 567 568 33 178 555 238 555 353

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	BEARING; NEEDLE,5TH NSK IMA	8-97362-728-0	01	1	1409-	●
14	BEARING; NEEDLE,5TH NTN IMA	8-98172-356-0	01	1	1409-			●
29	COLLAR; 3RD GEAR IMA	8-97362-568-1	01	1	1409-	●
33	BEARING; NEEDLE,3RD GEAR NSK IMA	1-09811-028-1	01	1	1409-	●	●	●
34	SYNCHRONIZER; 4TH & 3RD THA	8-97362-474-3	01	1	1409-	●
34	SYNCHRONIZER; 4TH & 3RD IMA	8-97977-991-0	01	1	1409-			●
38	SYNCHRONIZER; LOW & 2ND THA	8-97362-503-1	01	1	1409-	●
38	SYNCHRONIZER; LOW & 2ND IMA	8-97977-989-0	01	1	1409-			●
40	SPRING; INSERT,LOW & 2ND IMA	8-94448-045-0	02	1	1409-	●	●	●
51	RING; BLOCK,LOW & 2ND Z=36 IMA	8-98115-804-0	02	1	1409-	●	●	●
84	BEARING; COUNTER SHAFT,FRT IMA	8-97362-724-0	01	1	1409-	●
95	GEAR; REV,COUNTER Z=41 THA	8-98210-237-0	01	1	1409-	●
95	GEAR; REV,COUNTER Z=19 IMA	8-94377-433-0	01	1	1409-			●
97	GEAR; 5TH,COUNTER Z=27 THA	8-98040-114-0	01	1	1409-	●
97	GEAR; 5TH,COUNTER Z=50 IMA	8-94377-434-0	01	1	1409-			●
105	GEAR; 3RD,COUNTER Z=31 THA	8-98233-612-0	01	1	1409-	●
106	GEAR; 2ND,COUNTER Z=38 THA	8-98210-236-0	01	1	1409-	●
108	SHAFT; COUNTER Z=26-34-26-26 THA	8-98023-108-1	01	1	1409-	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=12.2 IMA	9-09571-412-0	01	1	1409-	●
132	SHAFT; REV THA	8-98023-113-0	01	1	1409-	●
132	SHAFT; REV IMA	8-98245-493-0	01	1	1409-			●
135	GEAR; REV IDLER Z=32 THA	8-98233-615-0	01	1	1409-	●
135	GEAR; REV IDLER Z=33 THA	8-98233-606-0	01	1	1409-			●
176	COLLAR; 5TH GEAR THA	8-97362-567-0	01	1	1409-	●
178	BEARING; NEEDLE,MAINSHAFT IMA	8-97362-869-0	01	1	1409-	●
202	BEARING; COUNTER GEAR IMA	8-97362-725-0	01	1	1409-	●
238	INSERT (B) IMA	8-94249-576-2	03	1	1409-	●
238	INSERT (C) IMA	8-98004-522-0	06	1	1409-	●
238	INSERT (A) IMA	8-94448-202-2	03	1	1409-			●
241	RING; SNAP (A) ID=34.4 T=1.9 IMA	8-97254-735-0	01	1	1409-	●
241	RING; SNAP (B) ID=27.1 T=1.9 IMA	8-97362-871-0	01	1	1409-	●
241	RING; SNAP (B) ID=27.1 T=2.1 IMA	8-97362-872-0	01	1	1409-	●
241	RING; SNAP (B) ID=27.1 T=2.3 IMA	8-97362-873-0	01	1	1409-	●
241	RING; SNAP (C) ID=37 T=1.95 IMA	8-98004-523-1	01	1	1409-	●
241	RING; SNAP (C) ID=37 T=2.1 IMA	8-98004-524-1	01	1	1409-	●
241	RING; SNAP (D) ID=27.9 IMA	9-09180-030-0	01	1	1409-	●
252	SPACER IMA	8-98024-456-0	01	1	1409-	●
263	RING; SNAP,OUTPUT SHAFT BRG ID=30.7 T=2.1 IMA	8-98004-525-0	01	1	1409-	●
263	RING; SNAP,OUTPUT SHAFT BRG ID=30.7 T=2.2 IMA	8-98004-526-0	01	1	1409-	●
263	RING; SNAP,OUTPUT SHAFT BRG ID=30.7 T=2.3 IMA	8-98004-527-0	01	1	1409-	●
263	RING; SNAP,OUTPUT SHAFT BRG ID=30.7 T=2.4 IMA	8-98004-528-0	01	1	1409-	●
263	RING; SNAP,OUTPUT SHAFT BRG ID=30.7 T=2.5 IMA	8-98004-529-0	01	1	1409-	●
263	RING; SNAP,OUTPUT SHAFT BRG ID=30.7 T=2.6 IMA	8-98004-530-0	01	1	1409-	●
299	BEARING; OUTPUT SHAFT FRT IMA	8-97362-722-0	01	1	1409-	●
300	RING; SNAP,COUNTER SHAFT,RR END ID=29 T=2.3 IMA	8-98024-222-1	01	1	1409-	●
300	RING; SNAP,COUNTER SHAFT,RR END ID=29 T=2.5 IMA	8-98024-223-1	01	1	1409-	●
300	RING; SNAP,COUNTER SHAFT,RR END ID=29 T=2.7 IMA	8-98024-224-1	01	1	1409-	●
314	BEARING; NEEDLE,REV GEAR NSK IMA	8-97362-719-0	01	1	1409-	●
314	BEARING; NEEDLE,REV GEAR NSK IMA	8-94422-064-0	01	1	1409-			●
314	BEARING; NEEDLE,REV GEAR JTEKT IMA	8-94422-065-1	01	1	1409-			●
326	BOLT; REV SHAFT M12X70 IMA	9-92621-270-0	01	1	1409-	●
353	SYNCHRONIZER; 5TH THA	8-98004-511-1	01	1	1409-	●
357	RING (B) OD=95.8 IMA	8-94363-056-0	02	1	1409-	●
357	RING (A) OD=90.0 IMA	8-98115-793-0	02	1	1409-	●
386	PIN; REV SHAFT OD=4 L=8 THA	9-08160-408-0	01	1	1409-	●
386	PIN; REV SHAFT OD=6 L=40 IMA	9-08150-640-0	01	1	1409-			●
398	GEAR; COUNTER Z=23 IMA	8-98106-584-0	01	1	1409-	●
398	GEAR; COUNTER Z=44-32-25-19 THA	8-97301-186-2	01	1	1409-			●
400	BEARING; OUTPUT SHAFT RR IMA	8-97362-723-0	01	1	1409-	●
405	INSERT; SYN,LOW & 2ND IMA	8-94363-062-1	03	1	1409-	●	●	●
471	SHAFT; INPUT Z=24-14-20-27 IMA	8-98106-034-0	01	1	1409-	●
473	BEARING; INPUT SHAFT IMA	8-97362-721-1	01	1	1409-	●
531	RING; BLOCK,REV OD=74 IMA	8-98037-846-0	01	1	1409-	●
554	IMPELLER; OIL IMA	8-97362-730-0	01	1	1409-	●
555	SPRING; INSERT (A) IMA	5-33264-012-0	02	1	1409-	●
555	SPRING; INSERT (B) IMA	8-97109-690-0	02	1	1409-	●
557	GEAR; OUTPUT Z=31-27 IMA	8-98210-239-0	01	1	1409-	●
558	GEAR; 5TH,INPUT SHAFT Z=46 THA	8-98233-610-0	01	1	1409-	●
559	BEARING; NEEDLE,LOW & 2ND IMA	8-97362-727-0	01	1	1409-	●
560	RING; DUM IMA	8-97078-729-1	01	1	1409-	●
561	GEAR; LOW,COUNTER Z=45 THA	8-98210-235-0	01	1	1409-	●
562	BEARING; NEEDLE,LOW & 2ND IMA	8-97362-727-0	01	1	1409-	●
563	COLLAR; 1ST GEAR THA	8-97362-569-1	01	1	1409-	●
564	SYNCHRONIZER; REV THA	8-97362-496-1	01	1	1409-	●
566	BRACKET; REV IDLER THA	8-97362-516-0	01	1	1409-	●
567	SPRING; INSERT,5TH IMA	5-33264-012-0	02	1	1409-	●
568	GEAR; 3RD,INPUT SHAFT Z=28 THA	8-98233-608-0	01	1	1409-	●
570	SPRING; PLATE IMA	8-98072-467-2	01	1	1409-	●
588	RING; BLOCK,3RD Z=36 IMA	8-98052-559-0	01	1	1409-	●
592	RING; BLOCK,4TH IMA	8-98197-460-0	01	1	1409-	●
601	RING; BLOCK,5TH IMA	8-98283-241-0	01	1	1409-	●

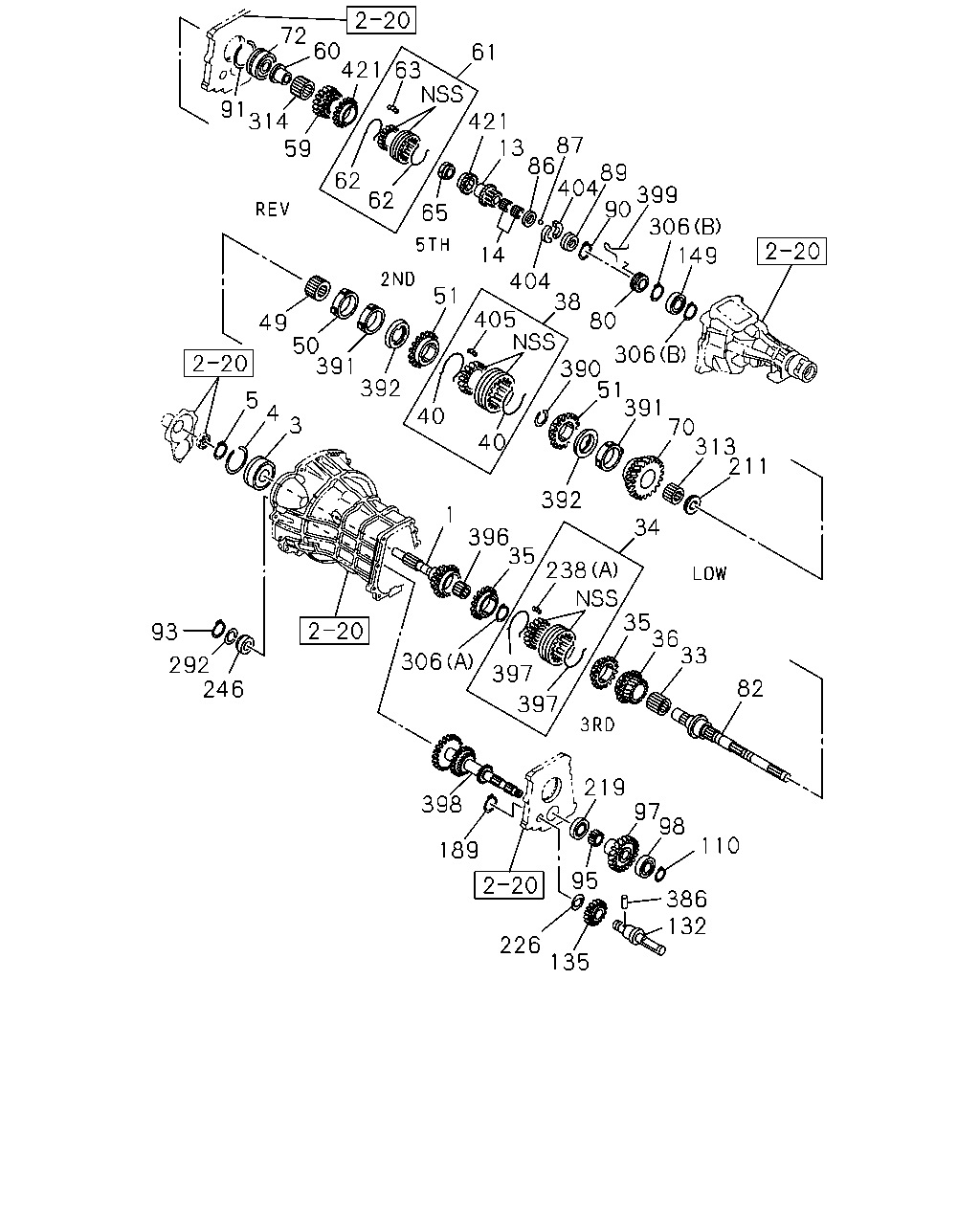

72 63 421 60 91 59 314 62 65 62 421 61 13 87 86 89 404 399 90 14 306 149 404 306 80 38 211 313 70 391 51 390 405 51 49 50 392 391 40 3 4 5 1 396 35 238 392 40 34 35 36 33 82 110 98 97 219 397 397 398 189 226 95 386 132 135 246 292 93 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; TOP GEAR,TRANS Z=26 THA	8-98233-594-0	01	1	1409-			●
3	BEARING; TOP GEAR SHAFT NSK THA	8-97943-879-0	01	1	1409-			●
4	RING; SNAP,BRG TO TOP GEAR SHAFT NSK IMA	8-94422-083-0	01	1	1409-			●
5	RING; SNAP,BRG TO TOP GEAR SHAFT ID=37.4 IMA	8-97254-316-0	01	1	1409-			●
13	GEAR; 5TH,MAINSHAFT Z=22 IMA	8-98210-227-0	01	1	1409-			●
14	BEARING; NEEDLE,5TH NSK IMA	8-97362-728-0	01	1	1409-	●
14	BEARING; NEEDLE,5TH NTN IMA	8-98172-356-0	01	1	1409-			●
33	BEARING; NEEDLE,3RD GEAR NSK IMA	1-09811-028-1	01	1	1409-	●	●	●
34	SYNCHRONIZER; 4TH & 3RD THA	8-97362-474-3	01	1	1409-	●
34	SYNCHRONIZER; 4TH & 3RD IMA	8-97977-991-0	01	1	1409-			●
35	RING; BLOCK,4TH & 3RD Z=45 IMA	8-94151-510-3	02	1	1409-			●
36	GEAR; 3RD,MAINSHAFT Z=27 THA	8-98233-597-0	01	1	1409-			●
38	SYNCHRONIZER; LOW & 2ND THA	8-97362-503-1	01	1	1409-	●
38	SYNCHRONIZER; LOW & 2ND IMA	8-97977-989-0	01	1	1409-			●
40	SPRING; INSERT,LOW & 2ND IMA	8-94448-045-0	02	1	1409-	●	●	●
49	BEARING; NEEDLE,2ND GEAR JTEKT IMA	9-00096-625-0	01	1	1409-			●
50	GEAR; 2ND,MAINSHAFT Z=34 THA	8-97301-183-1	01	1	1409-			●
51	RING; BLOCK,LOW & 2ND Z=36 IMA	8-98115-804-0	02	1	1409-	●	●	●
59	GEAR; REV MAINSHAFT Z=41 IMA	8-98210-228-0	01	1	1409-			●
60	COLLAR; REV MAIN IMA	8-97031-079-0	01	1	1409-			●
61	SYNCHRONIZER; REV & 5TH IMA	8-97030-106-1	01	1	1409-			●
62	SPRING; INSERT,REV & 5TH IMA	5-33264-012-0	02	1	1409-			●
63	INSERT; SYN,REV & 5TH IMA	5-33263-001-0	03	1	1409-			●
65	NUT; MAINSHAFT M34 IMA	8-94422-071-1	01	1	1409-			●
70	GEAR; 1ST,MAINSHAFT Z=45 THA	8-97301-182-1	01	1	1409-			●
72	BEARING; BALL,MAINSHAFT NSK THA	8-94380-017-1	01	1	1409-			●
80	GEAR; SPD DRIVE Z=6 IMA	8-94472-608-1	01	1	1409-			●
82	SHAFT; MAIN,TRANS Z=28-34-26-27 IMA	8-97300-981-0	01	1	1409-			●
86	WASHER; THRUST,5TH T=7.90 WHITE IMA	8-94422-110-2	01	1	1409-			●
86	WASHER; THRUST,5TH T=8.00 YELLOW IMA	8-94422-111-2	01	1	1409-			●
86	WASHER; THRUST,5TH T=8.10 GREEN IMA	8-94422-112-2	01	1	1409-			●
86	WASHER; THRUST,5TH T=8.20 BLUE IMA	8-94422-113-2	01	1	1409-			●
87	BALL; THRUST WASHER IMA	8-94201-356-0	01	1	1409-			●
89	RING; RET,THRUST RING ID=31.8 IMA	8-94422-395-0	01	1	1409-			●
90	RING; SNAP,THRUST RING ID=29.6 IMA	9-09180-032-0	01	1	1409-			●
91	RING; SNAP,CENTER BRG,MAINSHAFT ID=76.2 IMA	8-94322-411-0	01	1	1409-			●
93	RING; SNAP,COUNTER FRT BRG ID=23.2 IMA	9-09180-025-0	01	1	1409-			●
95	GEAR; REV,COUNTER Z=41 THA	8-98210-237-0	01	1	1409-	●
95	GEAR; REV,COUNTER Z=19 IMA	8-94377-433-0	01	1	1409-			●
97	GEAR; 5TH,COUNTER Z=27 THA	8-98040-114-0	01	1	1409-	●
97	GEAR; 5TH,COUNTER Z=50 IMA	8-94377-434-0	01	1	1409-			●
98	BEARING; BALL,COUNTER END NSK IMA	8-97018-535-1	01	1	1409-			●
110	RING; SNAP,COUNTER BRG T=1.10 WHITE IMA	8-94422-103-0	01	1	1409-			●
110	RING; SNAP,COUNTER BRG T=1.20 YELLOW IMA	8-94422-104-0	01	1	1409-			●
110	RING; SNAP,COUNTER BRG T=1.30 BLUE IMA	8-94422-105-0	01	1	1409-			●
110	RING; SNAP,COUNTER BRG T=1.40 PINK IMA	8-94422-106-0	01	1	1409-			●
110	RING; SNAP,COUNTER BRG T=1.50 GREEN IMA	8-94422-107-0	01	1	1409-			●
110	RING; SNAP,COUNTER BRG T=1.60 BROWN IMA	8-94422-108-0	01	1	1409-			●
132	SHAFT; REV THA	8-98023-113-0	01	1	1409-	●
132	SHAFT; REV IMA	8-98245-493-0	01	1	1409-			●
135	GEAR; REV IDLER Z=32 THA	8-98233-615-0	01	1	1409-	●
135	GEAR; REV IDLER Z=33 THA	8-98233-606-0	01	1	1409-			●
149	BEARING; NEEDLE,MAINSHAFT,RR NSK THA	8-94173-863-0	01	1	1409-			●
189	RING; SNAP,REV,GEAR T=1.20 WHITE IMA	8-94422-100-0	01	1	1409-			●
189	RING; SNAP,REV,GEAR T=1.30 YELLOW IMA	8-94422-101-0	01	1	1409-			●
189	RING; SNAP,REV,GEAR T=1.40 BLUE IMA	8-94422-102-0	01	1	1409-			●
211	BEARING; THRUST NEEDLE,1ST GEAR NSK IMA	8-94148-935-0	01	1	1409-			●
219	BEARING; BALL,CLUSTER,RR NSK IMA	8-94436-929-0	01	1	1409-			●
226	WASHER; THRUST,REV GEAR,COUNTER ID=30.0 IMA	8-94223-069-1	01	1	1409-			●
238	INSERT (B) IMA	8-94249-576-2	03	1	1409-	●
238	INSERT (C) IMA	8-98004-522-0	06	1	1409-	●
238	INSERT (A) IMA	8-94448-202-2	03	1	1409-			●
246	BEARING; ROLLER,COUNTER SHAFT FRT NSK IMA	8-97029-600-4	01	1	1409-			●
292	RING; SNAP,BRG OUTER NSK IMA	8-94422-081-0	01	1	1409-			●
306	RING; SNAP,MAINSHAFT (A) T=1.90 BLUE IMA	8-97129-615-0	01	1	1409-			●
306	RING; SNAP,MAINSHAFT (A) T=1.85 YELLOW IMA	8-97129-616-0	01	1	1409-			●
306	RING; SNAP,MAINSHAFT (A) T=1.80 WHITE IMA	8-97129-617-0	01	1	1409-			●
306	RING; SNAP,MAINSHAFT (B) ID=27.9 IMA	9-09180-030-0	02	1	1409-			●
313	BEARING; NEEDLE,LOW GEAR NSK IMA	1-09811-028-1	01	1	1409-			●
314	BEARING; NEEDLE,REV GEAR NSK IMA	8-97362-719-0	01	1	1409-	●
314	BEARING; NEEDLE,REV GEAR NSK IMA	8-94422-064-0	01	1	1409-			●
314	BEARING; NEEDLE,REV GEAR JTEKT IMA	8-94422-065-1	01	1	1409-			●
386	PIN; REV SHAFT OD=4 L=8 THA	9-08160-408-0	01	1	1409-	●
386	PIN; REV SHAFT OD=6 L=40 IMA	9-08150-640-0	01	1	1409-			●
390	RING; SNAP,CLU HUB T=1.80 WHITE IMA	8-94422-088-2	01	1	1409-			●
390	RING; SNAP,CLU HUB T=1.85 YELLOW IMA	8-94422-089-1	01	1	1409-			●
390	RING; SNAP,CLU HUB T=1.90 BLUE IMA	8-94422-090-2	01	1	1409-			●
391	RING; INSIDE,SYN OD=95.8 IMA	8-94363-056-0	02	1	1409-			●
392	RING; OUTSIDE,SYN OD=90.0 IMA	8-98115-793-0	02	1	1409-			●
396	BEARING; NEEDLE,MAINSHAFT NSK IMA	8-98172-355-0	01	1	1409-			●
397	SPRING; INSERT,4TH & 3RD IMA	8-94422-075-0	02	1	1409-			●
398	GEAR; COUNTER Z=23 IMA	8-98106-584-0	01	1	1409-	●
398	GEAR; COUNTER Z=44-32-25-19 THA	8-97301-186-2	01	1	1409-			●
399	CLIP; SPEEDOMETER DRIVE GEAR IMA	8-94310-229-0	01	1	1409-			●
404	PLATE; THRUST IMA	8-94421-892-0	02	1	1409-			●
405	INSERT; SYN,LOW & 2ND IMA	8-94363-062-1	03	1	1409-	●	●	●
421	RING; BLOCK,REV & 5TH Z=36 IMA	8-97071-688-0	02	1	1409-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
