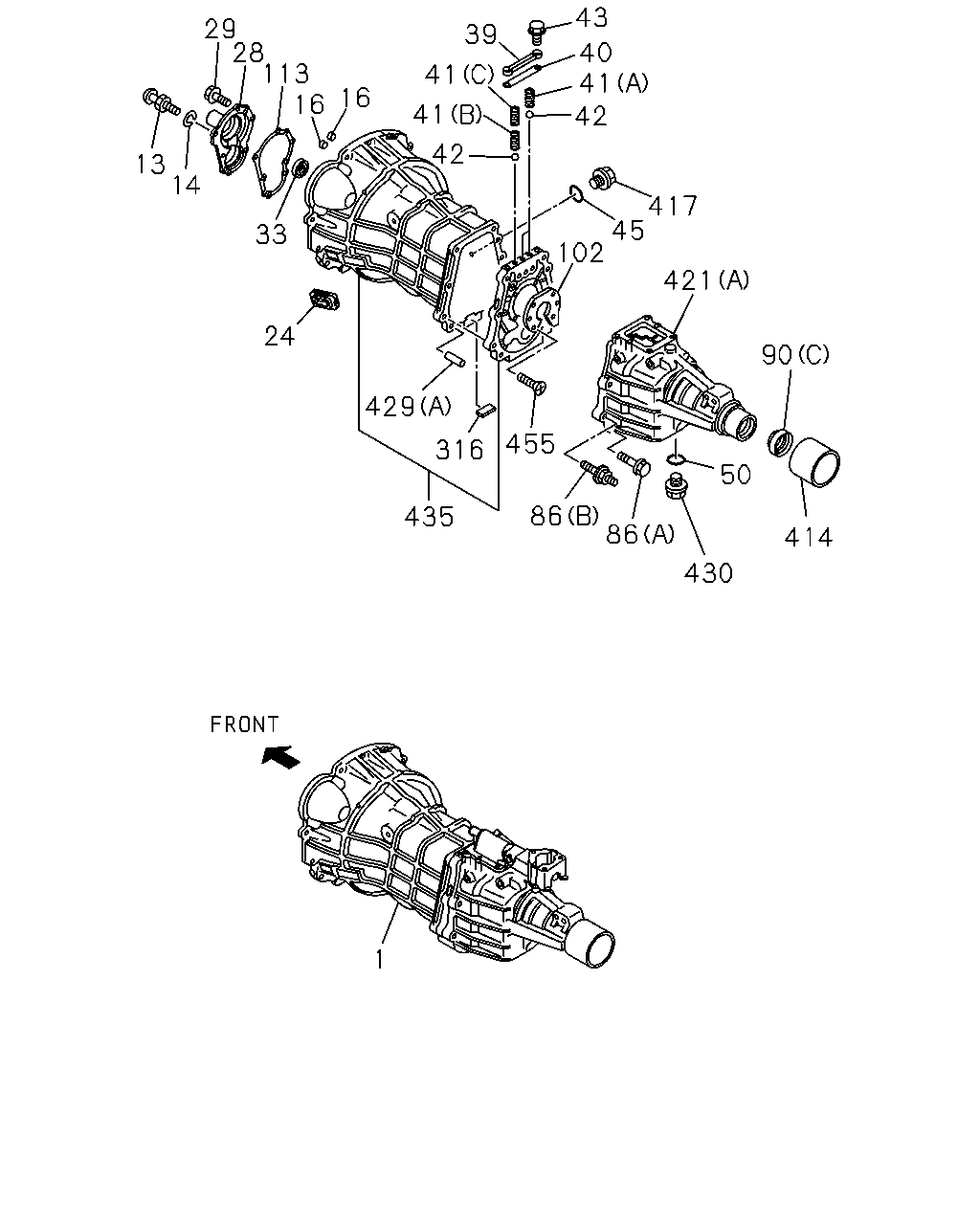

2-20 — MANUAL TRANSMISSION ASM AND CASE (#147234) — 141 parça

1 414 50 90 430 86 86 435 316 455 429 24 421 45 417 102 42 41 40 43 39 41 41 42 16 16 113 28 29 13 14 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TRANSMISSION ASM; MANUAL THA	8-97978-011-0	01	1	1409-	●
1	TRANSMISSION ASM; MANUAL THA	8-98172-462-0	01	1	1409-		●
13	SUPPORT; SHIFT FORK L=47.5 IMA	8-97072-827-0	01	1	1409-	●	●	●
14	WASHER; LK,SUPPORT ID=12.2 IMA	0-91510-512-0	01	1	1409-		●
16	PLUG; SHIFT ROD OD=14 IMA	8-97358-601-0	02	1	1409-		●
24	COVER; CHECK HOLE,DUST IMA	8-94156-700-0	01	1	1409-		●
28	COVER; FRT,TRANS CASE THA	8-98094-800-0	01	1	1409-	●
28	COVER; FRT,TRANS CASE THA	8-97381-406-0	01	1	1409-		●
29	BOLT; FRT COVER M8X20 FLANGE THA	0-28650-820-0	03	1	1409-	●
29	BOLT; FRT COVER M8X22 FLANGE IMA	8-97365-376-0	06	1	1409-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK THA	8-97947-839-0	01	1	1409-	●	●	●
39	PLATE; DETENT SPR IMA	8-98035-571-0	01	1	1409-		●
40	GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T). IMA	8-97083-600-1	01	1	1409-		●
41	SPRING; DETENT BALL (A) L=26.8 IMA	8-94320-193-0	02	1	1409-		●
41	SPRING; DETENT BALL (B) L=27.6 IMA	8-97214-402-0	01	1	1409-		●
41	SPRING; DETENT BALL (C) L=26.6 IMA	8-97214-403-0	01	1	1409-		●
42	BALL; DETENT,GEAR SHIFT IMA	8-94435-335-0	03	1	1409-		●
43	BOLT; PLATE TO PLATE M8X22 FLANGE IMA	8-97365-376-0	02	1	1409-		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	1409-	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	02	1	1409-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1409-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> ID=17 IMA	8-97115-712-0	01	1	1409-			●
86	BOLT; RR COVER (D) M8X50 FLANGE THA	0-28050-850-0	02	1	1409-	●
86	BOLT; RR COVER (E) M8X35 FLANGE THA	0-28650-835-0	03	1	1409-	●
86	BOLT; RR COVER (B) M10X18 M10X55 L=86.8 IMA	8-97305-468-0	01	1	1409-		●
86	BOLT; RR COVER (A) M10X55 FLANGE THA	8-98035-672-0	07	1	1409-		●
86	BOLT; RR COVER (C) M8X45 FLANGE THA	0-28050-845-0	16	1	1409-	●
86	BOLT; RR COVER 4X4<UCS***> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	1409-			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A) JTEKT IMA	8-98004-531-0	01	1	1409-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (C) NOK THA	8-97947-840-0	01	1	1409-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97046-705-3	01	1	1409-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> (B) NOK IMA	8-97046-705-3	01	1	1409-			●
102	RETAINER; BRG UPR,MAINSHAFT IMA	8-97138-673-0	01	1	1409-		●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). IMA	8-97083-589-0	01	1	1409-		●
316	MAGNET; TRANS CASE IMA	8-94249-524-2	01	1	1409-	●	●	●
414	COVER; DUST,RR COVER IMA	8-98027-802-0	01	1	1409-		●
417	PLUG; OIL FILLER,TRANS IMA	8-97365-373-0	02	1	1409-	●
417	PLUG; OIL FILLER,TRANS IMA	8-97365-373-0	01	1	1409-		●
417	PLUG; OIL FILLER,TRANS 4X4<UCS***> IMA	8-97365-373-0	01	1	1409-			●
421	COVER; RR,TRANS (B) THA	8-97362-423-1	01	1	1409-	●
421	COVER; RR,TRANS (C) THA	8-98108-319-0	01	1	1409-	●
421	COVER; RR,TRANS (A) THA	8-97978-059-0	01	1	1409-		●
429	PIN; STRAIGHT (A) OD=10 L=40 IMA	5-09740-018-1	02	1	1409-		●
429	PIN; STRAIGHT (B) OD=10 L=20 IMA	8-97135-423-0	02	1	1409-	●
429	PIN; STRAIGHT 4X4<UCS***> (B) OD=10 L=20 IMA	8-97135-423-0	02	1	1409-			●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	02	1	1409-	●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	01	1	1409-		●
430	PLUG; OIL DRAIN 4X4<UCS***> IMA	8-97365-374-0	01	1	1409-			●
435	CASE; TRANS THA	8-98108-317-1	01	1	1409-	●
435	CASE; TRANS IMA	8-98047-230-0	01	1	1409-		●
455	SCREW; BRG RET M8X22 IMA	8-98035-654-0	04	1	1409-		●

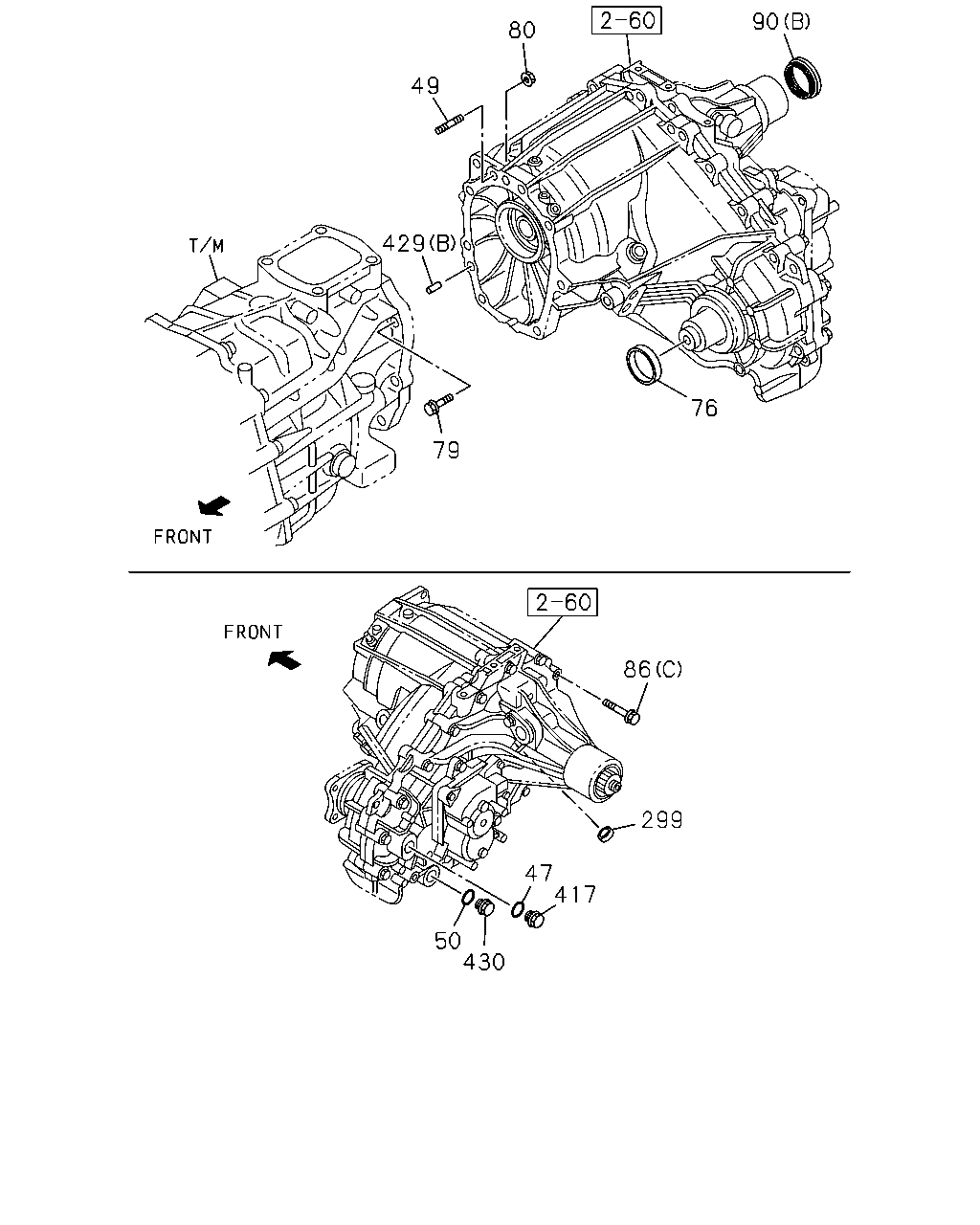

90 80 49 76 79 429 86 299 417 47 430 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
47	GASKET; FILLER PLUG,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1409-	●
47	GASKET; FILLER PLUG,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> ID=17 IMA	8-97115-712-0	01	1	1409-			●
49	STUD; TRANSFER CASE M10X30 L=45 IMA	8-98035-675-0	01	1	1409-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	02	1	1409-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1409-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> ID=17 IMA	8-97115-712-0	01	1	1409-			●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97238-999-0	01	1	1409-	●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> NOK IMA	8-97238-999-0	01	1	1409-			●
79	BOLT; TRANSFER CASE M10X35 FLANGE THA	0-28051-035-0	06	1	1409-	●
79	BOLT; TRANSFER CASE 4X4<UCS***> M10X45 FLANGE THA	0-28051-045-0	07	1	1409-			●
80	NUT; TRANSFER CASE M10 FLANGE THA	0-91180-110-0	01	1	1409-	●
86	BOLT; RR COVER (D) M8X50 FLANGE THA	0-28050-850-0	02	1	1409-	●
86	BOLT; RR COVER (E) M8X35 FLANGE THA	0-28650-835-0	03	1	1409-	●
86	BOLT; RR COVER (B) M10X18 M10X55 L=86.8 IMA	8-97305-468-0	01	1	1409-		●
86	BOLT; RR COVER (A) M10X55 FLANGE THA	8-98035-672-0	07	1	1409-		●
86	BOLT; RR COVER (C) M8X45 FLANGE THA	0-28050-845-0	16	1	1409-	●
86	BOLT; RR COVER 4X4<UCS***> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	1409-			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A) JTEKT IMA	8-98004-531-0	01	1	1409-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (C) NOK THA	8-97947-840-0	01	1	1409-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97046-705-3	01	1	1409-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> (B) NOK IMA	8-97046-705-3	01	1	1409-			●
299	PLUG; SHIFTER ROD OD=15.6 IMA	8-94173-641-0	02	1	1409-	●
299	PLUG; SHIFTER ROD 4X4<UCS***> OD=15.6 IMA	8-94173-641-0	02	1	1409-			●
417	PLUG; OIL FILLER,TRANS IMA	8-97365-373-0	02	1	1409-	●
417	PLUG; OIL FILLER,TRANS IMA	8-97365-373-0	01	1	1409-		●
417	PLUG; OIL FILLER,TRANS 4X4<UCS***> IMA	8-97365-373-0	01	1	1409-			●
429	PIN; STRAIGHT (A) OD=10 L=40 IMA	5-09740-018-1	02	1	1409-		●
429	PIN; STRAIGHT (B) OD=10 L=20 IMA	8-97135-423-0	02	1	1409-	●
429	PIN; STRAIGHT 4X4<UCS***> (B) OD=10 L=20 IMA	8-97135-423-0	02	1	1409-			●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	02	1	1409-	●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	01	1	1409-		●
430	PLUG; OIL DRAIN 4X4<UCS***> IMA	8-97365-374-0	01	1	1409-			●

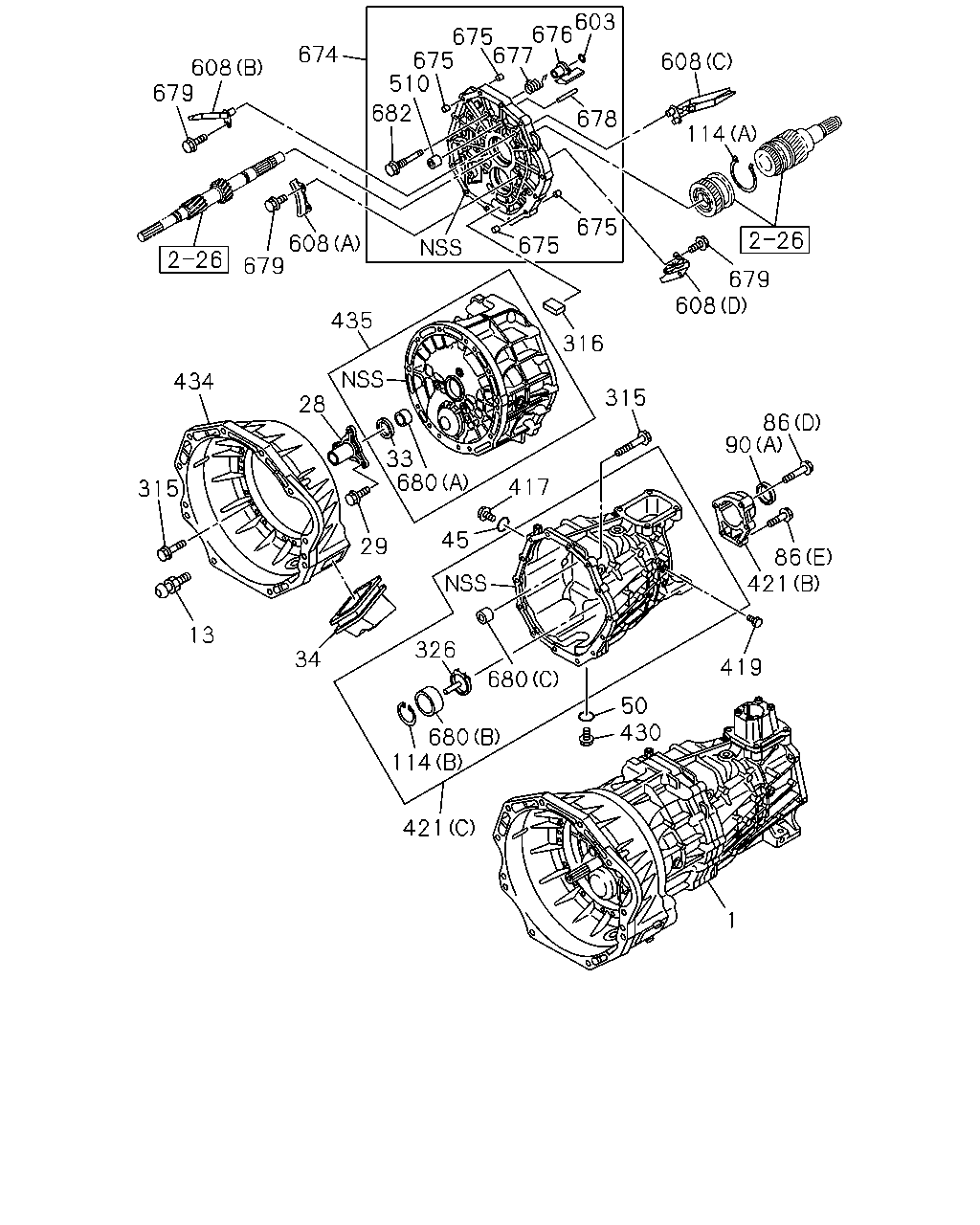

608 674 679 679 608 682 510 675 675 676 677 603 678 675 675 608 114 679 608 86 90 86 421 419 1 430 50 421 114 680 680 326 34 13 315 434 28 435 33 680 29 45 417 315 316

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TRANSMISSION ASM; MANUAL THA	8-97978-011-0	01	1	1409-	●
1	TRANSMISSION ASM; MANUAL THA	8-98172-462-0	01	1	1409-		●
13	SUPPORT; SHIFT FORK L=47.5 IMA	8-97072-827-0	01	1	1409-	●	●	●
28	COVER; FRT,TRANS CASE THA	8-98094-800-0	01	1	1409-	●
28	COVER; FRT,TRANS CASE THA	8-97381-406-0	01	1	1409-		●
29	BOLT; FRT COVER M8X20 FLANGE THA	0-28650-820-0	03	1	1409-	●
29	BOLT; FRT COVER M8X22 FLANGE IMA	8-97365-376-0	06	1	1409-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK THA	8-97947-839-0	01	1	1409-	●	●	●
34	COVER; DUST,SHIFT FORK THA	8-98097-470-0	01	1	1409-	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	1409-	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	02	1	1409-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1409-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> ID=17 IMA	8-97115-712-0	01	1	1409-			●
86	BOLT; RR COVER (D) M8X50 FLANGE THA	0-28050-850-0	02	1	1409-	●
86	BOLT; RR COVER (E) M8X35 FLANGE THA	0-28650-835-0	03	1	1409-	●
86	BOLT; RR COVER (B) M10X18 M10X55 L=86.8 IMA	8-97305-468-0	01	1	1409-		●
86	BOLT; RR COVER (A) M10X55 FLANGE THA	8-98035-672-0	07	1	1409-		●
86	BOLT; RR COVER (C) M8X45 FLANGE THA	0-28050-845-0	16	1	1409-	●
86	BOLT; RR COVER 4X4<UCS***> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	1409-			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A) JTEKT IMA	8-98004-531-0	01	1	1409-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (C) NOK THA	8-97947-840-0	01	1	1409-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97046-705-3	01	1	1409-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> (B) NOK IMA	8-97046-705-3	01	1	1409-			●
114	RING; SNAP,BALL BRG (A) OD=77 IMA	8-98024-221-0	01	1	1409-	●
114	RING; SNAP,BALL BRG (B) OD=60.2 IMA	9-09180-156-0	01	1	1409-	●
315	BOLT; CASE M8X60 FLANGE THA	0-28050-860-0	14	1	1409-	●
315	BOLT; CASE M8X35 FLANGE IMA	8-98046-876-0	11	1	1409-	●
316	MAGNET; TRANS CASE IMA	8-94249-524-2	01	1	1409-	●	●	●
326	NOZZLE; OIL,OUTLET IMA	8-98023-517-0	01	1	1409-	●
417	PLUG; OIL FILLER,TRANS IMA	8-97365-373-0	02	1	1409-	●
417	PLUG; OIL FILLER,TRANS IMA	8-97365-373-0	01	1	1409-		●
417	PLUG; OIL FILLER,TRANS 4X4<UCS***> IMA	8-97365-373-0	01	1	1409-			●
419	PLUG; RR COVER M12X9 IMA	8-98047-054-0	01	1	1409-	●
421	COVER; RR,TRANS (B) THA	8-97362-423-1	01	1	1409-	●
421	COVER; RR,TRANS (C) THA	8-98108-319-0	01	1	1409-	●
421	COVER; RR,TRANS (A) THA	8-97978-059-0	01	1	1409-		●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	02	1	1409-	●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	01	1	1409-		●
430	PLUG; OIL DRAIN 4X4<UCS***> IMA	8-97365-374-0	01	1	1409-			●
434	HOUSING; CLU THA	8-98108-316-0	01	1	1409-	●
435	CASE; TRANS THA	8-98108-317-1	01	1	1409-	●
435	CASE; TRANS IMA	8-98047-230-0	01	1	1409-		●
510	BEARING THA	8-97362-853-0	01	1	1409-	●
603	RING; SNAP IMA	8-98039-270-0	01	1	1409-	●
608	GUTTER; OIL (A) IMA	8-97362-391-0	01	1	1409-	●
608	GUTTER; OIL (B) IMA	8-97362-564-1	01	1	1409-	●
608	GUTTER; OIL (D) IMA	8-98004-505-0	01	1	1409-	●
608	GUTTER; OIL (C) IMA	8-98142-574-0	01	1	1409-	●
674	PLATE; INTERMEDIATE THA	8-98042-863-0	01	1	1409-	●
675	DOWEL OD=11 L=8 IMA	9-11229-058-1	04	1	1409-	●
676	INHIBITOR IMA	8-98037-604-1	01	1	1409-	●
677	SPRING; INHIBITOR IMA	8-97362-852-0	01	1	1409-	●
678	PIN IMA	9-08160-436-0	01	1	1409-	●
679	BOLT; GUTTER M6X12 FLANGE THA	0-28050-612-0	04	1	1409-	●
680	BEARING (A) IMA	8-97362-720-1	01	1	1409-	●
680	BEARING (C) THA	8-97362-853-0	01	1	1409-	●
680	BEARING (B) IMA	8-98024-431-0	01	1	1409-	●
682	BOLT; INHIBITOR M10X50 IMA	8-98042-618-0	01	1	1409-	●
