◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51577 - UCR/UCS(THAILAND) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶
2-05 — CLUTCH PIPING (#147230) — 20 parça

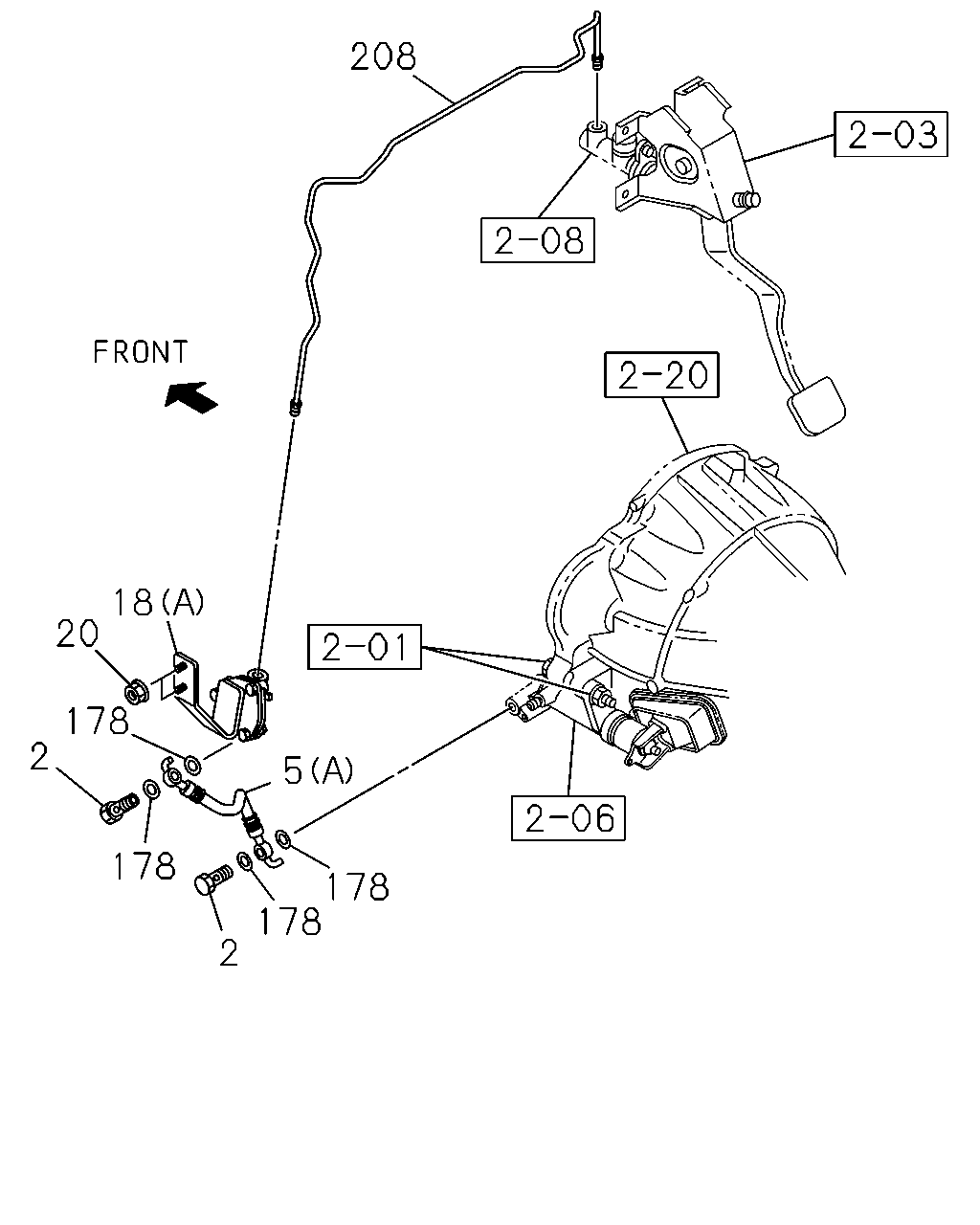

çizim 439084
208 5 178 178 2 178 2 20 18 178
BalonParca AdiParca NoAdetTipApplied Date A B
2 BOLT; EYE,SLAVE CYL
M10X22 THA 		8-97359-818-0 02 1 1409- ● ●
5 HOSE; FLEX,CLU PIPE
(A) THA 		8-98098-317-1 01 1 1409- ●
5 HOSE; FLEX,CLU PIPE
(B) THA 		8-98098-315-1 01 1 1409- ●
18 DAMPER ASM; CLU OIL
(A) THA 		8-97946-616-1 01 1 1409- ● ●
18 DAMPER ASM; CLU OIL
(B) THA 		8-97946-623-1 01 1 1409- ●
20 NUT; CLU OIL DAMPER
M6 FLANGE THA 		0-91180-106-0 02 1 1409- ● ●
178 GASKET; FLEX HOSE TO M/CYL
ID=10.2 OD=16.0 THA 		9-09571-410-0 04 1 1409- ● ●
208 PIPE; OIL,M/CYL TO DAMPER CYL
THA 		8-98100-268-1 01 1 1409- ● ●

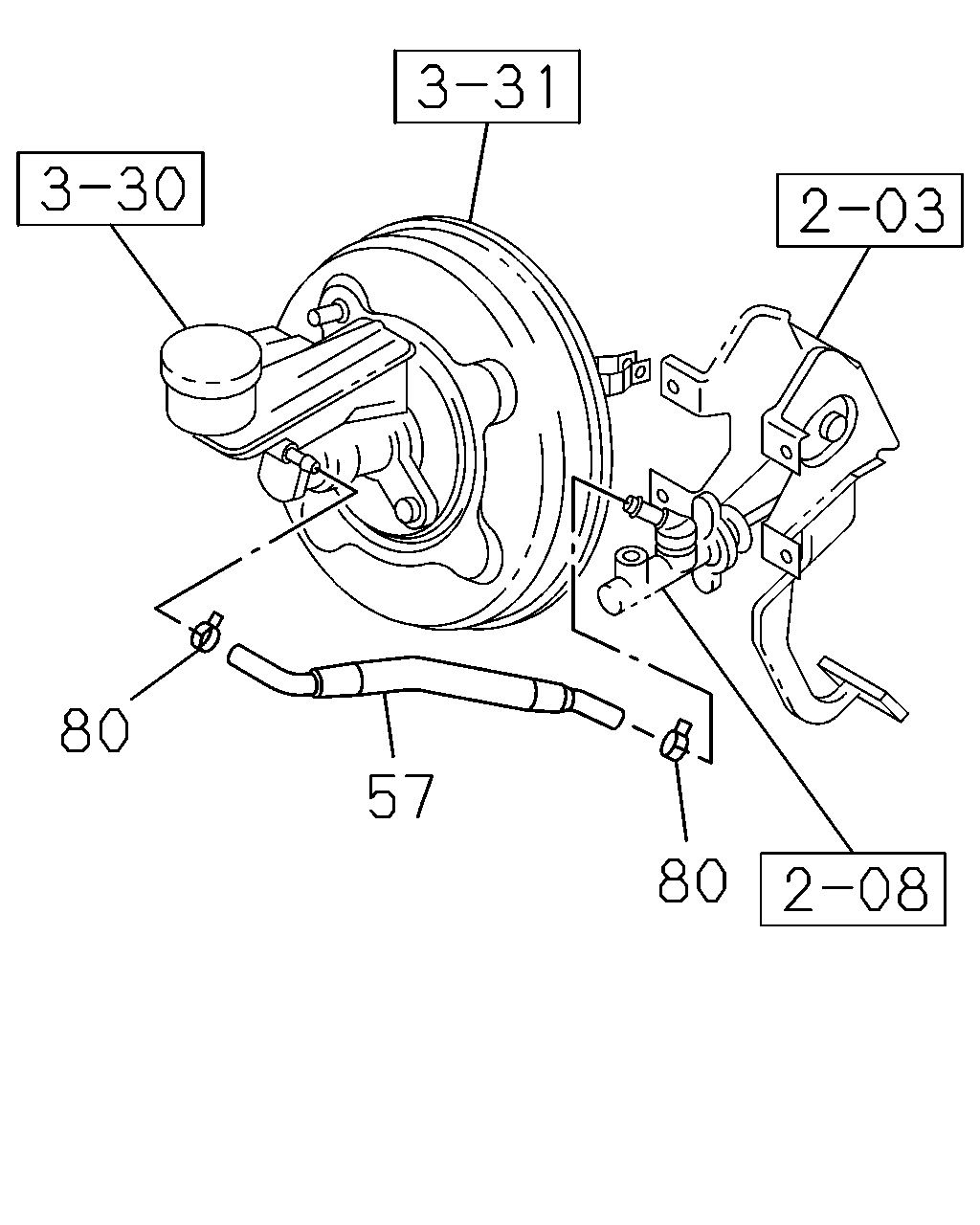

çizim 439085
80 57 80
BalonParca AdiParca NoAdetTipApplied Date A B
57 HOSE; CLU M/CYL TO OIL TANK
IMA 		8-98119-218-2 01 1 1409- ● ●
80 CLIP; HOSE
ID=12 WO/PVC COATING THA 		8-97947-824-0 02 1 1409- ● ●

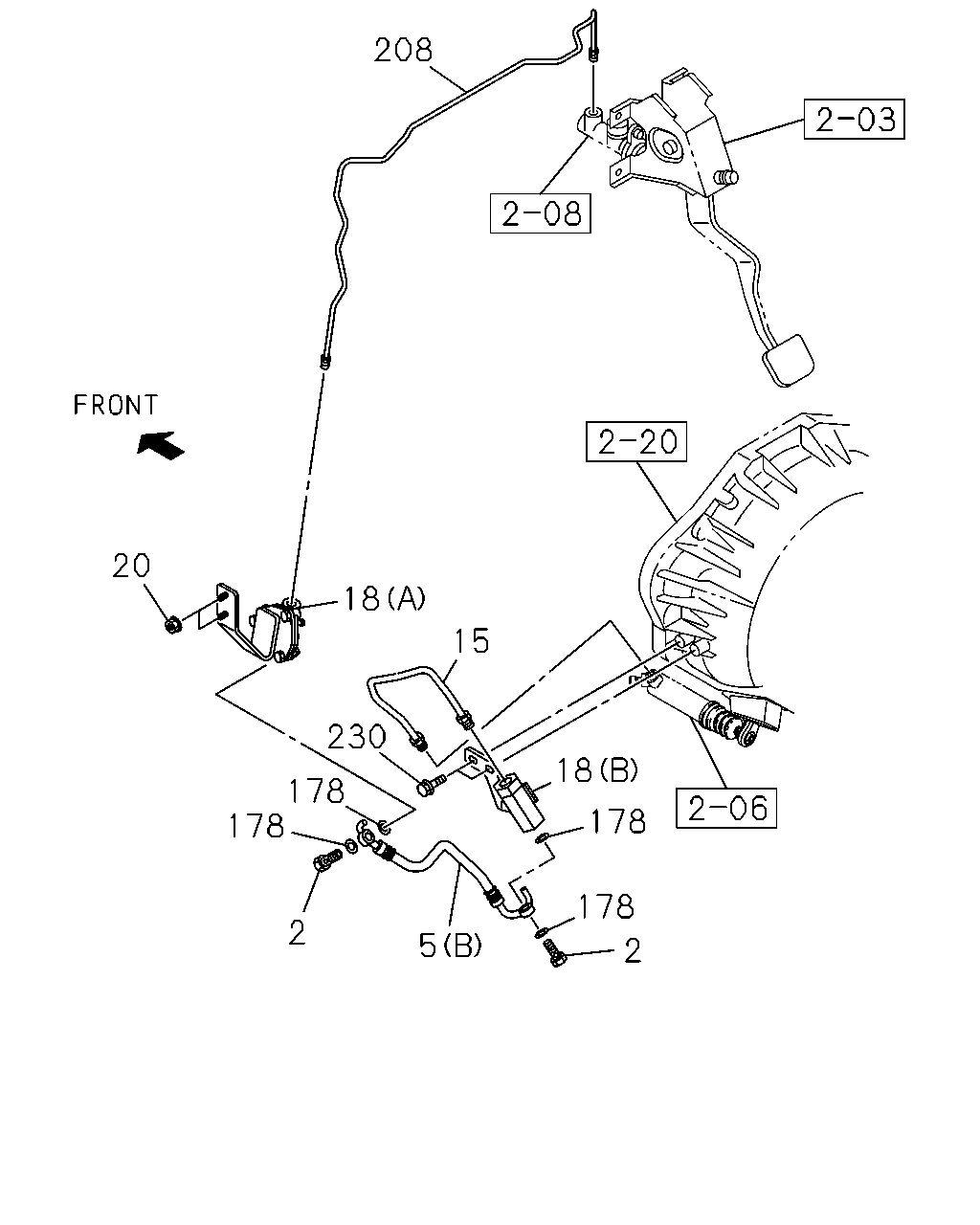

çizim 439168
20 18 15 230 178 178 2 5 2 178 178 18 208
BalonParca AdiParca NoAdetTipApplied Date A B
2 BOLT; EYE,SLAVE CYL
M10X22 THA 		8-97359-818-0 02 1 1409- ● ●
5 HOSE; FLEX,CLU PIPE
(A) THA 		8-98098-317-1 01 1 1409- ●
5 HOSE; FLEX,CLU PIPE
(B) THA 		8-98098-315-1 01 1 1409- ●
15 PIPE; CLU,FLEX HOSE
THA 		8-98097-509-0 01 1 1409- ●
18 DAMPER ASM; CLU OIL
(A) THA 		8-97946-616-1 01 1 1409- ● ●
18 DAMPER ASM; CLU OIL
(B) THA 		8-97946-623-1 01 1 1409- ●
20 NUT; CLU OIL DAMPER
M6 FLANGE THA 		0-91180-106-0 02 1 1409- ● ●
178 GASKET; FLEX HOSE TO M/CYL
ID=10.2 OD=16.0 THA 		9-09571-410-0 04 1 1409- ● ●
208 PIPE; OIL,M/CYL TO DAMPER CYL
THA 		8-98100-268-1 01 1 1409- ● ●
230 BOLT; ACTUATOR
M6X16 FLANGE THA 		0-28650-616-0 02 1 1409- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
