◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXY ▶ 11113 - CXY AUST EURO5/JAPAN NEW LONG TERM 2005 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#14723) — 116 parça

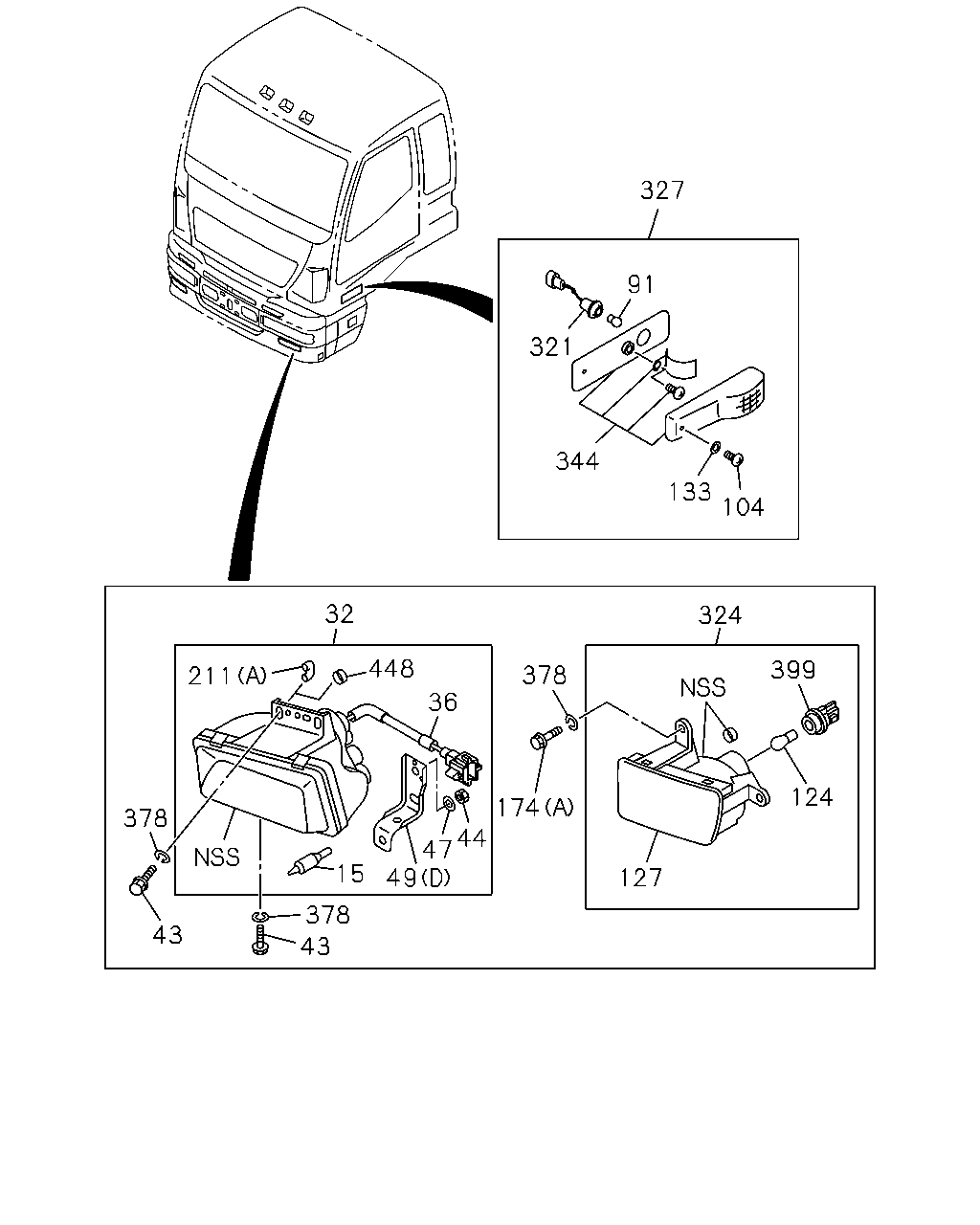

çizim 141886
327 91 321 344 133 104 324 399 124 127 378 174 36 448 32 211 378 43 43 378 15 49 47 44
BalonParca AdiParca NoAdetTipApplied Date A B
15 BULB; FOG LAMP
24V 70W 		1-82194-106-0 02 1 0710- ● ●
32 LAMP ASM; FOG 1-82110-454-0 01 1 0710-0712 ● ●
32 LAMP ASM; FOG 1-82110-476-0 01 1 0801-0906 ● ●
32 LAMP ASM; FOG 8-98149-150-1 01 1 0907-1301 ● ●
32 LAMP ASM; FOG 8-98232-065-1 01 1 1302- ● ●
32 LAMP ASM; FOG 1-82110-453-0 01 1 0710-0712 ● ●
32 LAMP ASM; FOG 1-82110-475-0 01 1 0801-0906 ● ●
32 LAMP ASM; FOG 8-98149-149-1 01 1 0907-1301 ● ●
32 LAMP ASM; FOG 8-98232-064-1 01 1 1302- ● ●
36 CORD; FOG LAMP 1-82118-016-0 01 1 0710- ● ●
36 CORD; FOG LAMP 1-82118-015-0 01 1 0710- ● ●
43 BOLT; FOG LAMP
FRONT SPOILER<VP1> M8X20 FLANGE 		0-28650-820-0 02 1 1009- ● ●
43 BOLT; FOG LAMP
M6X20 FLANGE 		0-28650-620-0 02 1 0710-1008 ● ●
43 BOLT; FOG LAMP
EXC. FRONT SPOILER<VP1> M6X20 FLANGE 		0-28650-620-0 02 1 1009- ● ●
43 BOLT; FOG LAMP
M6X20 FLANGE 		0-28650-620-0 04 1 0710- ● ●
44 NUT; FOG LAMP
M6 		8-98217-430-0 02 1 1205- ● ●
47 WASHER; PL,FOG LAMP 8-98217-429-0 02 1 1205- ● ●
49 BRACKET; LAMP
(D) 		8-98051-437-0 01 1 0710- ● ●
49 BRACKET; LAMP
(D) 		8-98051-438-0 01 1 0710- ● ●
49 BRACKET; LAMP
(A) 		1-82117-100-0 02 1 0710- ● ●
49 BRACKET; LAMP
(B) 		1-82117-101-1 01 1 0710- ● ●
49 BRACKET; LAMP
(B) 		1-82117-102-1 01 1 0710- ● ●
49 BRACKET; LAMP
(C) 		1-82117-176-0 01 1 0710- ● ●
49 BRACKET; LAMP
(C) 		1-82117-177-0 01 1 0710- ● ●
91 BULB; SIDE TURN SIGNAL
24V 21W 		1-82194-036-0 02 1 0710- ● ●
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 0710- ● ●
124 BULB; FRT TURN SIGNAL
24V 21W 		1-82194-105-0 02 1 0710- ● ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-074-0 01 1 0710- ● ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-073-0 01 1 0710- ● ●
133 WASHER; PL,SIDE FLASHER LAMP 1-86830-150-0 02 1 0710- ● ●
174 BOLT
(A) M6X20 FLANGE 		0-28650-620-0 04 1 0710- ● ●
174 BOLT
(B) M6X28 W/LK&PL WASHER 		1-09980-543-0 04 1 0710-1107 ● ●
174 BOLT
(B) M6X28 W/LK&PL WASHER 		1-09980-543-0 04 1 1108- ● ●
211 TUBE; HEADLAMP
(B) 		1-86830-331-0 01 1 0710-0711 ● ●
211 TUBE; HEADLAMP
(B) 		8-98101-137-0 01 1 0712- ● ●
211 TUBE; HEADLAMP
(B) 		1-86830-330-0 01 1 0710-0711 ● ●
211 TUBE; HEADLAMP
(B) 		8-98101-138-0 01 1 0712- ● ●
211 TUBE; HEADLAMP
(A) 		8-97025-128-0 02 1 0710-0906 ● ●
321 HARNESS; SIDE FLASHER LAMP 1-82218-002-0 02 1 0710- ● ●
324 LAMP; FRT FLASHER 1-82210-260-1 01 1 0710- ● ●
324 LAMP; FRT FLASHER 1-82210-259-1 01 1 0710- ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-82210-228-2 01 1 0710- ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-82210-227-2 01 1 0710- ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-82213-021-0 01 1 0710- ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-82213-020-0 01 1 0710- ● ●
378 WASHER; PL
ID=6.4 		0-91610-606-0 02 1 0710-1008 ● ●
378 WASHER; PL
EXC. FRONT SPOILER<VP1> ID=6.4 		0-91610-606-0 02 1 1009- ● ●
378 WASHER; PL
ID=6.4 		0-91610-606-0 08 1 0710- ● ●
399 SOCKET; TURN SIGNAL 1-82219-038-0 02 1 0710- ● ●
448 CAP ASM; LAMP 8-97378-874-0 02 1 0907- ● ●

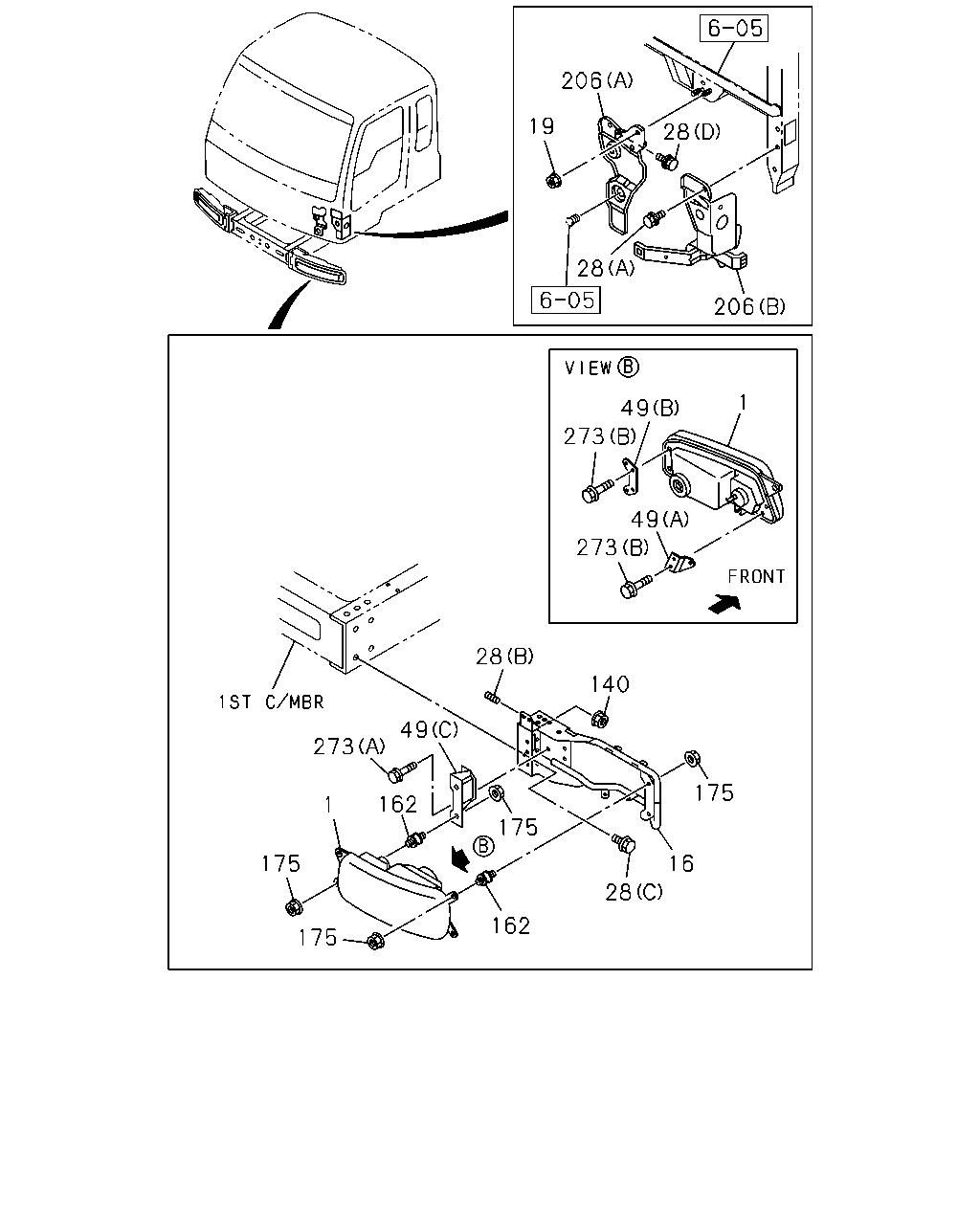

çizim 141930
206 19 28 28 206 1 49 49 28 140 49 273 175 162 1 175 16 175 28 162 175
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD 1-82110-372-2 01 1 0710-0711 ● ●
1 LAMP ASM; HEAD 8-98097-194-0 01 1 0712- ● ●
1 LAMP ASM; HEAD 1-82110-373-2 01 1 0710-0711 ● ●
1 LAMP ASM; HEAD 8-98097-195-0 01 1 0712- ● ●
16 BRACKET; HEADLAMP 8-97608-505-1 01 1 0710- ● ●
16 BRACKET; HEADLAMP 8-97613-935-0 01 1 0710- ● ●
19 NUT; HEADLAMP
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 0710- ● ●
28 BOLT; HEADLAMP
(C) M10X30 FLANGE 		0-28651-030-0 06 1 0710- ● ●
28 BOLT; HEADLAMP
(B) M10X28,M10X15 L=50 		5-09300-050-0 02 1 0710- ● ●
28 BOLT; HEADLAMP
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0710- ● ●
28 BOLT; HEADLAMP
(D) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0710- ● ●
49 BRACKET; LAMP
(D) 		8-98051-437-0 01 1 0710- ● ●
49 BRACKET; LAMP
(D) 		8-98051-438-0 01 1 0710- ● ●
49 BRACKET; LAMP
(A) 		1-82117-100-0 02 1 0710- ● ●
49 BRACKET; LAMP
(B) 		1-82117-101-1 01 1 0710- ● ●
49 BRACKET; LAMP
(B) 		1-82117-102-1 01 1 0710- ● ●
49 BRACKET; LAMP
(C) 		1-82117-176-0 01 1 0710- ● ●
49 BRACKET; LAMP
(C) 		1-82117-177-0 01 1 0710- ● ●
140 NUT
M10 FLANGE 		0-91180-210-0 02 1 0710- ● ●
162 RUBBER; CUSHION UPR 1-82117-086-0 08 1 0710- ● ●
175 NUT; BRKT CUSHION RUBBER
M8 FLANGE 		0-91180-108-0 16 1 0710- ● ●
206 HOLDER; HEADLAMP
(A) 		1-65671-570-6 01 1 0710- ● ●
206 HOLDER; HEADLAMP
(B) 		1-65671-762-3 01 1 0710- ● ●
206 HOLDER; HEADLAMP
(B) 		1-65671-761-3 01 1 0710- ● ●
206 HOLDER; HEADLAMP
(A) 		1-65671-817-0 01 1 0710- ● ●
273 BOLT; BRKT
(B) M6X16 FLANGE 		0-28650-616-0 08 1 0710- ● ●
273 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 04 1 0710- ● ●
çizim 142241
256 82 328 81 174 83 80 325 185 84
BalonParca AdiParca NoAdetTipApplied Date A B
80 BULB; MARKER LAMP
24V 5W 		8-94135-397-0 02 1 0710- ● ●
81 SEAT; SCREW 1-82219-012-0 04 1 0710- ● ●
82 SCREW; MARKER LAMP 1-82219-011-0 04 1 0710- ● ●
83 LENS; MARKER LAMP 1-82215-046-0 02 1 0710- ● ●
84 GASKET; MARKER LAMP 1-86830-288-0 02 1 0710- ● ●
174 BOLT
(A) M6X20 FLANGE 		0-28650-620-0 04 1 0710- ● ●
174 BOLT
(B) M6X28 W/LK&PL WASHER 		1-09980-543-0 04 1 0710-1107 ● ●
174 BOLT
(B) M6X28 W/LK&PL WASHER 		1-09980-543-0 04 1 1108- ● ●
185 GROMMET; SCREW
M5 SCREW GROMMET 		1-09983-131-0 12 1 0710- ● ●
185 GROMMET; SCREW
M5 SCREW GROMMET 		1-09983-131-0 12 1 0710- ● ●
256 LAMP; MARKER 1-86830-242-3 02 1 0710- ● ●
325 SCREW; SPD INDICATOR LAMP
M5X14 TAPPING 		0-71040-514-0 12 1 0710- ● ●
325 SCREW; SPD INDICATOR LAMP
M5X14 TAPPING 		0-71040-514-0 12 1 0710- ● ●
328 COVER; LAMP 1-76217-122-1 03 1 0710- ● ●

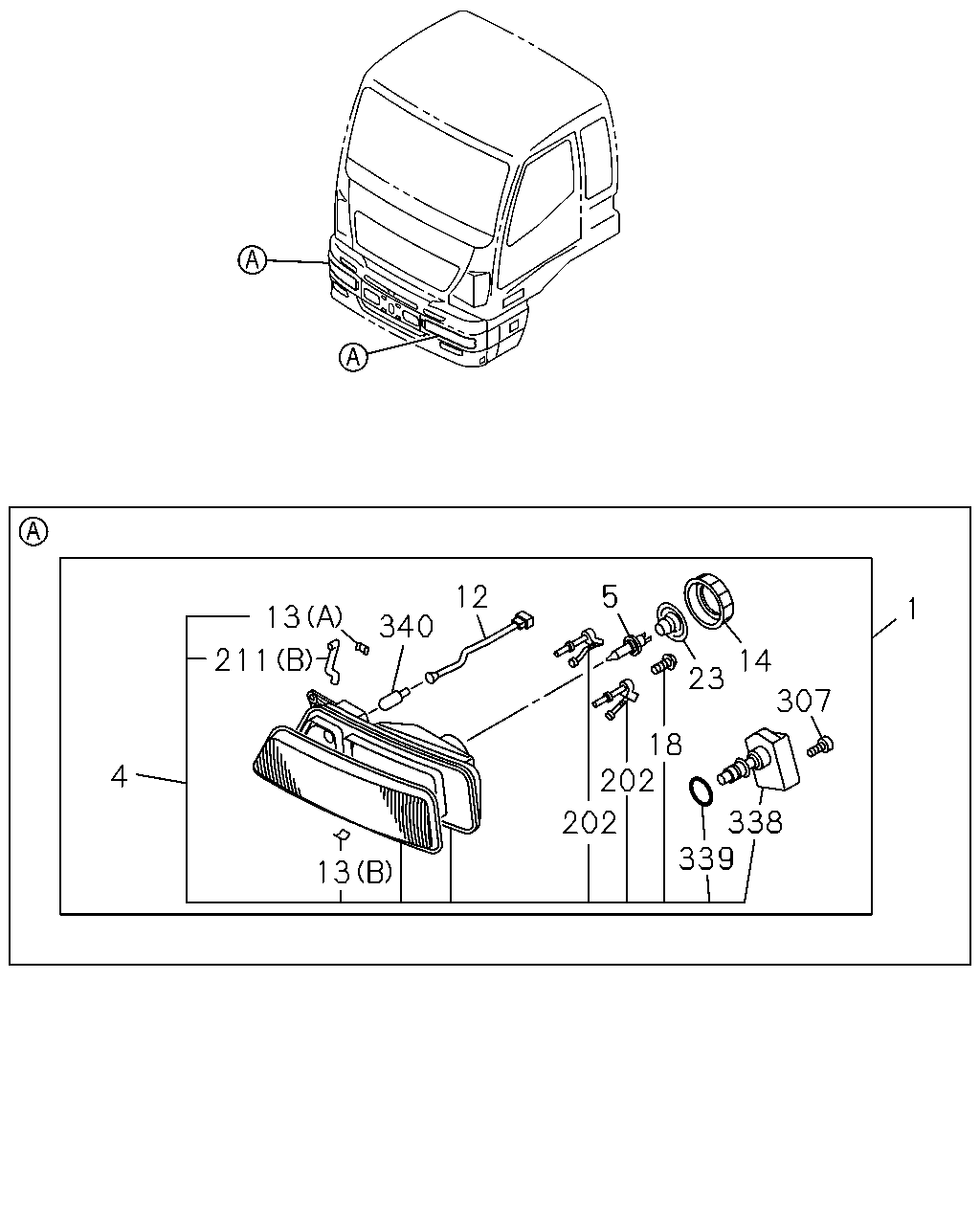

çizim 142250
5 12 1 13 340 211 14 23 307 18 202 4 338 339 202 13
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD 1-82110-372-2 01 1 0710-0711 ● ●
1 LAMP ASM; HEAD 8-98097-194-0 01 1 0712- ● ●
1 LAMP ASM; HEAD 1-82110-373-2 01 1 0710-0711 ● ●
1 LAMP ASM; HEAD 8-98097-195-0 01 1 0712- ● ●
4 HEADLAMP UNIT 1-82119-171-0 01 1 0710- ● ●
4 HEADLAMP UNIT 1-82119-172-0 01 1 0710- ● ●
5 BULB; HEADLAMP
24V 75/70W 		8-94405-657-0 02 1 0710- ● ●
12 HARNESS; HEADLAMP 1-82118-014-0 02 1 0710- ● ●
13 CLIP; HEADLAMP
(A) 		1-82119-084-0 02 1 0710- ● ●
13 CLIP; HEADLAMP
(B) 		8-94381-588-0 14 1 0710- ● ●
14 CAP; BULB,LAMP 1-86830-148-0 02 1 0710- ● ●
18 SCREW; GEAR CASE
M4X16 TAPPING 		1-82119-067-0 08 1 0710- ● ●
23 COVER; BULB,HEADLAMP 1-86830-147-0 02 1 0710- ● ●
202 GEAR UNIT; HEADLAMP 1-86830-139-0 04 1 0710-1107 ● ●
202 GEAR UNIT; HEADLAMP 1-86830-139-0 04 1 1108- ● ●
211 TUBE; HEADLAMP
(B) 		1-86830-331-0 01 1 0710-0711 ● ●
211 TUBE; HEADLAMP
(B) 		8-98101-137-0 01 1 0712- ● ●
211 TUBE; HEADLAMP
(B) 		1-86830-330-0 01 1 0710-0711 ● ●
211 TUBE; HEADLAMP
(B) 		8-98101-138-0 01 1 0712- ● ●
211 TUBE; HEADLAMP
(A) 		8-97025-128-0 02 1 0710-0906 ● ●
307 SCREW; TAPPING,HEAD LAMP
M4X16 TAPPING 		1-82119-067-0 02 1 0710-1107 ● ●
307 SCREW; TAPPING,HEAD LAMP
M4X16 TAPPING 		1-82119-067-0 02 1 1108- ● ●
338 LEVELING; HEADLAMP 1-86830-138-0 02 1 0710- ● ●
339 GASKET; LEVELING 1-86830-158-0 02 1 0710- ● ●
340 BULB; POSITION
24V 5W 		1-82194-042-0 02 1 0710- ● ●
