Isuzu WW
▶
SUV
▶
UCR
▶
51577 - UCR/UCS(THAILAND)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-03 - CLUTCH PEDAL AND CONTROL
▶

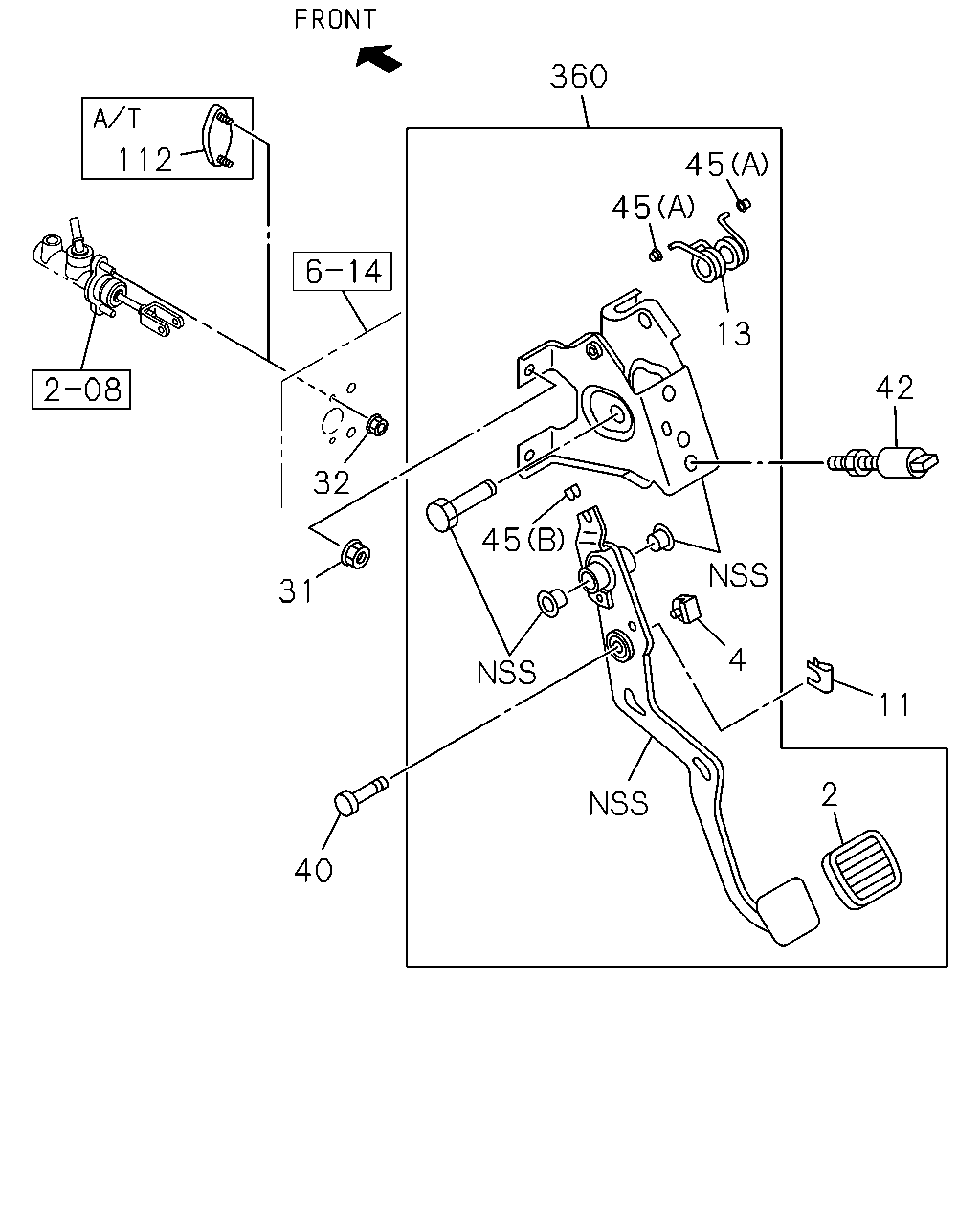

2-03 — CLUTCH PEDAL AND CONTROL
(#147229) — 13 parça
Tümü
A - UCB5VC
B - UCS5VC
11
42
13
45
45
360
4
2
45
32
31
40
112
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
COVER; CLU PEDAL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA
8-97318-799-0
01
1
1409-
●
●
4
STOPPER; CLU PEDAL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA
8-97947-783-0
01
1
1409-
●
●
11
PIN; SNAP,PUSH ROD TO PEDAL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> IMA
8-98007-161-0
01
1
1409-
●
●
13
SPRING; ASSIST,CLU PEDAL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA
8-97942-312-0
01
1
1409-
●
●
31
NUT; MTG BRKT TO BODY
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> M8 FLANGE THA
0-91180-108-0
04
1
1409-
●
●
32
NUT; BRKT TO CLU M/CYL
M8 FLANGE THA
0-91180-108-0
02
1
1409-
●
●
40
PIN; JOINT,CLU DAMPER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> OD=7.9 L=27.5 IMA
8-97312-338-0
01
1
1409-
●
●
42
SWITCH; CLU
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA
8-98154-210-0
01
1
1409-
●
●
45
BUSHING; ASSIST SPRING,CLU PEDAL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (A) THA
8-97942-313-0
02
1
1409-
●
●
45
BUSHING; ASSIST SPRING,CLU PEDAL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (B) THA
8-97942-314-0
01
1
1409-
●
●
112
PLUG; METAL,M/CYL
A/T 5 SPEED-AISIN<MA1> THA
8-97945-168-0
01
1
1409-
●
●
360
PEDAL ASM; CLUTCH
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA
8-98219-800-0
01
1
1409-1601
●
●
360
PEDAL ASM; CLUTCH
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA
8-98317-389-0
01
1
1602-
●
●
