1-41 — FUEL PIPING; CHASSIS (#147226) — 49 parça

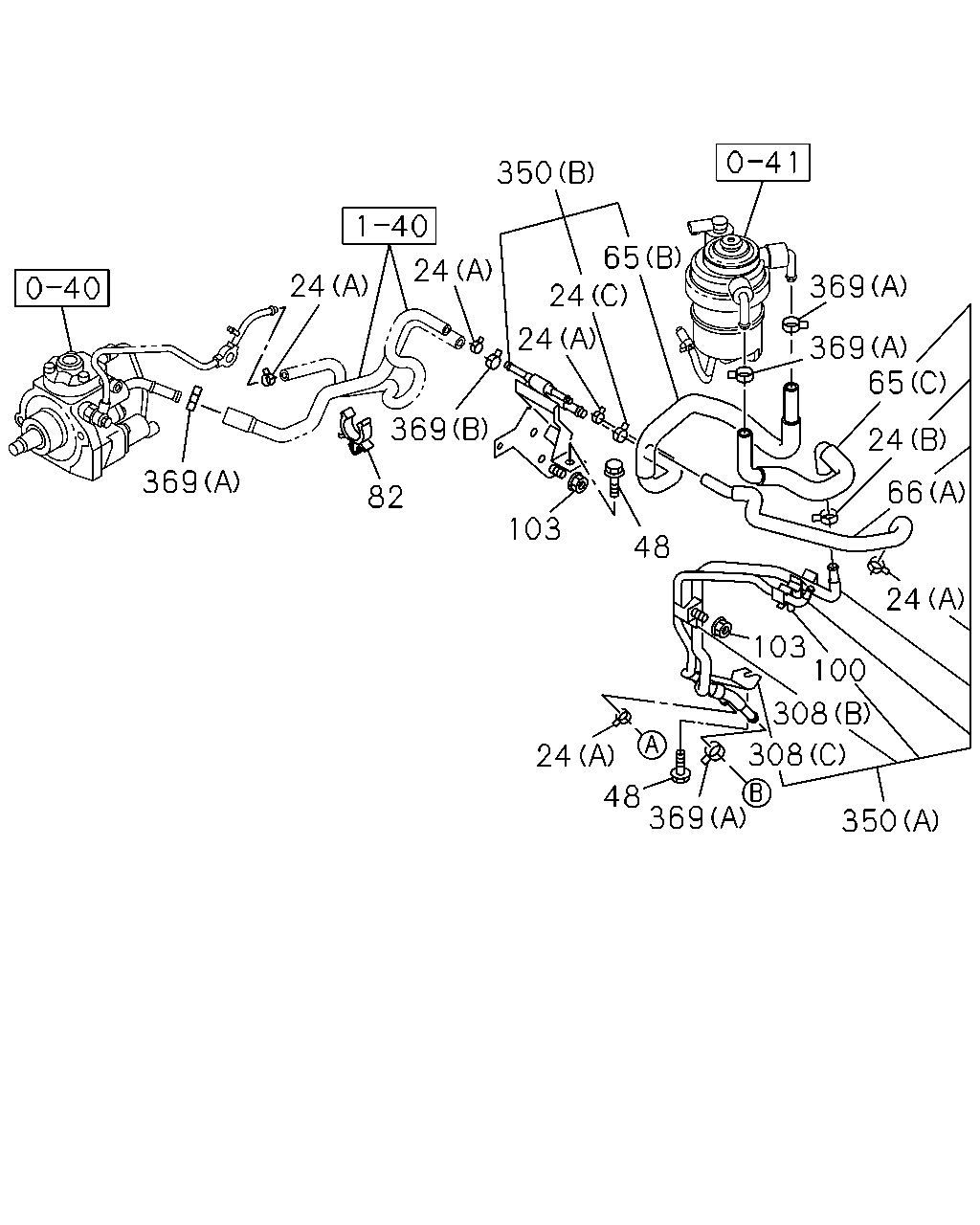

çizim 439070
24 24 350 65 24 24 103 82 369 369 369 369 24 66 24 48 103 100 308 308 369 48 24 350 65
BalonParca AdiParca NoAdetTipApplied Date A B
24 CLIP; FUEL HOSE
(A) ID=11.5 THA 		8-98051-892-0 01 1 1409- ● ●
24 CLIP; FUEL HOSE
(A) ID=11.5 THA 		8-98051-892-0 01 1 1409- ● ●
24 CLIP; FUEL HOSE
(B) ID=17.2 THA 		8-98052-395-0 01 1 1409- ● ●
24 CLIP; FUEL HOSE
(B) ID=17.2 THA 		8-98052-395-0 01 1 1409- ● ●
24 CLIP; FUEL HOSE
(C) ID=16 THA 		8-98030-682-0 01 1 1409- ● ●
24 CLIP; FUEL HOSE
(A) ID=11.5 THA 		8-98051-892-0 06 1 1409- ● ●
24 CLIP; FUEL HOSE
(D) THA 		8-98233-886-0 02 1 1409- ● ●
24 CLIP; FUEL HOSE
(E) THA 		8-98233-887-0 01 1 1409- ● ●
48 BOLT; BRKT
M6X16 FLANGE THA 		0-28650-616-0 02 1 1409- ● ●
65 HOSE; FUEL,DELIVERY PIPE
(B) THA 		8-98100-729-4 01 1 1409- ● ●
65 HOSE; FUEL,DELIVERY PIPE
(C) THA 		8-98100-731-2 01 1 1409- ● ●
65 HOSE; FUEL,DELIVERY PIPE
(A) THA 		8-98248-701-0 01 1 1409- ● ●
66 HOSE; FUEL,RETURN PIPE
(A) THA 		8-98100-720-2 01 1 1409- ● ●
66 HOSE; FUEL,RETURN PIPE
(B) THA 		8-98248-702-0 01 1 1409- ● ●
82 CLIP; FUEL HOSE
ID=17 THA 		8-94382-792-1 01 1 1409- ● ●
100 CLIP; FUEL PIPE
THA 		8-98113-581-0 01 1 1409- ● ●
103 NUT; BRKT
M6 FLANGE THA 		0-91180-106-0 02 1 1409- ● ●
308 BRACKET; FUEL PIPE
(A) THA 		8-98128-259-0 01 1 1409- ● ●
308 BRACKET; FUEL PIPE
(B) THA 		8-98233-889-0 01 1 1409- ● ●
308 BRACKET; FUEL PIPE
(C) THA 		8-98233-890-0 01 1 1409- ● ●
350 PIPE; FUEL,DEL & RET
(B) THA 		8-98113-293-6 01 1 1409- ● ●
350 PIPE; FUEL,DEL & RET
(A) THA 		8-98248-691-0 01 1 1409- ● ●
350 PIPE; FUEL,DEL & RET
(C) THA 		8-98248-731-0 01 1 1409- ● ●
369 CLAMP; HOSE,FUEL
(A) ID=17.2 THA 		8-98052-395-0 06 1 1409- ● ●
369 CLAMP; HOSE,FUEL
(B) ID=15.2 THA 		8-98186-048-0 01 1 1409- ● ●

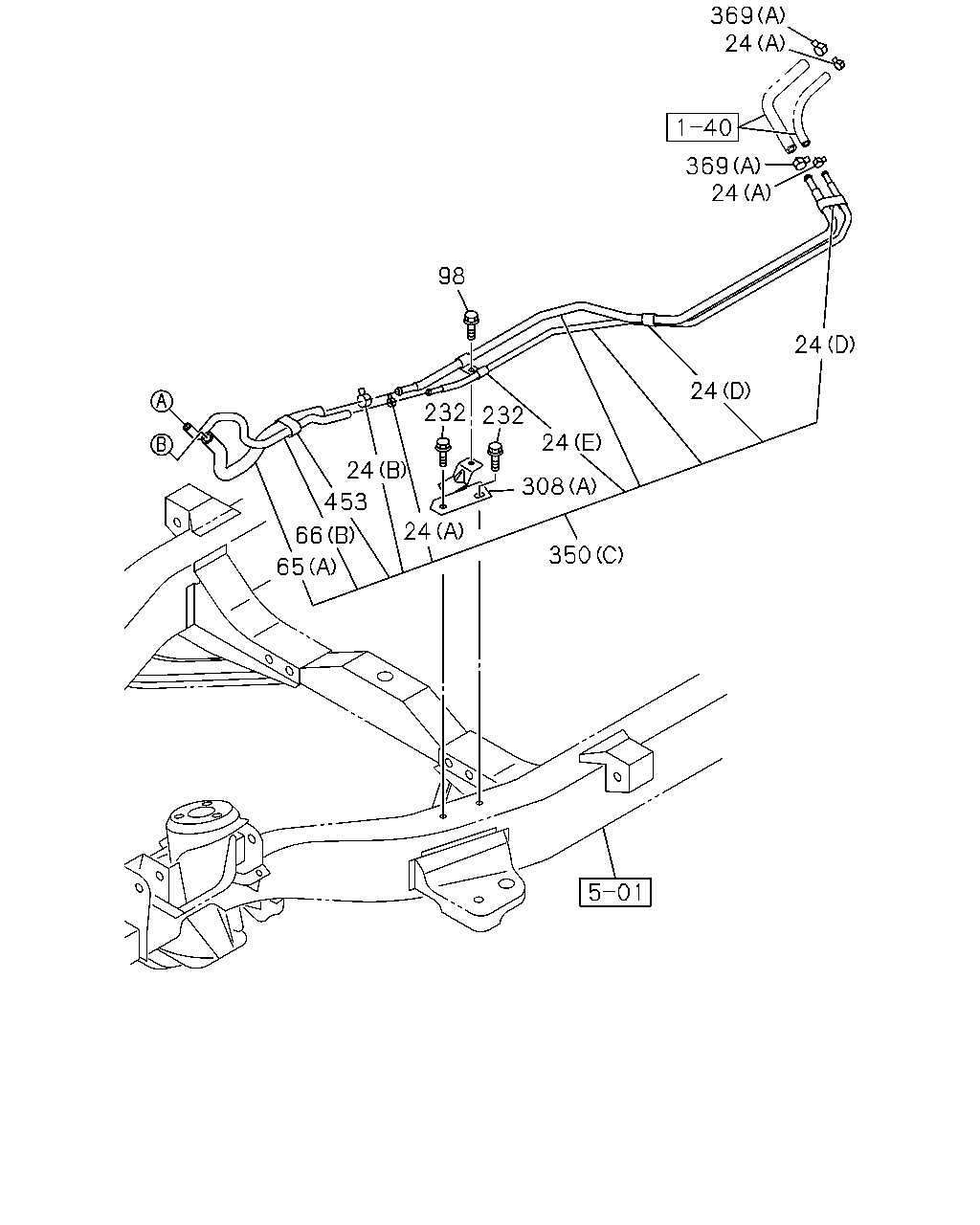

çizim 439093
369 369 24 24 24 24 24 232 232 98 308 350 24 24 453 66 65
BalonParca AdiParca NoAdetTipApplied Date A B
24 CLIP; FUEL HOSE
(A) ID=11.5 THA 		8-98051-892-0 01 1 1409- ● ●
24 CLIP; FUEL HOSE
(A) ID=11.5 THA 		8-98051-892-0 01 1 1409- ● ●
24 CLIP; FUEL HOSE
(B) ID=17.2 THA 		8-98052-395-0 01 1 1409- ● ●
24 CLIP; FUEL HOSE
(B) ID=17.2 THA 		8-98052-395-0 01 1 1409- ● ●
24 CLIP; FUEL HOSE
(C) ID=16 THA 		8-98030-682-0 01 1 1409- ● ●
24 CLIP; FUEL HOSE
(A) ID=11.5 THA 		8-98051-892-0 06 1 1409- ● ●
24 CLIP; FUEL HOSE
(D) THA 		8-98233-886-0 02 1 1409- ● ●
24 CLIP; FUEL HOSE
(E) THA 		8-98233-887-0 01 1 1409- ● ●
65 HOSE; FUEL,DELIVERY PIPE
(B) THA 		8-98100-729-4 01 1 1409- ● ●
65 HOSE; FUEL,DELIVERY PIPE
(C) THA 		8-98100-731-2 01 1 1409- ● ●
65 HOSE; FUEL,DELIVERY PIPE
(A) THA 		8-98248-701-0 01 1 1409- ● ●
66 HOSE; FUEL,RETURN PIPE
(A) THA 		8-98100-720-2 01 1 1409- ● ●
66 HOSE; FUEL,RETURN PIPE
(B) THA 		8-98248-702-0 01 1 1409- ● ●
98 BOLT; BRKT,FUEL PIPE
M6X16 FLANGE THA 		0-28650-616-0 01 1 1409- ● ●
232 BOLT; CLIP,PIPE
M10X25 FLANGE THA 		0-28061-025-0 02 1 1409- ● ●
308 BRACKET; FUEL PIPE
(A) THA 		8-98128-259-0 01 1 1409- ● ●
308 BRACKET; FUEL PIPE
(B) THA 		8-98233-889-0 01 1 1409- ● ●
308 BRACKET; FUEL PIPE
(C) THA 		8-98233-890-0 01 1 1409- ● ●
350 PIPE; FUEL,DEL & RET
(B) THA 		8-98113-293-6 01 1 1409- ● ●
350 PIPE; FUEL,DEL & RET
(A) THA 		8-98248-691-0 01 1 1409- ● ●
350 PIPE; FUEL,DEL & RET
(C) THA 		8-98248-731-0 01 1 1409- ● ●
369 CLAMP; HOSE,FUEL
(A) ID=17.2 THA 		8-98052-395-0 06 1 1409- ● ●
369 CLAMP; HOSE,FUEL
(B) ID=15.2 THA 		8-98186-048-0 01 1 1409- ● ●
453 BAND; FLEX HOSE
THA 		8-98233-888-0 01 1 1409- ● ●
