◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXY ▶ 11113 - CXY AUST EURO5/JAPAN NEW LONG TERM 2005 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-70 - SEPARATER AND BED ▶
7-70 — SEPARATER AND BED (#14722) — 54 parça
çizim 142232
64 51 44 51 92 44 92 46
BalonParca AdiParca NoAdetTipApplied Date A B
44 CURTAIN ASM; CABIN CENTER
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (B) 		1-73907-480-1 01 1 0710- ● ●
44 CURTAIN ASM; CABIN CENTER
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (A) 		1-73907-481-1 01 1 0710- ● ●
46 CURTAIN ASM; DOOR
WINDOW CURTAIN ROUND<BW4> 		1-73907-426-0 01 1 0710- ● ●
51 CURTAIN; BACK
WINDOW CURTAIN ROUND<BW4> (B) 		1-73907-482-1 01 1 0710- ● ●
51 CURTAIN; BACK
WINDOW CURTAIN ROUND<BW4> (A) 		1-73907-483-1 01 1 0710- ● ●
64 CURTAIN KIT
WINDOW CURTAIN ROUND<BW4> 		1-73907-479-1 01 1 0710- ● ●
92 CURTAIN ASM; ROUND
WINDOW CURTAIN ROUND<BW4> (B) 		1-73907-484-1 01 1 0710- ● ●
92 CURTAIN ASM; ROUND
WINDOW CURTAIN ROUND<BW4> (A) 		1-73907-485-1 01 1 0710- ● ●

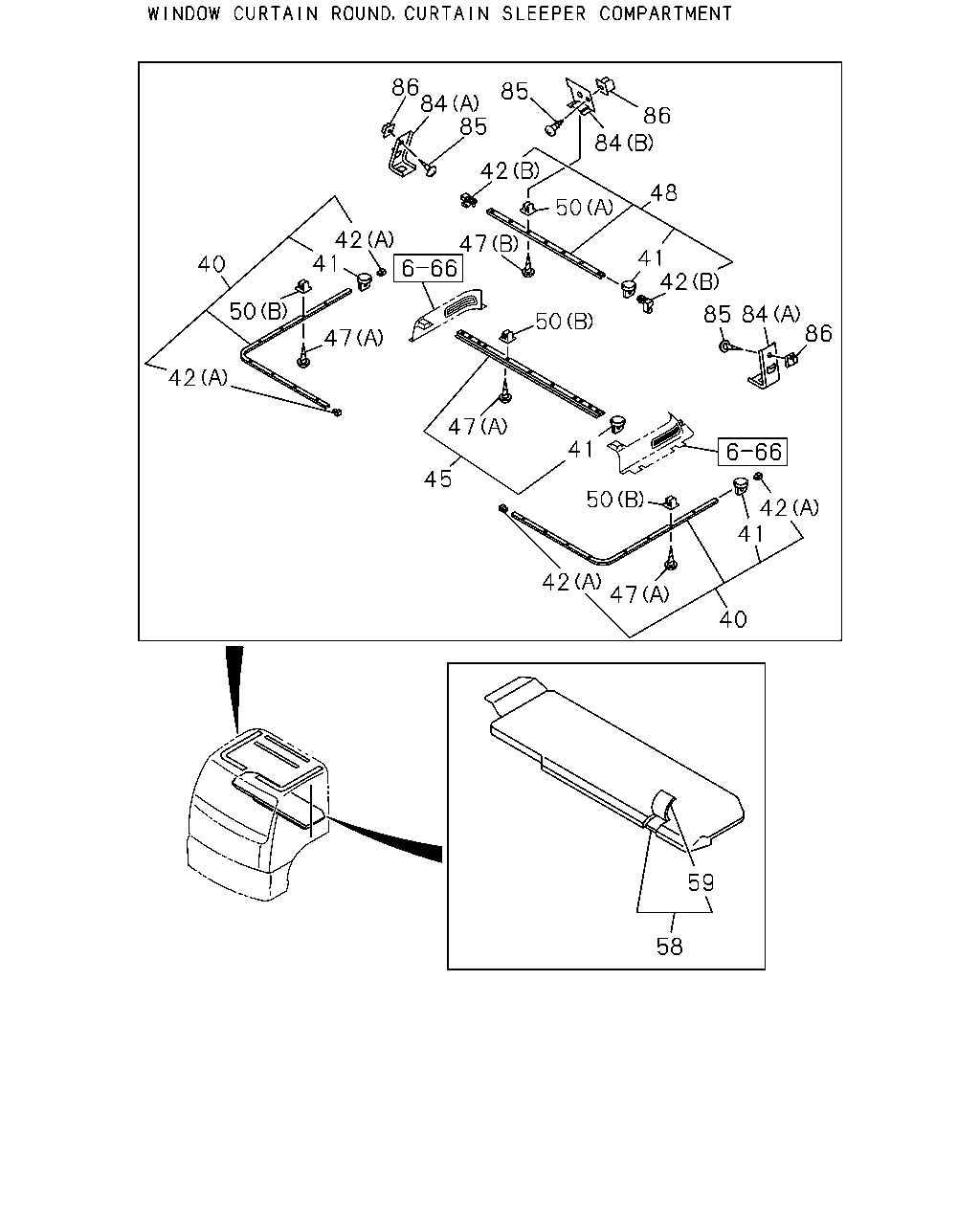

çizim 142234
86 84 85 85 86 84 42 48 50 42 41 47 41 42 40 50 47 85 84 86 50 42 47 41 45 50 42 41 42 47 40 59 58
BalonParca AdiParca NoAdetTipApplied Date A B
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-538-1 01 1 0710- ● ●
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-537-1 01 1 0710- ● ●
40 RAIL; CURTAIN,SIDE
EXC. WINDOW CURTAIN ROUND<BW4> 		1-73907-536-1 01 1 0710- ● ●
40 RAIL; CURTAIN,SIDE
EXC. WINDOW CURTAIN ROUND<BW4> 		1-73907-535-1 01 1 0710- ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE 		1-73996-398-0 42 1 0710- ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE 		1-73996-398-0 14 1 0710- ● ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (A) 		1-73996-393-0 04 1 0710- ● ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 02 1 0710- ● ●
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (A) 		1-73996-393-0 02 1 0710- ● ●
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 01 1 0710- ● ●
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> 		1-73907-546-3 01 1 0710- ● ●
45 RAIL; CURTAIN,FRT
EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> 		1-73907-545-2 01 1 0710- ● ●
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 27 1 0710- ● ●
47 SCREW; CURTAIN RAIL
(B) M5X25 		5-09981-093-0 07 1 0710- ● ●
48 RAIL; CURTAIN,BACK
WINDOW CURTAIN ROUND<BW4> 		1-73996-386-1 01 1 0710- ● ●
48 RAIL; CURTAIN,BACK
EXC. WINDOW CURTAIN ROUND<BW4> 		1-73996-385-1 01 1 0710- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8X8 L=13 M5 		1-09983-159-0 07 1 0710- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 27 1 0710- ● ●
58 BED; MAT 1-75127-018-3 01 1 0710- ● ●
59 COVER ASM; TRIM,BED MAT 1-75127-132-2 01 1 0710- ● ●
84 BRACKET; CURTAIN RAIL
(A) 		1-73998-986-2 02 1 0710- ● ●
84 BRACKET; CURTAIN RAIL
(B) 		1-73998-987-4 07 1 0710- ● ●
85 SCREW; BRKT
M5X20 		5-09981-059-0 09 1 0710- ● ●
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 09 1 0710- ● ●

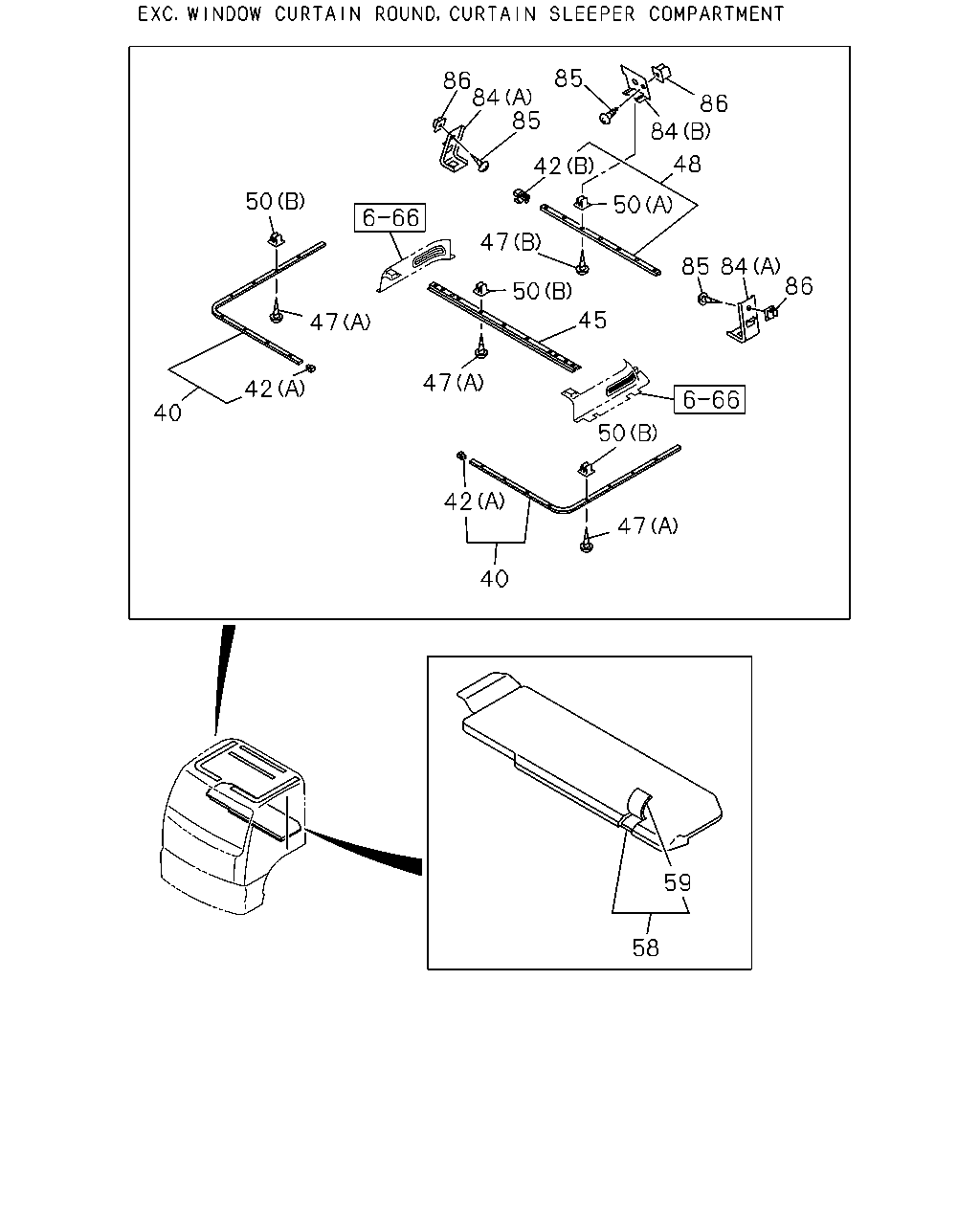

çizim 142243
85 86 84 85 86 84 48 42 50 50 47 85 84 86 50 45 47 47 42 40 50 42 47 40 59 58
BalonParca AdiParca NoAdetTipApplied Date A B
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-538-1 01 1 0710- ● ●
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-537-1 01 1 0710- ● ●
40 RAIL; CURTAIN,SIDE
EXC. WINDOW CURTAIN ROUND<BW4> 		1-73907-536-1 01 1 0710- ● ●
40 RAIL; CURTAIN,SIDE
EXC. WINDOW CURTAIN ROUND<BW4> 		1-73907-535-1 01 1 0710- ● ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (A) 		1-73996-393-0 04 1 0710- ● ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 02 1 0710- ● ●
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (A) 		1-73996-393-0 02 1 0710- ● ●
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 01 1 0710- ● ●
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> 		1-73907-546-3 01 1 0710- ● ●
45 RAIL; CURTAIN,FRT
EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> 		1-73907-545-2 01 1 0710- ● ●
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 27 1 0710- ● ●
47 SCREW; CURTAIN RAIL
(B) M5X25 		5-09981-093-0 07 1 0710- ● ●
48 RAIL; CURTAIN,BACK
WINDOW CURTAIN ROUND<BW4> 		1-73996-386-1 01 1 0710- ● ●
48 RAIL; CURTAIN,BACK
EXC. WINDOW CURTAIN ROUND<BW4> 		1-73996-385-1 01 1 0710- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8X8 L=13 M5 		1-09983-159-0 07 1 0710- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 27 1 0710- ● ●
58 BED; MAT 1-75127-018-3 01 1 0710- ● ●
59 COVER ASM; TRIM,BED MAT 1-75127-132-2 01 1 0710- ● ●
84 BRACKET; CURTAIN RAIL
(A) 		1-73998-986-2 02 1 0710- ● ●
84 BRACKET; CURTAIN RAIL
(B) 		1-73998-987-4 07 1 0710- ● ●
85 SCREW; BRKT
M5X20 		5-09981-059-0 09 1 0710- ● ●
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 09 1 0710- ● ●
