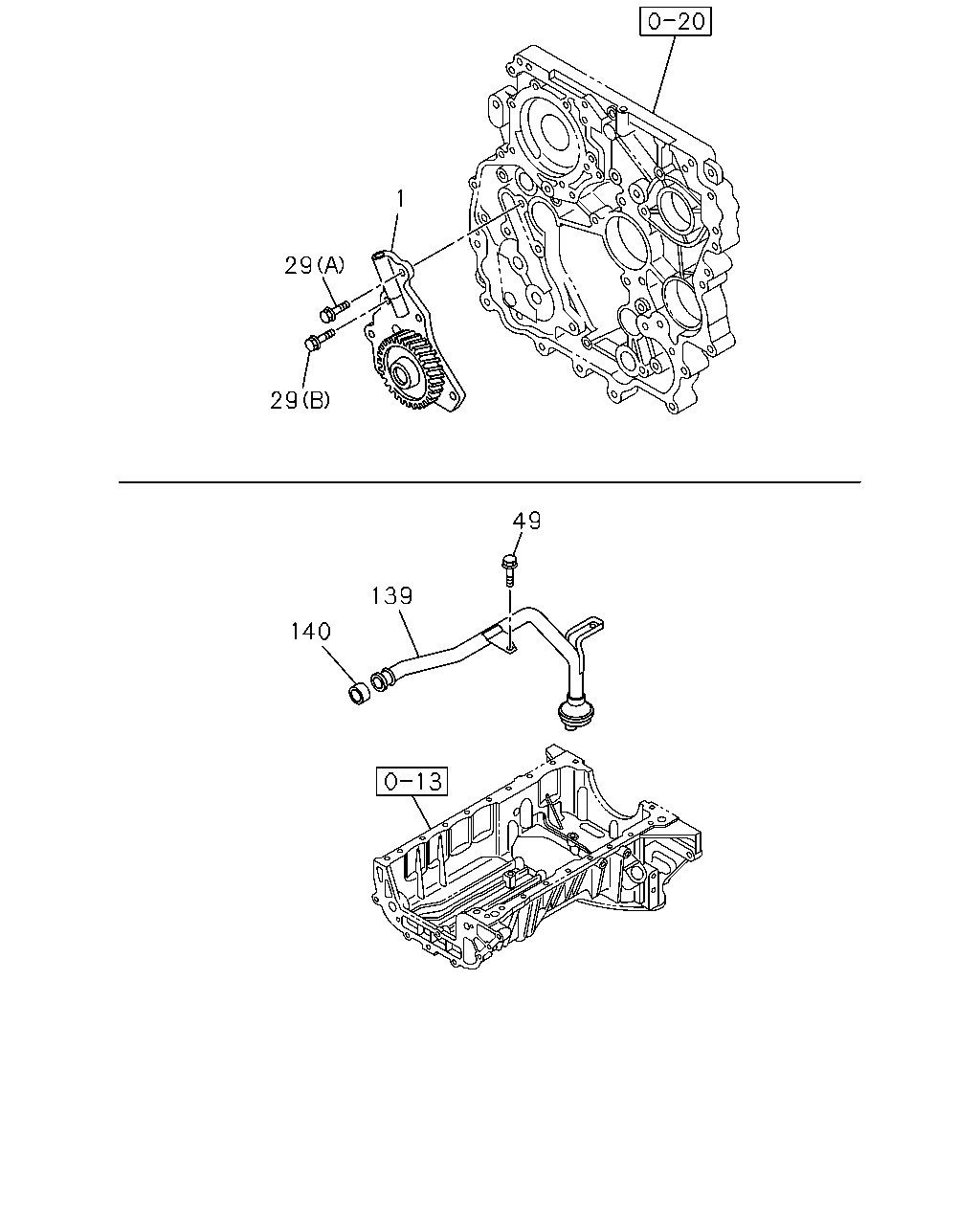

0-51 — OIL PUMP AND OIL STRAINER (#147212) — 7 parça

1 29 29 49 139 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; OIL THA	8-98232-624-1	01	1	1409-	●	●
29	BOLT; OIL PUMP (B) M8X30 FLANGE THA	0-28050-830-0	04	1	1409-	●	●
29	BOLT; OIL PUMP (A) M8X45 FLANGE THA	0-28050-845-0	02	1	1409-	●	●
49	BOLT; STRAINER,OIL PUMP M8X16 FLANGE THA	0-28050-816-0	02	1	1409-	●	●
139	PIPE; OIL STRAINER 4X2<UCB***> THA	8-98127-247-0	01	1	1409-	●	●
139	PIPE; OIL STRAINER 4X4<UCS***> THA	8-98132-012-0	01	1	1409-	●	●
140	GASKET; OIL STRAINER THA	8-97356-150-0	01	1	1409-	●	●
