◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXY ▶ 11113 - CXY AUST EURO5/JAPAN NEW LONG TERM 2005 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-35 - ENGINE CONTROL VALVE AND LEVER ▶
0-35 — ENGINE CONTROL VALVE AND LEVER (#14721) — 14 parça

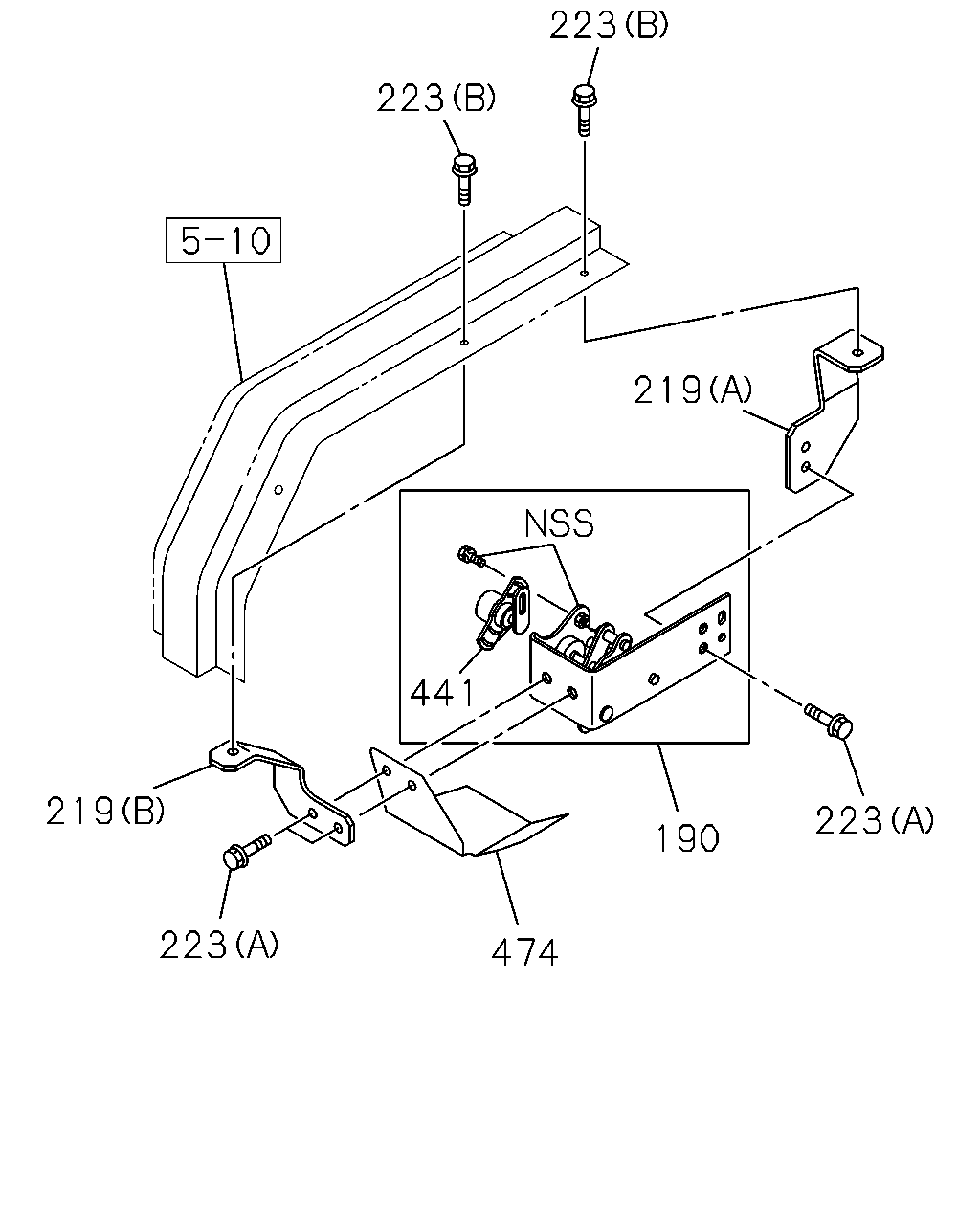

çizim 141963
223 223 219 441 219 223 190 223 474
BalonParca AdiParca NoAdetTipApplied Date A B
190 LEVER; ENG CONT 8-97219-466-4 01 1 0710-1107 ●
190 LEVER; ENG CONT 8-97219-466-4 01 1 1108- ● ●
219 BRACKET; ENG CONT
(A) 		8-98080-371-0 01 1 0710-1107 ●
219 BRACKET; ENG CONT
(A) 		8-98080-371-0 01 1 1108- ● ●
219 BRACKET; ENG CONT
(B) 		8-98080-935-0 01 1 0710-1107 ●
219 BRACKET; ENG CONT
(B) 		8-98080-935-0 01 1 1108- ● ●
223 BOLT; BRKT FIX
(A) M8X16 FLANGE 		0-28050-816-0 04 1 0710-1107 ●
223 BOLT; BRKT FIX
(A) M8X16 FLANGE 		0-28050-816-0 04 1 1108- ● ●
223 BOLT; BRKT FIX
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0710-1107 ●
223 BOLT; BRKT FIX
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1108- ● ●
441 SENSOR; THROTTLE POSITION 8-97200-308-0 01 1 0710-1107 ●
441 SENSOR; THROTTLE POSITION 8-97200-308-0 01 1 1108- ● ●
474 PROTECTOR; HEAT 8-98080-377-0 01 1 0710-1107 ●
474 PROTECTOR; HEAT 8-98080-377-0 01 1 1108- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
