1 |

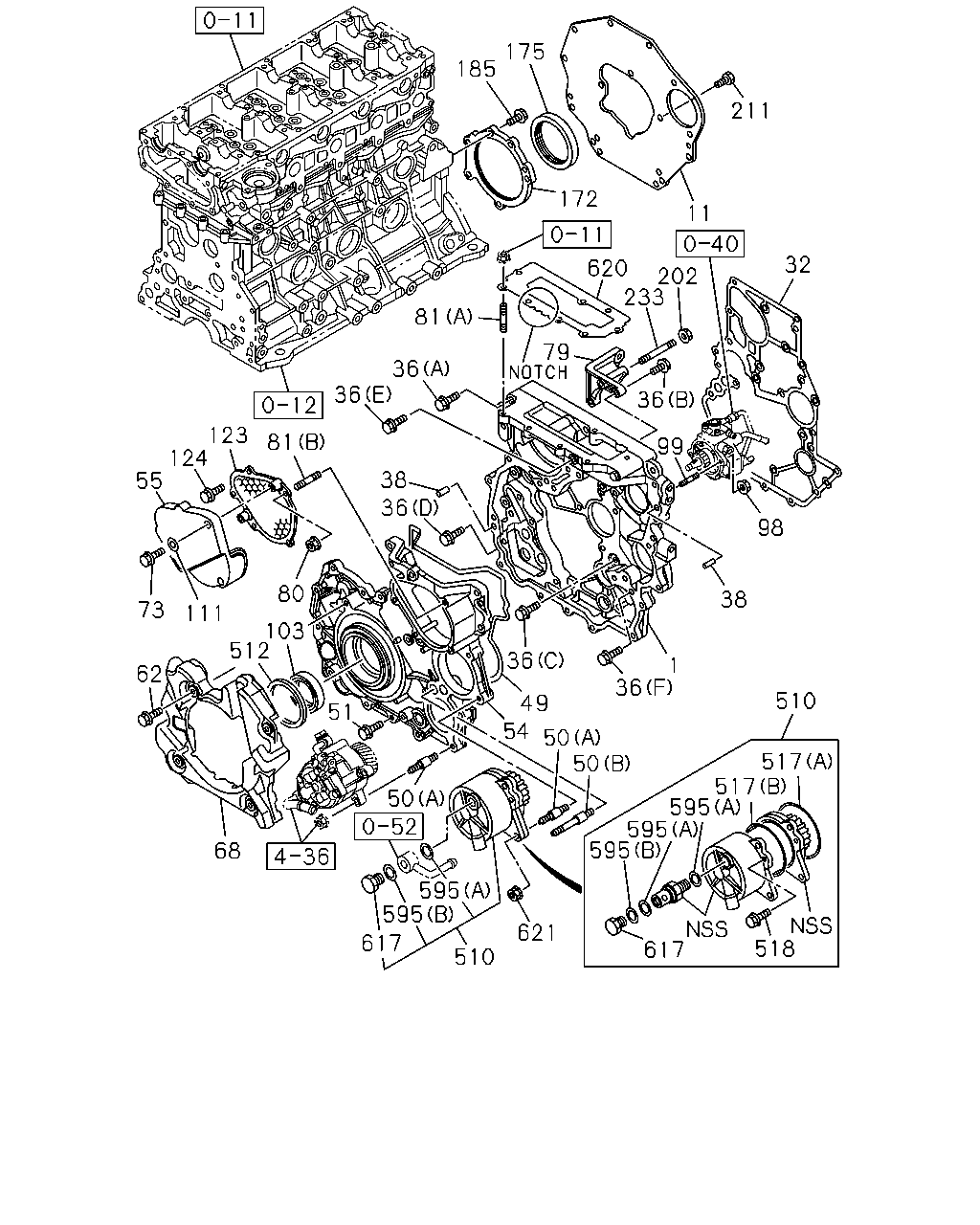

CASE; TIMING GEAR
THA
|
8-98217-735-0 |
01 |
1 |
1409- |
● |
● |
| |
11 |
PLATE; RR,C/BL
M/T MUA 5 SPEED 5H<MWQ>
THA
|
8-98162-657-1 |
01 |
1 |
1409- |
● |
|
| |
11 |
PLATE; RR,C/BL
A/T 5 SPEED-AISIN<MA1>,M/T MUX 5 SPEED 5S<MZJ>
THA
|
8-98132-021-0 |
01 |
1 |
1409- |
● |
● |
| |
32 |
GASKET; GEAR CASE TO C/BL
THA
|
8-98228-292-0 |
01 |
1 |
1409- |
● |
● |
| |
36 |
BOLT; GEAR CASE
(C)
M8X16 FLANGE
THA
|
0-28050-816-0 |
01 |
1 |
1409- |
● |
● |
| |
36 |
BOLT; GEAR CASE
(E)
M8X35 FLANGE
THA
|
0-28050-835-0 |
01 |
1 |
1409- |
● |
● |
| |
36 |
BOLT; GEAR CASE
(F)
M8X45 FLANGE
THA
|
0-28050-845-0 |
02 |
1 |
1409- |
● |
● |
| |
36 |
BOLT; GEAR CASE
(A)
M8X60 FLANGE
THA
|
0-28050-860-0 |
01 |
1 |
1409- |
● |
● |
| |
36 |
BOLT; GEAR CASE
(D)
M8X25 FLANGE
THA
|
0-28650-825-0 |
16 |
1 |
1409- |
● |
● |
| |
36 |
BOLT; GEAR CASE
(B)
M8X30 FLANGE
THA
|
0-28650-830-0 |
03 |
1 |
1409- |
● |
● |
| |
38 |
PIN; GEAR CASE COVER
OD=10 L=20
THA
|
9-08151-020-0 |
02 |
1 |
1409- |
● |
● |
| |
49 |
GASKET; GEAR CASE TO COVER
THA
|
8-97945-298-0 |
01 |
1 |
1409- |
● |
● |
| |
50 |
STUD
(A)
M8X27,M8X14 L=64.5
THA
|
8-97354-808-2 |
05 |
1 |
1409- |
● |
● |
| |
50 |
STUD
(B)
M8X70,M8X14 L=107.5
THA
|
8-98134-221-0 |
01 |
1 |
1409- |
● |
● |
| |
51 |
BOLT; GEAR CASE COVER
THA
|
8-97354-697-1 |
14 |
1 |
1409- |
● |
● |
| |
54 |
COVER; GEAR CASE
THA
|
8-98228-336-1 |
01 |
1 |
1409- |
● |
● |
| |
55 |
COVER; NOISE SHIELD
THA
|
8-97375-190-1 |
01 |
1 |
1409- |
● |
● |
| |
62 |
BOLT; COVER
M6X20 FLANGE
THA
|
0-28650-620-0 |
04 |
1 |
1409- |
● |
● |
| |
68 |
COVER ASM; GEAR CASE COVER
THA
|
8-98228-636-0 |
01 |
1 |
1409- |
● |
● |
| |
73 |
BOLT; COVER FIX
M6X12 FLANGE
THA
|
0-28050-612-0 |
02 |
1 |
1409- |
● |
● |
| |
79 |
BRACKET; GEAR CASE COVER
THA
|
8-98107-106-0 |
01 |
1 |
1409- |
● |
● |
| |
80 |
NUT; COVER
M6 FLANGE
THA
|
0-91180-206-0 |
02 |
1 |
1409- |
● |
● |
| |
81 |
STUD; GEAR CASE COVER FIX
(B)
M6X16 L=25
THA
|
0-41010-616-0 |
02 |
1 |
1409- |
● |
● |
| |
81 |
STUD; GEAR CASE COVER FIX
(A)
M8X30 L=48
THA
|
0-49140-830-0 |
02 |
1 |
1409- |
● |
● |
| |
98 |
NUT; STUD,INJ PUMP
M8 FLANGE
THA
|
0-91180-208-0 |
02 |
1 |
1409- |
● |
● |
| |
99 |
STUD; INJ PUMP
M8X30 L=48
THA
|
0-49140-830-0 |
02 |
1 |
1409- |
● |
● |
| |
103 |
SEAL; OIL,CR/SHF,FRT
THA
|
8-97943-951-0 |
01 |
1 |
1409- |
● |
● |
| |
111 |
WASHER; PL
ID=6.4 OD=22
THA
|
0-91614-806-0 |
02 |
1 |
1409- |
● |
● |
| |
123 |
COVER; TIMING,LWR
THA
|
8-97371-720-1 |
01 |
1 |
1409- |
● |
● |
| |
124 |
BOLT; TIMING COVER
M6X16 FLANGE
THA
|
0-28050-616-0 |
03 |
1 |
1409- |
● |
● |
| |
172 |
RETAINER; CR/SHF
THA
|
8-97379-826-0 |
01 |
1 |
1409- |
● |
● |
| |
175 |
SEAL; OIL,CR/SHF,RR
ID=95 OD=118
IMA
|
8-97071-561-1 |
01 |
1 |
1409- |
● |
● |
| |
185 |
BOLT; RET TO C/BL
M8X25 FLANGE
THA
|
0-28650-825-0 |
05 |
1 |
1409- |
● |
● |
| |
202 |
NUT; BRKT
M8 FLANGE
THA
|
0-91180-208-0 |
01 |
1 |
1409- |
● |
● |
| |
211 |
BOLT; HSG
M12X25
THA
|
8-97916-324-1 |
03 |
1 |
1409- |
● |
● |
| |
233 |
STUD; BRKT
M8X71 L=83
THA
|
8-97367-083-0 |
01 |
1 |
1409- |
● |
● |
| |
510 |
PUMP ASM; VACUUM
THA
|
8-98251-765-0 |
01 |
1 |
1409- |
● |
● |
| |
512 |
RUBBER; SPACE
THA
|
8-97373-716-0 |
01 |
1 |
1409- |
● |
● |
| |
517 |
GASKET; VAC PUMP
(A)
IMA
|
0-95690-271-0 |
01 |
1 |
1409- |
● |
● |
| |
517 |
GASKET; VAC PUMP
(B)
THA
|
8-98251-768-0 |
01 |
1 |
1409- |
● |
● |
| |
518 |
BOLT; VAC PUMP
THA
|
8-97184-180-0 |
03 |
1 |
1409- |
● |
● |
| |
595 |
GASKET; VLV
(A)
ID=18 OD=24
IMA
|
5-19679-002-0 |
02 |
1 |
1409- |
● |
● |
| |
595 |
GASKET; VLV
(B)
ID=12 OD=24
IMA
|
5-19679-003-0 |
01 |
1 |
1409- |
● |
● |
| |
617 |
BOLT; CHECK VLV
THA
|
8-97376-402-0 |
01 |
1 |
1409- |
● |
● |
| |
620 |
GASKET; GEAR CASE
GRADE A
T=1.40 1-NOTCH
THA
|
8-97328-828-2 |
01 |
1 |
1409- |
● |
● |
| |
620 |
GASKET; GEAR CASE
GRADE B
T=1.45 2-NOTCH
THA
|
8-97331-631-2 |
01 |
1 |
1409- |
● |
● |
| |
620 |
GASKET; GEAR CASE
GRADE C
T=1.50 3-NOTCH
THA
|
8-97331-632-2 |
01 |
1 |
1409- |
● |
● |
| |
621 |
NUT; VAC PUMP
M8 FLANGE
THA
|
0-91180-208-0 |
03 |
1 |
1409- |
● |
● |
