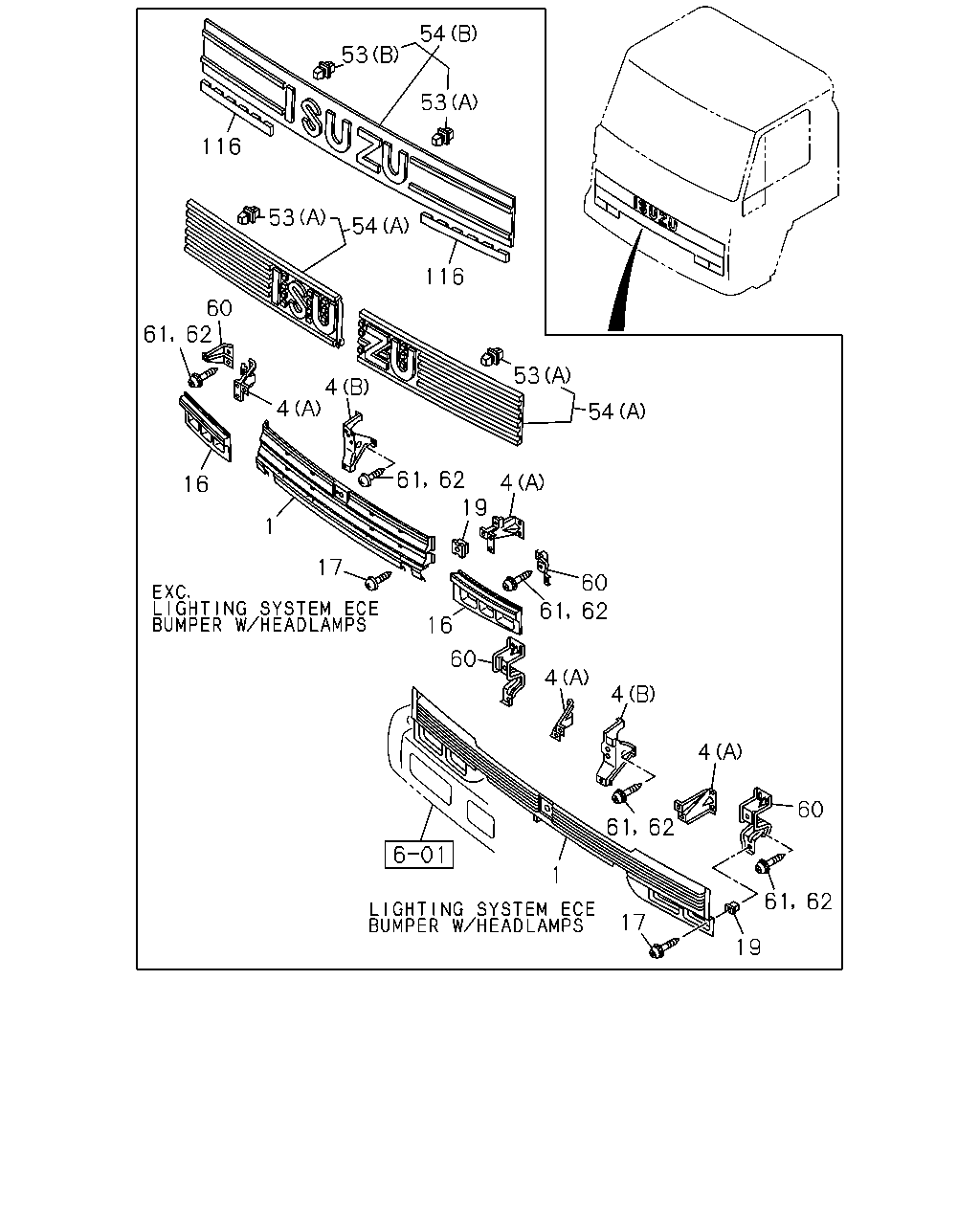

6-03 — RADIATOR GRILLE (#1472) — 44 parça

54 53 53 116 53 54 116 53 54 4 19 62 61 17 1 16 4 4 60 62 61 60 62 61 16 60 4 4 4 61 62 60 62 61 1 17 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GRILLE; RAD BUMPER W/HEADLAMPS<SLB>	1-71118-677-1	01	1	9203-
1	GRILLE; RAD EXC. BUMPER W/HEADLAMPS<SLB> WHITE	1-71118-437-1	01	1	9203-
4	BRACKET; RAD GRILLE (B)	1-71118-421-2	01	1	9203-
4	BRACKET; RAD GRILLE LIGHTING SYSTEM ECE<SLC> (A)	1-71118-684-0	01	1	9203-9205
4	BRACKET; RAD GRILLE BUMPER W/HEADLAMPS<SLB> (A)	1-71118-684-0	01	1	9206-
4	BRACKET; RAD GRILLE LIGHTING SYSTEM ECE<SLC> (A)	1-71118-683-0	01	1	9203-9205
4	BRACKET; RAD GRILLE BUMPER W/HEADLAMPS<SLB> (A)	1-71118-683-0	01	1	9206-
4	BRACKET; RAD GRILLE EXC. LIGHTING SYSTEM ECE<SLC> (A)	1-71118-586-0	01	1	9203-9205
4	BRACKET; RAD GRILLE EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71118-586-0	01	1	9206-
4	BRACKET; RAD GRILLE EXC. LIGHTING SYSTEM ECE<SLC> (A)	1-71118-585-0	01	1	9203-9205
4	BRACKET; RAD GRILLE EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71118-585-0	01	1	9206-
16	GRILLE; RAD,SIDE EXC. BUMPER W/HEADLAMPS<SLB>	1-71118-200-3	01	1	9203-
16	GRILLE; RAD,SIDE EXC. BUMPER W/HEADLAMPS<SLB>	1-71118-199-3	01	1	9203-
17	SCREW; RAD GRILLE BUMPER W/HEADLAMPS<SLB> M5X20 TAPPING W/PL WASHER	0-74315-520-0	05	1	9203-
17	SCREW; RAD GRILLE EXC. BUMPER W/HEADLAMPS<SLB> M5X20 TAPPING W/PL WASHER	0-74315-520-0	04	1	9203-
17	SCREW; RAD GRILLE EXC. BUMPER W/HEADLAMPS<SLB> M6X20 W/PL WASHER	1-09981-376-0	04	1	9203-
19	GROMMET; SCREW,RAD GRILLE LIGHTING SYSTEM ECE<SLC> D=10X10 L=10 M5 BLACK	1-09983-102-0	05	1	9203-9205
19	GROMMET; SCREW,RAD GRILLE BUMPER W/HEADLAMPS<SLB> D=10X10 L=10 M5 BLACK	1-09983-102-0	05	1	9206-
19	GROMMET; SCREW,RAD GRILLE EXC. LIGHTING SYSTEM ECE<SLC> D=10X10 L=10 M5 BLACK	1-09983-102-0	04	1	9203-9205
19	GROMMET; SCREW,RAD GRILLE EXC. BUMPER W/HEADLAMPS<SLB> D=10X10 L=10 M5 BLACK	1-09983-102-0	04	1	9206-
53	CLIP; ORNAMENT GRILLE (A)	1-09987-056-1	14	1	9203-9307
53	CLIP; ORNAMENT GRILLE EXTERIOR ORNAMENTATION FRONT END PLATE<BX9> (A)	1-09987-056-1	12	1	9308-
53	CLIP; ORNAMENT GRILLE EXTERIOR ORNAMENTATION FRONT END PLATE<BX9> (B)	8-94385-563-3	01	1	9308-
53	CLIP; ORNAMENT GRILLE EXC. EXTERIOR ORNAMENTATION FRONT END PLATE<BX9> (A)	1-09987-056-1	14	1	9308-
54	GRILLE; ORNAMENT (A)	1-76218-017-2	01	1	9203-9307
54	GRILLE; ORNAMENT EXC. EXTERIOR ORNAMENTATION FRONT END PLATE<BX9> (A)	1-76218-017-2	01	1	9308-
54	GRILLE; ORNAMENT (A)	1-76218-016-2	01	1	9203-9307
54	GRILLE; ORNAMENT EXC. EXTERIOR ORNAMENTATION FRONT END PLATE<BX9> (A)	1-76218-016-2	01	1	9308-
54	GRILLE; ORNAMENT EXTERIOR ORNAMENTATION FRONT END PLATE<BX9> (B)	1-76218-068-1	01	1	9308-
60	BRACKET; RAD GRILLE SIDE LIGHTING SYSTEM ECE<SLC>	1-71118-672-3	01	1	9203-9205
60	BRACKET; RAD GRILLE SIDE BUMPER W/HEADLAMPS<SLB>	1-71118-672-3	01	1	9206-
60	BRACKET; RAD GRILLE SIDE LIGHTING SYSTEM ECE<SLC>	1-71118-671-3	01	1	9203-9205
60	BRACKET; RAD GRILLE SIDE BUMPER W/HEADLAMPS<SLB>	1-71118-671-3	01	1	9206-
60	BRACKET; RAD GRILLE SIDE EXC. LIGHTING SYSTEM ECE<SLC>	1-71118-577-2	01	1	9203-9205
60	BRACKET; RAD GRILLE SIDE EXC. BUMPER W/HEADLAMPS<SLB>	1-71118-577-2	01	1	9206-
60	BRACKET; RAD GRILLE SIDE EXC. LIGHTING SYSTEM ECE<SLC>	1-71118-576-2	01	1	9203-9205
60	BRACKET; RAD GRILLE SIDE EXC. BUMPER W/HEADLAMPS<SLB>	1-71118-576-2	01	1	9206-
61	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> M6X20 W/LK&PL WASHER	1-09980-493-0	12	1	9303-
61	BOLT; BRKT EXC. BUMPER W/HEADLAMPS<SLB> M6X20 W/LK&PL WASHER	1-09980-493-0	08	1	9303-
62	SCREW; BRKT,RAD GRILLE LIGHTING SYSTEM ECE<SLC> M6X20 W/LK&PL WASHER	8-94279-347-0	12	1	9203-9205
62	SCREW; BRKT,RAD GRILLE BUMPER W/HEADLAMPS<SLB> M6X20 W/LK&PL WASHER	8-94279-347-0	12	1	9206-9302
62	SCREW; BRKT,RAD GRILLE EXC. LIGHTING SYSTEM ECE<SLC> M6X20 W/LK&PL WASHER	8-94279-347-0	08	1	9203-9205
62	SCREW; BRKT,RAD GRILLE EXC. BUMPER W/HEADLAMPS<SLB> M6X20 W/LK&PL WASHER	8-94279-347-0	08	1	9206-9302
116	MOLDING; ORNAMENT GRILLE EXTERIOR ORNAMENTATION FRONT END PLATE<BX9>	1-76218-049-3	04	1	9308-
