0-13 — OIL PAN AND LEVEL GAUGE (#147197) — 38 parça

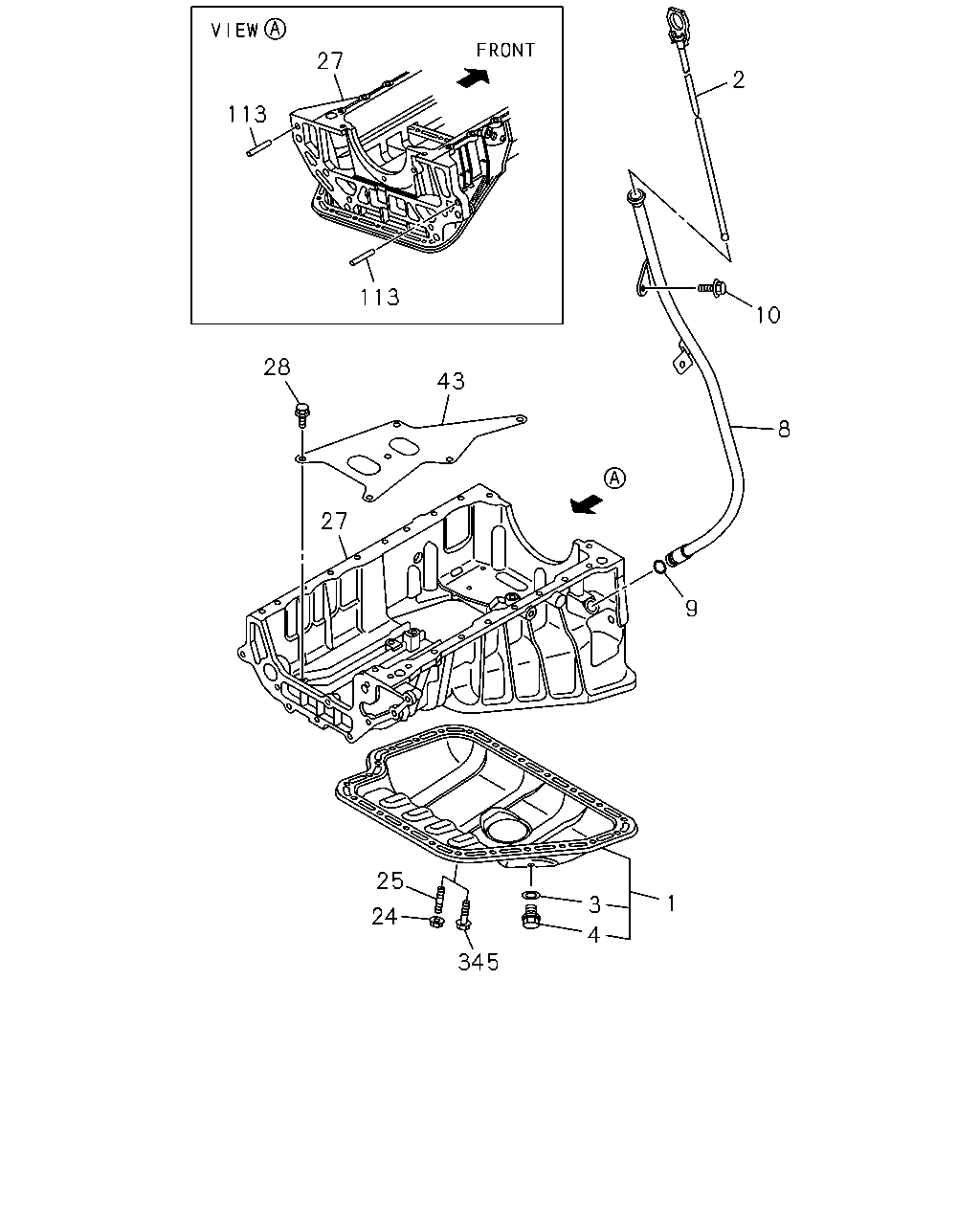

çizim 439010
2 27 113 113 10 8 9 1 3 4 345 24 25 43 28 27
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAN ASM; OIL
4X2<UCB***> THA 		8-98156-371-0 01 1 1409- ● ●
1 PAN ASM; OIL
4X4<UCS***> THA 		8-98132-001-2 01 1 1409- ● ●
2 GAUGE; OIL LEVEL
4X2<UCB***> THA 		8-98228-327-2 01 1 1409- ● ●
2 GAUGE; OIL LEVEL
4X4<UCS***> THA 		8-98228-328-2 01 1 1409- ● ●
3 GASKET; DRAIN PLUG
ID=14.2 OD=24 IMA 		8-94158-328-0 01 1 1409- ● ●
4 PLUG; DRAIN,OIL
M14X14 IMA 		8-97329-621-0 01 1 1409- ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
THA 		8-98228-277-2 01 1 1409- ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ID=11 OD=15.8 THA 		8-98034-629-0 01 1 1409- ● ●
10 BOLT; GUIDE TUBE
M8X16 FLANGE THA 		0-28050-816-0 01 1 1409- ● ●
24 NUT; OIL PAN
M8 FLANGE THA 		0-91180-208-0 02 1 1409- ● ●
25 STUD; OIL PAN
M8X16 L=28 THA 		0-41010-816-0 02 1 1409- ● ●
27 CRANKCASE
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98225-707-3 01 1 1409- ●
27 CRANKCASE
4X2<UCB***> A/T 5 SPEED-AISIN<MA1> THA 		8-98225-709-3 01 1 1409- ● ●
27 CRANKCASE
4X4<UCS***> THA 		8-98225-710-2 01 1 1409- ● ●
28 BOLT; CRANKCASE TO C/BL
M8X16 FLANGE THA 		0-28050-816-0 06 1 1409- ● ●
43 PLATE; CRANKCASE
THA 		8-98225-711-0 01 1 1409- ● ●
113 PIN; STRAIGHT
A/T 5 SPEED-AISIN<MA1>,M/T MUX 5 SPEED 5S<MZJ> OD=10 L=32 THA 		9-08161-032-0 02 1 1409- ● ●
345 BOLT; SENSOR,OIL LEVEL
4X2<UCB***> M8X12 FLANGE THA 		0-28050-812-0 21 1 1409- ● ●
345 BOLT; SENSOR,OIL LEVEL
4X4<UCS***> M8X12 FLANGE THA 		0-28050-812-0 14 1 1409- ● ●

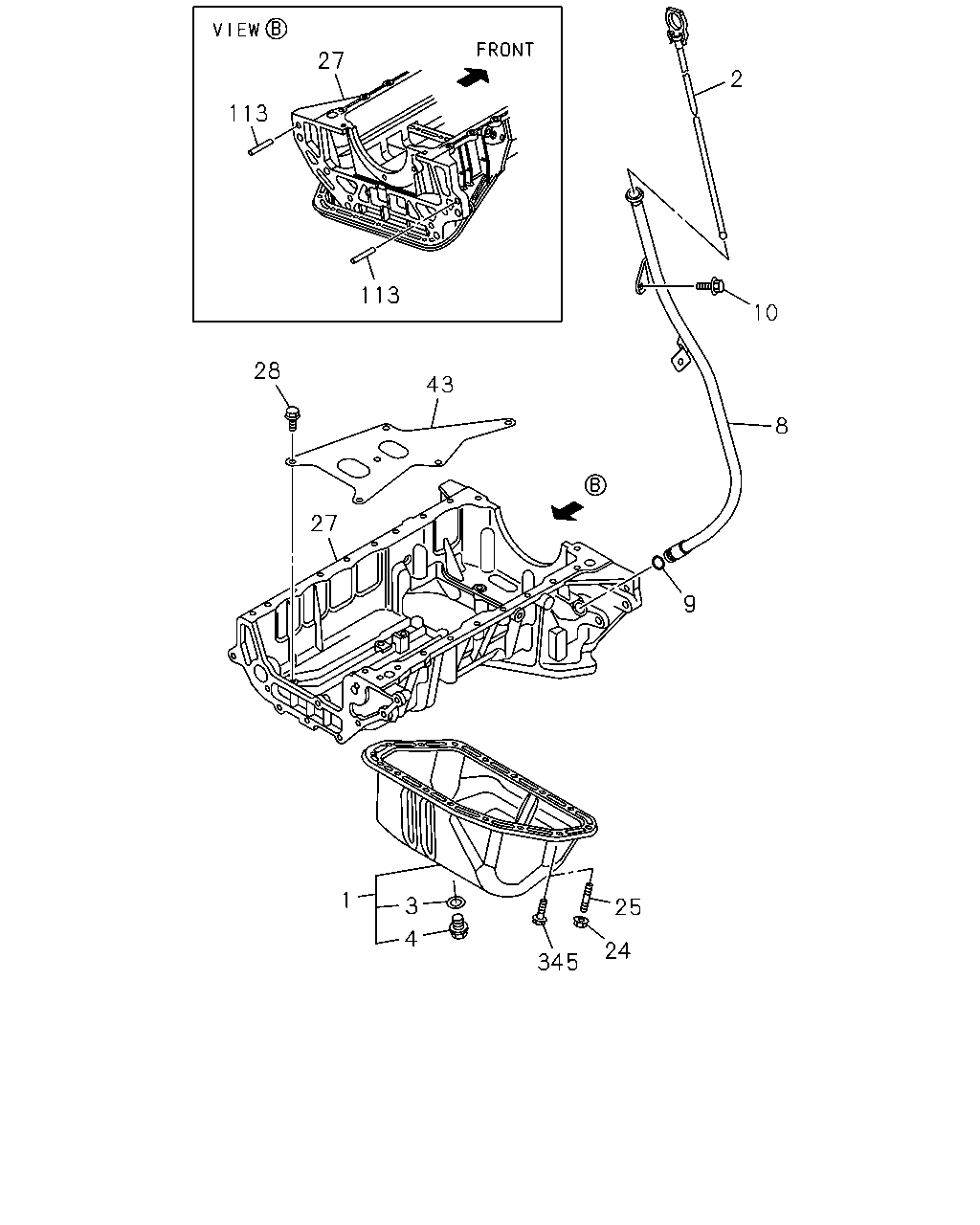

çizim 439012
8 10 2 27 113 113 28 27 43 9 25 24 345 4 1 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAN ASM; OIL
4X2<UCB***> THA 		8-98156-371-0 01 1 1409- ● ●
1 PAN ASM; OIL
4X4<UCS***> THA 		8-98132-001-2 01 1 1409- ● ●
2 GAUGE; OIL LEVEL
4X2<UCB***> THA 		8-98228-327-2 01 1 1409- ● ●
2 GAUGE; OIL LEVEL
4X4<UCS***> THA 		8-98228-328-2 01 1 1409- ● ●
3 GASKET; DRAIN PLUG
ID=14.2 OD=24 IMA 		8-94158-328-0 01 1 1409- ● ●
4 PLUG; DRAIN,OIL
M14X14 IMA 		8-97329-621-0 01 1 1409- ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
THA 		8-98228-277-2 01 1 1409- ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ID=11 OD=15.8 THA 		8-98034-629-0 01 1 1409- ● ●
10 BOLT; GUIDE TUBE
M8X16 FLANGE THA 		0-28050-816-0 01 1 1409- ● ●
24 NUT; OIL PAN
M8 FLANGE THA 		0-91180-208-0 02 1 1409- ● ●
25 STUD; OIL PAN
M8X16 L=28 THA 		0-41010-816-0 02 1 1409- ● ●
27 CRANKCASE
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98225-707-3 01 1 1409- ●
27 CRANKCASE
4X2<UCB***> A/T 5 SPEED-AISIN<MA1> THA 		8-98225-709-3 01 1 1409- ● ●
27 CRANKCASE
4X4<UCS***> THA 		8-98225-710-2 01 1 1409- ● ●
28 BOLT; CRANKCASE TO C/BL
M8X16 FLANGE THA 		0-28050-816-0 06 1 1409- ● ●
43 PLATE; CRANKCASE
THA 		8-98225-711-0 01 1 1409- ● ●
113 PIN; STRAIGHT
A/T 5 SPEED-AISIN<MA1>,M/T MUX 5 SPEED 5S<MZJ> OD=10 L=32 THA 		9-08161-032-0 02 1 1409- ● ●
345 BOLT; SENSOR,OIL LEVEL
4X2<UCB***> M8X12 FLANGE THA 		0-28050-812-0 21 1 1409- ● ●
345 BOLT; SENSOR,OIL LEVEL
4X4<UCS***> M8X12 FLANGE THA 		0-28050-812-0 14 1 1409- ● ●
