Sayfa 8-90 - Isuzu EPC

8-90 — RADIO AND TV (#147190) — 19 parça

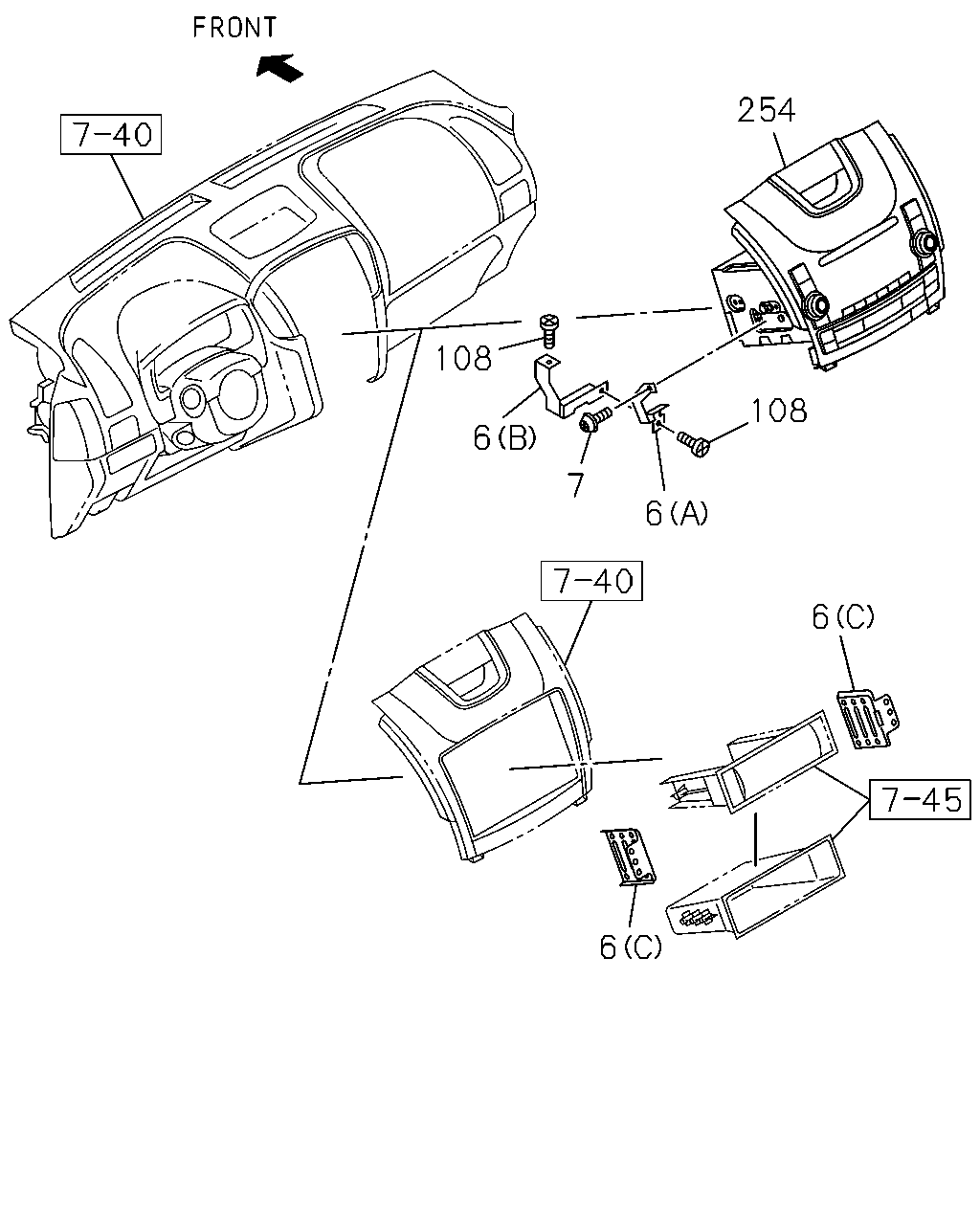

254 108 6 108 6 6 6 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	09.645 BRACKET; RADIO TO PANEL AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) (B)	8-98106-390-3	01	1	1408-	●	●
6	09.645 BRACKET; RADIO TO PANEL AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) (A)	8-98227-139-1	01	1	1408-	●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO DELETE(UL5) (C)	8-98102-188-2	02	1	1408-	●	●
7	09.650 SCREW; RADIO AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	01	1	1408-	●	●
108	09.645 SCREW; BRKT AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 08.083 M5X16 TAPPING	8-98167-449-0	02	1	1408-	●	●
254	09.645 RADIO CONTROL ASM; STEREO,AM-FM AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ)	8-98254-260-1	01	1	1408-	●	●

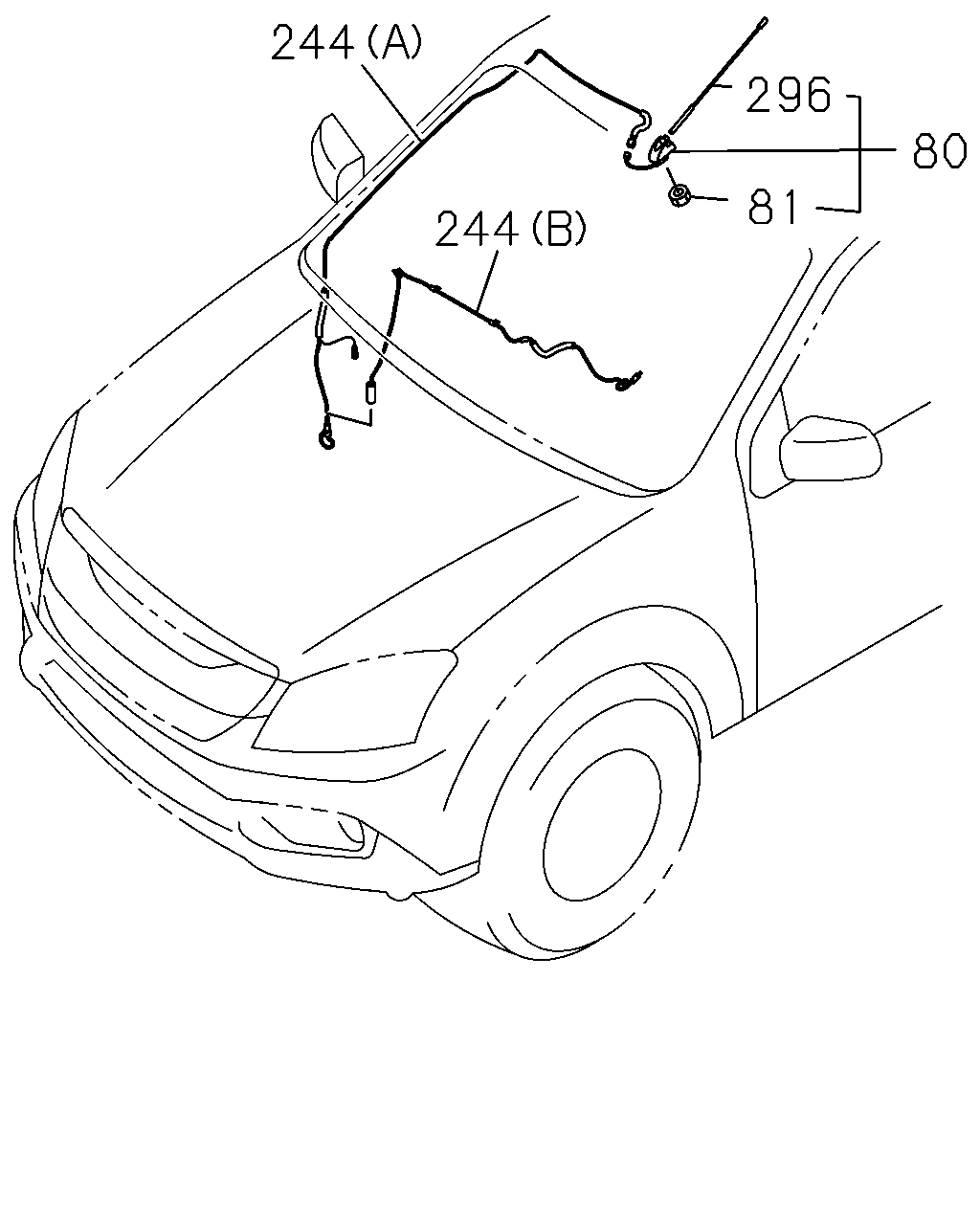

244 244 296 81 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
80	09.645 ANTENNA	8-98053-048-0	01	1	1408-	●	●
81	09.647 NUT; ANTENNA POLE	8-98165-971-0	01	1	1408-	●	●
244	09.647 CABLE; FEEDER (B)	8-98053-051-1	01	1	1408-	●	●
244	09.647 CABLE; FEEDER (A)	8-98218-163-0	01	1	1408-	●	●
296	09.665 ROD; ANTENNA	8-98165-969-0	01	1	1408-	●	●

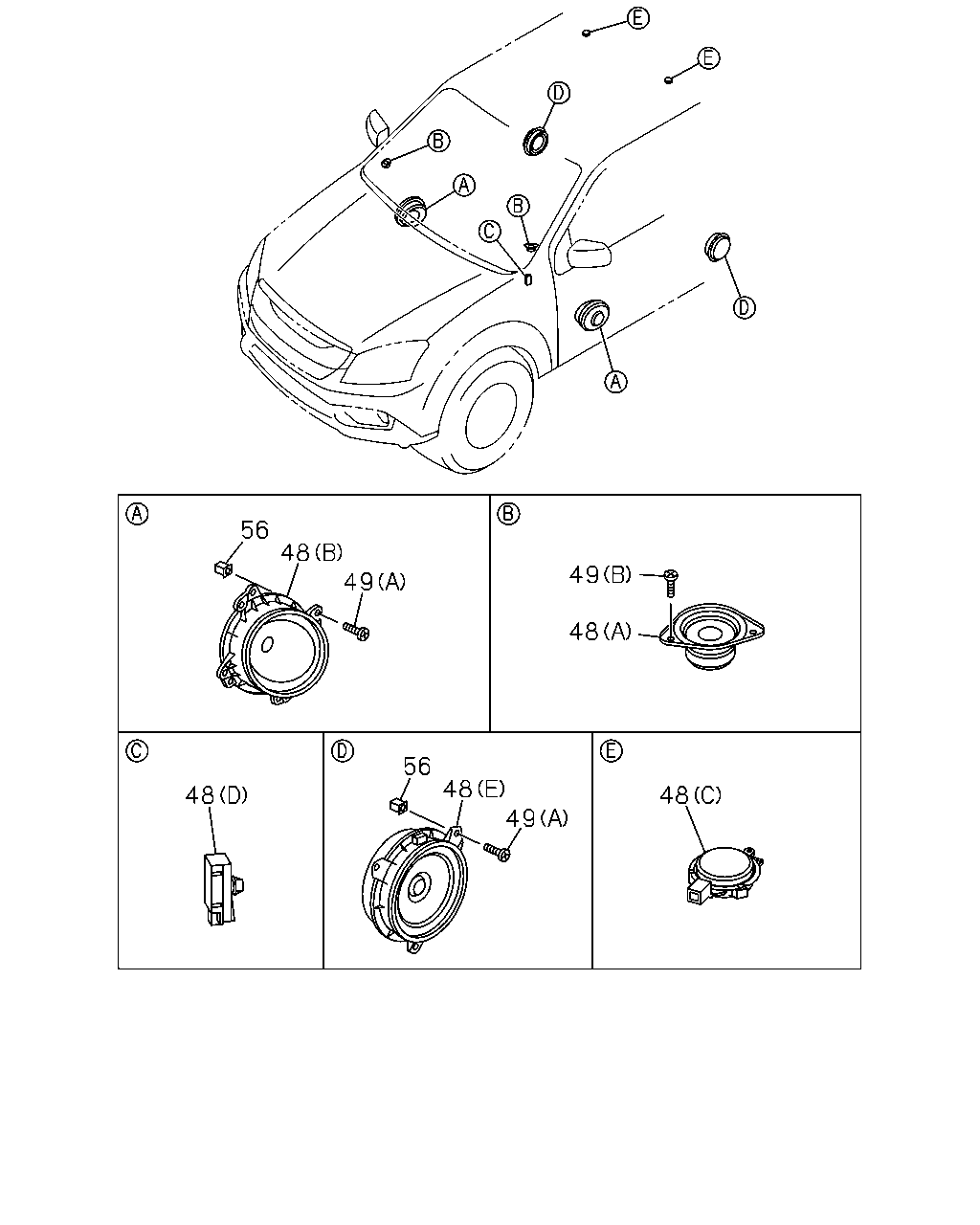

56 48 49 48 56 48 49 49 48 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	09.650 SPEAKER; AUDIO (B)	8-98052-937-0	02	1	1408-	●	●
48	09.650 SPEAKER; AUDIO (A)	8-98052-940-0	02	1	1408-	●	●
48	09.650 SPEAKER; AUDIO (E)	8-98052-941-0	02	1	1408-	●	●
48	09.650 SPEAKER; AUDIO 8-SPEAKER SYSTEM CUSTOM<U87> (C)	8-98052-942-0	02	1	1408-	●	●
48	09.650 SPEAKER; AUDIO 8-SPEAKER SYSTEM CUSTOM<U87> (D)	8-98064-704-0	01	1	1408-	●	●
49	09.655 SCREW; SPEAKER 08.083 (B) M5X16 TAPPING	8-98167-449-0	04	1	1408-	●	●
49	09.655 SCREW; SPEAKER 16.345 (A) M5X14 TAPPING	8-98184-363-0	14	1	1408-	●	●
56	09.655 NUT; SPEAKER,RADIO OR STEREO	8-98163-895-0	14	1	1408-	●	●
