51520 - UCR/UCS(MIDDLE EAST)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-65 - CONTROL LEVER; HEATER AND AIR CON
▶
8-65 — CONTROL LEVER; HEATER AND AIR CON
(#147183) — 46 parça
Tümü
A - UCB6VC
B - UCS6VC
◀

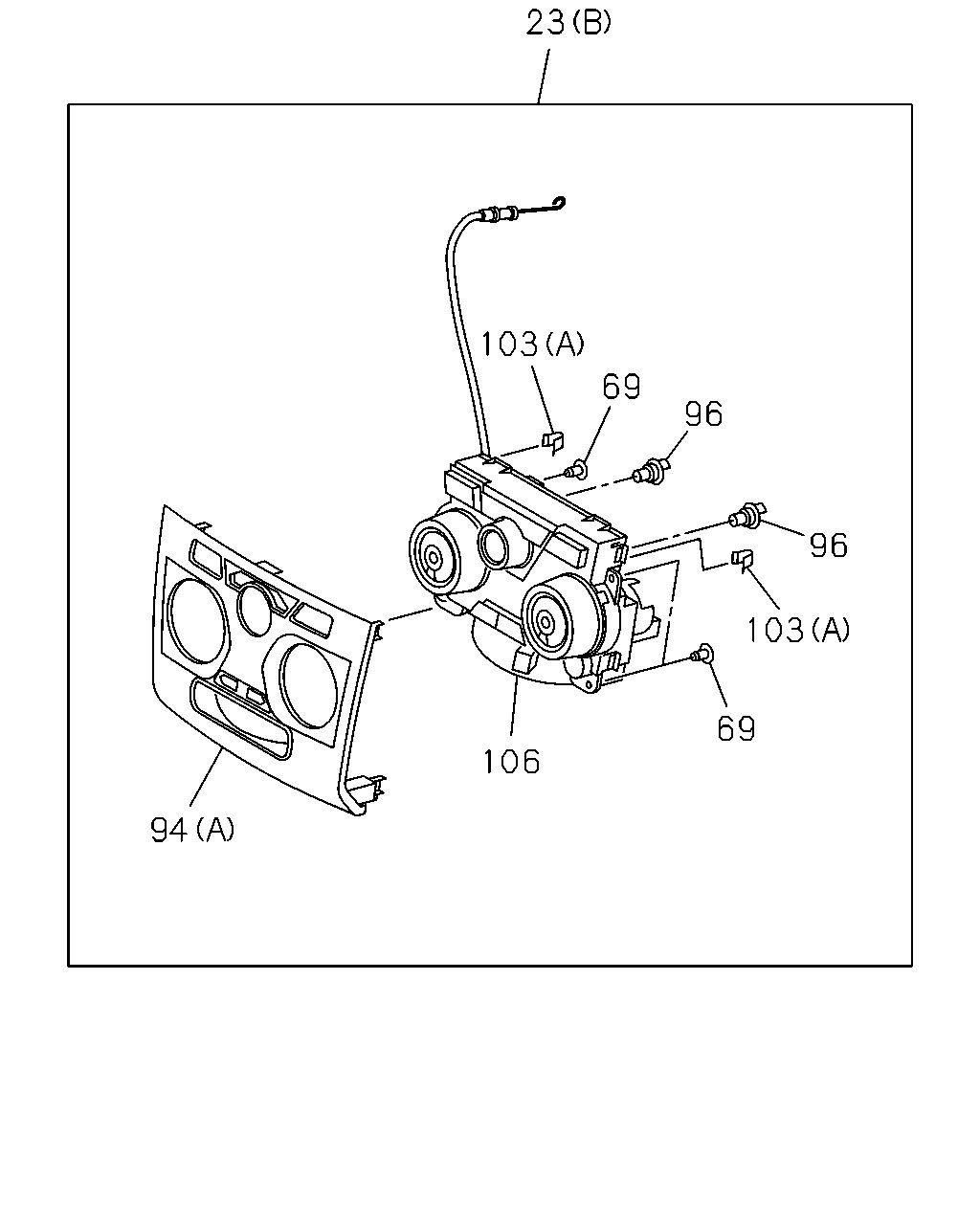

[865A] AIR CONDITIONER MANUAL CONT (16 parça)

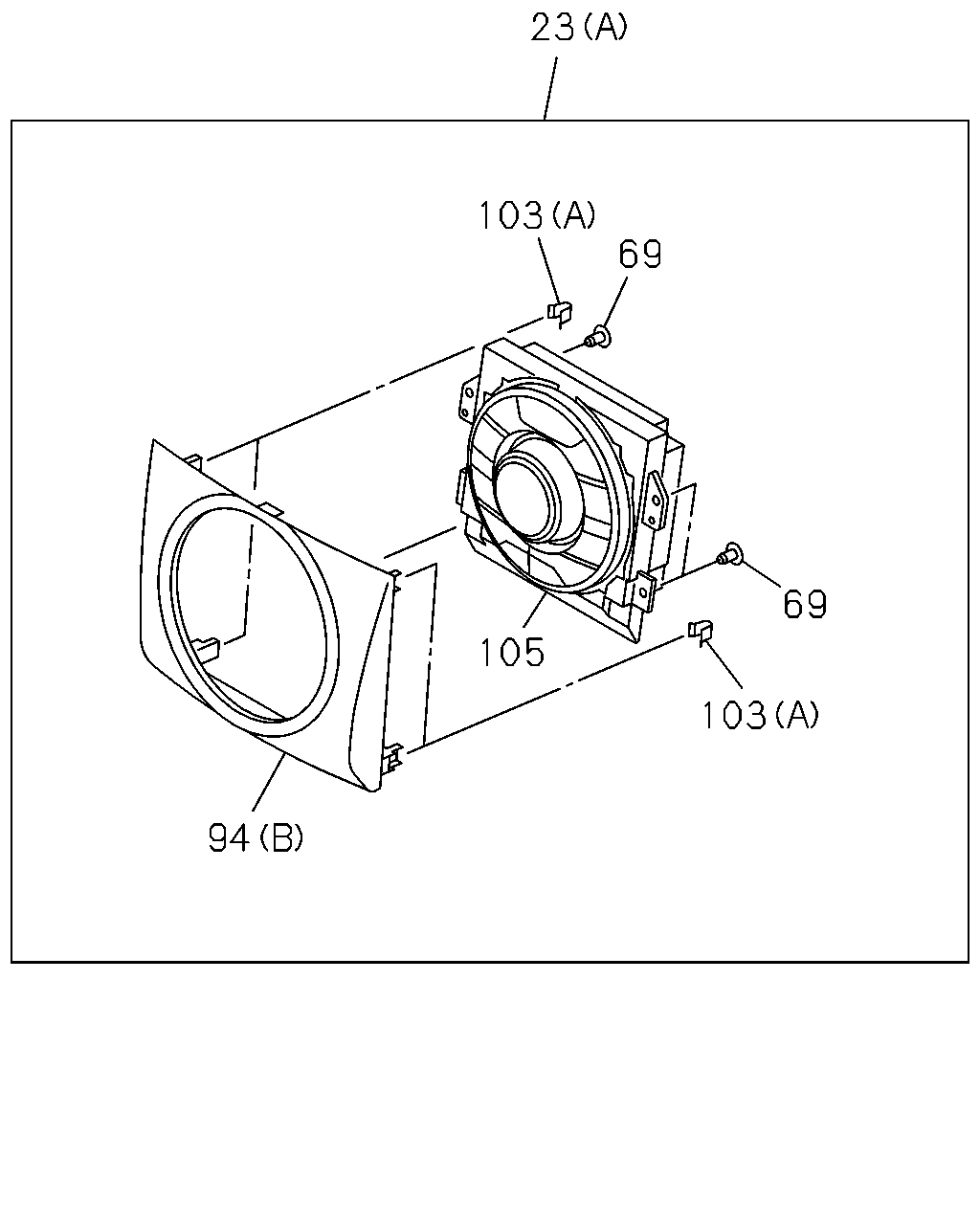

[865A] AIR CONDITIONER AUTOMATIC CONT (14 parça)

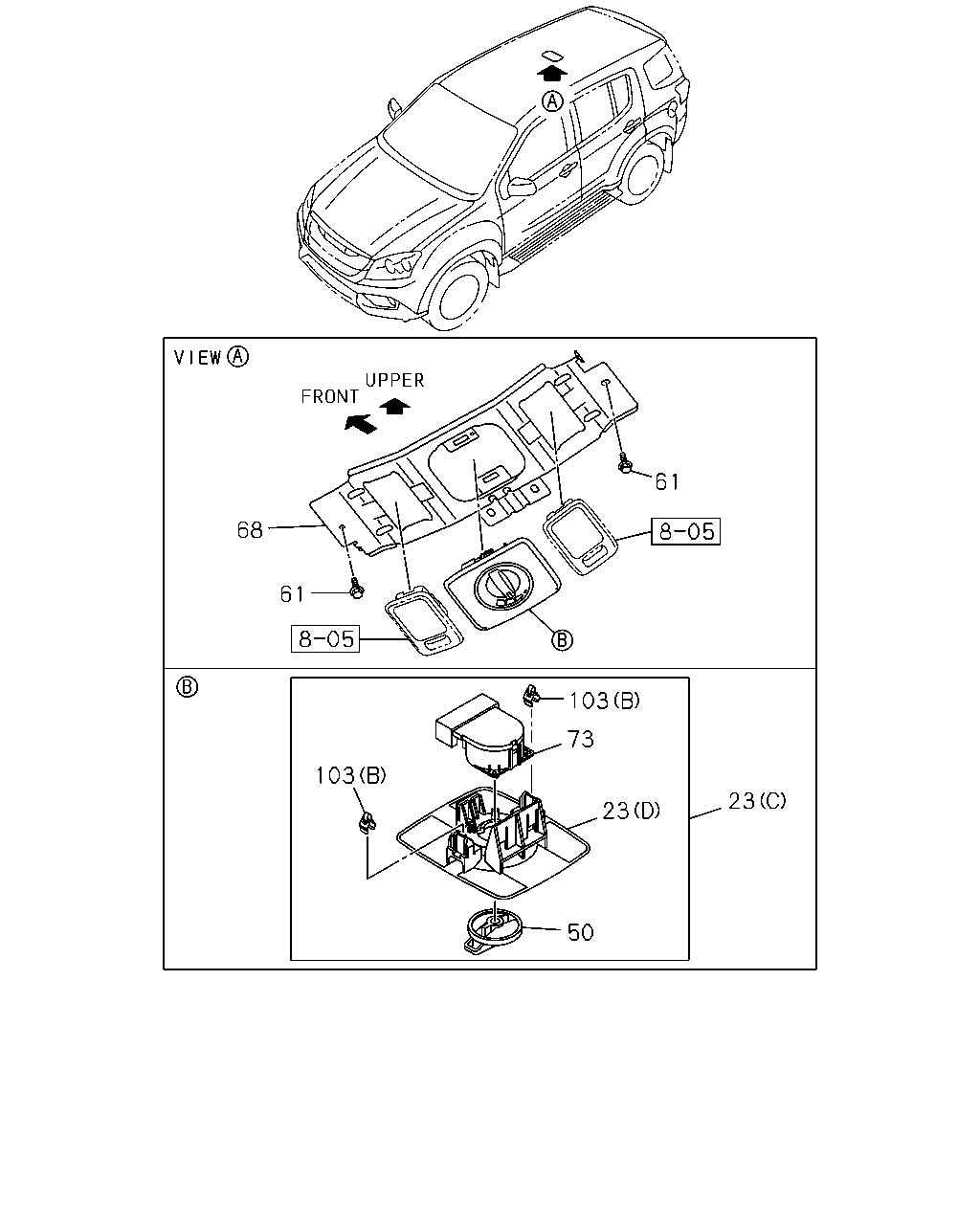

[865A] REAR COOLER CONTROL (16 parça)
▶
23
103
96
69
96
103
69
106
94
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
23
08.852 BEZEL; CONT LEVER
KNOB DECORATION W/CHROME RING<BY9> AIR CONDITIONER MANUAL CONT(C60) (B)
8-98120-146-4
01
1
1408-
●
●
23
08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. KNOB DECORATION W/CHROME RING<BY9> (B)
8-98120-140-4
01
1
1408-
●
●
23
08.852 BEZEL; CONT LEVER
AIR CONDITIONER AUTOMATIC CONT(C61) (A)
8-98129-548-5
01
1
1408-
●
●
23
08.852 BEZEL; CONT LEVER
REAR COOLER WO/HEATER<C69> (C)
8-98198-067-0
01
1
1408-
●
23
08.852 BEZEL; CONT LEVER
(C)
8-98198-067-0
01
1
1408-
●
23
08.852 BEZEL; CONT LEVER
REAR COOLER WO/HEATER<C69> (D)
8-98250-024-0
01
1
1408-
●
23
08.852 BEZEL; CONT LEVER
(D)
8-98250-024-0
01
1
1408-
●
69
08.852 SCREW; BEZEL BRKT
M4X10 TAPPING
8-98164-986-0
04
1
1408-
●
●
94
08.849 PANEL; BEZEL
AIR CONDITIONER MANUAL CONT(C60) (A)
8-98164-669-0
01
1
1408-
●
●
94
08.849 PANEL; BEZEL
AIR CONDITIONER AUTOMATIC CONT(C61) (B)
8-98141-789-0
01
1
1408-
●
●
96
08.852 BULB ASM; BEZEL
AIR CONDITIONER MANUAL CONT(C60)
8-98156-188-0
02
1
1408-
●
●
103
08.854 CLIP
REAR COOLER WO/HEATER<C69> (B)
8-97386-832-0
02
1
1408-
●
103
08.854 CLIP
(B)
8-97386-832-0
02
1
1408-
●
103
08.854 CLIP
16.165 (A)
8-98164-677-0
04
1
1408-
●
●
106
08.852 CONTROL SUB ASM; HTR & A/C
KNOB DECORATION W/CHROME RING<BY9> AIR CONDITIONER MANUAL CONT(C60)
8-98156-908-0
01
1
1408-
●
●
106
08.852 CONTROL SUB ASM; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60) EXC. KNOB DECORATION W/CHROME RING<BY9>
8-98156-902-0
01
1
1408-
●
●
23
103
105
69
69
103
94
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
23
08.852 BEZEL; CONT LEVER
KNOB DECORATION W/CHROME RING<BY9> AIR CONDITIONER MANUAL CONT(C60) (B)
8-98120-146-4
01
1
1408-
●
●
23
08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. KNOB DECORATION W/CHROME RING<BY9> (B)
8-98120-140-4
01
1
1408-
●
●
23
08.852 BEZEL; CONT LEVER
AIR CONDITIONER AUTOMATIC CONT(C61) (A)
8-98129-548-5
01
1
1408-
●
●
23
08.852 BEZEL; CONT LEVER
REAR COOLER WO/HEATER<C69> (C)
8-98198-067-0
01
1
1408-
●
23
08.852 BEZEL; CONT LEVER
(C)
8-98198-067-0
01
1
1408-
●
23
08.852 BEZEL; CONT LEVER
REAR COOLER WO/HEATER<C69> (D)
8-98250-024-0
01
1
1408-
●
23
08.852 BEZEL; CONT LEVER
(D)
8-98250-024-0
01
1
1408-
●
69
08.852 SCREW; BEZEL BRKT
M4X10 TAPPING
8-98164-986-0
04
1
1408-
●
●
94
08.849 PANEL; BEZEL
AIR CONDITIONER MANUAL CONT(C60) (A)
8-98164-669-0
01
1
1408-
●
●
94
08.849 PANEL; BEZEL
AIR CONDITIONER AUTOMATIC CONT(C61) (B)
8-98141-789-0
01
1
1408-
●
●
103
08.854 CLIP
REAR COOLER WO/HEATER<C69> (B)
8-97386-832-0
02
1
1408-
●
103
08.854 CLIP
(B)
8-97386-832-0
02
1
1408-
●
103
08.854 CLIP
16.165 (A)
8-98164-677-0
04
1
1408-
●
●
105
08.852 SWITCH ASM; A/C
AIR CONDITIONER AUTOMATIC CONT(C61)
8-98164-679-0
01
1
1408-
●
●
68
61
61
103
50
73
23
23
103
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
23
08.852 BEZEL; CONT LEVER
KNOB DECORATION W/CHROME RING<BY9> AIR CONDITIONER MANUAL CONT(C60) (B)
8-98120-146-4
01
1
1408-
●
●
23
08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. KNOB DECORATION W/CHROME RING<BY9> (B)
8-98120-140-4
01
1
1408-
●
●
23
08.852 BEZEL; CONT LEVER
AIR CONDITIONER AUTOMATIC CONT(C61) (A)
8-98129-548-5
01
1
1408-
●
●
23
08.852 BEZEL; CONT LEVER
REAR COOLER WO/HEATER<C69> (C)
8-98198-067-0
01
1
1408-
●
23
08.852 BEZEL; CONT LEVER
(C)
8-98198-067-0
01
1
1408-
●
23
08.852 BEZEL; CONT LEVER
REAR COOLER WO/HEATER<C69> (D)
8-98250-024-0
01
1
1408-
●
23
08.852 BEZEL; CONT LEVER
(D)
8-98250-024-0
01
1
1408-
●
50
08.852 KNOB; CONT PANEL
REAR COOLER WO/HEATER<C69>
8-98250-549-0
01
1
1408-
●
50
08.852 KNOB; CONT PANEL
8-98250-549-0
01
1
1408-
●
61
08.849 BOLT; CONT LEVER
02.343 M6X16 FLANGE
0-28650-616-0
02
1
1408-
●
●
68
08.849 BRACKET; BEZEL
8-98198-068-0
01
1
1408-
●
●
73
02.895 SWITCH; FAN,CONT PANEL
REAR COOLER WO/HEATER<C69>
8-97386-830-0
01
1
1408-
●
73
02.895 SWITCH; FAN,CONT PANEL
8-97386-830-0
01
1
1408-
●
103
08.854 CLIP
REAR COOLER WO/HEATER<C69> (B)
8-97386-832-0
02
1
1408-
●
103
08.854 CLIP
(B)
8-97386-832-0
02
1
1408-
●
103
08.854 CLIP
16.165 (A)
8-98164-677-0
04
1
1408-
●
●
