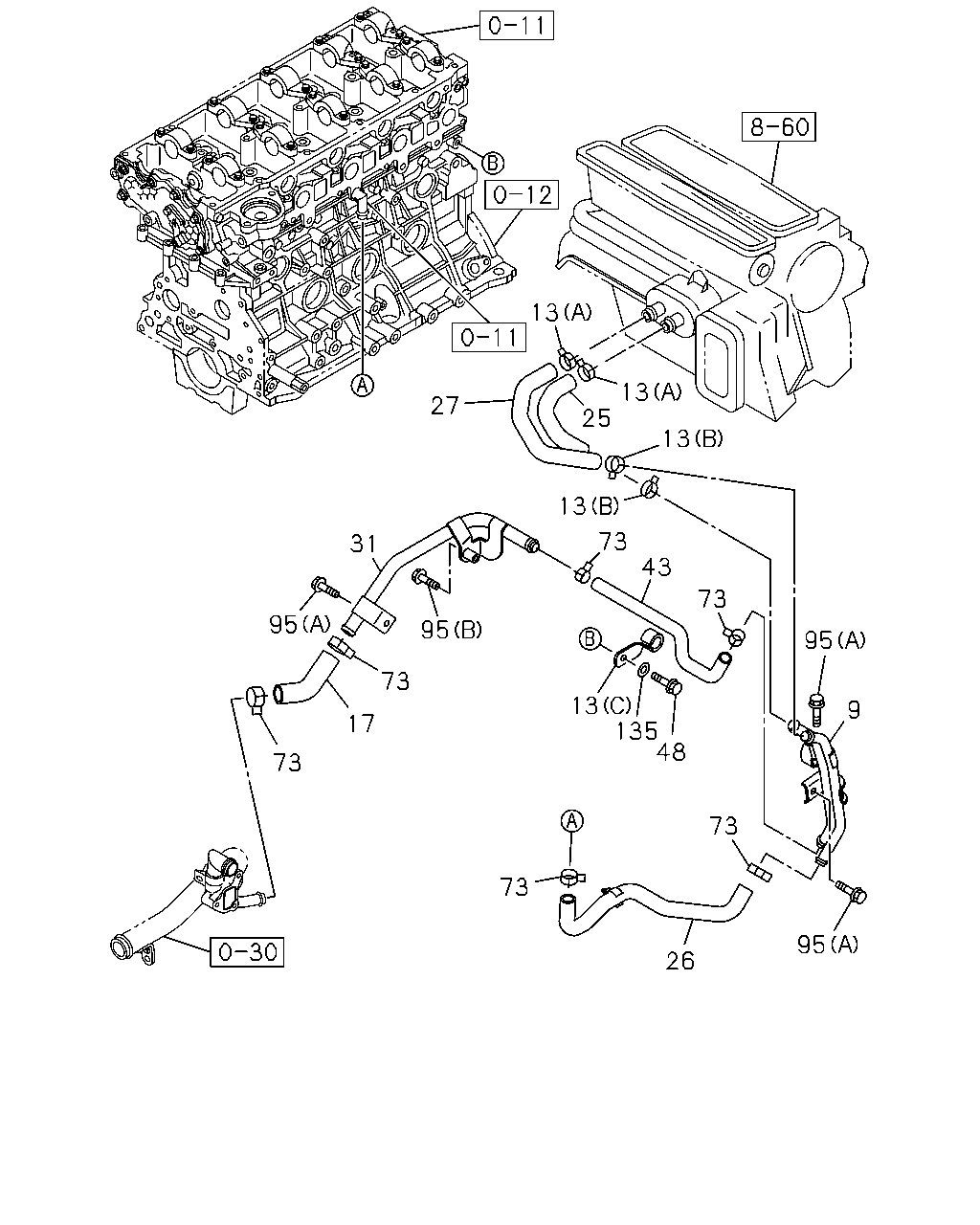

8-45 — HEATER PIPING (#147179) — 15 parça

13 13 13 13 25 27 31 95 73 17 73 95 73 26 95 73 95 48 135 13 43 73 73 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	08.846 PIPE; HTR	8-98228-412-0	01	1	1408-	●	●
13	08.846 CLIP; HTR HOSE 02.559 (C) ID=25 L=54	1-09700-392-1	01	1	1408-	●	●
13	08.846 CLIP; HTR HOSE 03.278 (A) ID=22	8-97359-141-0	02	1	1408-	●	●
13	08.846 CLIP; HTR HOSE 03.417 (B) ID=20.8	8-98133-607-0	02	1	1408-	●	●
17	08.846 HOSE; WATER,BYPASS	8-98132-368-0	01	1	1408-	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT	8-98129-341-3	01	1	1408-	●	●
26	08.846 HOSE; HTR	8-98228-459-0	01	1	1408-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI	8-98129-339-3	01	1	1408-	●	●
31	08.846 PIPE; BYPASS,HTR	8-98131-989-0	01	1	1408-	●	●
43	08.846 HOSE; WATER,OUTLET,HTR	8-98239-131-0	01	1	1408-	●	●
48	09.262 BOLT; CLIP FIX 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1408-	●	●
73	08.846 CLIP; HTR HOSE ID=20.8	8-97944-127-0	06	1	1408-	●	●
95	08.866 BOLT; BYPASS PIPE 02.343 (A) M8X16 FLANGE	0-28050-816-0	03	1	1408-	●	●
95	08.866 BOLT; BYPASS PIPE 00.685 (B) M8X40 FLANGE	0-28650-840-0	01	1	1408-	●	●
135	08.846 WASHER; PL 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	1408-	●	●
