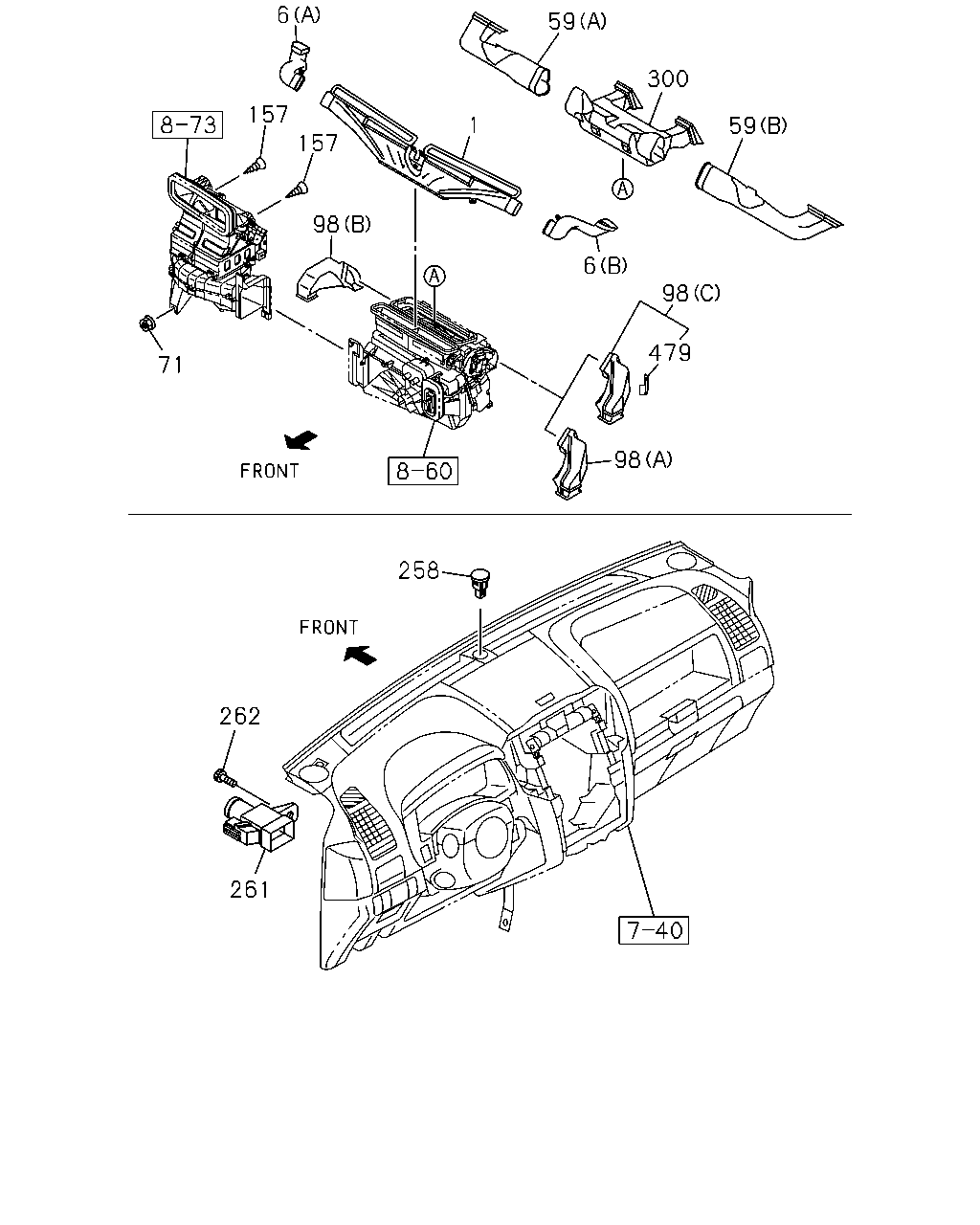

8-40 — HEATER SYSTEM (#147177) — 16 parça

6 59 157 157 98 71 98 479 98 6 59 258 262 261 300 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	09.779 NOZZLE; DEFROSTER,INST PNL	8-98187-101-2	01	1	1408-	●	●
6	09.779 DUCT; SIDE DEFROSTER (A)	8-98187-102-0	01	1	1408-	●	●
6	09.779 DUCT; SIDE DEFROSTER (B)	8-98187-103-0	01	1	1408-	●	●
59	09.786 DUCT; VENT,ASSIST SIDE (A)	8-98187-099-0	01	1	1408-	●	●
59	09.786 DUCT; VENT,ASSIST SIDE (B)	8-98187-100-0	01	1	1408-	●	●
71	08.845 NUT; BLOWER UNIT TO DASH 03.417 M6 FLANGE	8-94279-514-0	01	1	1408-	●	●
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT AIR CONDITIONER MANUAL CONT(C60) (A)	8-98233-057-0	01	1	1408-	●	●
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61) (C)	8-98274-166-0	01	1	1408-	●	●
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT (B)	8-98233-056-0	01	1	1408-	●	●
157	09.264 SCREW 16.650 M5X16	8-98167-220-0	02	1	1408-	●	●
258	08.845 SENSOR; SUN AIR CONDITIONER AUTOMATIC CONT(C61)	8-98103-691-0	01	1	1408-	●	●
261	08.845 SENSOR; IN CAR AIR CONDITIONER AUTOMATIC CONT(C61)	8-98103-694-0	01	1	1408-	●	●
262	08.845 SCREW; IN CAR SENSOR AIR CONDITIONER AUTOMATIC CONT(C61) 16.345 M5X14 TAPPING	8-98184-363-0	01	1	1408-	●	●
300	09.264 DUCT; VENT,CENTER	8-98187-098-0	01	1	1408-	●	●
479	09.262 SPONGE AIR CONDITIONER AUTOMATIC CONT(C61)	8-98274-219-0	01	1	1408-	●	●

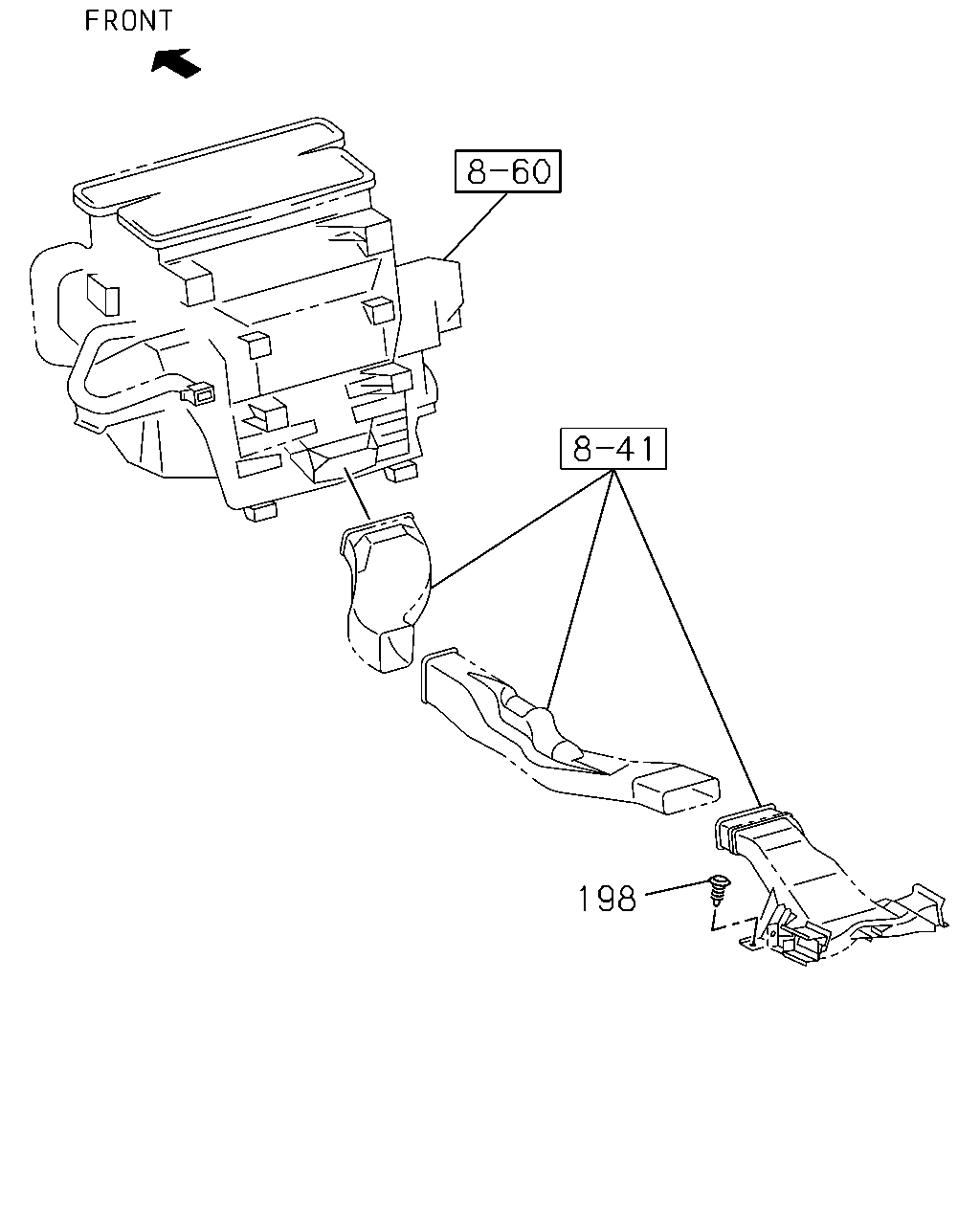

198

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	198	09.787 CLIP; DUCT	8-98147-301-0	02	1	1408-	●	●
