◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51520 - UCR/UCS(MIDDLE EAST) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-27 - SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM ▶
8-27 — SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM (#147175) — 8 parça

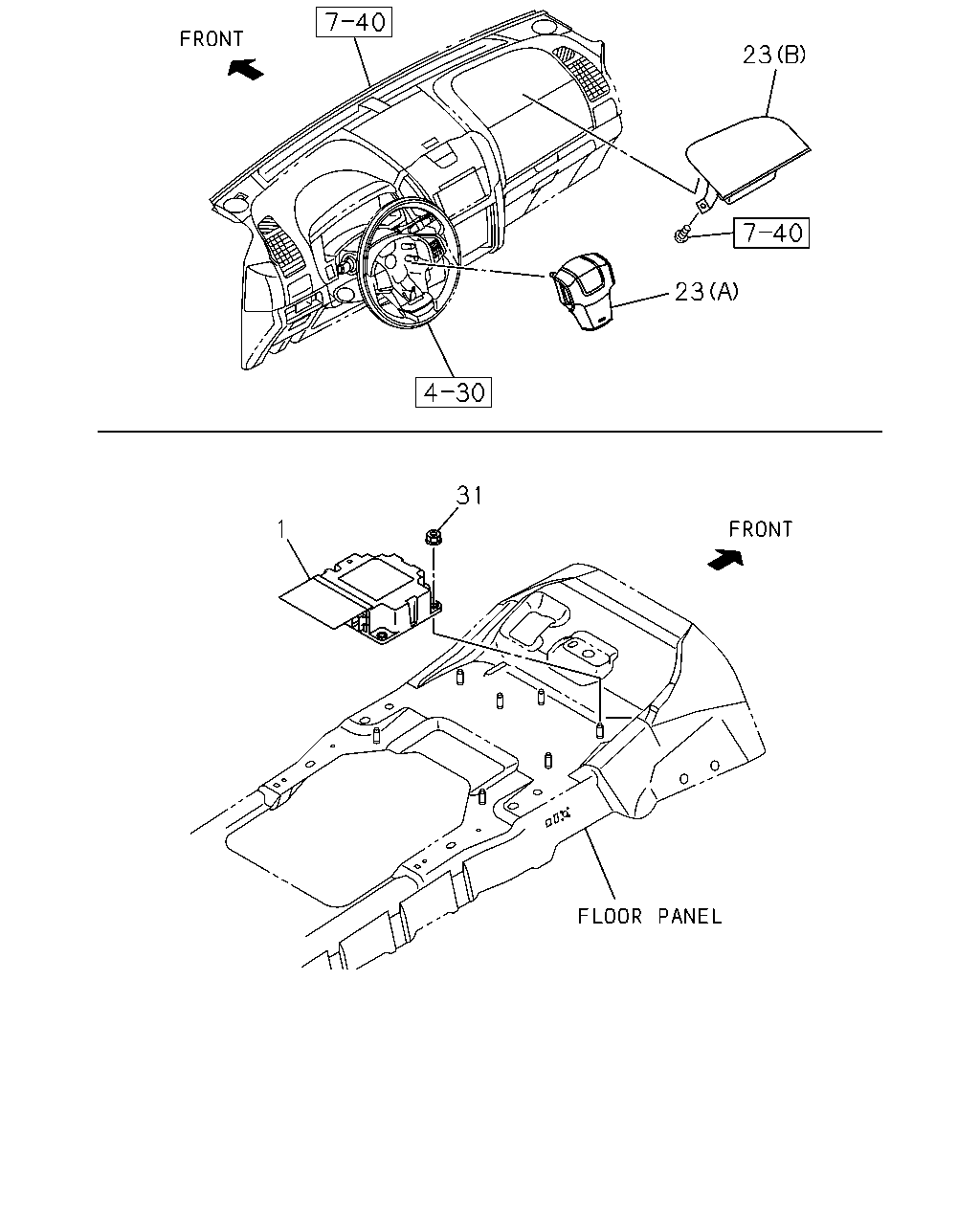

çizim 439272
23 23 31 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.559 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER(AK5) 		8-98220-041-1 01 1 1408- ●
1 02.559 CONTROL UNIT; SIR 8-98220-041-1 01 1 1408- ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5) (A) BLACK 		8-97416-641-6 01 1 1408- ●
23 02.559 AIR BAG UNIT
(A) BLACK 		8-97416-641-6 01 1 1408- ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5) (B) BLACK 		8-97417-401-7 01 1 1408- ●
23 02.559 AIR BAG UNIT
(B) BLACK 		8-97417-401-7 01 1 1408- ●
31 14.865 NUT
AIR BAG DRIVER & PASSENGER(AK5) 01.540 M6 FLANGE 		0-91180-206-0 03 1 1408- ●
31 14.865 NUT
01.540 M6 FLANGE 		0-91180-206-0 03 1 1408- ●
