◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51520 - UCR/UCS(MIDDLE EAST) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#147173) — 34 parça

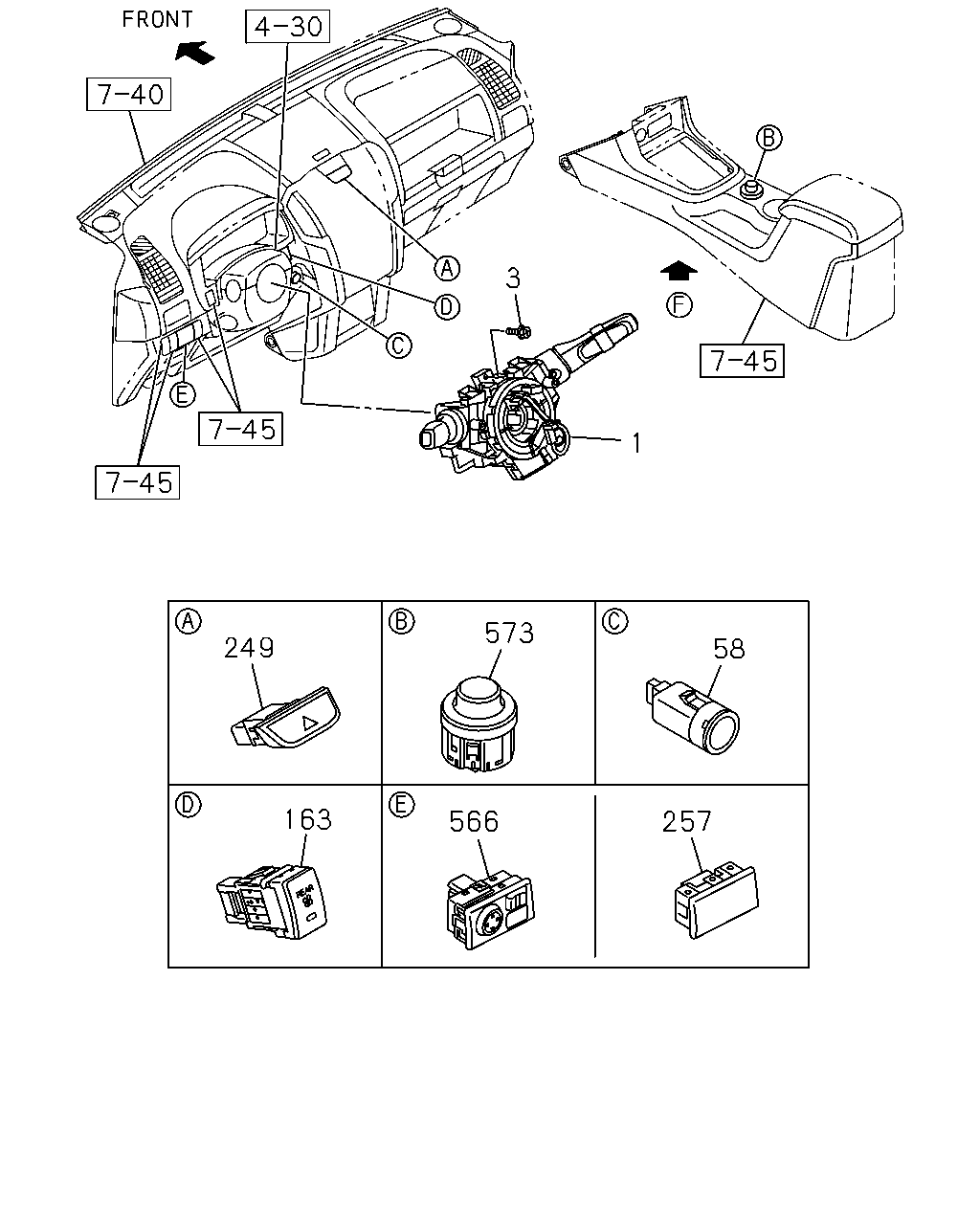

çizim 439571
1 566 257 58 573 249 163 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) VARIABLE DELAY PULSE WINDSHIELD WIPER<CD4> CONTINUOUS REAR WIPER<CD6> FOG LAMP<T96> ELECTRO LUMINESCENT INSTRUMENTATION CLUST ER<UCA> 		8-98191-739-0 01 1 1408- ●
1 02.895 SWITCH; COMB
FOG LAMP<T96> 		8-98191-739-0 01 1 1408- ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) VARIABLE DELAY PULSE WINDSHIELD WIPER<CD4> CONTINUOUS REAR WIPER<CD6> ELECTRO LUMINESCENT INSTRUMENTATION CLUST ER<UCA> EXC. FOG LAMP<T96> 		8-98248-659-0 01 1 1408- ●
1 02.895 SWITCH; COMB
EXC. FOG LAMP<T96> 		8-98248-659-0 01 1 1408- ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> EXC. CONTINUOUS REAR WIPER<CD6>,FOG LAMP<T96>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98194-145-1 01 1 1408- ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE(AK6) INTERMITTENT WIPER<C13> EXC. CONTINUOUS REAR WIPER<CD6>,FOG LAMP<T96>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98059-584-2 01 1 1408- ●
3 02.897 SCREW; COMB SW
09.744 M5X20 W/LK&PL WASHER 		0-36230-520-0 01 1 1408- ● ●
58 02.100 SWITCH; IGNITION
PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98226-271-1 01 1 1408- ●
58 02.100 SWITCH; IGNITION
A/T 5 SPEED-AISIN(MA1) PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98226-271-1 01 1 1408- ●
163 08.852 SWITCH; RR COOLER
REAR COOLER WO/HEATER<C69> 		8-98196-980-0 01 1 1408- ●
163 08.852 SWITCH; RR COOLER 8-98196-980-0 01 1 1408- ●
249 02.485 SWITCH; HAZARD
BLACK 		8-97416-805-0 01 1 1408- ● ●
257 16.081 COVER; HOLE,SW
DOOR MIRROR MANUAL MATERIAL BLACK<RT9> 		8-98106-389-2 01 1 1408- ●
566 02.895 SWITCH; MIRROR
DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> 		8-98106-392-1 01 1 1408- ● ●
573 09.755 SWITCH; 4WD
FLOOR CONSOLE W/LID<D55> 		8-98065-836-2 01 1 1408- ●

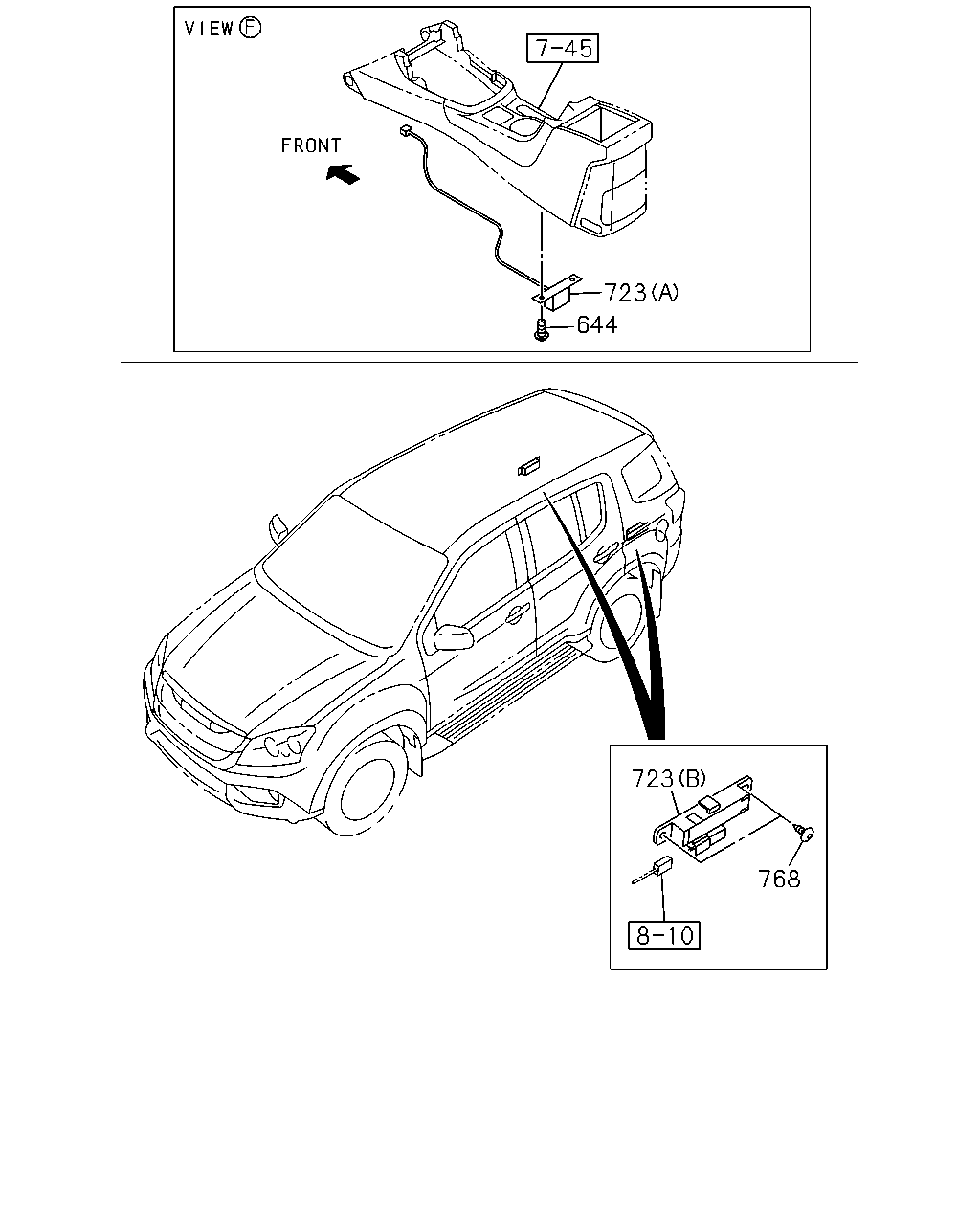

çizim 439572
723 768 644 723
BalonParca AdiParca NoAdetTipApplied Date A B
644 02.485 SCREW; TAPPING
PASSIVE ENTRY AND START SYSTEM<AP3> 08.083 M5X16 TAPPING 		8-98167-449-0 02 1 1408- ● ●
723 02.575 ANTENNA; KEYLESS ENTRY
PASSIVE ENTRY AND START SYSTEM<AP3> (A) 		8-98133-571-2 01 1 1408- ● ●
723 02.575 ANTENNA; KEYLESS ENTRY
PASSIVE ENTRY AND START SYSTEM<AP3> (B) 		8-98190-525-0 02 1 1408- ● ●
768 02.575 FASTENER
PASSIVE ENTRY AND START SYSTEM<AP3> 09.787 		8-97326-594-0 04 1 1408- ● ●

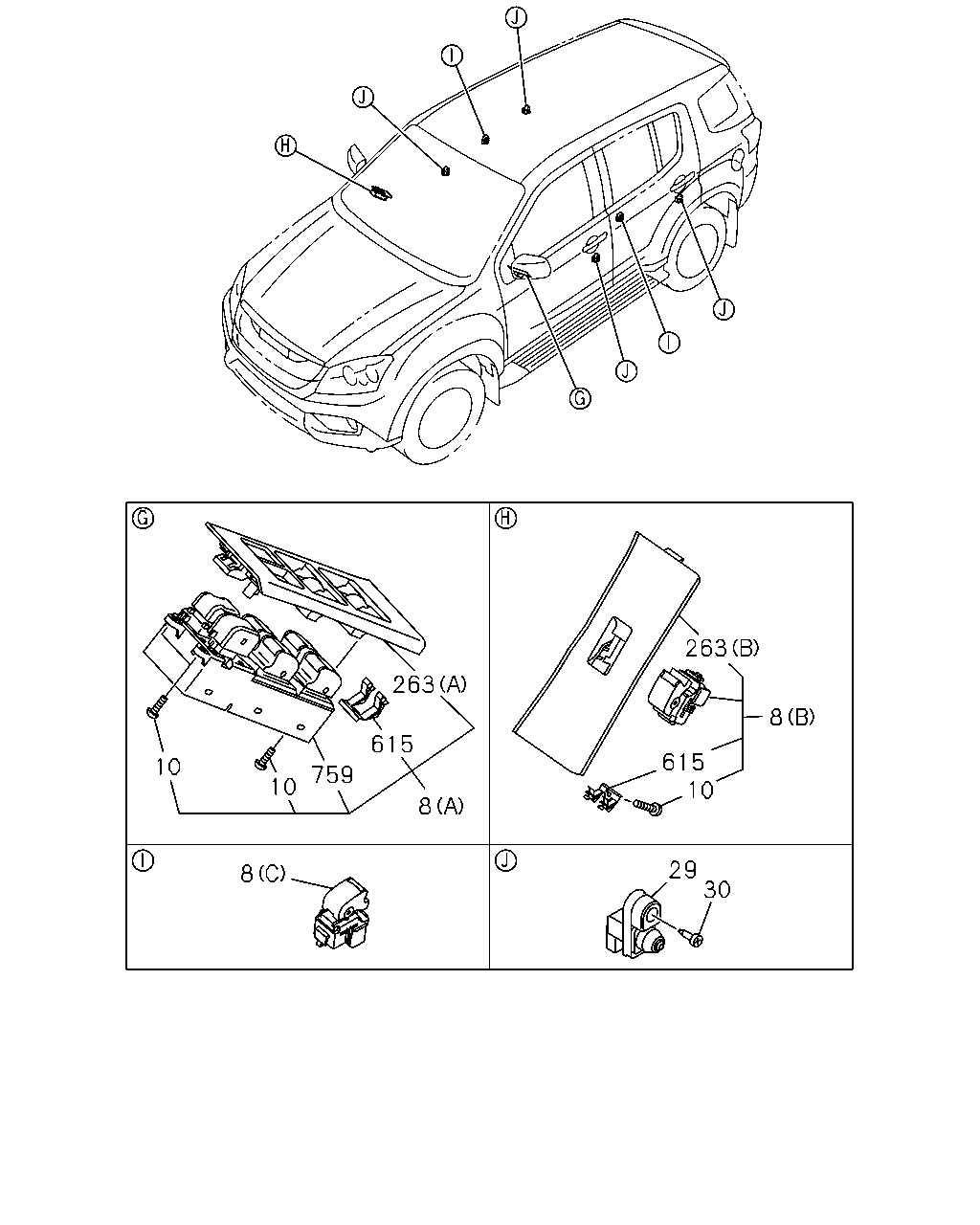

çizim 439582
263 615 759 8 10 10 8 263 8 615 10 29 30
BalonParca AdiParca NoAdetTipApplied Date A B
8 16.263 SWITCH; POWER WINDOW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ> (A) BLACK 		8-97417-471-0 01 1 1408- ● ●
8 16.263 SWITCH; POWER WINDOW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (C) BLACK 		8-97417-004-0 02 1 1408- ● ●
8 16.263 SWITCH; POWER WINDOW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (B) BLACK 		8-97417-531-0 01 1 1408- ● ●
8 16.263 SWITCH; POWER WINDOW
DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (A) BLACK 		8-97417-469-0 01 1 1408- ● ●
10 03.885 SCREW; POWER WINDOW SW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> 		8-98192-450-0 01 1 1408- ● ●
10 03.885 SCREW; POWER WINDOW SW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> 		8-98192-450-0 03 1 1408- ● ●
29 16.263 SWITCH; DOOR 8-97313-208-0 04 1 1408- ● ●
30 16.263 SCREW; DOOR SW
10.240 M5X14 		8-94120-095-0 04 1 1408- ● ●
263 16.081 COVER; SW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (A) 		8-98192-246-0 01 1 1408- ● ●
263 16.081 COVER; SW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (B) 		8-98192-248-0 01 1 1408- ● ●
615 16.263 SPRING; POWER WINDOW SW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> 		8-98192-268-0 01 1 1408- ● ●
615 16.263 SPRING; POWER WINDOW SW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> 		8-98192-268-0 01 1 1408- ● ●
759 16.263 SWITCH ASM; WINDOW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ> 		8-98192-255-0 01 1 1408- ● ●
759 16.263 SWITCH ASM; WINDOW
DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> 		8-98192-256-0 01 1 1408- ● ●
çizim 439584
99
BalonParca AdiParca NoAdetTipApplied Date A B
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 09.778 12V YAZAKI 		8-97309-293-0 01 1 1408- ● ●
