◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51520 - UCR/UCS(MIDDLE EAST) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#147170) — 203 parça
çizim 439292
430 588
BalonParca AdiParca NoAdetTipApplied Date A B
430 02.575 COVER ASM; SOCKET,ACCESSORY
ACCESSORY SOCKET FRT CONSOLE<KC5> 04.115 		8-98123-123-0 01 1 1408- ●
430 02.575 COVER ASM; SOCKET,ACCESSORY
04.115 		8-98123-123-0 01 1 1408- ●
430 02.575 COVER ASM; SOCKET,ACCESSORY
EXC. ACCESSORY SOCKET FRT CONSOLE<KC5> 04.115 		8-98142-409-1 01 1 1408- ●
588 02.480 SEAL; LOCATION HOLE
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 16.165 OD=25 BLACK 		1-76798-019-0 03 1 1408- ● ●

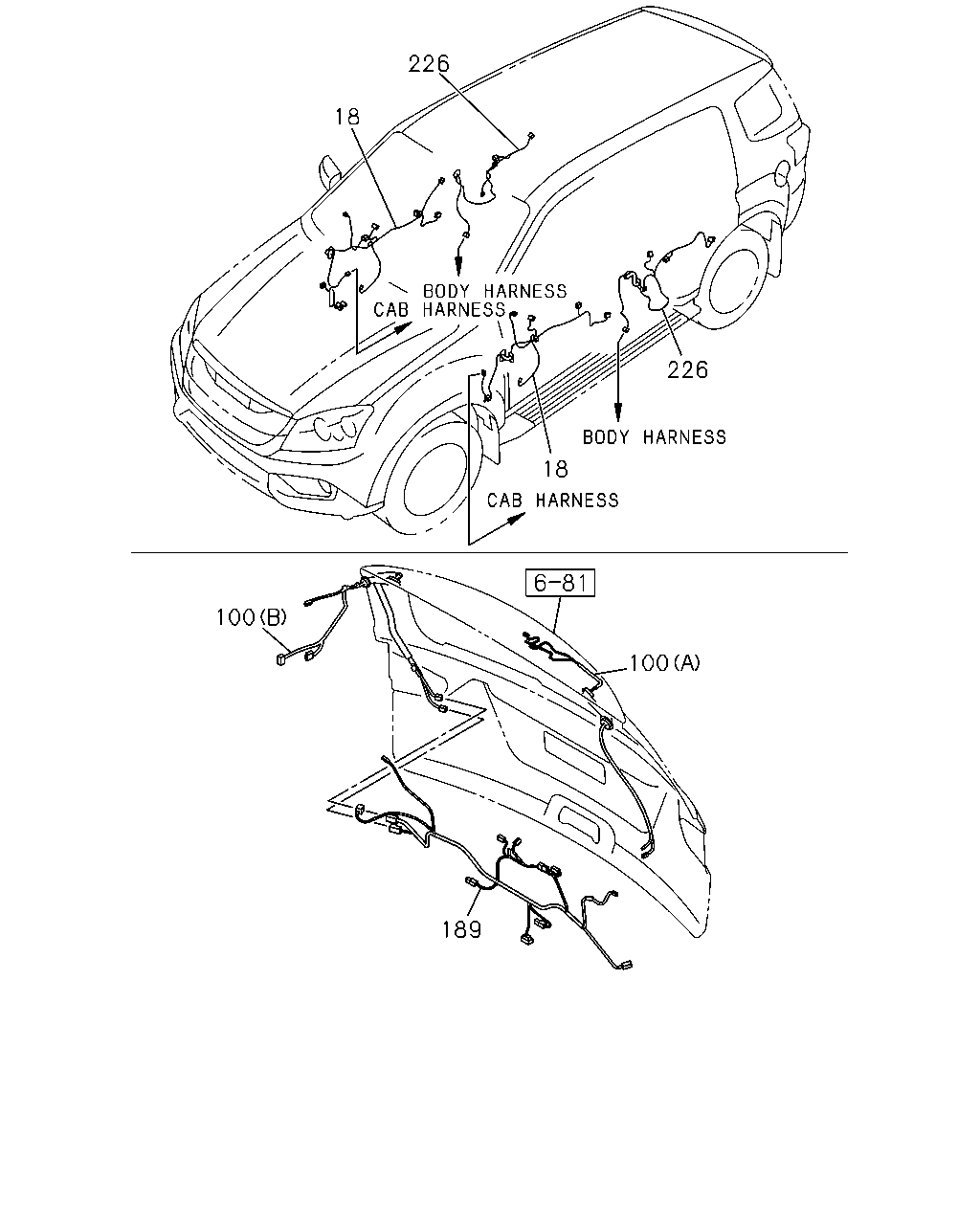

çizim 439306
226 18 226 18 100 100 189
BalonParca AdiParca NoAdetTipApplied Date A B
18 02.480 HARNESS; DOOR
PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98250-287-1 01 1 1408- ● ●
18 02.480 HARNESS; DOOR
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98225-359-1 01 1 1408- ● ●
18 02.480 HARNESS; DOOR
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98225-361-1 01 1 1408- ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-494-3 01 1 1408- ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-496-2 01 1 1408-1502 ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-496-3 01 1 1503- ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIRROR MANUAL MATERIAL BLACK<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-518-2 01 1 1408- ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIRROR MANUAL MATERIAL BLACK<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-498-2 01 1 1408-1502 ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIRROR MANUAL MATERIAL BLACK<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-498-2 01 1 1503- ●
100 02.480 HARNESS; RR GATE
CONTINUOUS REAR WIPER<CD6> (A) 		8-98198-222-2 01 1 1408- ●
100 02.480 HARNESS; RR GATE
(A) 		8-98198-222-2 01 1 1408- ●
100 02.480 HARNESS; RR GATE
INTERIOR BASIC(RBA) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> ,FRONT SEAT BUCKET STANDARD<A50> REAR COOLER WO/HEATER<C69> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6> (B) 		8-98274-807-0 01 1 1408- ●
100 02.480 HARNESS; RR GATE
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONTSEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRON T SEAT BUCKET STANDARD<A50> CONTINUOUS REAR WIPER<CD6> REAR COOLER WO/HEATER<C69> (B) 		8-98274-807-0 01 1 1408- ●
100 02.480 HARNESS; RR GATE
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONTSEAT BUCKET MANUAL HEIGHT CONT<AR9> (B) 		8-98274-807-0 01 1 1408- ●
100 02.480 HARNESS; RR GATE
INTERIOR BASIC(RBA) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> ,FRONT SEAT BUCKET STANDARD<A50> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,REAR COOLER WO/HEATER<C69> (B) 		8-98274-808-0 01 1 1408- ●
100 02.480 HARNESS; RR GATE
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6> (A) 		8-98206-101-2 01 1 1408- ●
189 02.480 HARNESS; EXT
PASSIVE ENTRY AND START SYSTEM<AP3> CONTINUOUS REAR WIPER<CD6> 		8-98198-219-1 01 1 1408- ●
189 02.480 HARNESS; EXT
PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98198-219-1 01 1 1408- ●
189 02.480 HARNESS; EXT
CONTINUOUS REAR WIPER<CD6> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98198-221-1 01 1 1408- ●
189 02.480 HARNESS; EXT
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98198-221-1 01 1 1408- ●
189 02.480 HARNESS; EXT
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6> 		8-98198-217-1 01 1 1408- ●
226 02.480 HARNESS; RR DOOR
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98198-213-3 01 1 1408- ● ●
226 02.480 HARNESS; RR DOOR
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98198-215-3 01 1 1408- ● ●
226 02.480 HARNESS; RR DOOR
EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98198-212-3 01 1 1408-1502 ● ●
226 02.480 HARNESS; RR DOOR
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98198-212-3 01 1 1503- ● ●
226 02.480 HARNESS; RR DOOR
EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98198-214-3 01 1 1408-1502 ● ●
226 02.480 HARNESS; RR DOOR
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98198-214-3 01 1 1503- ● ●

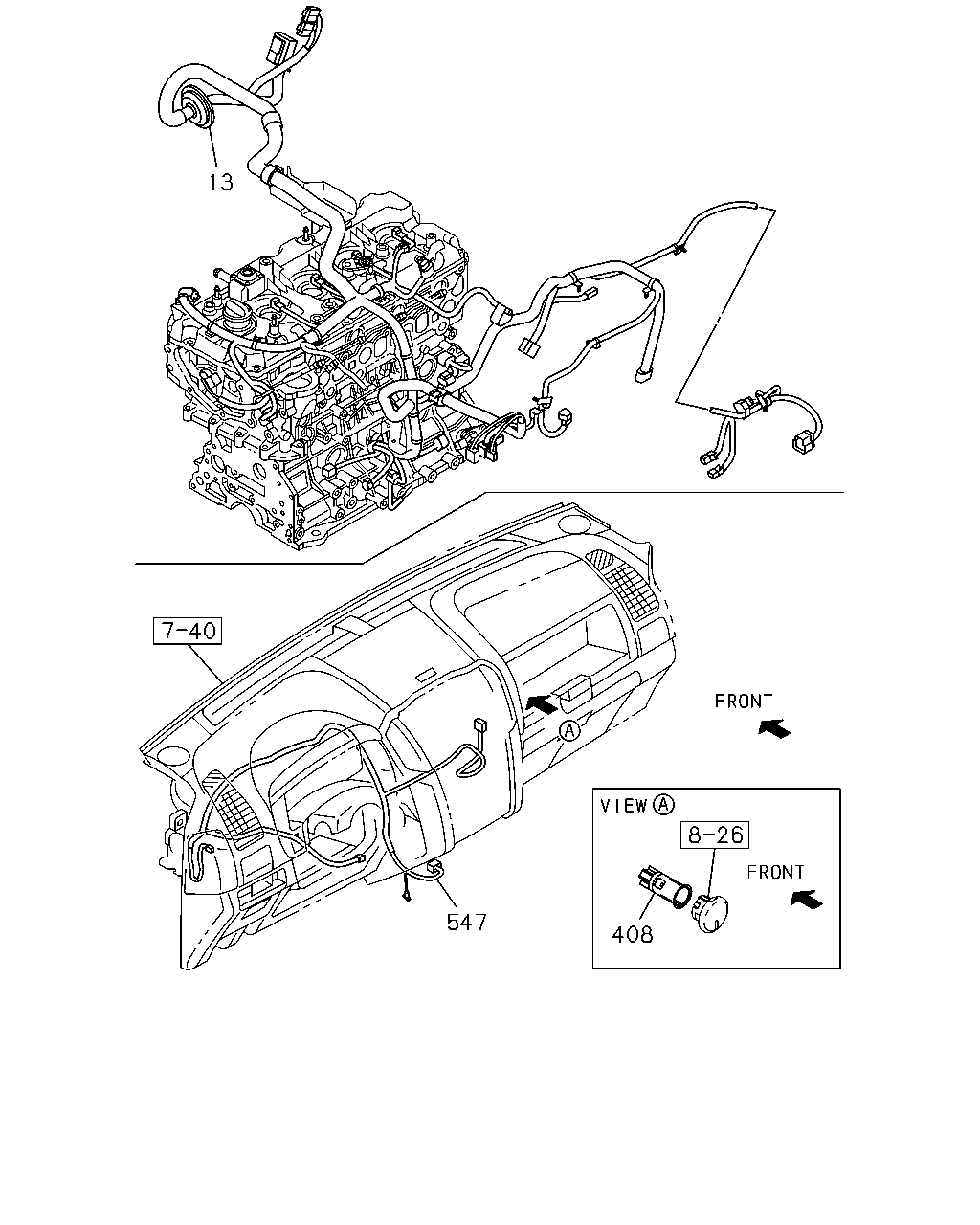

çizim 439363
13 547 408
BalonParca AdiParca NoAdetTipApplied Date A B
13 02.525 HARNESS; ENG
4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1) 		8-98305-401-0 01 1 1511- ●
13 02.525 HARNESS; ENG
4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1) 		8-98305-402-0 01 1 1511- ●
13 02.525 HARNESS; ENG
4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1) 		8-98244-820-2 01 1 1408- ●
13 02.525 HARNESS; ENG
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 		8-98244-817-2 01 1 1408- ●
13 02.525 HARNESS; ENG
4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1) 		8-98244-819-2 01 1 1408- ●
408 02.575 SOCKET ASM; ACCESSORY
ACCESSORY SOCKET FRT CONSOLE<KC5> 		8-98123-115-0 02 1 1408- ●
408 02.575 SOCKET ASM; ACCESSORY 8-98123-115-0 02 1 1408- ●
547 02.480 HARNESS; CABLE,SRS
AIR BAG DRIVER & PASSENGER(AK5) 		8-98250-367-1 01 1 1408- ●
547 02.480 HARNESS; CABLE,SRS 8-98250-367-1 01 1 1408- ●

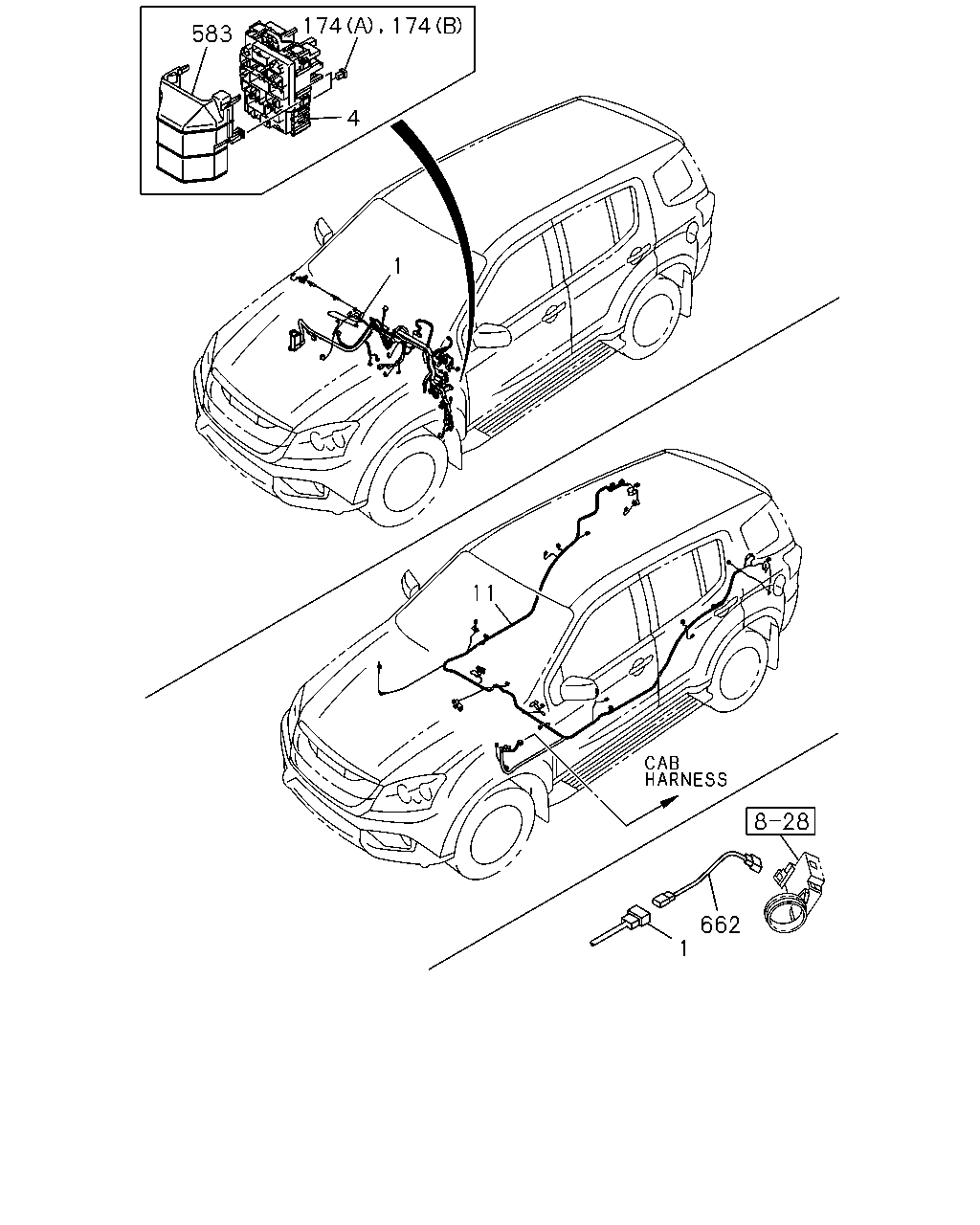

çizim 439475
583 174 174 4 1 11 1 662
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.480 HARNESS; CAB
INTERIOR BASIC(RBA) REMOTE CONT DOOR LOCK<AP5> AIR CONDITIONER MANUAL CONT(C60) REAR COOLER WO/HEATER<C69> EXC. CONTINUOUS REAR WIPER<CD6>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98247-749-2 01 1 1408- ●
1 02.480 HARNESS; CAB
INTERIOR BASIC(RBA) REMOTE CONT DOOR LOCK<AP5> AIR CONDITIONER MANUAL CONT(C60) EXC. CONTINUOUS REAR WIPER<CD6>,REAR COOLER WO/HEATER<C69>,REMOTE CONT DOOR LOCK W /ANTI THEFT<7KY> 		8-98247-750-2 01 1 1408- ●
1 02.480 HARNESS; CAB
INTERIOR BASIC(RBA) AIR CONDITIONER MANUAL CONT(C60) REAR COOLER WO/HEATER<C69> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>,CONTINUOUS REAR WIPER<CD6>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98198-139-2 01 1 1408- ●
1 02.480 HARNESS; CAB
INTERIOR BASIC(RBA) AIR CONDITIONER MANUAL CONT(C60) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>,CONTINUOUS REAR WIPER<CD6>,REAR COOLER WO/HEATER<C69>,R EMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98198-140-2 01 1 1408- ●
1 02.480 HARNESS; CAB
INTERIOR CUSTOM(RBD) PASSIVE ENTRY AND START SYSTEM<AP3> CONTINUOUS REAR WIPER<CD6> AIR CONDITIONER MANUAL CONT(C60) REAR COOLER WO/HEATER<C69> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98250-342-2 01 1 1408- ●
1 02.480 HARNESS; CAB
PASSIVE ENTRY AND START SYSTEM<AP3> AIR CONDITIONER MANUAL CONT(C60) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98250-342-2 01 1 1408- ●
1 02.480 HARNESS; CAB
INTERIOR CUSTOM(RBD) PASSIVE ENTRY AND START SYSTEM<AP3> CONTINUOUS REAR WIPER<CD6> AIR CONDITIONER AUTOMATIC CONT(C61) REAR COOLER WO/HEATER<C69> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98250-341-2 01 1 1408- ●
1 02.480 HARNESS; CAB
PASSIVE ENTRY AND START SYSTEM<AP3> AIR CONDITIONER AUTOMATIC CONT(C61) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98250-341-2 01 1 1408- ●
1 02.480 HARNESS; CAB
INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> CONTINUOUS REAR WIPER<CD6> AIR CONDITIONER MANUAL CONT(C60) REAR COOLER WO/HEATER<C69> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98198-137-2 01 1 1408- ●
1 02.480 HARNESS; CAB
REMOTE CONT DOOR LOCK<AP5> AIR CONDITIONER MANUAL CONT(C60) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98198-137-2 01 1 1408- ●
1 02.480 HARNESS; CAB
INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> CONTINUOUS REAR WIPER<CD6> AIR CONDITIONER MANUAL CONT(C60) REAR COOLER WO/HEATER<C69> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98198-138-2 01 1 1408- ●
1 02.480 HARNESS; CAB
REMOTE CONT DOOR LOCK<AP5> AIR CONDITIONER MANUAL CONT(C60) EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98198-138-2 01 1 1408- ●
1 02.480 HARNESS; CAB
INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> CONTINUOUS REAR WIPER<CD6> AIR CONDITIONER AUTOMATIC CONT(C61) REAR COOLER WO/HEATER<C69> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98198-134-2 01 1 1408- ●
1 02.480 HARNESS; CAB
REMOTE CONT DOOR LOCK<AP5> AIR CONDITIONER AUTOMATIC CONT(C61) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98198-134-2 01 1 1408- ●
1 02.480 HARNESS; CAB
INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> CONTINUOUS REAR WIPER<CD6> AIR CONDITIONER AUTOMATIC CONT(C61) REAR COOLER WO/HEATER<C69> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98198-135-2 01 1 1408- ●
1 02.480 HARNESS; CAB
REMOTE CONT DOOR LOCK<AP5> AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98198-135-2 01 1 1408- ●
4 02.483 BOX ASM; FUSE,HARNESS 8-98166-752-0 01 1 1408- ● ●
11 02.480 HARNESS; BODY
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> ,FRONT SEAT BUCKET STANDARD<A50> REAR COOLER WO/HEATER<C69> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6> 		8-98271-906-1 01 1 1408- ●
11 02.480 HARNESS; BODY
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> ,FRONT SEAT BUCKET STANDARD<A50> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,REAR COOLER WO/HEATER<C69> 		8-98271-907-1 01 1 1408- ●
11 02.480 HARNESS; BODY
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> ,FRONT SEAT BUCKET STANDARD<A50> REAR COOLER WO/HEATER<C69> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6> 		8-98198-060-1 01 1 1408- ●
11 02.480 HARNESS; BODY
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> ,FRONT SEAT BUCKET STANDARD<A50> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,REAR COOLER WO/HEATER<C69> 		8-98198-061-1 01 1 1408- ●
11 02.480 HARNESS; BODY
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) PASSIVE ENTRY AND START SYSTEM<AP3> FRONT SEAT BUCKET POWER ASSIST<AQ9> CONTINUOUS REAR WIPER<CD6> REAR COOLER WO/HEATER<C69> 		8-98250-356-1 01 1 1408- ●
11 02.480 HARNESS; BODY
PASSIVE ENTRY AND START SYSTEM<AP3> FRONT SEAT BUCKET POWER ASSIST<AQ9> 		8-98250-356-1 01 1 1408- ●
11 02.480 HARNESS; BODY
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) PASSIVE ENTRY AND START SYSTEM<AP3> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> ,FRONT SEAT BUCKET STANDARD<A50> CONTINUOUS REAR WIPER<CD6> REAR COOLER WO/HEATER<C69> 		8-98250-357-1 01 1 1408- ●
11 02.480 HARNESS; BODY
PASSIVE ENTRY AND START SYSTEM<AP3> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> 		8-98250-357-1 01 1 1408- ●
11 02.480 HARNESS; BODY
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET POWER ASSIST<AQ9> CONTINUOUS REAR WIPER<CD6> REAR COOLER WO/HEATER<C69> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98247-964-1 01 1 1408- ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98247-964-1 01 1 1408- ●
11 02.480 HARNESS; BODY
INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> ,FRONT SEAT BUCKET STANDARD<A50> CONTINUOUS REAR WIPER<CD6> REAR COOLER WO/HEATER<C69> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98247-965-1 01 1 1408- ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98247-965-1 01 1 1408- ●
174 08.965 FUSE; SLOW BLOW
(C) 120A WHITE 		1-82516-028-1 AR 1 1408- ● ●
174 08.965 FUSE; SLOW BLOW
(B) 60A YELLOW 		8-97219-407-0 AR 1 1408- ● ●
174 08.965 FUSE; SLOW BLOW
(A) 20A BLUE 		8-98079-189-0 AR 1 1408- ● ●
174 08.965 FUSE; SLOW BLOW
(B) 30A PINK 		8-98079-191-0 AR 1 1408- ● ●
174 08.965 FUSE; SLOW BLOW
(B) 40A GREEN 		8-98079-192-0 AR 1 1408- ● ●
174 08.965 FUSE; SLOW BLOW
(B) 50A RED 		8-98079-193-0 AR 1 1408- ● ●
174 08.965 FUSE; SLOW BLOW
(D) 60A YELLOW 		8-98197-288-0 AR 1 1408- ● ●
583 02.559 COVER; HARNESS
M/T MUA 5 SPEED 5H(MWQ) 		8-98179-407-0 01 1 1408- ●
662 02.525 HARNESS; IMMOBILIZER
4JK1-TCX ENG(LR0) EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98163-074-0 01 1 1408-1502 ● ●
662 02.525 HARNESS; IMMOBILIZER
4JK1-TCX ENG(LR0) IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98163-074-0 01 1 1503-1510 ●
662 02.525 HARNESS; IMMOBILIZER
4JK1-TCX ENG(LR0) EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98163-074-0 01 1 1503-1510 ●
662 02.525 HARNESS; IMMOBILIZER
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98163-074-0 01 1 1511- ● ●

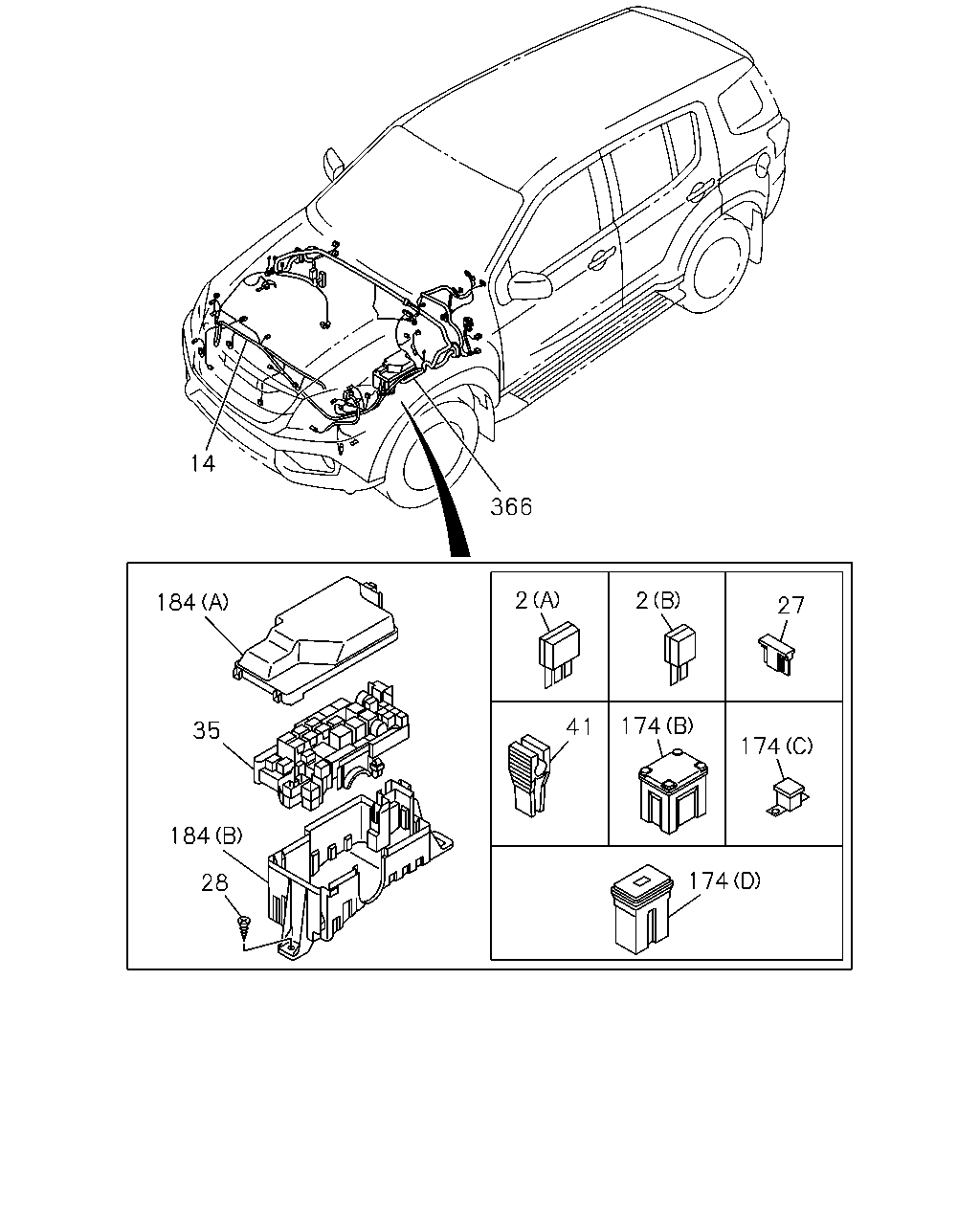

çizim 439484
14 366 184 2 2 27 41 35 174 174 174 184 28
BalonParca AdiParca NoAdetTipApplied Date A B
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1408- ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 1408- ● ●
14 02.727 HARNESS; HEADLAMP
ELECTRO LUMINESCENT INSTRUMENTATION CLUST ER<UCA> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-349-1 01 1 1408- ●
14 02.727 HARNESS; HEADLAMP
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-349-1 01 1 1408- ●
14 02.727 HARNESS; HEADLAMP
ELECTRO LUMINESCENT INSTRUMENTATION CLUST ER<UCA> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-348-1 01 1 1408- ●
14 02.727 HARNESS; HEADLAMP
EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-348-1 01 1 1408- ●
14 02.727 HARNESS; HEADLAMP
EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA>,REMOTE CONT DOOR LOCK W/ANTITHEFT<7KY> 		8-98159-346-1 01 1 1408- ●
27 08.965 FUSE UNIT
02.485 10A RED 		8-98054-257-0 AR 1 1408- ● ●
27 08.965 FUSE UNIT
02.485 15A BLUE 		8-98054-258-0 AR 1 1408- ● ●
27 08.965 FUSE UNIT
02.485 20A YELLOW 		8-98054-259-0 AR 1 1408- ● ●
27 08.965 FUSE UNIT
5A ORANGE 		8-98281-195-0 AR 1 1408- ● ●
28 02.483 SCREW; FUSE BOX 8-97249-192-0 02 1 1408- ● ●
35 02.530 BOX; RELAY & FUSE 8-98113-097-0 01 1 1408- ● ●
41 08.821 PULLER; FUSE 8-98054-260-0 01 1 1408- ● ●
174 08.965 FUSE; SLOW BLOW
(C) 120A WHITE 		1-82516-028-1 AR 1 1408- ● ●
174 08.965 FUSE; SLOW BLOW
(B) 60A YELLOW 		8-97219-407-0 AR 1 1408- ● ●
174 08.965 FUSE; SLOW BLOW
(A) 20A BLUE 		8-98079-189-0 AR 1 1408- ● ●
174 08.965 FUSE; SLOW BLOW
(B) 30A PINK 		8-98079-191-0 AR 1 1408- ● ●
174 08.965 FUSE; SLOW BLOW
(B) 40A GREEN 		8-98079-192-0 AR 1 1408- ● ●
174 08.965 FUSE; SLOW BLOW
(B) 50A RED 		8-98079-193-0 AR 1 1408- ● ●
174 08.965 FUSE; SLOW BLOW
(D) 60A YELLOW 		8-98197-288-0 AR 1 1408- ● ●
184 02.559 COVER; RELAY & FUSE BOX
(A) 		8-98113-098-0 01 1 1408- ● ●
184 02.559 COVER; RELAY & FUSE BOX
(B) 		8-98113-099-0 01 1 1408- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5) TRAILER HITCH 7 PIN<7TW> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,ABS W/EBD BRAKE ASSIST<JE5> 		8-98271-914-3 01 1 1511- ●
366 02.525 HARNESS; CABLE,ENG ROOM
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,ABS W/EBD BRAKE ASSIST<JE5>,TRAILER HITCH 7 PIN<7TW> 		8-98271-915-3 01 1 1511- ●
366 02.525 HARNESS; CABLE,ENG ROOM
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) TRAILER HITCH 7 PIN<7TW> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,ABS W/EBD BRAKE ASSIST<JE5>,AUTO CRUISE CONT<K30>,STRG WHL AUDIO CONTROL SW<8NE> 		8-98220-967-4 01 1 1511- ●
366 02.525 HARNESS; CABLE,ENG ROOM
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,ABS W/EBD BRAKE ASSIST<JE5>,AUTO CRUISE CONT<K30>,TRAIL ER HITCH 7 PIN<7TW>,STRG WHL AUDIO CONTROL SW<8NE> 		8-98198-120-4 01 1 1511- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5) TRAILER HITCH 7 PIN<7TW> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6> 		8-98271-912-3 01 1 1408-1510 ●
366 02.525 HARNESS; CABLE,ENG ROOM
ABS W/EBD BRAKE ASSIST<JE5> INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5) TRAILER HITCH 7 PIN<7TW> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6> 		8-98271-912-3 01 1 1511- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,TRAILER HITCH 7 PIN<7TW> 		8-98271-913-3 01 1 1408-1510 ●
366 02.525 HARNESS; CABLE,ENG ROOM
ABS W/EBD BRAKE ASSIST<JE5> INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,TRAILER HITCH 7 PIN<7TW> 		8-98271-913-3 01 1 1511- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) TRAILER HITCH 7 PIN<7TW> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,AUTO CRUISE CONT<K30>,STRG WHL AUDIO CONTROL SW<8NE> 		8-98250-364-4 01 1 1408-1510 ●
366 02.525 HARNESS; CABLE,ENG ROOM
ABS W/EBD BRAKE ASSIST<JE5> INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) TRAILER HITCH 7 PIN<7TW> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,AUTO CRUISE CONT<K30>,STRG WHL AUDIO CONTROL SW<8NE> 		8-98250-364-4 01 1 1511- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,AUTO CRUISE CONT<K30>,TRAILER HITCH 7 PIN<7TW>,STRG WHL AUDIO CONTROL SW<8NE> 		8-98250-365-4 01 1 1408-1510 ●
366 02.525 HARNESS; CABLE,ENG ROOM
ABS W/EBD BRAKE ASSIST<JE5> INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,AUTO CRUISE CONT<K30>,TRAILER HITCH 7 PIN<7TW>,STRG WHL AUDIO CONTROL SW<8NE> 		8-98250-365-4 01 1 1511- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) PASSIVE ENTRY AND START SYSTEM<AP3> CONTINUOUS REAR WIPER<CD6> TRAILER HITCH 7 PIN<7TW> 		8-98250-411-3 01 1 1408-1510 ●
366 02.525 HARNESS; CABLE,ENG ROOM
ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) PASSIVE ENTRY AND START SYSTEM<AP3> CONTINUOUS REAR WIPER<CD6> TRAILER HITCH 7 PIN<7TW> 		8-98250-411-3 01 1 1511- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) PASSIVE ENTRY AND START SYSTEM<AP3> CONTINUOUS REAR WIPER<CD6> EXC. TRAILER HITCH 7 PIN<7TW> 		8-98250-412-3 01 1 1408-1510 ●
366 02.525 HARNESS; CABLE,ENG ROOM
ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) PASSIVE ENTRY AND START SYSTEM<AP3> CONTINUOUS REAR WIPER<CD6> EXC. TRAILER HITCH 7 PIN<7TW> 		8-98250-412-3 01 1 1511- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) CONTINUOUS REAR WIPER<CD6> TRAILER HITCH 7 PIN<7TW> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98220-966-3 01 1 1408-1510 ●
366 02.525 HARNESS; CABLE,ENG ROOM
ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) CONTINUOUS REAR WIPER<CD6> TRAILER HITCH 7 PIN<7TW> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98220-966-3 01 1 1511- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) CONTINUOUS REAR WIPER<CD6> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, TRAILER HITCH 7 PIN<7TW> 		8-98198-119-3 01 1 1408-1510 ●
366 02.525 HARNESS; CABLE,ENG ROOM
ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) CONTINUOUS REAR WIPER<CD6> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, TRAILER HITCH 7 PIN<7TW> 		8-98198-119-3 01 1 1511- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) PASSIVE ENTRY AND START SYSTEM<AP3> TRAILER HITCH 7 PIN<7TW> 		8-98250-409-3 01 1 1408-1510 ●
366 02.525 HARNESS; CABLE,ENG ROOM
PASSIVE ENTRY AND START SYSTEM<AP3> TRAILER HITCH 7 PIN<7TW> 		8-98250-409-3 01 1 1511- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) PASSIVE ENTRY AND START SYSTEM<AP3> EXC. TRAILER HITCH 7 PIN<7TW> 		8-98250-410-3 01 1 1408-1510 ●
366 02.525 HARNESS; CABLE,ENG ROOM
PASSIVE ENTRY AND START SYSTEM<AP3> EXC. TRAILER HITCH 7 PIN<7TW> 		8-98250-410-3 01 1 1511- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) TRAILER HITCH 7 PIN<7TW> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98220-965-3 01 1 1408-1510 ●
366 02.525 HARNESS; CABLE,ENG ROOM
TRAILER HITCH 7 PIN<7TW> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98220-965-3 01 1 1511- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, TRAILER HITCH 7 PIN<7TW> 		8-98198-118-3 01 1 1408-1510 ●
366 02.525 HARNESS; CABLE,ENG ROOM
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, TRAILER HITCH 7 PIN<7TW> 		8-98198-118-3 01 1 1511- ●

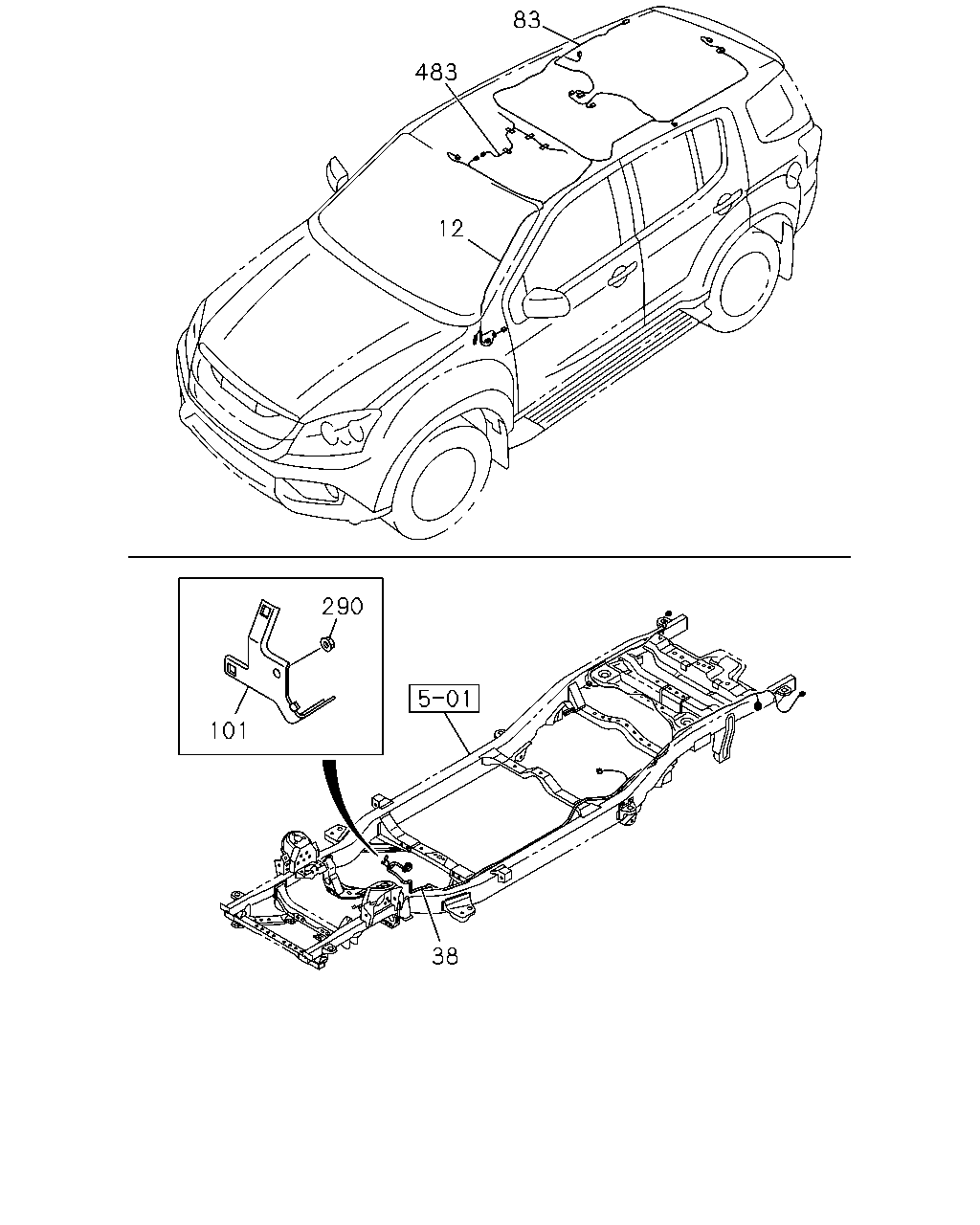

çizim 439494
483 83 12 290 101 38
BalonParca AdiParca NoAdetTipApplied Date A B
12 02.480 HARNESS; ROOF
HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM BASE<UW5> 		8-98250-363-1 01 1 1408- ●
12 02.480 HARNESS; ROOF
6-SPEAKER SYSTEM BASE<UW5> 		8-98250-363-1 01 1 1408- ●
12 02.480 HARNESS; ROOF
HEADER CONSOLE<DK6> 8-SPEAKER SYSTEM CUSTOM<U87> 		8-98250-361-1 01 1 1408- ●
12 02.480 HARNESS; ROOF
8-SPEAKER SYSTEM CUSTOM<U87> 		8-98250-361-1 01 1 1408- ●
12 02.480 HARNESS; ROOF
6-SPEAKER SYSTEM BASE<UW5> EXC. HEADER CONSOLE<DK6> 		8-98250-362-1 01 1 1408- ●
38 02.480 HARNESS; CHAS
TRAILER HITCH 7 PIN<7TW> EXC. ABS W/EBD BRAKE ASSIST<JE5> 		8-98198-062-2 01 1 1511- ●
38 02.480 HARNESS; CHAS
EXC. ABS W/EBD BRAKE ASSIST<JE5>,TRAILER HITCH 7 PIN<7TW> 		8-98198-063-2 01 1 1511- ●
38 02.480 HARNESS; CHAS
TRAILER HITCH 7 PIN<7TW> 		8-98198-064-2 01 1 1408-1510 ● ●
38 02.480 HARNESS; CHAS
ABS W/EBD BRAKE ASSIST<JE5> TRAILER HITCH 7 PIN<7TW> 		8-98198-064-2 01 1 1511- ●
38 02.480 HARNESS; CHAS
TRAILER HITCH 7 PIN<7TW> 		8-98198-064-2 01 1 1511- ●
38 02.480 HARNESS; CHAS
EXC. TRAILER HITCH 7 PIN<7TW> 		8-98198-065-2 01 1 1408-1510 ● ●
38 02.480 HARNESS; CHAS
ABS W/EBD BRAKE ASSIST<JE5> EXC. TRAILER HITCH 7 PIN<7TW> 		8-98198-065-2 01 1 1511- ●
38 02.480 HARNESS; CHAS
EXC. TRAILER HITCH 7 PIN<7TW> 		8-98198-065-2 01 1 1511- ●
83 02.480 HARNESS; AIR CONDITIONER
REAR COOLER WO/HEATER<C69> 		8-98198-188-2 01 1 1408- ●
83 02.480 HARNESS; AIR CONDITIONER 8-98198-188-2 01 1 1408- ●
101 02.483 BRACKET; HARNESS CONNECTOR 8-98102-999-0 01 1 1408- ● ●
290 02.483 NUT; BRKT
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1408- ● ●
483 02.480 HARNESS; EXT,RADIO
HEADER CONSOLE<DK6> 8-SPEAKER SYSTEM CUSTOM<U87> 		8-98201-891-0 01 1 1408- ●
483 02.480 HARNESS; EXT,RADIO
8-SPEAKER SYSTEM CUSTOM<U87> 		8-98201-891-0 01 1 1408- ●
çizim 439514
4 734 745 750 749 762 761 758 759 764 763
BalonParca AdiParca NoAdetTipApplied Date A B
4 02.483 BOX ASM; FUSE,HARNESS 8-98166-752-0 01 1 1408- ● ●
734 02.694 RELAY; ACC SOCKET
PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> 09.778 12V YAZAKI 		8-97309-293-0 01 1 1408- ● ●
745 02.694 RELAY; HEATER
03.670 (A) 12V YAZAKI 		8-98146-834-0 01 1 1408- ● ●
745 02.694 RELAY; HEATER
02.485 (B) 12V YAZAKI 		8-97309-292-0 01 1 1408- ● ●
749 02.694 RELAY; POWER WINDOW
09.778 12V YAZAKI 		8-97309-293-0 01 1 1408- ● ●
750 02.694 RELAY; RR DEFOGGER
09.778 12V YAZAKI 		8-97309-293-0 01 1 1408- ● ●
758 02.694 RELAY; RR WIPER
PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> 02.485 12V YAZAKI 		8-97309-292-0 01 1 1408- ● ●
759 02.694 RELAY; RR COOLER
REAR COOLER WO/HEATER<C69> 09.778 12V YAZAKI 		8-97309-293-0 01 1 1408- ● ●
761 02.694 RELAY; ACC
PASSIVE ENTRY AND START SYSTEM<AP3> 02.485 12V YAZAKI 		8-97309-292-0 01 1 1408- ● ●
762 02.694 RELAY; IG2
PASSIVE ENTRY AND START SYSTEM<AP3> 02.485 12V YAZAKI 		8-97309-292-0 01 1 1408- ● ●
763 02.694 RELAY; IG1
PASSIVE ENTRY AND START SYSTEM<AP3> 02.100 12V YAZAKI 		8-98146-837-0 01 1 1408- ● ●
764 02.694 RELAY; FRT WIPER
PASSIVE ENTRY AND START SYSTEM<AP3> 02.100 12V YAZAKI 		8-98146-837-0 01 1 1408- ● ●
çizim 439536
366 736 738 739 741 743 742 746 737 745 747 748
BalonParca AdiParca NoAdetTipApplied Date A B
366 02.525 HARNESS; CABLE,ENG ROOM
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5) TRAILER HITCH 7 PIN<7TW> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,ABS W/EBD BRAKE ASSIST<JE5> 		8-98271-914-3 01 1 1511- ●
366 02.525 HARNESS; CABLE,ENG ROOM
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,ABS W/EBD BRAKE ASSIST<JE5>,TRAILER HITCH 7 PIN<7TW> 		8-98271-915-3 01 1 1511- ●
366 02.525 HARNESS; CABLE,ENG ROOM
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) TRAILER HITCH 7 PIN<7TW> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,ABS W/EBD BRAKE ASSIST<JE5>,AUTO CRUISE CONT<K30>,STRG WHL AUDIO CONTROL SW<8NE> 		8-98220-967-4 01 1 1511- ●
366 02.525 HARNESS; CABLE,ENG ROOM
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,ABS W/EBD BRAKE ASSIST<JE5>,AUTO CRUISE CONT<K30>,TRAIL ER HITCH 7 PIN<7TW>,STRG WHL AUDIO CONTROL SW<8NE> 		8-98198-120-4 01 1 1511- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5) TRAILER HITCH 7 PIN<7TW> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6> 		8-98271-912-3 01 1 1408-1510 ●
366 02.525 HARNESS; CABLE,ENG ROOM
ABS W/EBD BRAKE ASSIST<JE5> INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5) TRAILER HITCH 7 PIN<7TW> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6> 		8-98271-912-3 01 1 1511- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,TRAILER HITCH 7 PIN<7TW> 		8-98271-913-3 01 1 1408-1510 ●
366 02.525 HARNESS; CABLE,ENG ROOM
ABS W/EBD BRAKE ASSIST<JE5> INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,TRAILER HITCH 7 PIN<7TW> 		8-98271-913-3 01 1 1511- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) TRAILER HITCH 7 PIN<7TW> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,AUTO CRUISE CONT<K30>,STRG WHL AUDIO CONTROL SW<8NE> 		8-98250-364-4 01 1 1408-1510 ●
366 02.525 HARNESS; CABLE,ENG ROOM
ABS W/EBD BRAKE ASSIST<JE5> INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) TRAILER HITCH 7 PIN<7TW> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,AUTO CRUISE CONT<K30>,STRG WHL AUDIO CONTROL SW<8NE> 		8-98250-364-4 01 1 1511- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,AUTO CRUISE CONT<K30>,TRAILER HITCH 7 PIN<7TW>,STRG WHL AUDIO CONTROL SW<8NE> 		8-98250-365-4 01 1 1408-1510 ●
366 02.525 HARNESS; CABLE,ENG ROOM
ABS W/EBD BRAKE ASSIST<JE5> INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, CONTINUOUS REAR WIPER<CD6>,AUTO CRUISE CONT<K30>,TRAILER HITCH 7 PIN<7TW>,STRG WHL AUDIO CONTROL SW<8NE> 		8-98250-365-4 01 1 1511- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) PASSIVE ENTRY AND START SYSTEM<AP3> CONTINUOUS REAR WIPER<CD6> TRAILER HITCH 7 PIN<7TW> 		8-98250-411-3 01 1 1408-1510 ●
366 02.525 HARNESS; CABLE,ENG ROOM
ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) PASSIVE ENTRY AND START SYSTEM<AP3> CONTINUOUS REAR WIPER<CD6> TRAILER HITCH 7 PIN<7TW> 		8-98250-411-3 01 1 1511- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) PASSIVE ENTRY AND START SYSTEM<AP3> CONTINUOUS REAR WIPER<CD6> EXC. TRAILER HITCH 7 PIN<7TW> 		8-98250-412-3 01 1 1408-1510 ●
366 02.525 HARNESS; CABLE,ENG ROOM
ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) PASSIVE ENTRY AND START SYSTEM<AP3> CONTINUOUS REAR WIPER<CD6> EXC. TRAILER HITCH 7 PIN<7TW> 		8-98250-412-3 01 1 1511- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) CONTINUOUS REAR WIPER<CD6> TRAILER HITCH 7 PIN<7TW> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98220-966-3 01 1 1408-1510 ●
366 02.525 HARNESS; CABLE,ENG ROOM
ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) CONTINUOUS REAR WIPER<CD6> TRAILER HITCH 7 PIN<7TW> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98220-966-3 01 1 1511- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) CONTINUOUS REAR WIPER<CD6> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, TRAILER HITCH 7 PIN<7TW> 		8-98198-119-3 01 1 1408-1510 ●
366 02.525 HARNESS; CABLE,ENG ROOM
ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5) CONTINUOUS REAR WIPER<CD6> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, TRAILER HITCH 7 PIN<7TW> 		8-98198-119-3 01 1 1511- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) PASSIVE ENTRY AND START SYSTEM<AP3> TRAILER HITCH 7 PIN<7TW> 		8-98250-409-3 01 1 1408-1510 ●
366 02.525 HARNESS; CABLE,ENG ROOM
PASSIVE ENTRY AND START SYSTEM<AP3> TRAILER HITCH 7 PIN<7TW> 		8-98250-409-3 01 1 1511- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) PASSIVE ENTRY AND START SYSTEM<AP3> EXC. TRAILER HITCH 7 PIN<7TW> 		8-98250-410-3 01 1 1408-1510 ●
366 02.525 HARNESS; CABLE,ENG ROOM
PASSIVE ENTRY AND START SYSTEM<AP3> EXC. TRAILER HITCH 7 PIN<7TW> 		8-98250-410-3 01 1 1511- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) TRAILER HITCH 7 PIN<7TW> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98220-965-3 01 1 1408-1510 ●
366 02.525 HARNESS; CABLE,ENG ROOM
TRAILER HITCH 7 PIN<7TW> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98220-965-3 01 1 1511- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, TRAILER HITCH 7 PIN<7TW> 		8-98198-118-3 01 1 1408-1510 ●
366 02.525 HARNESS; CABLE,ENG ROOM
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, TRAILER HITCH 7 PIN<7TW> 		8-98198-118-3 01 1 1511- ●
736 02.694 RELAY; STARTER CUT
02.485 12V YAZAKI 		8-97309-292-0 01 1 1408- ● ●
737 02.694 RELAY; DIMMER
02.485 12V YAZAKI 		8-97309-292-0 01 1 1408- ● ●
738 02.694 RELAY; HEADLAMP
09.778 12V YAZAKI 		8-97309-293-0 01 1 1408- ● ●
739 02.694 RELAY; TAIL LAMP
09.778 12V YAZAKI 		8-97309-293-0 01 1 1408- ● ●
741 02.694 RELAY; HORN
09.778 12V YAZAKI 		8-97309-293-0 01 1 1408- ● ●
742 02.694 RELAY; THERMO
09.778 12V YAZAKI 		8-97309-293-0 01 1 1408- ● ●
743 02.694 RELAY; A/C COMPRESSOR
09.778 12V YAZAKI 		8-97309-293-0 01 1 1408- ● ●
745 02.694 RELAY; HEATER
03.670 (A) 12V YAZAKI 		8-98146-834-0 01 1 1408- ● ●
745 02.694 RELAY; HEATER
02.485 (B) 12V YAZAKI 		8-97309-292-0 01 1 1408- ● ●
746 02.694 RELAY; ECM,MAIN
03.670 12V YAZAKI 		8-98146-834-0 01 1 1408- ● ●
747 02.694 RELAY; GLOW
02.100 12V YAZAKI 		8-98146-837-0 01 1 1408- ● ●
748 02.694 RELAY; STARTER
02.100 12V YAZAKI 		8-98146-837-0 01 1 1408- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
