◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51520 - UCR/UCS(MIDDLE EAST) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#147167) — 27 parça

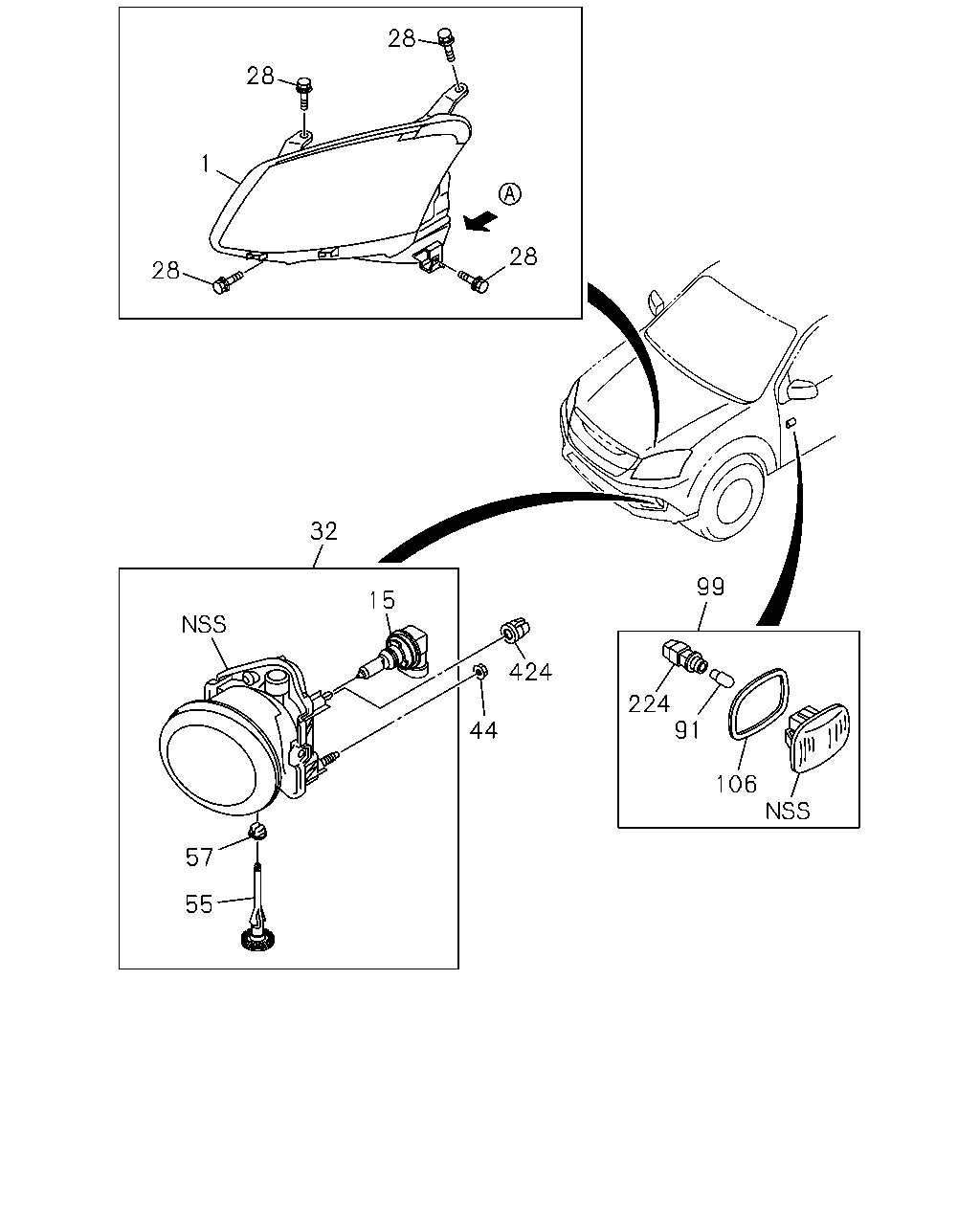

çizim 439441
28 28 1 28 28 32 15 57 55 44 424 99 224 91 106
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.725 LAMP ASM; HEAD 8-98187-234-2 01 1 1408- ● ●
1 02.725 LAMP ASM; HEAD 8-98187-235-2 01 1 1408- ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 12V 19W 		8-98241-838-0 02 1 1408- ● ●
28 02.762 BOLT; HEADLAMP
M6X18 TAPPING W/LK&PL WASHER 		8-98062-140-0 08 1 1408- ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98226-794-0 01 1 1408- ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98226-795-0 01 1 1408- ● ●
44 02.737 NUT; FOG LAMP
FOG LAMP<T96> 08.915 M6 FLANGE 		8-98055-704-0 04 1 1408- ● ●
55 02.737 SCREW; ADJ,FOG LAMP
FOG LAMP<T96> 		8-98241-840-0 02 1 1408- ● ●
57 02.726 NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP<T96> 		8-98017-835-0 02 1 1408- ● ●
91 08.991 BULB; SIDE TURN SIGNAL
DOOR MIRROR MANUAL MATERIAL BLACK<RT9> 12V 5W 		8-97310-952-0 02 1 1408- ●
99 02.585 LAMP; SIDE FLASHER
DOOR MIRROR MANUAL MATERIAL BLACK<RT9> 		8-98084-153-0 02 1 1408- ●
106 02.590 GASKET; SIDE TURN SIGNAL
DOOR MIRROR MANUAL MATERIAL BLACK<RT9> 		8-97333-420-0 02 1 1408- ●
224 02.575 SOCKET; SIDE FLASHER LAMP
DOOR MIRROR MANUAL MATERIAL BLACK<RT9> 		8-97310-953-0 02 1 1408- ●
424 02.727 RETAINER; FOG LAMP
FOG LAMP<T96> 16.494 		8-97372-854-0 02 1 1408- ● ●
çizim 439443
1 4 408 23 5 357 382 5 382 340 408 23
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.725 LAMP ASM; HEAD 8-98187-234-2 01 1 1408- ● ●
1 02.725 LAMP ASM; HEAD 8-98187-235-2 01 1 1408- ● ●
4 02.727 HEADLAMP UNIT 8-98219-309-2 01 1 1408- ● ●
4 02.727 HEADLAMP UNIT 8-98219-310-2 01 1 1408- ● ●
5 02.727 BULB; HEADLAMP
(B) 12V 60W 		8-97289-997-0 02 1 1408- ● ●
5 02.727 BULB; HEADLAMP
(A) 12V 55W 		8-98160-205-0 02 1 1408- ● ●
23 02.727 COVER; BULB,HEADLAMP 8-97675-961-0 04 1 1408- ● ●
340 08.991 BULB; POSITION
12V 5W 		8-94124-595-0 02 1 1408- ● ●
357 08.991 BULB; TURN SIGNAL
02.727 12V 21W 		8-98160-206-0 02 1 1408- ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
(A) 		8-98012-788-0 02 1 1408- ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
(B) 		8-98160-270-1 02 1 1408- ● ●
408 02.727 CAP; BREATHER,HEADLAMP 8-98186-375-0 04 1 1408-1410 ● ●
408 02.727 CAP; BREATHER,HEADLAMP 8-98300-478-0 04 1 1411- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
