Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#147164) — 214 parça

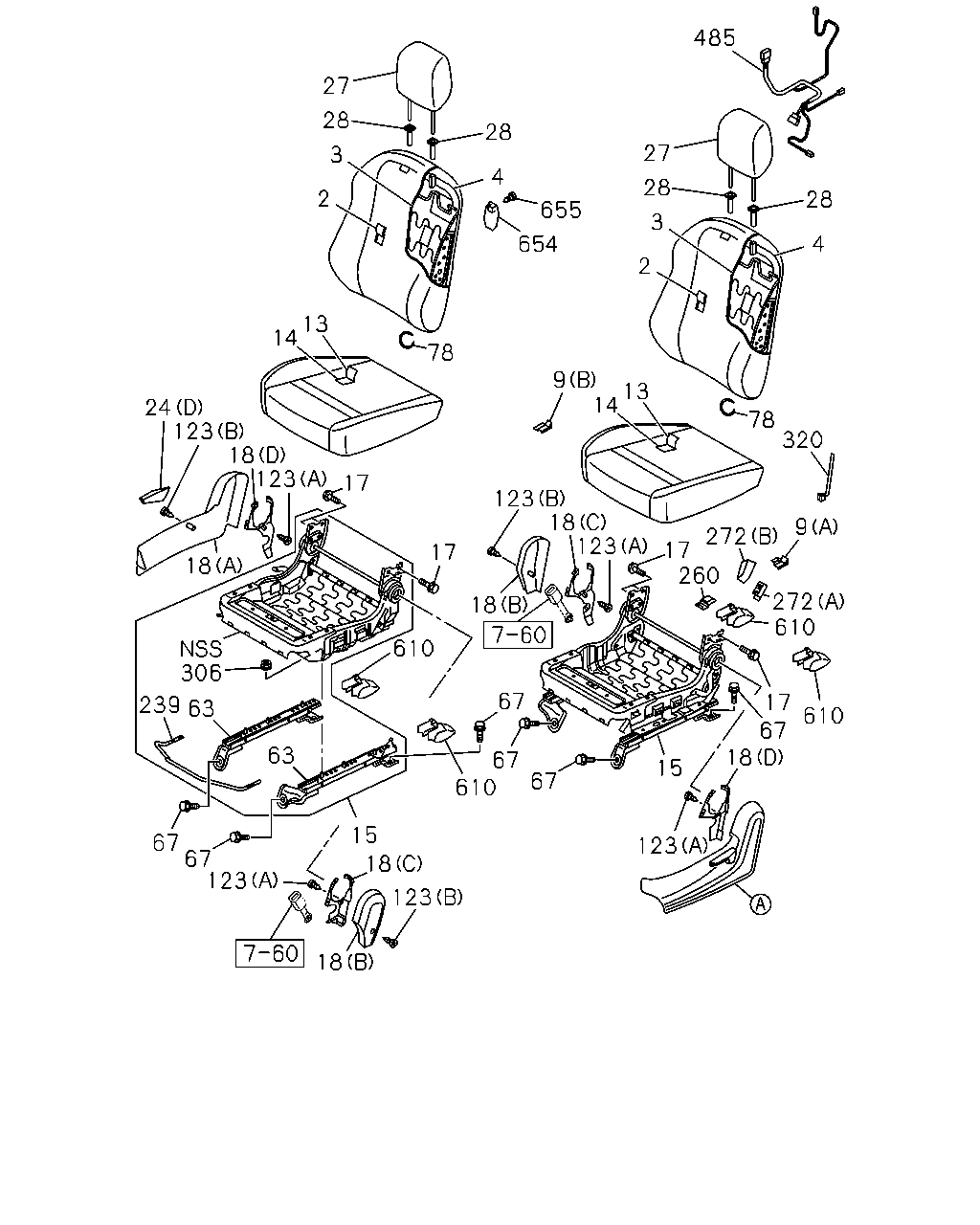

27 3 28 2 28 655 654 4 78 13 14 18 123 24 123 123 9 78 9 272 123 18 14 13 123 123 123 27 28 28 2 4 485 17 17 17 272 610 17 610 67 18 15 260 18 610 610 18 306 239 63 63 15 18 18 67 67 67 67 67 320 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-328-0	01	1	1408-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97428-354-0	01	1	1408-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-325-0	01	1	1408-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97428-351-0	01	1	1408-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> BLACK	8-97428-277-0	01	1	1408-	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> BLACK	8-97428-277-0	01	1	1408-	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK	8-97428-294-0	01	1	1408-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK	8-97428-295-0	01	1	1408-	●	●
3	16.720 PAD; FRT SEAT BACK SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98187-530-0	01	1	1408-	●	●
3	16.720 PAD; FRT SEAT BACK SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98187-527-0	01	1	1408-	●	●
3	16.720 PAD; FRT SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>	8-98187-526-0	01	1	1408-	●	●
3	16.720 PAD; FRT SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>	8-98187-525-0	01	1	1408-	●	●
3	16.720 PAD; FRT SEAT BACK SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50>	8-98187-525-0	01	1	1408-	●
3	16.720 PAD; FRT SEAT BACK SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50>	8-98187-525-0	01	1	1408-	●
4	16.720 FRAME ASM; FRT SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONTSEAT BUCKET MANUAL HEIGHT CONT<AR9>	8-98187-534-0	01	1	1408-	●	●
4	16.720 FRAME ASM; FRT SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONTSEAT BUCKET MANUAL HEIGHT CONT<AR9>	8-98187-533-0	01	1	1408-	●	●
4	16.720 FRAME ASM; FRT SEAT SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50>	8-98187-533-0	01	1	1408-	●
4	16.720 FRAME ASM; FRT SEAT SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50>	8-98187-533-0	01	1	1408-	●
9	16.682 COVER; SIDE SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A) OUTER BLACK	8-97428-378-0	01	1	1408-	●	●
9	16.682 COVER; SIDE SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (B) INNER BLACK	8-97428-380-0	01	1	1408-	●	●
9	16.682 COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (A) OUTER BLACK	8-97428-374-0	01	1	1408-	●	●
9	16.682 COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (B) INNER BLACK	8-97428-376-0	01	1	1408-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-342-0	01	1	1408-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97428-368-0	01	1	1408-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-339-0	01	1	1408-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97428-365-0	01	1	1408-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> BLACK	8-97428-284-0	01	1	1408-	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> BLACK	8-97428-285-0	01	1	1408-	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK	8-97428-309-0	01	1	1408-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK	8-97428-312-0	01	1	1408-	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98187-562-0	01	1	1408-	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98187-563-0	01	1	1408-	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> ,FRONT SEAT BUCKET STANDARD<A50>	8-98187-559-0	01	1	1408-	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> ,FRONT SEAT BUCKET STANDARD<A50>	8-98187-560-0	01	1	1408-	●
15	16.716 FRAME; CUSHION,FRT SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98231-282-0	01	1	1408-	●	●
15	16.716 FRAME; CUSHION,FRT SEAT	8-98187-567-2	01	1	1408-	●	●
15	16.716 FRAME; CUSHION,FRT SEAT SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50>	8-98187-568-2	01	1	1408-	●
15	16.716 FRAME; CUSHION,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>	8-98231-281-1	01	1	1408-	●	●
17	16.682 BOLT; RECLINING	8-98220-045-0	04	1	1408-	●	●
17	16.682 BOLT; RECLINING	8-98220-045-0	04	1	1408-	●	●
18	16.682 COVER; RECLINING (B) BLACK	8-97424-517-0	01	1	1408-	●	●
18	16.682 COVER; RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A) BLACK	8-97424-098-0	01	1	1408-	●	●
18	16.682 COVER; RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (D) BLACK	8-97424-608-0	01	1	1408-	●	●
18	16.682 COVER; RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (C) BLACK	8-97424-610-0	01	1	1408-	●	●
18	16.682 COVER; RECLINING (A) BLACK	8-97424-090-0	01	1	1408-	●	●
18	16.682 COVER; RECLINING (B) BLACK	8-97424-579-0	01	1	1408-	●	●
18	16.682 COVER; RECLINING (D) BLACK	8-97424-582-0	01	1	1408-	●	●
18	16.682 COVER; RECLINING (C) BLACK	8-97424-585-0	01	1	1408-	●	●
18	16.682 COVER; RECLINING SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> (A) BLACK	8-97424-092-0	01	1	1408-	●
18	16.682 COVER; RECLINING SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> ,FRONT SEAT BUCKET STANDARD<A50> (D) BLACK	8-97424-515-0	01	1	1408-	●
18	16.682 COVER; RECLINING SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> ,FRONT SEAT BUCKET STANDARD<A50> (C) BLACK	8-97424-516-0	01	1	1408-	●
18	16.682 COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (A) BLACK	8-97424-096-0	01	1	1408-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A) BLACK	8-97424-611-0	01	1	1408-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (B) BLACK	8-97424-612-0	01	1	1408-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT (D) BLACK	8-97424-591-0	01	1	1408-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> ,FRONT SEAT BUCKET STANDARD<A50> (D) BLACK	8-97424-518-0	01	1	1408-	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (C) BLACK	8-97424-597-0	01	1	1408-	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-315-0	01	1	1408-	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-315-0	01	1	1408-	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97424-639-0	01	1	1408-	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97424-639-0	01	1	1408-	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> LIGHT GRAY	8-97424-645-0	01	1	1408-	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> LIGHT GRAY	8-97424-645-0	01	1	1408-	●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 LOOK BLACK	8-97424-499-0	01	1	1408-	●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 LOOK BLACK	8-97424-499-0	01	1	1408-	●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 FREE BLACK	8-97424-500-0	01	1	1408-	●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 FREE BLACK	8-97424-500-0	01	1	1408-	●	●
63	16.682 ADJUSTER; SEAT SLIDE OUTER	8-98224-186-1	01	1	1408-	●	●
63	16.682 ADJUSTER; SEAT SLIDE INNER	8-98224-187-1	01	1	1408-	●	●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> INNER	8-98220-096-1	01	1	1408-	●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> ,FRONT SEAT BUCKET STANDARD<A50> OUTER	8-98220-097-1	01	1	1408-	●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> INNER	8-98231-283-1	01	1	1408-	●	●
67	16.682 BOLT; FRT SEAT TO BODY M12X27.5 W/PL WASHER	8-98050-319-0	08	1	1408-	●	●
78	16.680 RING; SNAP 16.724	8-98220-068-0	17	1	1408-	●	●
78	16.680 RING; SNAP SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> 16.724	8-98220-068-0	17	1	1408-	●	●
78	16.680 RING; SNAP SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> 16.724	8-98220-068-0	16	1	1408-	●	●
123	16.686 SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	02	1	1408-	●	●
123	16.686 SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	02	1	1408-	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (B) M4X10	8-98220-086-0	04	1	1408-	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONTSEAT BUCKET MANUAL HEIGHT CONT<AR9> (B) M4X10	8-98220-086-0	03	1	1408-	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> (B) M4X10	8-98220-086-0	03	1	1408-	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> (B) M4X10	8-98220-086-0	03	1	1408-	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (B) M4X10	8-98220-086-0	05	1	1408-	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT	8-98220-104-0	01	1	1408-	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98220-104-0	01	1	1408-	●	●
260	16.682 CLIP; HARNESS SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98224-267-0	01	1	1408-	●	●
272	16.682 COVER; SEAT RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A) BLACK	8-97428-382-0	01	1	1408-	●	●
272	16.682 COVER; SEAT RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (B) BLACK	8-97428-383-0	01	1	1408-	●	●
306	16.682 NUT; SEAT ADJ M8 FLANGE	8-98220-087-0	07	1	1408-	●	●
306	16.682 NUT; SEAT ADJ SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> M8 FLANGE	8-98220-087-0	07	1	1408-	●	●
320	16.679 CLIP; BAND,SEAT 16.686	8-98220-048-0	02	1	1408-	●	●
485	16.682 HARNESS; FRT SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98231-308-0	01	1	1408-	●	●
610	16.682 COVER; LEG,FRT SEAT BLACK	8-97416-785-4	04	1	1408-	●	●
654	16.716 HOOK; STOPPER SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONTSEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK	8-97424-637-0	01	1	1408-	●	●
655	16.716 BOLT; HOOK SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONTSEAT BUCKET MANUAL HEIGHT CONT<AR9> M5X15	8-98224-171-0	01	1	1408-	●	●

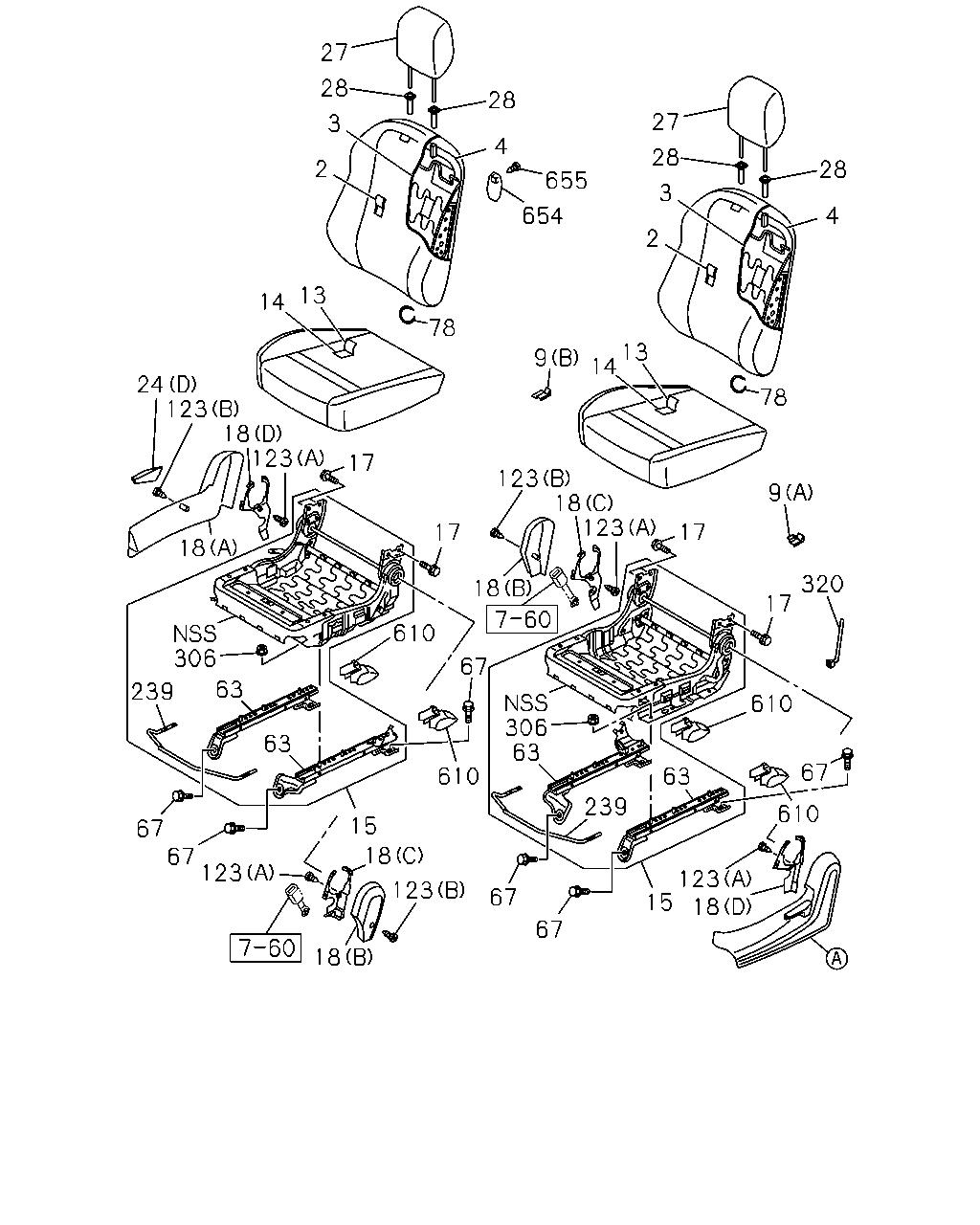

27 3 2 28 28 4 654 655 27 3 28 2 28 4 78 13 14 9 123 123 18 9 17 17 610 320 67 63 239 18 17 13 14 78 24 18 123 123 17 610 18 306 63 239 63 15 123 67 67 18 123 610 67 306 63 67 67 15 18 610 123 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-328-0	01	1	1408-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97428-354-0	01	1	1408-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-325-0	01	1	1408-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97428-351-0	01	1	1408-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> BLACK	8-97428-277-0	01	1	1408-	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> BLACK	8-97428-277-0	01	1	1408-	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK	8-97428-294-0	01	1	1408-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK	8-97428-295-0	01	1	1408-	●	●
3	16.720 PAD; FRT SEAT BACK SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98187-530-0	01	1	1408-	●	●
3	16.720 PAD; FRT SEAT BACK SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98187-527-0	01	1	1408-	●	●
3	16.720 PAD; FRT SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>	8-98187-526-0	01	1	1408-	●	●
3	16.720 PAD; FRT SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>	8-98187-525-0	01	1	1408-	●	●
3	16.720 PAD; FRT SEAT BACK SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50>	8-98187-525-0	01	1	1408-	●
3	16.720 PAD; FRT SEAT BACK SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50>	8-98187-525-0	01	1	1408-	●
4	16.720 FRAME ASM; FRT SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONTSEAT BUCKET MANUAL HEIGHT CONT<AR9>	8-98187-534-0	01	1	1408-	●	●
4	16.720 FRAME ASM; FRT SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONTSEAT BUCKET MANUAL HEIGHT CONT<AR9>	8-98187-533-0	01	1	1408-	●	●
4	16.720 FRAME ASM; FRT SEAT SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50>	8-98187-533-0	01	1	1408-	●
4	16.720 FRAME ASM; FRT SEAT SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50>	8-98187-533-0	01	1	1408-	●
9	16.682 COVER; SIDE SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A) OUTER BLACK	8-97428-378-0	01	1	1408-	●	●
9	16.682 COVER; SIDE SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (B) INNER BLACK	8-97428-380-0	01	1	1408-	●	●
9	16.682 COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (A) OUTER BLACK	8-97428-374-0	01	1	1408-	●	●
9	16.682 COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (B) INNER BLACK	8-97428-376-0	01	1	1408-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-342-0	01	1	1408-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97428-368-0	01	1	1408-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-339-0	01	1	1408-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97428-365-0	01	1	1408-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> BLACK	8-97428-284-0	01	1	1408-	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> BLACK	8-97428-285-0	01	1	1408-	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK	8-97428-309-0	01	1	1408-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK	8-97428-312-0	01	1	1408-	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98187-562-0	01	1	1408-	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98187-563-0	01	1	1408-	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> ,FRONT SEAT BUCKET STANDARD<A50>	8-98187-559-0	01	1	1408-	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> ,FRONT SEAT BUCKET STANDARD<A50>	8-98187-560-0	01	1	1408-	●
15	16.716 FRAME; CUSHION,FRT SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98231-282-0	01	1	1408-	●	●
15	16.716 FRAME; CUSHION,FRT SEAT	8-98187-567-2	01	1	1408-	●	●
15	16.716 FRAME; CUSHION,FRT SEAT SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50>	8-98187-568-2	01	1	1408-	●
15	16.716 FRAME; CUSHION,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>	8-98231-281-1	01	1	1408-	●	●
17	16.682 BOLT; RECLINING	8-98220-045-0	04	1	1408-	●	●
17	16.682 BOLT; RECLINING	8-98220-045-0	04	1	1408-	●	●
18	16.682 COVER; RECLINING (B) BLACK	8-97424-517-0	01	1	1408-	●	●
18	16.682 COVER; RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A) BLACK	8-97424-098-0	01	1	1408-	●	●
18	16.682 COVER; RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (D) BLACK	8-97424-608-0	01	1	1408-	●	●
18	16.682 COVER; RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (C) BLACK	8-97424-610-0	01	1	1408-	●	●
18	16.682 COVER; RECLINING (A) BLACK	8-97424-090-0	01	1	1408-	●	●
18	16.682 COVER; RECLINING (B) BLACK	8-97424-579-0	01	1	1408-	●	●
18	16.682 COVER; RECLINING (D) BLACK	8-97424-582-0	01	1	1408-	●	●
18	16.682 COVER; RECLINING (C) BLACK	8-97424-585-0	01	1	1408-	●	●
18	16.682 COVER; RECLINING SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> (A) BLACK	8-97424-092-0	01	1	1408-	●
18	16.682 COVER; RECLINING SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> ,FRONT SEAT BUCKET STANDARD<A50> (D) BLACK	8-97424-515-0	01	1	1408-	●
18	16.682 COVER; RECLINING SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> ,FRONT SEAT BUCKET STANDARD<A50> (C) BLACK	8-97424-516-0	01	1	1408-	●
18	16.682 COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (A) BLACK	8-97424-096-0	01	1	1408-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A) BLACK	8-97424-611-0	01	1	1408-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (B) BLACK	8-97424-612-0	01	1	1408-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT (D) BLACK	8-97424-591-0	01	1	1408-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> ,FRONT SEAT BUCKET STANDARD<A50> (D) BLACK	8-97424-518-0	01	1	1408-	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (C) BLACK	8-97424-597-0	01	1	1408-	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-315-0	01	1	1408-	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-315-0	01	1	1408-	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97424-639-0	01	1	1408-	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97424-639-0	01	1	1408-	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> LIGHT GRAY	8-97424-645-0	01	1	1408-	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> LIGHT GRAY	8-97424-645-0	01	1	1408-	●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 LOOK BLACK	8-97424-499-0	01	1	1408-	●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 LOOK BLACK	8-97424-499-0	01	1	1408-	●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 FREE BLACK	8-97424-500-0	01	1	1408-	●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 FREE BLACK	8-97424-500-0	01	1	1408-	●	●
63	16.682 ADJUSTER; SEAT SLIDE OUTER	8-98224-186-1	01	1	1408-	●	●
63	16.682 ADJUSTER; SEAT SLIDE INNER	8-98224-187-1	01	1	1408-	●	●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> INNER	8-98220-096-1	01	1	1408-	●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> ,FRONT SEAT BUCKET STANDARD<A50> OUTER	8-98220-097-1	01	1	1408-	●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> INNER	8-98231-283-1	01	1	1408-	●	●
67	16.682 BOLT; FRT SEAT TO BODY M12X27.5 W/PL WASHER	8-98050-319-0	08	1	1408-	●	●
78	16.680 RING; SNAP 16.724	8-98220-068-0	17	1	1408-	●	●
78	16.680 RING; SNAP SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> 16.724	8-98220-068-0	17	1	1408-	●	●
78	16.680 RING; SNAP SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> 16.724	8-98220-068-0	16	1	1408-	●	●
123	16.686 SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	02	1	1408-	●	●
123	16.686 SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	02	1	1408-	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (B) M4X10	8-98220-086-0	04	1	1408-	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONTSEAT BUCKET MANUAL HEIGHT CONT<AR9> (B) M4X10	8-98220-086-0	03	1	1408-	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> (B) M4X10	8-98220-086-0	03	1	1408-	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> (B) M4X10	8-98220-086-0	03	1	1408-	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (B) M4X10	8-98220-086-0	05	1	1408-	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT	8-98220-104-0	01	1	1408-	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98220-104-0	01	1	1408-	●	●
306	16.682 NUT; SEAT ADJ M8 FLANGE	8-98220-087-0	07	1	1408-	●	●
306	16.682 NUT; SEAT ADJ SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> M8 FLANGE	8-98220-087-0	07	1	1408-	●	●
320	16.679 CLIP; BAND,SEAT 16.686	8-98220-048-0	02	1	1408-	●	●
610	16.682 COVER; LEG,FRT SEAT BLACK	8-97416-785-4	04	1	1408-	●	●
654	16.716 HOOK; STOPPER SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONTSEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK	8-97424-637-0	01	1	1408-	●	●
655	16.716 BOLT; HOOK SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONTSEAT BUCKET MANUAL HEIGHT CONT<AR9> M5X15	8-98224-171-0	01	1	1408-	●	●

486 601 18 24 24 18 123 228 20 24 228 228 24 18 123 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	16.682 COVER; RECLINING (B) BLACK	8-97424-517-0	01	1	1408-	●	●
18	16.682 COVER; RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A) BLACK	8-97424-098-0	01	1	1408-	●	●
18	16.682 COVER; RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (D) BLACK	8-97424-608-0	01	1	1408-	●	●
18	16.682 COVER; RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (C) BLACK	8-97424-610-0	01	1	1408-	●	●
18	16.682 COVER; RECLINING (A) BLACK	8-97424-090-0	01	1	1408-	●	●
18	16.682 COVER; RECLINING (B) BLACK	8-97424-579-0	01	1	1408-	●	●
18	16.682 COVER; RECLINING (D) BLACK	8-97424-582-0	01	1	1408-	●	●
18	16.682 COVER; RECLINING (C) BLACK	8-97424-585-0	01	1	1408-	●	●
18	16.682 COVER; RECLINING SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> (A) BLACK	8-97424-092-0	01	1	1408-	●
18	16.682 COVER; RECLINING SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> ,FRONT SEAT BUCKET STANDARD<A50> (D) BLACK	8-97424-515-0	01	1	1408-	●
18	16.682 COVER; RECLINING SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> ,FRONT SEAT BUCKET STANDARD<A50> (C) BLACK	8-97424-516-0	01	1	1408-	●
18	16.682 COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (A) BLACK	8-97424-096-0	01	1	1408-	●	●
20	16.682 CAP; RECLINING ADJ SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK	8-97424-600-0	01	1	1408-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A) BLACK	8-97424-611-0	01	1	1408-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (B) BLACK	8-97424-612-0	01	1	1408-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT (D) BLACK	8-97424-591-0	01	1	1408-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> ,FRONT SEAT BUCKET STANDARD<A50> (D) BLACK	8-97424-518-0	01	1	1408-	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (C) BLACK	8-97424-597-0	01	1	1408-	●	●
123	16.686 SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	02	1	1408-	●	●
123	16.686 SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	02	1	1408-	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (B) M4X10	8-98220-086-0	04	1	1408-	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONTSEAT BUCKET MANUAL HEIGHT CONT<AR9> (B) M4X10	8-98220-086-0	03	1	1408-	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> (B) M4X10	8-98220-086-0	03	1	1408-	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> (B) M4X10	8-98220-086-0	03	1	1408-	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (B) M4X10	8-98220-086-0	05	1	1408-	●	●
228	16.714 SCREW; KNOB SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> M5X10	8-98224-268-0	03	1	1408-	●	●
486	16.682 SWITCH; POWER SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98224-263-0	01	1	1408-	●	●
601	16.682 SCREW; SWITCH SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> M4X12	8-98224-269-0	02	1	1408-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
