◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51520 - UCR/UCS(MIDDLE EAST) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-43 - SUN VISOR AND ASSIST GRIP ▶
7-43 — SUN VISOR AND ASSIST GRIP (#147162) — 27 parça

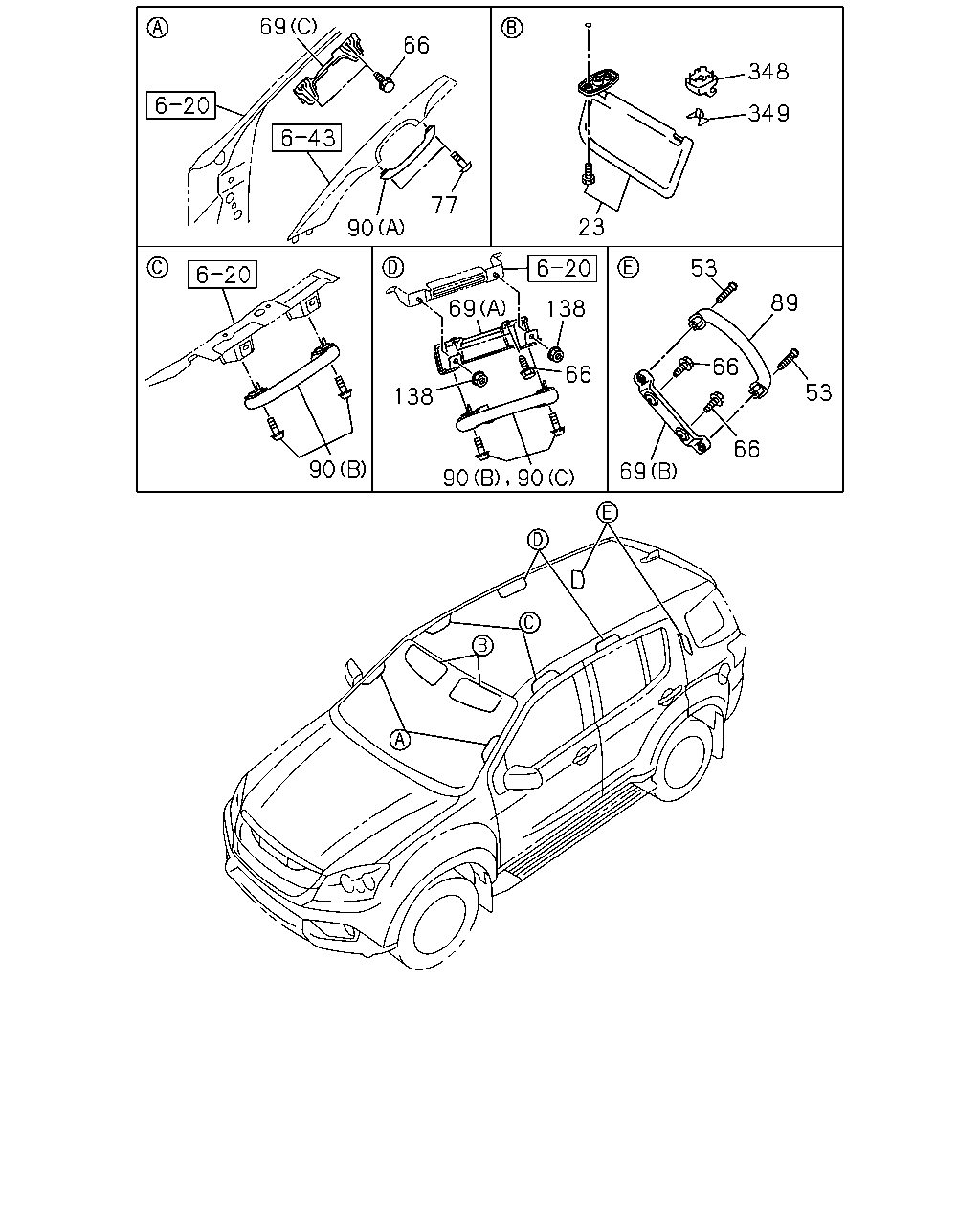

çizim 439591
53 66 69 66 89 53 138 66 90 90 138 69 90 90 77 66 69 348 349 23
BalonParca AdiParca NoAdetTipApplied Date A B
23 16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER(AK5) SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> GRAY 		8-97417-461-3 01 1 1408- ●
23 16.070 SUN VISOR
GRAY 		8-97417-461-3 01 1 1408- ●
23 16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER(AK5) EXC. SUNVISOR PASSENGER SIDE W/VANITY MIR ROR<D34> GRAY 		8-97417-465-2 01 1 1408- ●
23 16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. SUNVISOR PASSENGER SIDE W/VANITY MIR ROR<D34> GRAY 		8-97416-682-2 01 1 1408- ●
23 16.070 SUN VISOR
SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> GRAY 		8-97417-449-2 01 1 1408- ●
23 16.070 SUN VISOR
EXC. SUNVISOR PASSENGER SIDE W/VANITY MIR ROR<D34> GRAY 		8-97416-681-2 01 1 1408- ●
23 16.070 SUN VISOR
GRAY 		8-97417-453-2 01 1 1408- ●
53 16.450 SCREW; ASSIST HANDLE
M6X32 		8-97811-323-0 04 1 1408- ● ●
66 16.450 BOLT; ASSIST GRIP BRKT
M6X16 FLANGE 		8-98050-320-0 04 1 1408- ● ●
66 16.450 BOLT; ASSIST GRIP BRKT
M6X16 FLANGE 		8-98050-320-0 08 1 1408- ● ●
69 16.450 BRACKET; ASSIST GRIP
(A) 		8-98198-262-0 02 1 1408- ● ●
69 16.450 BRACKET; ASSIST GRIP
(B) 		8-98198-281-0 01 1 1408- ● ●
69 16.450 BRACKET; ASSIST GRIP
(B) 		8-98198-282-0 01 1 1408- ● ●
69 16.450 BRACKET; ASSIST GRIP
(C) 		8-98220-691-0 01 1 1408- ● ●
69 16.450 BRACKET; ASSIST GRIP
(C) 		8-98220-692-0 01 1 1408- ● ●
77 16.450 SCREW; ASSIST GRIP
M6X25 		0-36230-625-0 04 1 1408- ● ●
89 16.560 HANDLE; ASSIST
GRAY 		8-97424-381-0 02 1 1408- ● ●
90 16.450 GRIP; ASSIST,ROOF
(B) GRAY 		8-97419-356-5 02 1 1408- ● ●
90 16.450 GRIP; ASSIST,ROOF
INTERIOR BASIC(RBA) (B) GRAY 		8-97419-356-5 02 1 1408- ●
90 16.450 GRIP; ASSIST,ROOF
INTERIOR CUSTOM(RBD) (C) GRAY 		8-97419-357-6 01 1 1408- ●
90 16.450 GRIP; ASSIST,ROOF
(C) GRAY 		8-97419-357-6 01 1 1408- ●
90 16.450 GRIP; ASSIST,ROOF
INTERIOR CUSTOM(RBD) (C) GRAY 		8-97423-347-4 01 1 1408- ●
90 16.450 GRIP; ASSIST,ROOF
(C) GRAY 		8-97423-347-4 01 1 1408- ●
90 16.450 GRIP; ASSIST,ROOF
(A) GRAY 		8-97416-698-4 02 1 1408- ● ●
138 16.742 NUT; BRKT,HEADER SHELF
01.062 M6 FLANGE 		0-91180-106-0 04 1 1408- ● ●
348 16.070 RETAINER; SUNSHADE
6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> GRAY 		8-97403-990-0 02 1 1408- ● ●
349 16.070 CLIP; RETAINER SUNSHADE
6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> 		8-97307-749-0 02 1 1408- ● ●
