Sayfa 7-30 - Isuzu EPC

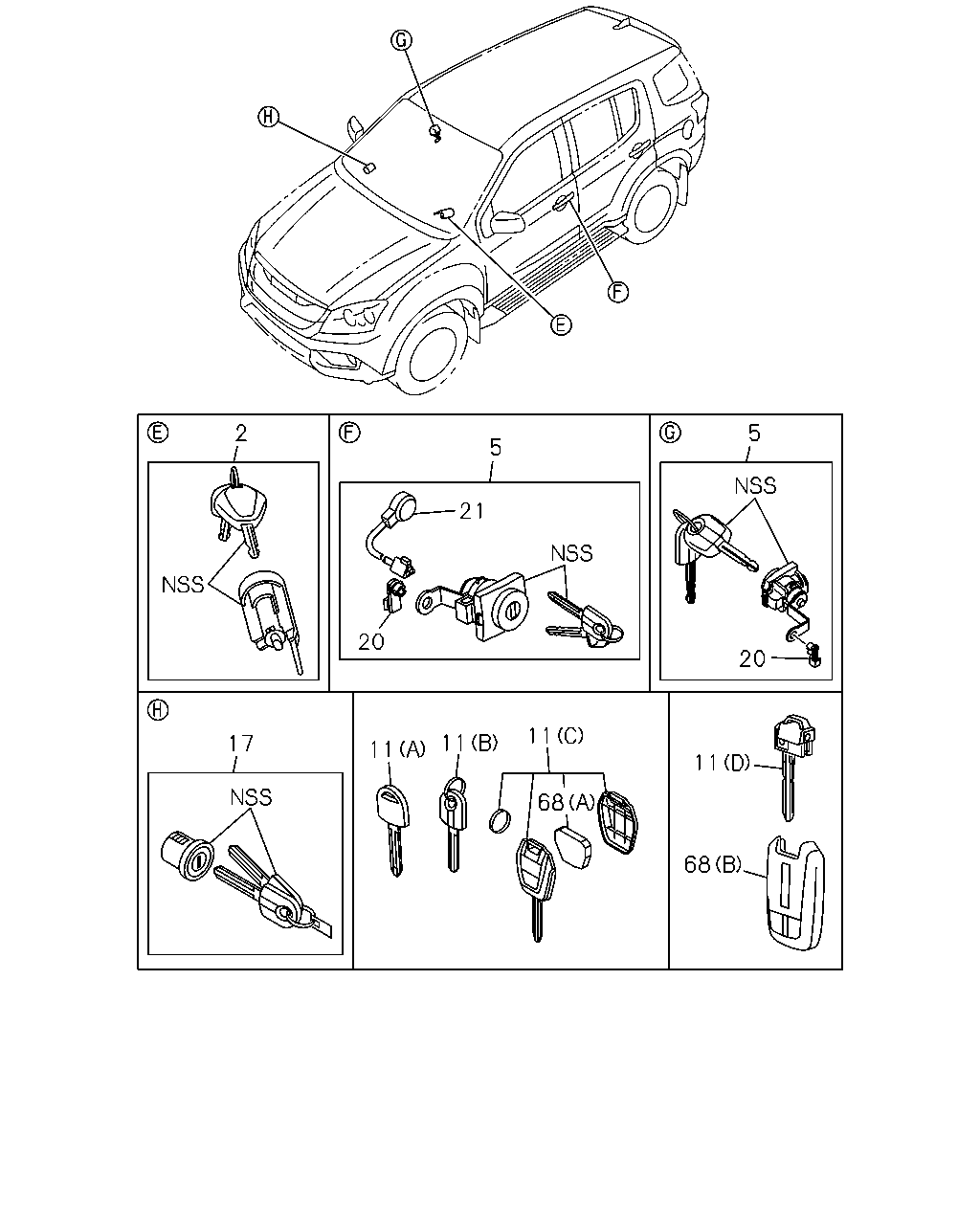

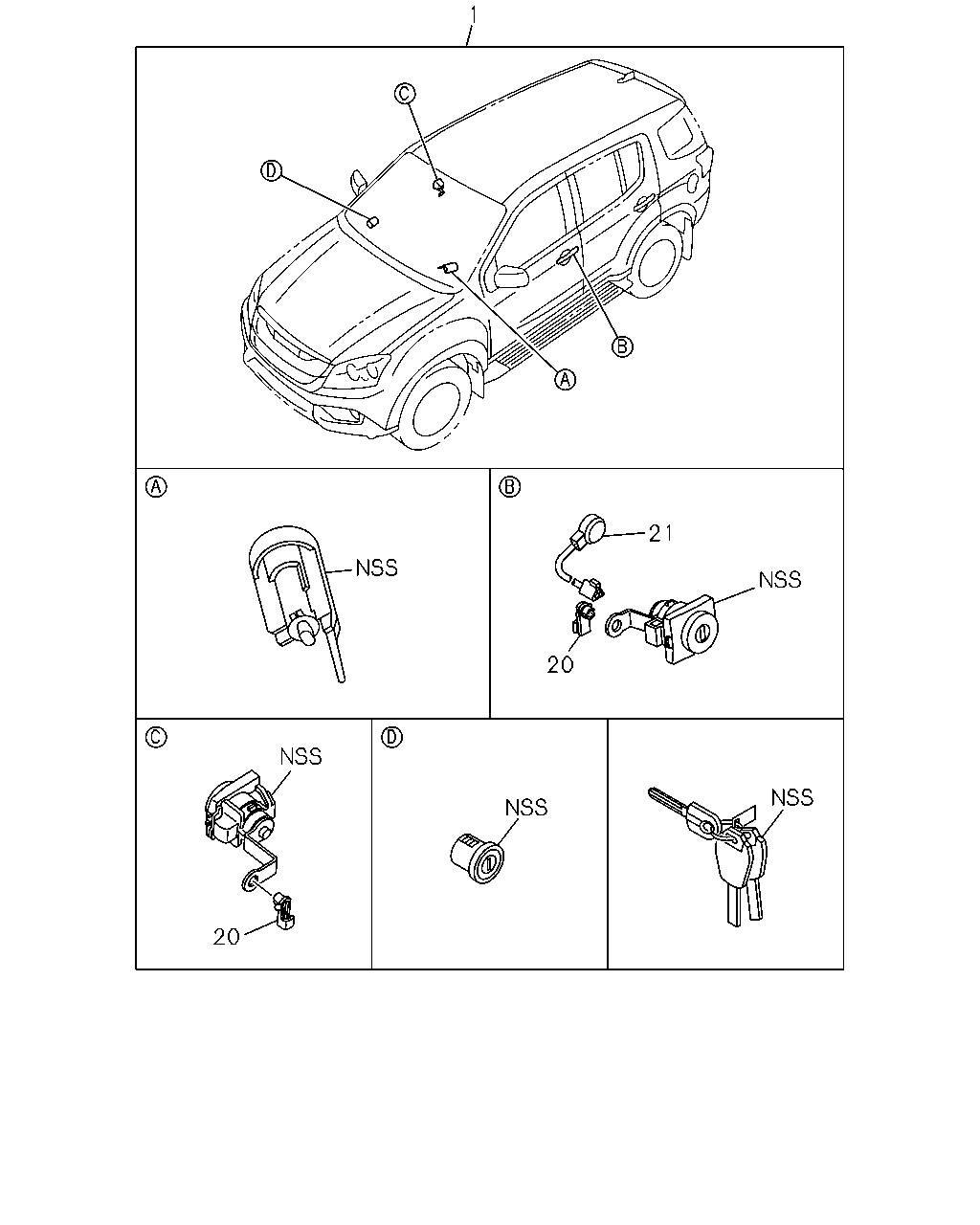

7-30 — LOCK CYLINDER SET (#147159) — 126 parça

1 21 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	02.188 CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK<AP5> LOCK GLOVE BOX<A99> EXC. IMMOBILIZER SYSTEM<7KC>	8-98103-055-0	01	1	1503-1510	●
1	02.188 CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK<AP5> EXC. LOCK GLOVE BOX<A99>,IMMOBILIZER SYSTEM<7KC>	8-98247-308-0	01	1	1503-1510	●
1	02.188 CYLINDER SET; CAR LOCK PASSIVE ENTRY AND START SYSTEM<AP3>	8-98250-773-0	01	1	1408-1408	●	●
1	02.188 CYLINDER SET; CAR LOCK PASSIVE ENTRY AND START SYSTEM<AP3>	8-98258-074-0	01	1	1409-	●	●
1	02.188 CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK<AP5>	8-98155-863-0	01	1	1408-1408	●	●
1	02.188 CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK<AP5>	8-98274-592-0	01	1	1409-	●	●
1	02.188 CYLINDER SET; CAR LOCK LOCK GLOVE BOX<A99> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>	8-98103-089-0	01	1	1408-1408	●
1	02.188 CYLINDER SET; CAR LOCK EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>	8-98103-089-0	01	1	1408-1408		●
1	02.188 CYLINDER SET; CAR LOCK LOCK GLOVE BOX<A99> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>	8-98274-581-0	01	1	1409-1502	●
1	02.188 CYLINDER SET; CAR LOCK EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>	8-98274-581-0	01	1	1409-1502		●
1	02.188 CYLINDER SET; CAR LOCK LOCK GLOVE BOX<A99> IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>	8-98274-581-0	01	1	1503-1510	●
1	02.188 CYLINDER SET; CAR LOCK EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>	8-98274-581-0	01	1	1503-1510		●
1	02.188 CYLINDER SET; CAR LOCK LOCK GLOVE BOX<A99> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>	8-98274-581-0	01	1	1511-	●
1	02.188 CYLINDER SET; CAR LOCK EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>	8-98274-581-0	01	1	1511-		●
1	02.188 CYLINDER SET; CAR LOCK EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>,LOCK GLOVE BOX<A99>	8-98247-633-0	01	1	1408-1408	●
1	02.188 CYLINDER SET; CAR LOCK EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>,LOCK GLOVE BOX<A99>	8-98274-622-0	01	1	1409-1502	●
1	02.188 CYLINDER SET; CAR LOCK IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>,LOCK GLOVE BOX<A99>	8-98274-622-0	01	1	1503-1510	●
1	02.188 CYLINDER SET; CAR LOCK EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>,LOCK GLOVE BOX<A99>	8-98274-622-0	01	1	1511-	●
20	16.328 SNAP; DOOR LOCK CYL EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>,LOCK GLOVE BOX<A99> YELLOW	8-97350-043-0	01	1	1408-1502	●
20	16.328 SNAP; DOOR LOCK CYL LOCK GLOVE BOX<A99> YELLOW	8-97350-043-0	01	1	1408-1502	●
20	16.328 SNAP; DOOR LOCK CYL YELLOW	8-97350-043-0	01	1	1408-1502		●
20	16.328 SNAP; DOOR LOCK CYL REMOTE CONT DOOR LOCK<AP5> EXC. LOCK GLOVE BOX<A99>,IMMOBILIZER SYSTEM<7KC> YELLOW	8-97350-043-0	01	1	1503-1510	●
20	16.328 SNAP; DOOR LOCK CYL PASSIVE ENTRY AND START SYSTEM<AP3> LOCK GLOVE BOX<A99> IMMOBILIZER SYSTEM<7KC> YELLOW	8-97350-043-0	01	1	1503-1510	●
20	16.328 SNAP; DOOR LOCK CYL REMOTE CONT DOOR LOCK<AP5> LOCK GLOVE BOX<A99> YELLOW	8-97350-043-0	01	1	1503-1510	●
20	16.328 SNAP; DOOR LOCK CYL IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> YELLOW	8-97350-043-0	01	1	1503-1510	●
20	16.328 SNAP; DOOR LOCK CYL YELLOW	8-97350-043-0	01	1	1503-1510		●
20	16.328 SNAP; DOOR LOCK CYL EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>,LOCK GLOVE BOX<A99> YELLOW	8-97350-043-0	01	1	1511-	●
20	16.328 SNAP; DOOR LOCK CYL LOCK GLOVE BOX<A99> YELLOW	8-97350-043-0	01	1	1511-	●
20	16.328 SNAP; DOOR LOCK CYL YELLOW	8-97350-043-0	01	1	1511-		●
20	16.328 SNAP; DOOR LOCK CYL EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> WHITE	8-97350-044-0	01	1	1408-1502	●	●
20	16.328 SNAP; DOOR LOCK CYL IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> WHITE	8-97350-044-0	01	1	1503-1510	●
20	16.328 SNAP; DOOR LOCK CYL EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> WHITE	8-97350-044-0	01	1	1503-1510		●
20	16.328 SNAP; DOOR LOCK CYL EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> WHITE	8-97350-044-0	01	1	1511-	●	●
21	16.328 SWITCH ASM; DOOR LOCK CYL EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>	8-98162-757-0	01	1	1408-1502	●	●
21	16.328 SWITCH ASM; DOOR LOCK CYL IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>	8-98162-757-0	01	1	1503-1510	●
21	16.328 SWITCH ASM; DOOR LOCK CYL EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>	8-98162-757-0	01	1	1503-1510		●
21	16.328 SWITCH ASM; DOOR LOCK CYL EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>	8-98162-757-0	01	1	1511-	●	●

2 5 21 20 5 20 17 11 11 11 68 11 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	02.188 BARREL ASM; W/KEY,STRG LOCK REMOTE CONT DOOR LOCK<AP5> EXC. IMMOBILIZER SYSTEM<7KC>	8-98193-734-0	01	1	1503-1510	●
2	02.188 BARREL ASM; W/KEY,STRG LOCK REMOTE CONT DOOR LOCK<AP5>	8-98193-734-0	01	1	1408-1408	●	●
2	02.188 BARREL ASM; W/KEY,STRG LOCK REMOTE CONT DOOR LOCK<AP5>	8-98274-647-0	01	1	1409-	●	●
2	02.188 BARREL ASM; W/KEY,STRG LOCK EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>	8-98193-733-0	01	1	1408-1408	●	●
2	02.188 BARREL ASM; W/KEY,STRG LOCK EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>	8-98274-646-0	01	1	1409-1502	●	●
2	02.188 BARREL ASM; W/KEY,STRG LOCK IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>	8-98274-646-0	01	1	1503-1510	●
2	02.188 BARREL ASM; W/KEY,STRG LOCK EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>	8-98274-646-0	01	1	1503-1510		●
2	02.188 BARREL ASM; W/KEY,STRG LOCK EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>	8-98274-646-0	01	1	1511-	●	●
5	16.328 CYLINDER ASM; DOOR LOCK PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> LOCK GLOVE BOX<A99>	8-98193-737-0	01	1	1408-1408	●
5	16.328 CYLINDER ASM; DOOR LOCK PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>	8-98193-737-0	01	1	1408-1408		●
5	16.328 CYLINDER ASM; DOOR LOCK PASSIVE ENTRY AND START SYSTEM<AP3>	8-98193-737-0	01	1	1409-1502	●	●
5	16.328 CYLINDER ASM; DOOR LOCK PASSIVE ENTRY AND START SYSTEM<AP3> LOCK GLOVE BOX<A99> IMMOBILIZER SYSTEM<7KC>	8-98193-737-0	01	1	1503-1510	●
5	16.328 CYLINDER ASM; DOOR LOCK REMOTE CONT DOOR LOCK<AP5> EXC. IMMOBILIZER SYSTEM<7KC>	8-98193-737-0	01	1	1503-1510	●
5	16.328 CYLINDER ASM; DOOR LOCK PASSIVE ENTRY AND START SYSTEM<AP3>	8-98193-737-0	01	1	1503-1510		●
5	16.328 CYLINDER ASM; DOOR LOCK PASSIVE ENTRY AND START SYSTEM<AP3>	8-98193-737-0	01	1	1511-	●	●
5	16.328 CYLINDER ASM; DOOR LOCK EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>	8-98193-736-0	01	1	1408-1408	●	●
5	16.328 CYLINDER ASM; DOOR LOCK EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>	8-98274-649-0	01	1	1409-1502	●	●
5	16.328 CYLINDER ASM; DOOR LOCK IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>	8-98274-649-0	01	1	1503-1510	●
5	16.328 CYLINDER ASM; DOOR LOCK EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>	8-98274-649-0	01	1	1503-1510		●
5	16.328 CYLINDER ASM; DOOR LOCK EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>	8-98274-649-0	01	1	1511-	●	●
5	16.328 CYLINDER ASM; DOOR LOCK EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>	8-98193-739-0	01	1	1408-1408	●	●
5	16.328 CYLINDER ASM; DOOR LOCK EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>	8-98274-652-0	01	1	1409-1502	●	●
5	16.328 CYLINDER ASM; DOOR LOCK IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>	8-98274-652-0	01	1	1503-1510	●
5	16.328 CYLINDER ASM; DOOR LOCK EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>	8-98274-652-0	01	1	1503-1510		●
5	16.328 CYLINDER ASM; DOOR LOCK EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>	8-98274-652-0	01	1	1511-	●	●
5	16.328 CYLINDER ASM; DOOR LOCK REMOTE CONT DOOR LOCK<AP5>	8-98274-650-0	01	1	1409-	●	●
11	02.187 KEY; BLANK REMOTE CONT DOOR LOCK<AP5> EXC. IMMOBILIZER SYSTEM<7KC> (C) REMOTE CONT DOOR LOCK W/IMMOBILIZER	8-98136-339-1	AR	1	1503-1510	●
11	02.187 KEY; BLANK PASSIVE ENTRY AND START SYSTEM<AP3> (D)	8-98140-637-1	AR	1	1408-1408	●	●
11	02.187 KEY; BLANK PASSIVE ENTRY AND START SYSTEM<AP3> (B) IMMOBILIZER	8-98007-939-2	AR	1	1409-	●	●
11	02.187 KEY; BLANK REMOTE CONT DOOR LOCK<AP5> (C) REMOTE CONT DOOR LOCK W/IMMOBILIZER	8-98136-339-1	AR	1	1408-1408	●	●
11	02.187 KEY; BLANK REMOTE CONT DOOR LOCK<AP5> (C) REMOTE CONT DOOR LOCK W/IMMOBILIZER	8-98274-338-0	AR	1	1409-	●	●
11	02.187 KEY; BLANK EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>,LOCK GLOVE BOX<A99> (B) IMMOBILIZER	8-98007-939-1	AR	1	1408-1408	●
11	02.187 KEY; BLANK LOCK GLOVE BOX<A99> (B) IMMOBILIZER	8-98007-939-1	AR	1	1408-1408	●
11	02.187 KEY; BLANK (B) IMMOBILIZER	8-98007-939-1	AR	1	1408-1408		●
11	02.187 KEY; BLANK EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>,LOCK GLOVE BOX<A99> (B) IMMOBILIZER	8-98274-332-0	AR	1	1409-1502	●
11	02.187 KEY; BLANK LOCK GLOVE BOX<A99> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (B) IMMOBILIZER	8-98274-332-0	AR	1	1409-1502	●
11	02.187 KEY; BLANK EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (B) IMMOBILIZER	8-98274-332-0	AR	1	1409-1502		●
11	02.187 KEY; BLANK IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>,LOCK GLOVE BOX<A99> (B) IMMOBILIZER	8-98274-332-0	AR	1	1503-1510	●
11	02.187 KEY; BLANK LOCK GLOVE BOX<A99> IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (B) IMMOBILIZER	8-98274-332-0	AR	1	1503-1510	●
11	02.187 KEY; BLANK EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (B) IMMOBILIZER	8-98274-332-0	AR	1	1503-1510		●
11	02.187 KEY; BLANK EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>,LOCK GLOVE BOX<A99> (B) IMMOBILIZER	8-98274-332-0	AR	1	1511-	●
11	02.187 KEY; BLANK LOCK GLOVE BOX<A99> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (B) IMMOBILIZER	8-98274-332-0	AR	1	1511-	●
11	02.187 KEY; BLANK EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (B) IMMOBILIZER	8-98274-332-0	AR	1	1511-		●
11	02.187 KEY; BLANK PASSIVE ENTRY AND START SYSTEM<AP3> (D)	8-98257-831-0	AR	1	1409-	●	●
11	02.187 KEY; BLANK EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> (A)	8-97350-352-0	AR	1	1408-1502	●	●
11	02.187 KEY; BLANK REMOTE CONT DOOR LOCK<AP5> EXC. IMMOBILIZER SYSTEM<7KC> (A)	8-97350-352-0	AR	1	1503-1510	●
11	02.187 KEY; BLANK IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> (A)	8-97350-352-0	AR	1	1503-1510	●
11	02.187 KEY; BLANK EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> (A)	8-97350-352-0	AR	1	1503-1510		●
11	02.187 KEY; BLANK EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> (A)	8-97350-352-0	AR	1	1511-	●	●
17	16.110 CYLINDER ASM; W/KEY,GLOVE BOX LO LOCK GLOVE BOX<A99>	8-98193-735-0	01	1	1408-1408	●
17	16.110 CYLINDER ASM; W/KEY,GLOVE BOX LO	8-98193-735-0	01	1	1408-1408		●
17	16.110 CYLINDER ASM; W/KEY,GLOVE BOX LO PASSIVE ENTRY AND START SYSTEM<AP3>	8-98193-735-0	01	1	1409-1502	●	●
17	16.110 CYLINDER ASM; W/KEY,GLOVE BOX LO REMOTE CONT DOOR LOCK<AP5> LOCK GLOVE BOX<A99> EXC. IMMOBILIZER SYSTEM<7KC>	8-98193-735-0	01	1	1503-1510	●
17	16.110 CYLINDER ASM; W/KEY,GLOVE BOX LO PASSIVE ENTRY AND START SYSTEM<AP3> LOCK GLOVE BOX<A99> IMMOBILIZER SYSTEM<7KC>	8-98193-735-0	01	1	1503-1510	●
17	16.110 CYLINDER ASM; W/KEY,GLOVE BOX LO PASSIVE ENTRY AND START SYSTEM<AP3>	8-98193-735-0	01	1	1503-1510		●
17	16.110 CYLINDER ASM; W/KEY,GLOVE BOX LO PASSIVE ENTRY AND START SYSTEM<AP3>	8-98193-735-0	01	1	1511-	●	●
17	16.110 CYLINDER ASM; W/KEY,GLOVE BOX LO LOCK GLOVE BOX<A99> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98274-648-0	01	1	1409-1502	●
17	16.110 CYLINDER ASM; W/KEY,GLOVE BOX LO EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98274-648-0	01	1	1409-1502		●
17	16.110 CYLINDER ASM; W/KEY,GLOVE BOX LO LOCK GLOVE BOX<A99> IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98274-648-0	01	1	1503-1510	●
17	16.110 CYLINDER ASM; W/KEY,GLOVE BOX LO EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98274-648-0	01	1	1503-1510		●
17	16.110 CYLINDER ASM; W/KEY,GLOVE BOX LO LOCK GLOVE BOX<A99> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98274-648-0	01	1	1511-	●
17	16.110 CYLINDER ASM; W/KEY,GLOVE BOX LO EXC. PASSIVE ENTRY AND START SYSTEM<AP3>	8-98274-648-0	01	1	1511-		●
20	16.328 SNAP; DOOR LOCK CYL EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>,LOCK GLOVE BOX<A99> YELLOW	8-97350-043-0	01	1	1408-1502	●
20	16.328 SNAP; DOOR LOCK CYL LOCK GLOVE BOX<A99> YELLOW	8-97350-043-0	01	1	1408-1502	●
20	16.328 SNAP; DOOR LOCK CYL YELLOW	8-97350-043-0	01	1	1408-1502		●
20	16.328 SNAP; DOOR LOCK CYL REMOTE CONT DOOR LOCK<AP5> EXC. LOCK GLOVE BOX<A99>,IMMOBILIZER SYSTEM<7KC> YELLOW	8-97350-043-0	01	1	1503-1510	●
20	16.328 SNAP; DOOR LOCK CYL PASSIVE ENTRY AND START SYSTEM<AP3> LOCK GLOVE BOX<A99> IMMOBILIZER SYSTEM<7KC> YELLOW	8-97350-043-0	01	1	1503-1510	●
20	16.328 SNAP; DOOR LOCK CYL REMOTE CONT DOOR LOCK<AP5> LOCK GLOVE BOX<A99> YELLOW	8-97350-043-0	01	1	1503-1510	●
20	16.328 SNAP; DOOR LOCK CYL IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> YELLOW	8-97350-043-0	01	1	1503-1510	●
20	16.328 SNAP; DOOR LOCK CYL YELLOW	8-97350-043-0	01	1	1503-1510		●
20	16.328 SNAP; DOOR LOCK CYL EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>,LOCK GLOVE BOX<A99> YELLOW	8-97350-043-0	01	1	1511-	●
20	16.328 SNAP; DOOR LOCK CYL LOCK GLOVE BOX<A99> YELLOW	8-97350-043-0	01	1	1511-	●
20	16.328 SNAP; DOOR LOCK CYL YELLOW	8-97350-043-0	01	1	1511-		●
20	16.328 SNAP; DOOR LOCK CYL EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> WHITE	8-97350-044-0	01	1	1408-1502	●	●
20	16.328 SNAP; DOOR LOCK CYL IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> WHITE	8-97350-044-0	01	1	1503-1510	●
20	16.328 SNAP; DOOR LOCK CYL EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> WHITE	8-97350-044-0	01	1	1503-1510		●
20	16.328 SNAP; DOOR LOCK CYL EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> WHITE	8-97350-044-0	01	1	1511-	●	●
21	16.328 SWITCH ASM; DOOR LOCK CYL EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>	8-98162-757-0	01	1	1408-1502	●	●
21	16.328 SWITCH ASM; DOOR LOCK CYL IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>	8-98162-757-0	01	1	1503-1510	●
21	16.328 SWITCH ASM; DOOR LOCK CYL EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>	8-98162-757-0	01	1	1503-1510		●
21	16.328 SWITCH ASM; DOOR LOCK CYL EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5>	8-98162-757-0	01	1	1511-	●	●
68	02.440 TRANSMITTER; DOOR LOCK PASSIVE ENTRY AND START SYSTEM<AP3> (B)	8-98243-995-0	02	1	1408-1505	●	●
68	02.440 TRANSMITTER; DOOR LOCK PASSIVE ENTRY AND START SYSTEM<AP3> (B)	8-98306-420-0	02	1	1506-	●	●
68	02.440 TRANSMITTER; DOOR LOCK REMOTE CONT DOOR LOCK<AP5> LOCK GLOVE BOX<A99> (A)	8-98102-844-1	01	1	1408-1502	●
68	02.440 TRANSMITTER; DOOR LOCK REMOTE CONT DOOR LOCK<AP5> (A)	8-98102-844-1	01	1	1408-1502		●
68	02.440 TRANSMITTER; DOOR LOCK REMOTE CONT DOOR LOCK<AP5> EXC. LOCK GLOVE BOX<A99>,IMMOBILIZER SYSTEM<7KC> (A)	8-98102-844-1	01	1	1503-1510	●
68	02.440 TRANSMITTER; DOOR LOCK REMOTE CONT DOOR LOCK<AP5> LOCK GLOVE BOX<A99> (A)	8-98102-844-1	01	1	1503-1510	●
68	02.440 TRANSMITTER; DOOR LOCK REMOTE CONT DOOR LOCK<AP5> (A)	8-98102-844-1	01	1	1503-1510		●
68	02.440 TRANSMITTER; DOOR LOCK REMOTE CONT DOOR LOCK<AP5> (A)	8-98102-844-1	01	1	1511-	●	●
