Sayfa 6-86 - Isuzu EPC

6-86 — TRUNK OPENER AND FUEL LID (#147153) — 9 parça

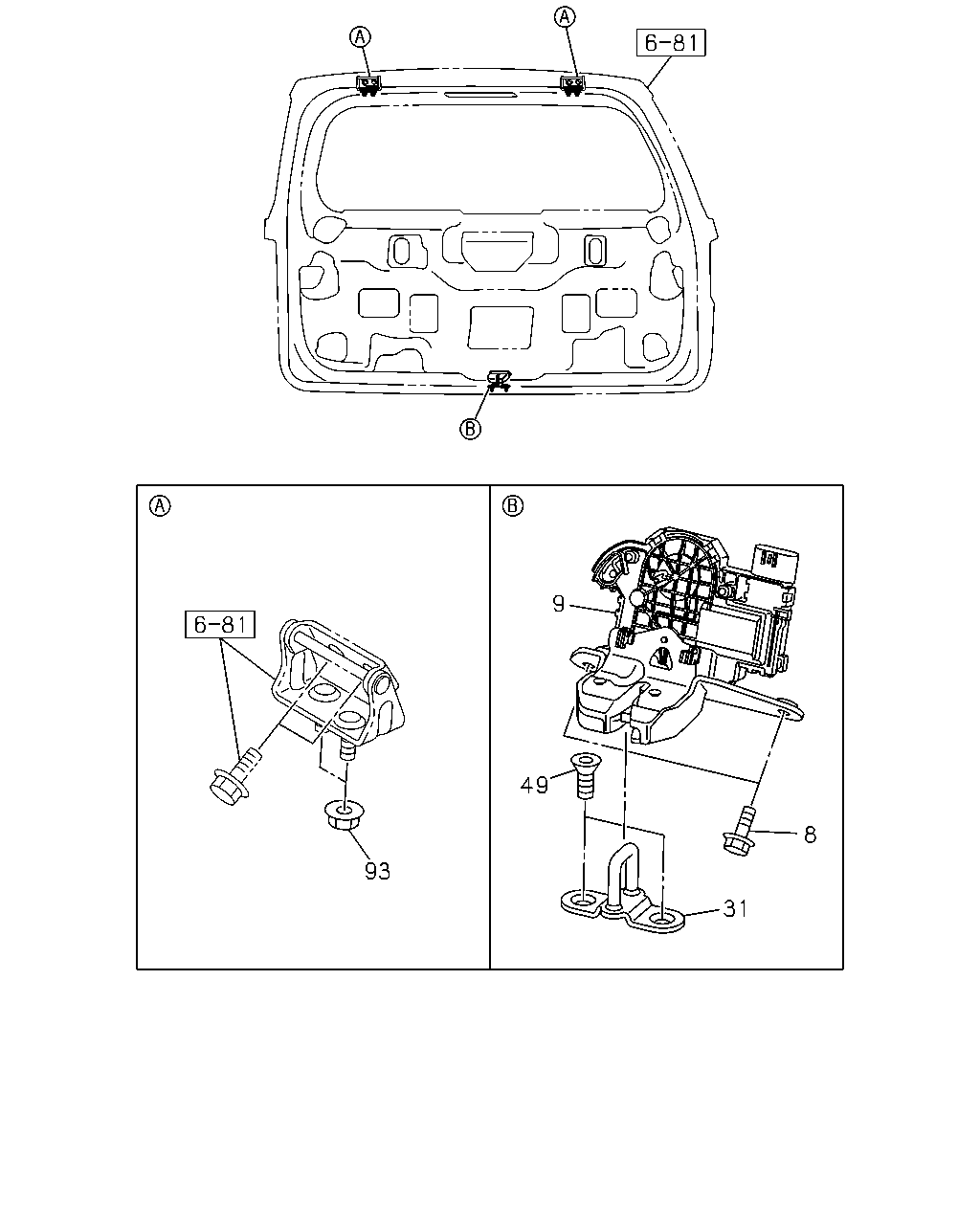

9 49 8 31 93

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	17.198 BOLT; TAIL GATE LOCK	8-98224-562-0	02	1	1408-	●	●
9	17.198 LOCK; TRUNK LID	8-98188-325-1	01	1	1408-	●	●
31	17.198 STRIKER; TAIL GATE	8-98188-326-0	01	1	1408-	●	●
49	17.208 SCREW; STRIKER TO TAIL GATE M8X20 W/TORQUES	8-98049-356-0	02	1	1408-	●	●
93	17.198 NUT; LOCK M8 FLANGE	8-98049-361-0	04	1	1408-	●	●

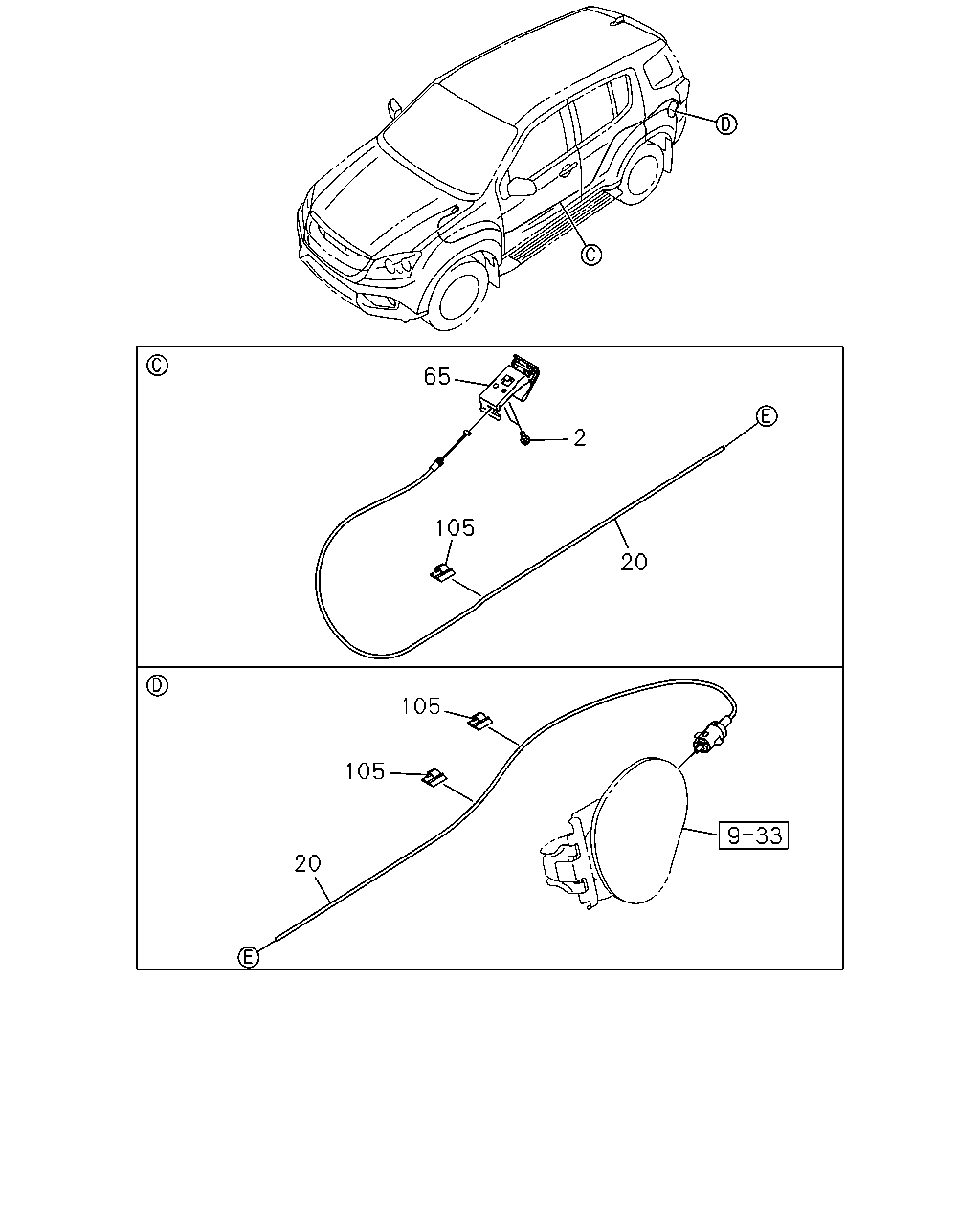

65 2 105 20 105 105 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	17.225 SCREW; LEVER TO BODY 08.083 M5X16 TAPPING	8-98167-449-0	02	1	1408-	●	●
20	17.505 CABLE; TRUNK LID & FUEL FILLER	8-98189-125-1	01	1	1408-	●	●
65	17.505 KNOB; FUEL FILLER DOOR BLACK	8-98103-120-0	01	1	1408-	●	●
105	17.505 CLIP; CABLE,FUEL LID OPENER ID=7	8-98158-303-0	05	1	1408-	●	●
