6-70 — FLOOR PANEL (#147144) — 44 parça

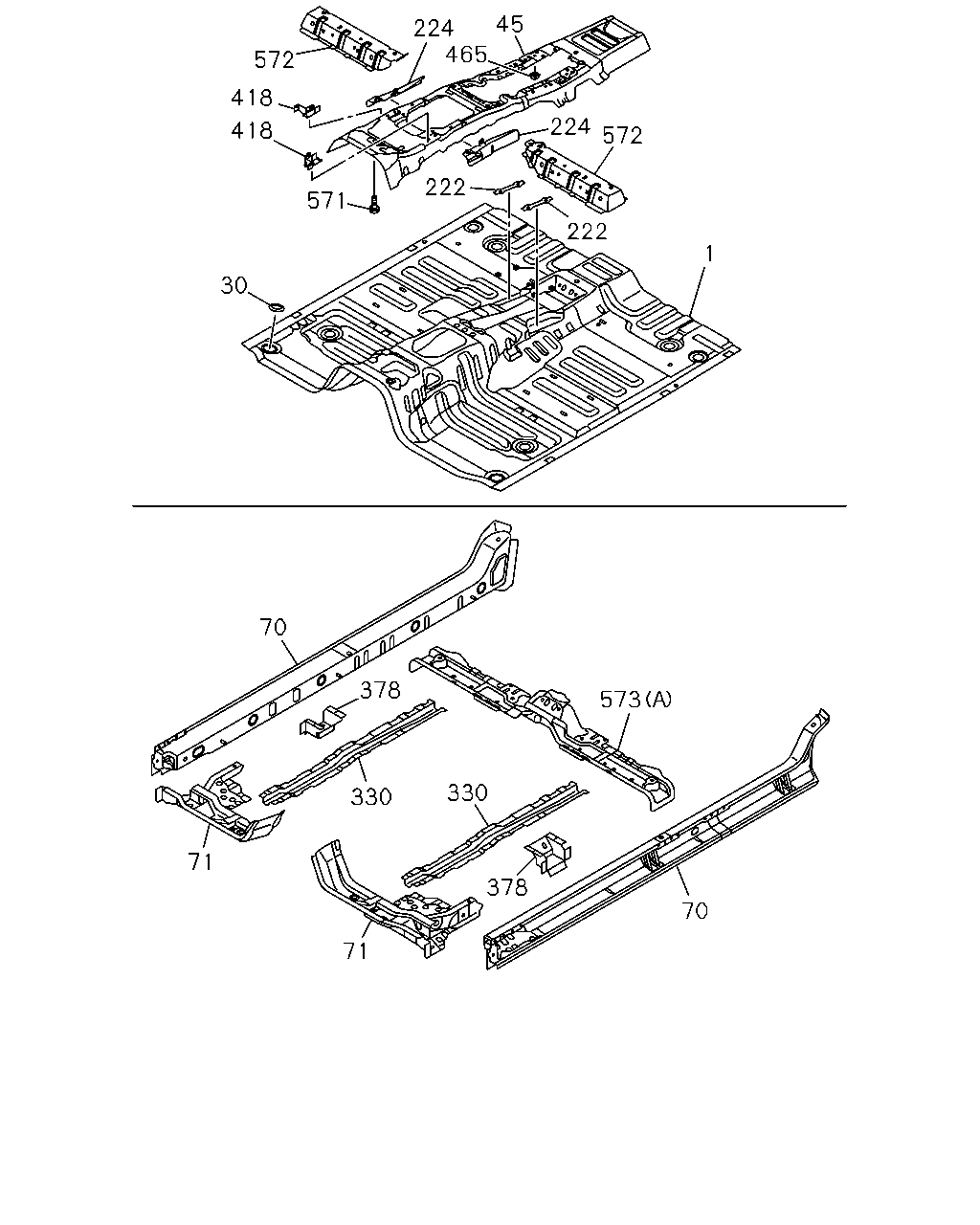

çizim 439512
1 572 45 224 574 571 418 418 465 224 222 30 70 71 330 330 573 70 378 71 378 222
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.545 PANEL; FLOOR 8-98199-516-0 01 1 1408- ● ●
30 16.547 GROMMET; CAB MTG RAIL
OD=59 T=9 		8-98202-803-0 04 1 1408- ● ●
45 16.545 REINFORCEMENT; TUNNEL,FRT 8-98101-032-5 01 1 1408- ● ●
70 16.545 PANEL; ROCKER INNER 8-98198-996-0 01 1 1408- ● ●
70 16.545 PANEL; ROCKER INNER 8-98198-998-0 01 1 1408- ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-98214-636-2 01 1 1408- ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-98214-637-2 01 1 1408- ● ●
222 16.545 PATCH; BRKT 8-98136-850-0 02 1 1408- ● ●
224 16.545 PATCH; FLOOR PANEL FRT
A/T 5 SPEED-AISIN(MA1) 		8-98241-943-0 01 1 1408- ● ●
224 16.545 PATCH; FLOOR PANEL FRT
A/T 5 SPEED-AISIN(MA1) 		8-98241-944-0 01 1 1408- ● ●
330 16.545 REINFORCEMENT; FLOOR 8-98199-922-1 02 1 1408- ● ●
378 16.545 GASSET; LWR 8-98101-037-0 02 1 1408- ● ●
418 16.545 BRACKET; CONSOLE 8-98110-695-0 01 1 1408- ● ●
418 16.545 BRACKET; CONSOLE 8-98110-696-0 01 1 1408- ● ●
465 16.545 NUT; REINFORCEMENT
M6 		9-09114-086-0 06 1 1408- ● ●
571 08.077 STUD
M6X18 		8-98154-159-0 07 1 1408- ● ●
572 16.576 SILL; FLOOR,FRT 8-98101-019-3 01 1 1408- ● ●
572 16.576 SILL; FLOOR,FRT 8-98101-020-3 01 1 1408- ● ●
573 16.576 SILL; FLOOR,RR
(A) 		8-98220-501-1 01 1 1408- ● ●
573 16.576 SILL; FLOOR,RR
(B) 		8-98199-823-1 01 1 1408- ● ●
573 16.576 SILL; FLOOR,RR
(C) 		8-98199-825-0 01 1 1408- ● ●
573 16.576 SILL; FLOOR,RR
(D) 		8-98199-826-1 01 1 1408- ● ●
573 16.576 SILL; FLOOR,RR
(E) 		8-98199-827-2 01 1 1408- ● ●
573 16.576 SILL; FLOOR,RR
(F) 		8-98207-470-3 01 1 1408- ● ●
574 16.800 TAPE; ADHESIVE 8-98229-444-0 04 1 1408- ● ●

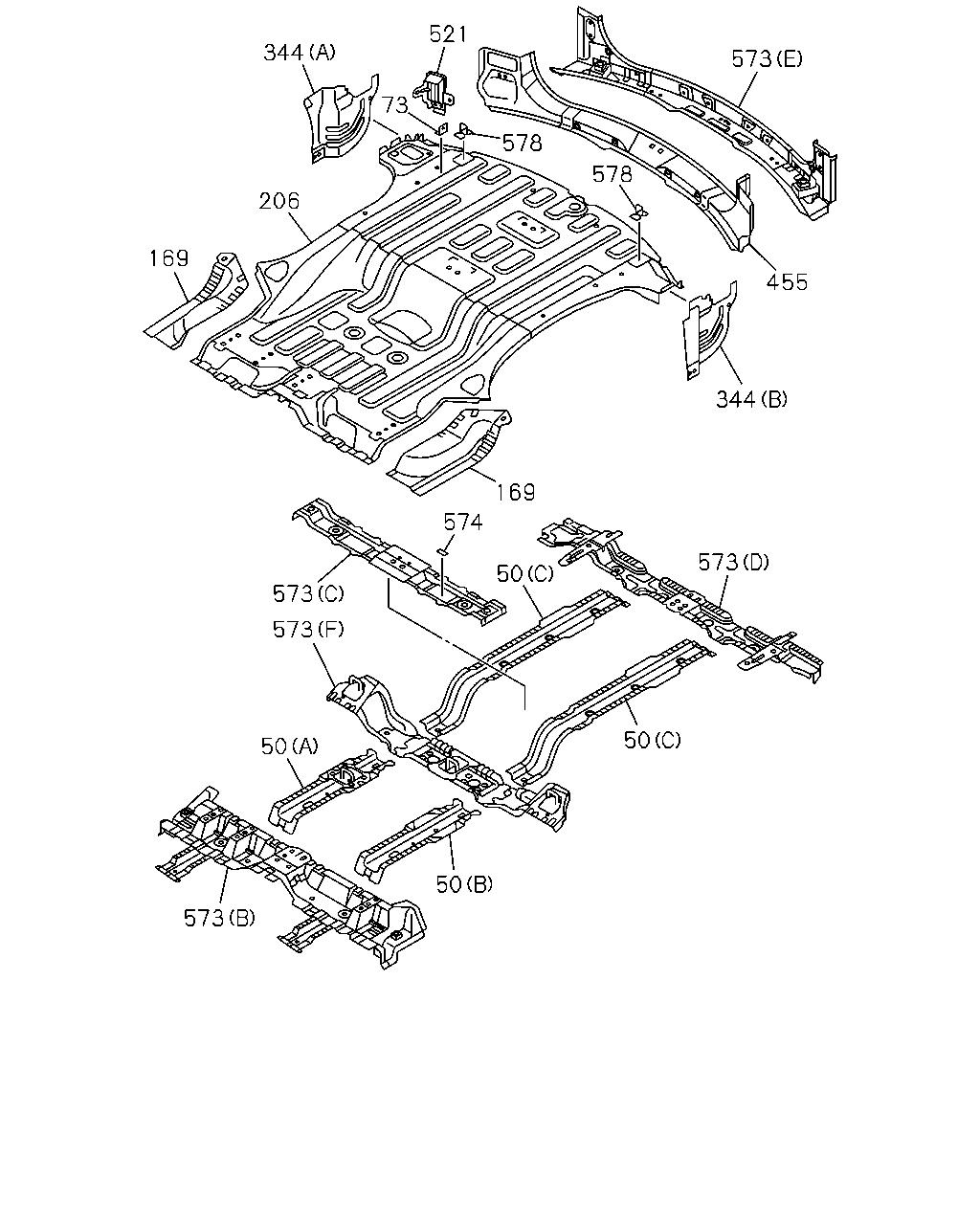

çizim 439535
573 578 455 344 573 169 574 50 578 521 344 73 206 169 573 573 50 50 573 50
BalonParca AdiParca NoAdetTipApplied Date A B
50 16.545 RAIL; FLOOR PANEL
(A) 		8-98199-880-3 01 1 1408- ● ●
50 16.545 RAIL; FLOOR PANEL
(B) 		8-98199-881-1 01 1 1408- ● ●
50 16.545 RAIL; FLOOR PANEL
(C) 		8-98199-882-1 02 1 1408- ● ●
73 16.545 BRACKET; SUPPORT,FLOOR PANEL 8-98200-372-0 01 1 1408- ● ●
169 16.545 EXTENSION 8-98199-809-0 01 1 1408- ● ●
169 16.545 EXTENSION 8-98199-810-0 01 1 1408- ● ●
206 16.545 PANEL; FLOOR BOARD RR 8-98199-512-5 01 1 1408- ● ●
344 16.545 BRACKET; FRT PNL SIDE,LWR
(A) 		8-98199-514-1 01 1 1408- ● ●
344 16.545 BRACKET; FRT PNL SIDE,LWR
(B) 		8-98199-515-1 01 1 1408- ● ●
455 16.545 BAR; RR FLOOR 8-98199-473-1 01 1 1408- ● ●
521 16.545 BRACKET; RR STORAGE 8-98207-966-0 01 1 1408- ● ●
573 16.576 SILL; FLOOR,RR
(A) 		8-98220-501-1 01 1 1408- ● ●
573 16.576 SILL; FLOOR,RR
(B) 		8-98199-823-1 01 1 1408- ● ●
573 16.576 SILL; FLOOR,RR
(C) 		8-98199-825-0 01 1 1408- ● ●
573 16.576 SILL; FLOOR,RR
(D) 		8-98199-826-1 01 1 1408- ● ●
573 16.576 SILL; FLOOR,RR
(E) 		8-98199-827-2 01 1 1408- ● ●
573 16.576 SILL; FLOOR,RR
(F) 		8-98207-470-3 01 1 1408- ● ●
574 16.800 TAPE; ADHESIVE 8-98229-444-0 04 1 1408- ● ●
578 16.800 LOOP 8-98199-860-0 02 1 1408- ● ●
