6-66 — HEAD LINING AND TRIM (#147143) — 21 parça

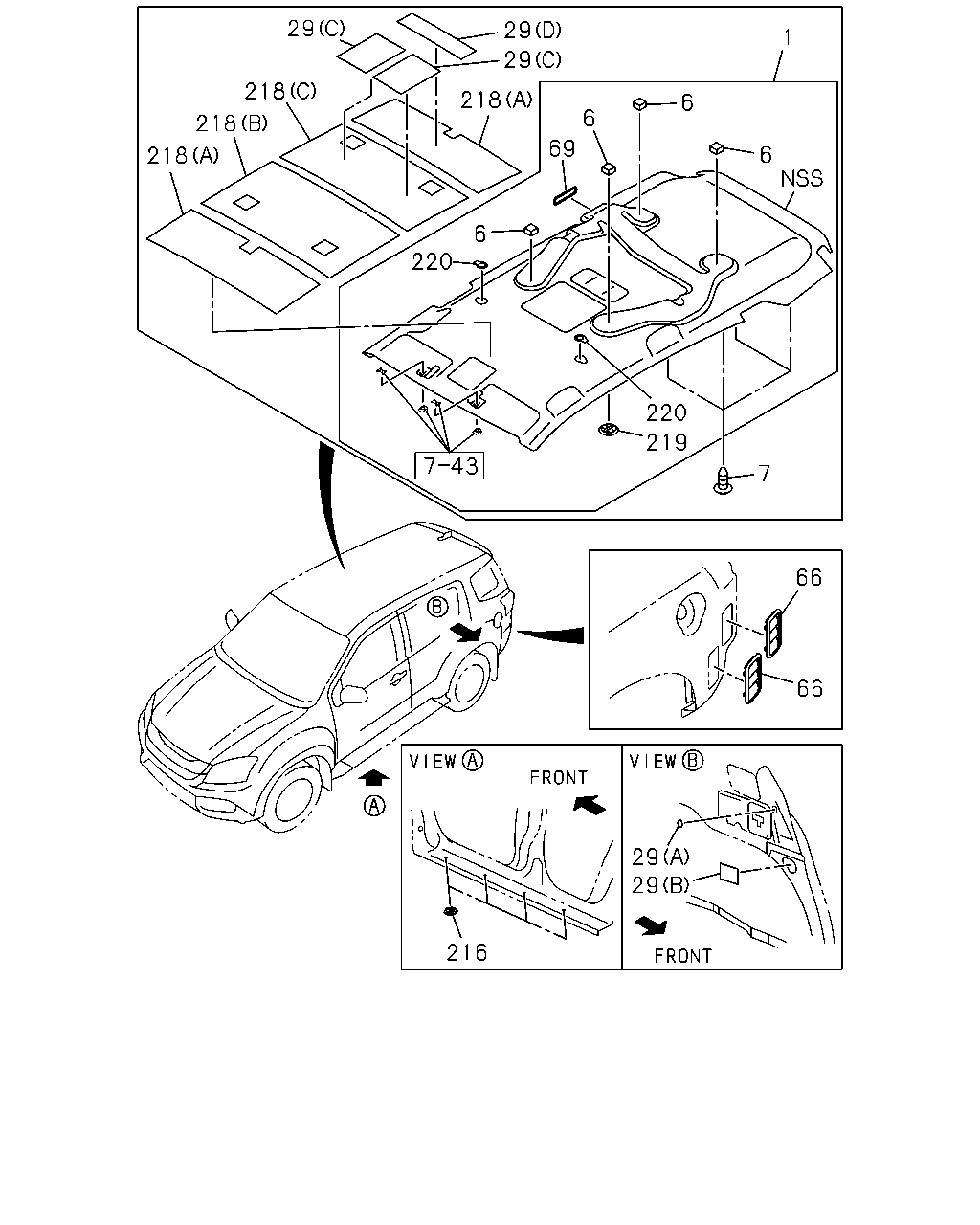

çizim 439492
1 6 6 6 69 218 29 29 29 218 218 218 220 6 220 219 7 66 66 29 29 216
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.742 LINING; HD
INTERIOR BASIC(RBA) REAR COOLER WO/HEATER<C69> 6-SPEAKER SYSTEM BASE<UW5> EXC. HEADER CONSOLE<DK6> GRAY 		8-97424-378-6 01 1 1408- ●
1 16.742 LINING; HD
INTERIOR BASIC(RBA) 6-SPEAKER SYSTEM BASE<UW5> EXC. REAR COOLER WO/HEATER<C69>,HEADER CONSOLE<DK6> GRAY 		8-97424-373-6 01 1 1408- ●
1 16.742 LINING; HD
INTERIOR CUSTOM(RBD) REAR COOLER WO/HEATER<C69> HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM BASE<UW5> GRAY 		8-97427-814-2 01 1 1408- ●
1 16.742 LINING; HD
6-SPEAKER SYSTEM BASE<UW5> GRAY 		8-97427-814-2 01 1 1408- ●
1 16.742 LINING; HD
INTERIOR CUSTOM(RBD) REAR COOLER WO/HEATER<C69> HEADER CONSOLE<DK6> 8-SPEAKER SYSTEM CUSTOM<U87> GRAY 		8-97427-817-2 01 1 1408- ●
1 16.742 LINING; HD
8-SPEAKER SYSTEM CUSTOM<U87> GRAY 		8-97427-817-2 01 1 1408- ●
6 16.742 SPACER; HD LINING 8-98244-491-0 04 1 1408- ● ●
7 16.742 RETAINER; HEADLINING RAIL
GRAY 		8-97416-696-0 04 1 1408- ● ●
29 16.742 DEADENER; ROOF PANEL
(C) 		8-98253-366-0 02 1 1509- ● ●
29 16.742 DEADENER; ROOF PANEL
(D) 		8-98253-367-0 01 1 1509- ● ●
29 16.742 DEADENER; ROOF PANEL
(A) 		8-98244-526-0 02 1 1408- ● ●
29 16.742 DEADENER; ROOF PANEL
(B) 		8-98244-527-0 02 1 1408- ● ●
66 16.576 GRILLE; AIR OUTLET 8-98190-079-2 02 1 1408- ● ●
69 16.576 SEAL; AIR OUTLET DUCT 8-98226-169-0 01 1 1408- ● ●
216 16.576 GROMMET; HOLE
16.575 OD=19 		8-97365-823-0 08 1 1408- ● ●
218 16.742 INSULATOR; ROOF
(A) 		8-98228-817-3 02 1 1408- ● ●
218 16.742 INSULATOR; ROOF
(B) 		8-98228-818-3 01 1 1408- ● ●
218 16.742 INSULATOR; ROOF
(C) 		8-98228-819-3 01 1 1408- ● ●
219 16.576 GRILLE; RR COOLER
GRAY 		8-97425-070-0 04 1 1408- ● ●
220 16.165 BRACKET; SPEAKER
INTERIOR CUSTOM(RBD) REAR COOLER WO/HEATER<C69> HEADER CONSOLE<DK6> 8-SPEAKER SYSTEM CUSTOM<U87> 		8-98128-570-0 02 1 1408- ●
220 16.165 BRACKET; SPEAKER
8-SPEAKER SYSTEM CUSTOM<U87> 		8-98128-570-0 02 1 1408- ●
