◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51520 - UCR/UCS(MIDDLE EAST) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-51 - REAR DOOR GLASS AND REGULATOR ▶
6-51 — REAR DOOR GLASS AND REGULATOR (#147139) — 18 parça

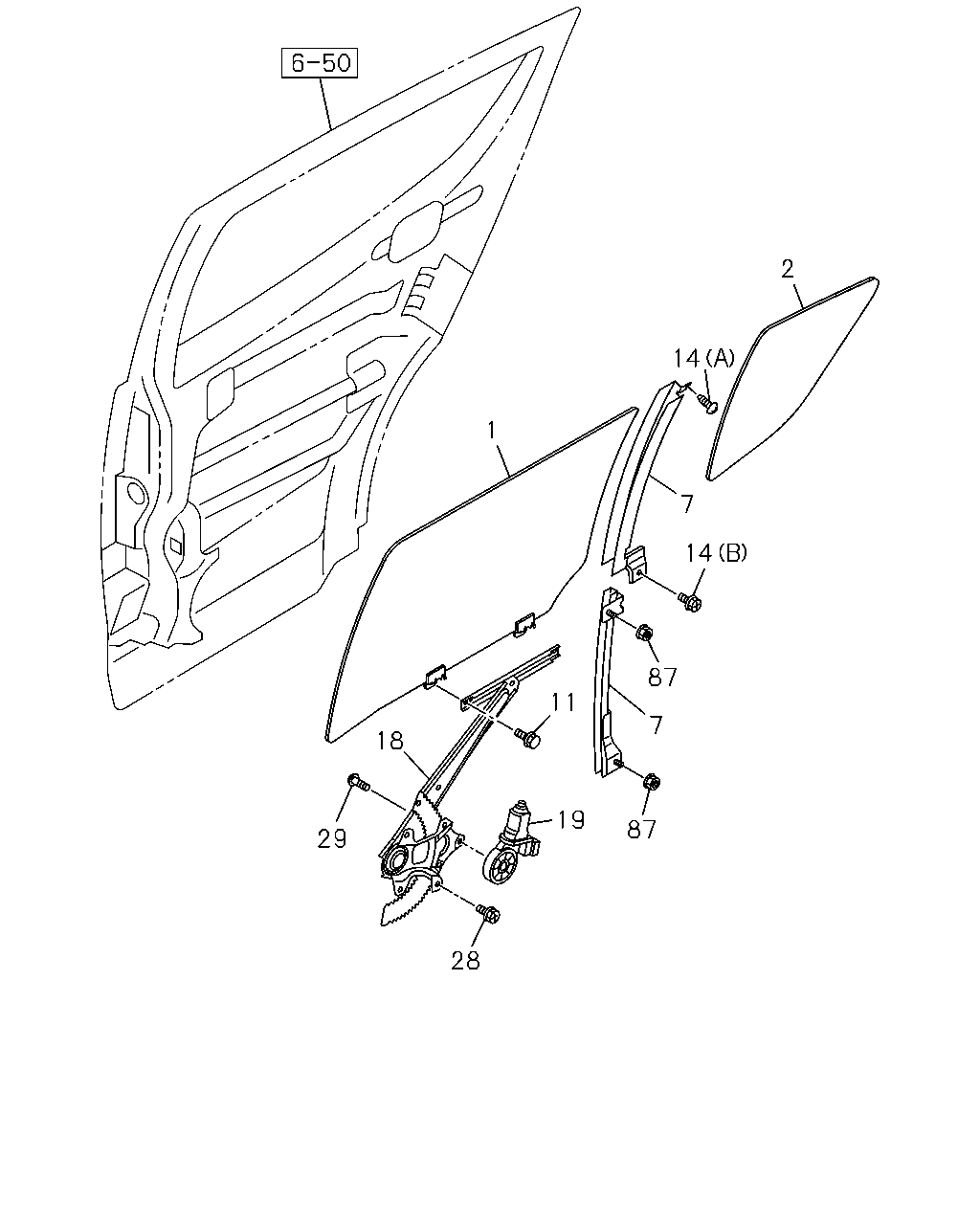

çizim 439450
1 2 14 7 14 87 7 87 11 18 19 28 29
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.180 GLASS; RR DOOR 8-98189-286-1 01 1 1408- ● ●
1 16.180 GLASS; RR DOOR 8-98189-287-1 01 1 1408- ● ●
2 16.180 GLASS; RR DOOR,RR 8-98189-362-0 01 1 1408- ● ●
2 16.180 GLASS; RR DOOR,RR 8-98189-363-0 01 1 1408- ● ●
7 16.190 CHANNEL; GLASS RUN,RR DOOR
10.685 UPR 		8-98202-651-1 01 1 1408- ● ●
7 16.190 CHANNEL; GLASS RUN,RR DOOR
10.685 UPR 		8-98202-652-1 01 1 1408- ● ●
7 16.190 CHANNEL; GLASS RUN,RR DOOR
10.685 LWR 		8-98203-623-0 01 1 1408- ● ●
7 16.190 CHANNEL; GLASS RUN,RR DOOR
10.685 LWR 		8-98203-624-0 01 1 1408- ● ●
11 16.183 BOLT; GLASS
16.270 M6X10 FLANGE 		8-98188-381-0 04 1 1408- ● ●
14 16.270 BOLT; RR DOOR GLASS
(A) M4X8 TAPPING 		0-71240-408-0 02 1 1408- ● ●
14 16.270 BOLT; RR DOOR GLASS
10.765 (B) M6X8 FLANGE 		8-98048-996-0 02 1 1408- ● ●
18 16.260 REGULATOR; WINDOW,RR DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> 		8-98211-011-1 01 1 1408- ● ●
18 16.260 REGULATOR; WINDOW,RR DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> 		8-98211-013-1 01 1 1408- ● ●
19 16.263 MOTOR; POWER WINDOW REG,RR DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> 		8-98167-091-1 01 1 1408- ● ●
19 16.263 MOTOR; POWER WINDOW REG,RR DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> 		8-98167-092-1 01 1 1408- ● ●
28 16.181 BOLT; WINDOW REG
16.270 M6X10 FLANGE 		8-98188-381-0 06 1 1408- ● ●
29 16.270 SCREW; WINDOW REG
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> 		8-98195-236-0 06 1 1408- ● ●
87 16.270 NUT; WINDOW
16.320 M6 FLANGE 		8-98049-362-0 04 1 1408- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
