◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51520 - UCR/UCS(MIDDLE EAST) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#147133) — 37 parça

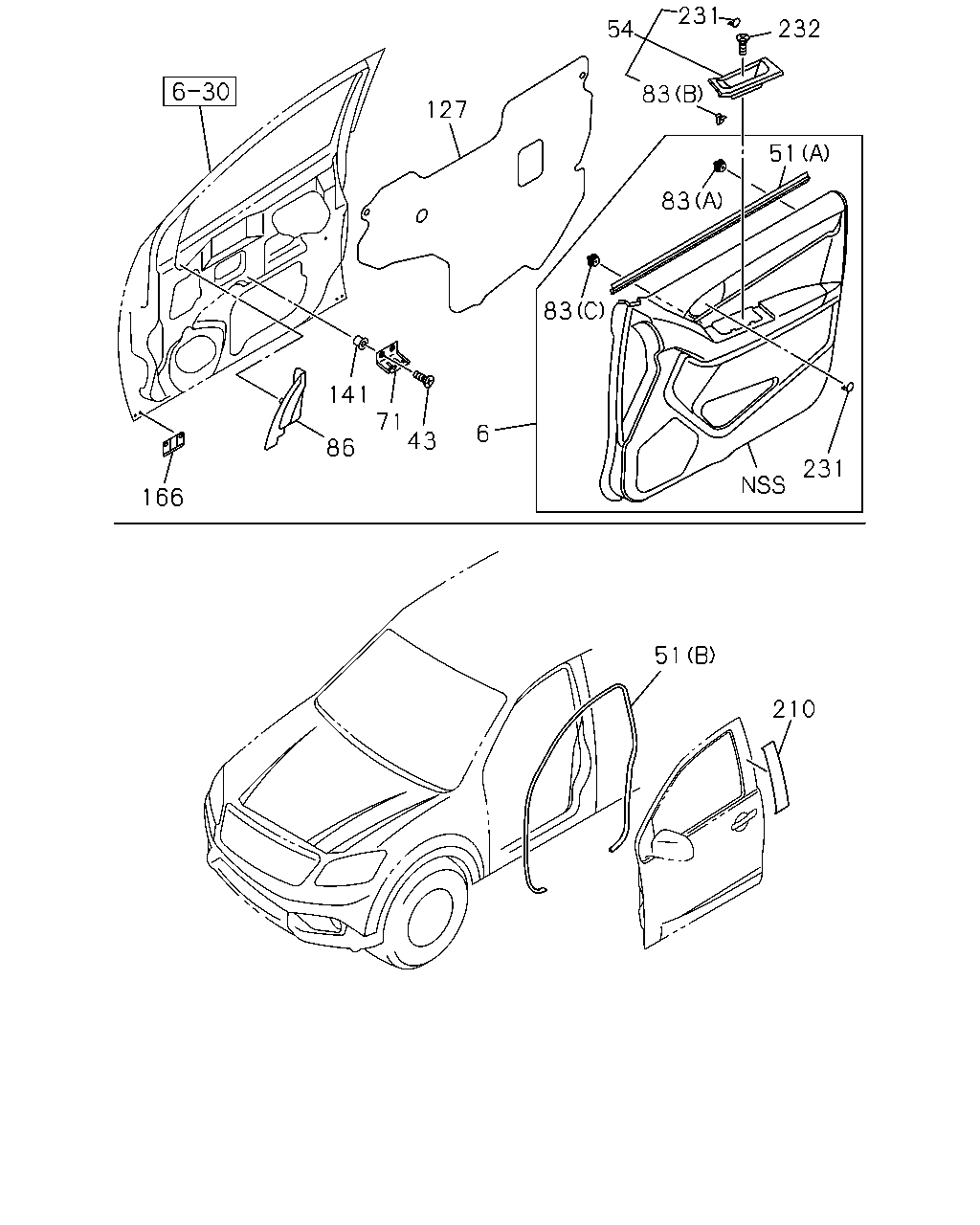

çizim 439564
210 51 231 83 83 51 232 231 83 54 127 6 43 71 141 86 166
BalonParca AdiParca NoAdetTipApplied Date A B
6 16.165 TRIM; DOOR,UPR
INTERIOR BASIC(RBA) SEAT TRIM LEATHER<6TB>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97425-710-1 01 1 1408- ●
6 16.165 TRIM; DOOR,UPR
INTERIOR BASIC(RBA) SEAT TRIM LEATHER<6TB>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97425-714-1 01 1 1408- ●
6 16.165 TRIM; DOOR,UPR
INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY 		8-97427-719-0 01 1 1408- ●
6 16.165 TRIM; DOOR,UPR
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY 		8-97427-719-0 01 1 1408- ●
6 16.165 TRIM; DOOR,UPR
INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY 		8-97427-725-0 01 1 1408- ●
6 16.165 TRIM; DOOR,UPR
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY 		8-97427-725-0 01 1 1408- ●
6 16.165 TRIM; DOOR,UPR
INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK 		8-97427-718-0 01 1 1408- ●
6 16.165 TRIM; DOOR,UPR
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK 		8-97427-718-0 01 1 1408- ●
6 16.165 TRIM; DOOR,UPR
INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK 		8-97427-724-0 01 1 1408- ●
6 16.165 TRIM; DOOR,UPR
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK 		8-97427-724-0 01 1 1408- ●
6 16.165 TRIM; DOOR,UPR
INTERIOR CUSTOM(RBD) SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> LIGHT GRAY 		8-97427-720-0 01 1 1408- ●
6 16.165 TRIM; DOOR,UPR
SEAT TRIM HIGH GRADE CLOTH<8LM> LIGHT GRAY 		8-97427-720-0 01 1 1408- ●
6 16.165 TRIM; DOOR,UPR
INTERIOR CUSTOM(RBD) SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> LIGHT GRAY 		8-97427-726-0 01 1 1408- ●
6 16.165 TRIM; DOOR,UPR
SEAT TRIM HIGH GRADE CLOTH<8LM> LIGHT GRAY 		8-97427-726-0 01 1 1408- ●
43 16.165 SCREW; DOOR POCKET
16.345 M5X14 TAPPING 		8-98184-363-0 04 1 1408- ● ●
51 16.225 WEATHERSTRIP; FRONT DOOR
(A) 		8-98109-544-3 01 1 1408- ● ●
51 16.225 WEATHERSTRIP; FRONT DOOR
(A) 		8-98109-545-3 01 1 1408- ● ●
51 16.225 WEATHERSTRIP; FRONT DOOR
(B) 		8-98201-892-0 02 1 1408- ● ●
54 16.165 BOX; FRT DOOR
BLACK 		8-97416-750-1 01 1 1408- ● ●
54 16.165 BOX; FRT DOOR
BLACK 		8-97416-751-1 01 1 1408- ● ●
71 14.690 BRACKET; ARM REST 8-98102-215-2 02 1 1408- ● ●
83 16.165 CLIP; DOOR TRIM
(A) 		8-98160-729-0 16 1 1408- ● ●
83 16.165 CLIP; DOOR TRIM
(C) 		8-98166-326-0 02 1 1408- ● ●
83 16.165 CLIP; DOOR TRIM
(B) 		8-98164-677-0 02 1 1408- ● ●
86 16.155 COVER ASM; DOOR POCKET
BLACK 		8-97416-748-3 01 1 1408- ● ●
86 16.155 COVER ASM; DOOR POCKET
BLACK 		8-97416-749-3 01 1 1408- ● ●
127 16.183 SEAL; DOOR INNER 8-98192-454-1 01 1 1408- ● ●
127 16.183 SEAL; DOOR INNER 8-98192-455-1 01 1 1408- ● ●
141 16.165 GROMMET; SCREW,LWR COVER
10.565 		8-94152-494-0 04 1 1408- ● ●
166 16.155 PLUG; HOLE 8-98197-448-0 04 1 1408- ● ●
210 01.303 DECAL; DOOR FRAME
INTERIOR CUSTOM(RBD) 16.176 		8-98190-437-2 01 1 1408- ●
210 01.303 DECAL; DOOR FRAME
16.176 		8-98190-437-2 01 1 1408- ●
210 01.303 DECAL; DOOR FRAME
INTERIOR CUSTOM(RBD) 16.176 		8-98190-438-2 01 1 1408- ●
210 01.303 DECAL; DOOR FRAME
16.176 		8-98190-438-2 01 1 1408- ●
231 16.165 COVER; HOLDER,BOLT
BLACK 		8-97416-610-0 02 1 1408- ● ●
231 16.165 COVER; HOLDER,BOLT
BLACK 		8-97416-610-0 02 1 1408- ● ●
232 16.165 BOLT; DOOR TRIM
16.345 M5X14 TAPPING 		8-98184-363-0 02 1 1408- ● ●
