◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51520 - UCR/UCS(MIDDLE EAST) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-31 - FRONT DOOR GLASS AND REGULATOR ▶
6-31 — FRONT DOOR GLASS AND REGULATOR (#147131) — 37 parça

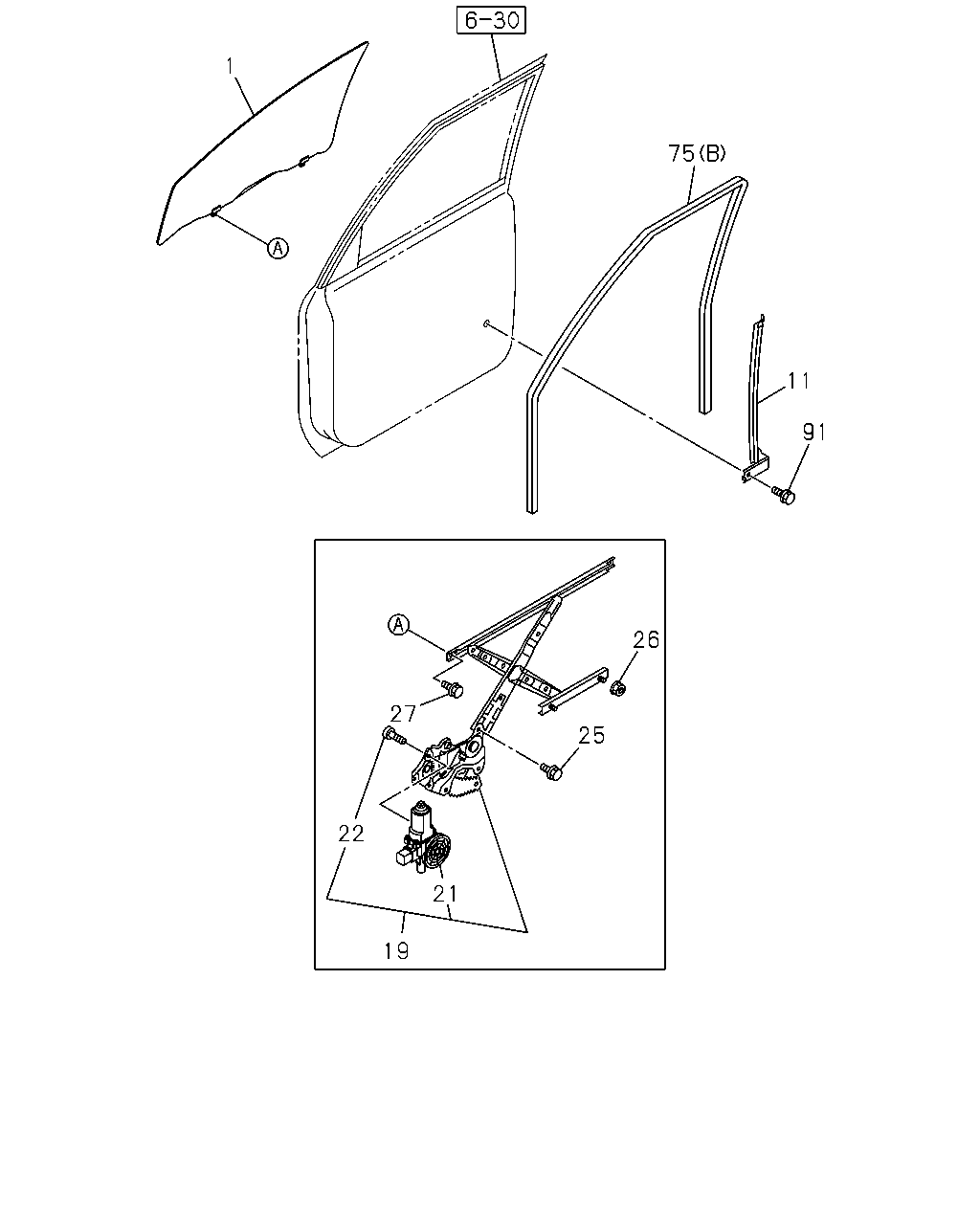

çizim 439370
1 75 11 91 26 25 27 22 21 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.180 GLASS; FRT DOOR 8-98073-843-2 01 1 1408- ● ●
1 16.180 GLASS; FRT DOOR 8-98073-844-2 01 1 1408- ● ●
11 16.183 RAIL; RR GUIDE,FRT DOOR
REMOTE CONT DOOR LOCK<AP5> 		8-98100-793-5 01 1 1408- ● ●
11 16.183 RAIL; RR GUIDE,FRT DOOR 8-98100-792-5 01 1 1408- ● ●
11 16.183 RAIL; RR GUIDE,FRT DOOR
EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98100-795-6 01 1 1408- ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ> 		8-98093-556-1 01 1 1408- ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> 		8-98093-553-1 01 1 1408- ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> 		8-98093-554-1 01 1 1408- ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ> 		8-98160-726-0 01 1 1408- ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> 		8-98160-723-0 01 1 1408- ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> 		8-98160-724-0 01 1 1408- ● ●
22 16.270 SCREW; POWER WINDOW MOTOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> 		8-98195-236-0 03 1 1408- ● ●
22 16.270 SCREW; POWER WINDOW MOTOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> 		8-98195-236-0 03 1 1408- ● ●
25 16.270 BOLT; WINDOW REG
M6X10 FLANGE 		8-98188-381-0 06 1 1408- ● ●
26 16.270 NUT; FLANGE,WINDOW REG
16.320 M6 FLANGE 		8-98049-362-0 04 1 1408- ● ●
27 16.270 BOLT; GLASS FIX
M6X10 FLANGE 		8-98188-381-0 04 1 1408- ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(A) 		8-98282-670-1 01 1 1408- ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(A) 		8-98282-671-1 01 1 1408- ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
INTERIOR CUSTOM(RBD) (C) 		8-98165-107-0 01 1 1408- ●
75 16.183 WEATHERSTRIP; FRT DOOR
(C) 		8-98165-107-0 01 1 1408- ●
75 16.183 WEATHERSTRIP; FRT DOOR
INTERIOR CUSTOM(RBD) (C) 		8-98165-108-0 01 1 1408- ●
75 16.183 WEATHERSTRIP; FRT DOOR
(C) 		8-98165-108-0 01 1 1408- ●
75 16.183 WEATHERSTRIP; FRT DOOR
(B) 		8-98052-199-9 01 1 1408- ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(B) 		8-98052-200-9 01 1 1408- ● ●
91 16.183 BOLT; GUIDE RAIL TO DOOR
10.765 M6X8 FLANGE 		8-98048-996-0 02 1 1408- ● ●

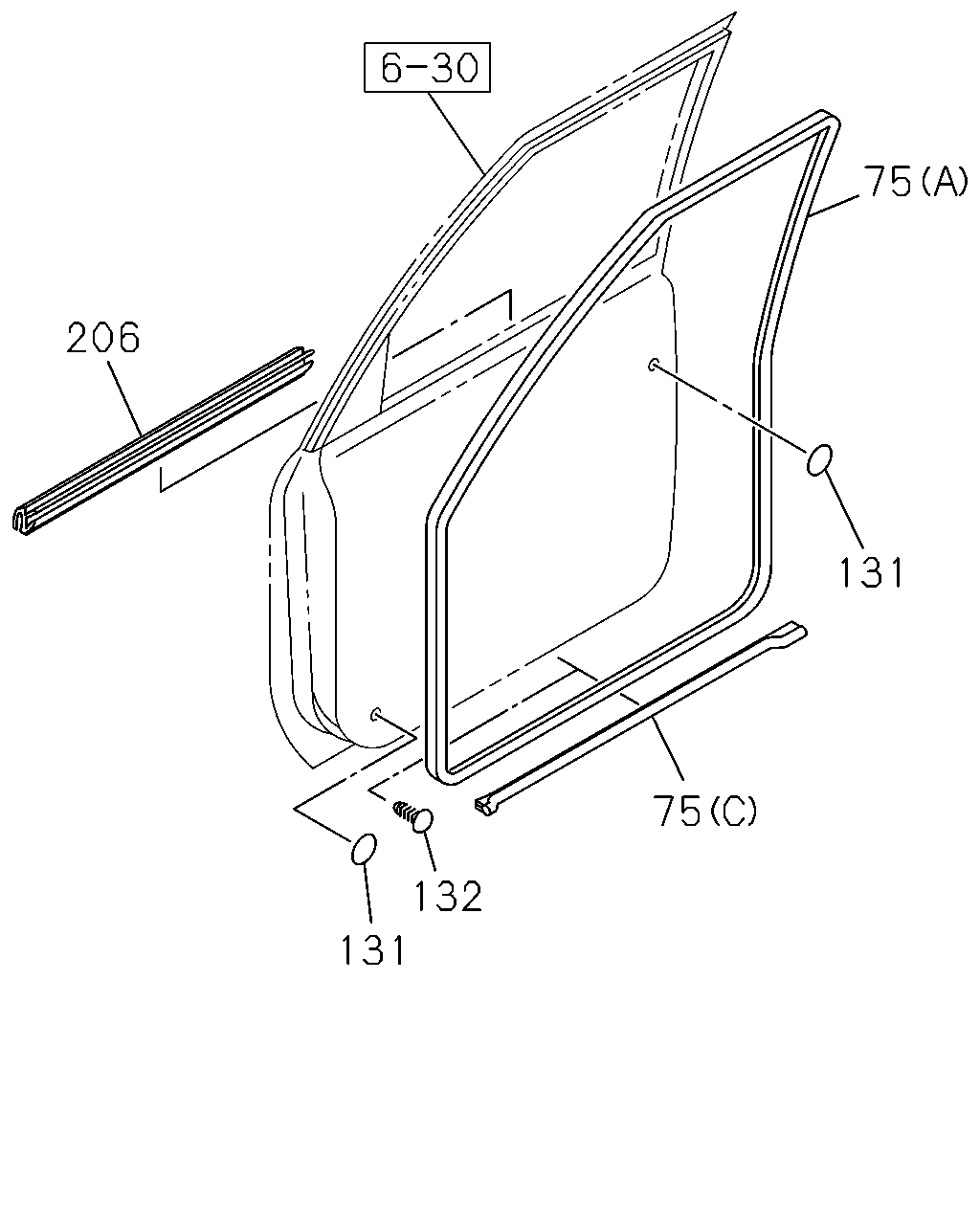

çizim 439533
75 206 131 75 132 131
BalonParca AdiParca NoAdetTipApplied Date A B
75 16.183 WEATHERSTRIP; FRT DOOR
(A) 		8-98282-670-1 01 1 1408- ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(A) 		8-98282-671-1 01 1 1408- ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
INTERIOR CUSTOM(RBD) (C) 		8-98165-107-0 01 1 1408- ●
75 16.183 WEATHERSTRIP; FRT DOOR
(C) 		8-98165-107-0 01 1 1408- ●
75 16.183 WEATHERSTRIP; FRT DOOR
INTERIOR CUSTOM(RBD) (C) 		8-98165-108-0 01 1 1408- ●
75 16.183 WEATHERSTRIP; FRT DOOR
(C) 		8-98165-108-0 01 1 1408- ●
75 16.183 WEATHERSTRIP; FRT DOOR
(B) 		8-98052-199-9 01 1 1408- ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(B) 		8-98052-200-9 01 1 1408- ● ●
131 16.183 SEAL; FRT DOOR
16.165 OD=25 BLACK 		1-76798-019-0 04 1 1408- ● ●
132 16.183 CLIP; SEAL,DOOR
INTERIOR BASIC(RBA) 16.067 		8-94279-922-0 14 1 1408- ●
206 16.183 WEATHERSTRIP; FRT DOOR GLASS 8-98052-197-2 01 1 1408- ● ●
206 16.183 WEATHERSTRIP; FRT DOOR GLASS 8-98052-198-2 01 1 1408- ● ●
