◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXY ▶ 11113 - CXY AUST EURO5/JAPAN NEW LONG TERM 2005 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-22 - ENGINE MOUNTING ▶
0-22 — ENGINE MOUNTING (#14713) — 54 parça

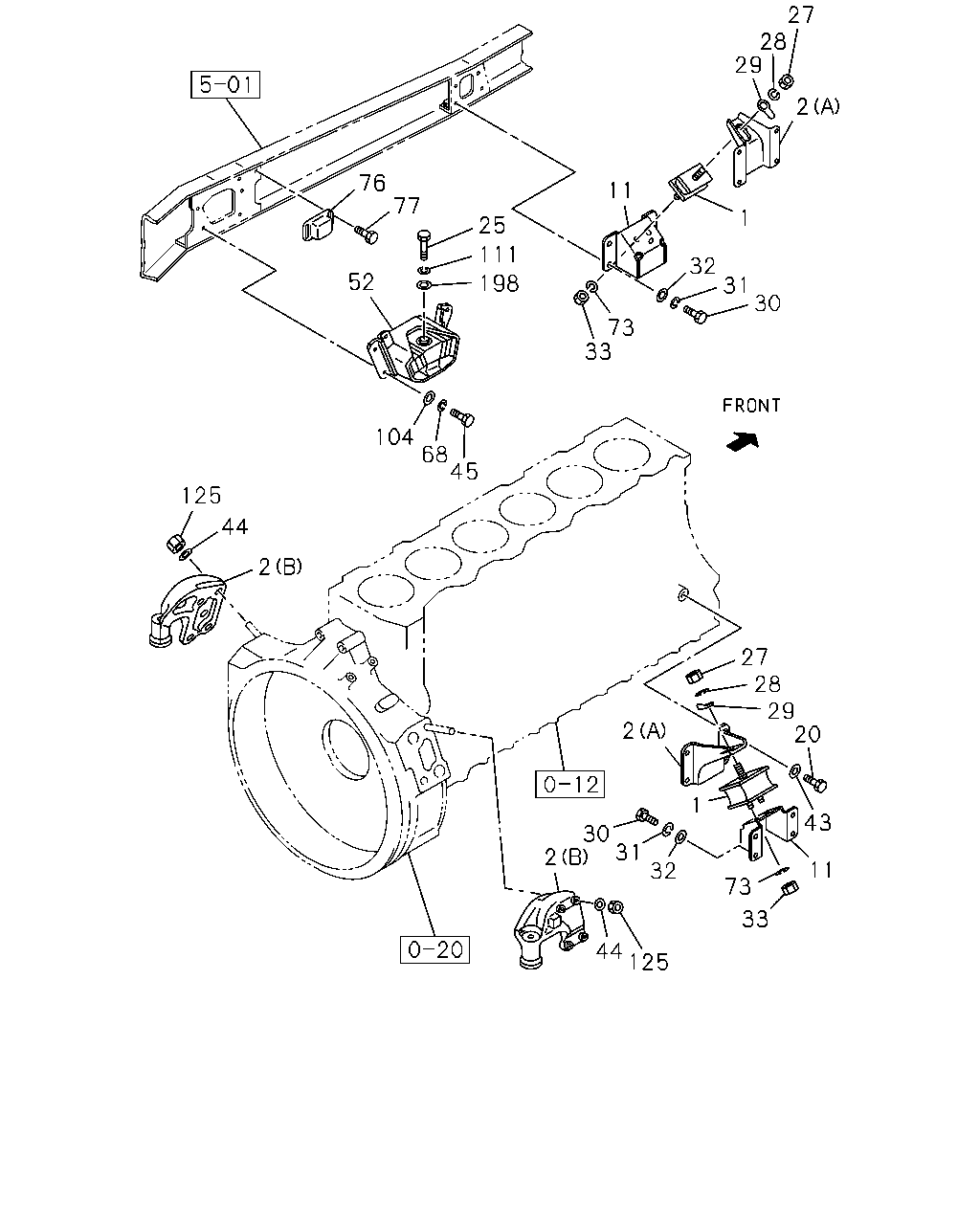

çizim 141970
27 28 29 2 76 77 11 1 25 111 32 31 30 52 198 73 33 104 68 45 125 44 2 27 28 29 20 2 1 43 30 31 2 11 32 73 33 44 125
BalonParca AdiParca NoAdetTipApplied Date A B
1 RUBBER; ENG FOOT,FRT 1-53215-147-1 02 1 0710-1107 ●
1 RUBBER; ENG FOOT,FRT 1-53215-147-1 02 1 1108- ● ●
2 FOOT; ENG
(A) FRONT 		1-11771-220-0 02 1 0710-1107 ●
2 FOOT; ENG
(A) FRONT 		1-11771-220-0 02 1 1108- ● ●
2 FOOT; ENG
(B) REAR 		1-11777-197-1 01 1 0710-1107 ●
2 FOOT; ENG
(B) REAR 		1-11777-197-1 01 1 1108- ● ●
2 FOOT; ENG
(B) REAR 		8-97617-886-0 01 1 0710-1107 ●
2 FOOT; ENG
(B) REAR 		8-97617-886-0 01 1 1108- ● ●
11 BRACKET; CUSHION RUBBER,FRT 1-53211-272-0 02 1 0710-1107 ●
11 BRACKET; CUSHION RUBBER,FRT 1-53211-272-0 02 1 1108- ● ●
20 BOLT; ENG FOOT
M14X32 		9-92361-432-0 08 1 0710-1107 ●
20 BOLT; ENG FOOT
M14X32 		9-92361-432-0 08 1 1108- ● ●
25 BOLT; CUSHION RUBBER TO BRKT
M22X105 		1-09000-773-0 02 1 0710-1107 ●
25 BOLT; CUSHION RUBBER TO BRKT
M22X105 		1-09000-773-0 02 1 1108- ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M18 		0-91110-518-0 02 1 0710-1107 ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M18 		0-91110-518-0 02 1 1108- ● ●
28 WASHER; LK,SUPPORT BRKT
ID=18.2 		0-91510-518-0 02 1 0710-1107 ●
28 WASHER; LK,SUPPORT BRKT
ID=18.2 		0-91510-518-0 02 1 1108- ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 1-53229-040-0 02 1 0710-1107 ●
29 PLATE; LK,CUSHION RUBBER,FRT 1-53229-040-0 02 1 1108- ● ●
30 BOLT; BRKT TO FRAME
M14X35 		0-20951-435-0 08 1 0710-1107 ●
30 BOLT; BRKT TO FRAME
M14X35 		0-20951-435-0 08 1 1108- ● ●
31 WASHER; LK,BRKT TO FRAME
ID=14.2 		0-91510-814-0 08 1 0710-1107 ●
31 WASHER; LK,BRKT TO FRAME
ID=14.2 		0-91510-814-0 08 1 1108- ● ●
32 WASHER; PL,BRKT TO FRAME
ID=15 		9-09651-069-0 08 1 0710-0907 ●
32 WASHER; PL,BRKT TO FRAME
ID=15 		8-98010-627-1 08 1 0908- ● ●
33 NUT; CUSHION RUBBER TO BRKT
M14 		0-91110-514-0 04 1 0710-1107 ●
33 NUT; CUSHION RUBBER TO BRKT
M14 		0-91110-514-0 04 1 1108- ● ●
43 WASHER; ENG FOOT
ID=14.2 		1-09503-050-0 08 1 0710-1107 ●
43 WASHER; ENG FOOT
ID=14.2 		1-09503-050-0 08 1 1108- ● ●
44 WASHER; LK,ENG FOOT
ID=18.2 OD=29 		1-09503-032-0 08 1 0710-1107 ●
44 WASHER; LK,ENG FOOT
ID=18.2 OD=29 		1-09503-032-0 08 1 1108- ● ●
45 BOLT; CUSHION RUBBER TO FRAME
M14X40 		0-20951-440-0 10 1 0710-1107 ●
45 BOLT; CUSHION RUBBER TO FRAME
M14X40 		0-20951-440-0 10 1 1108- ● ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-370-1 01 1 0710-1107 ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-370-1 01 1 1108- ● ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-371-1 01 1 0710-1107 ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-371-1 01 1 1108- ● ●
68 WASHER; LK,CUSHION RUBBER
ID=14.2 		0-91510-814-0 10 1 0710-1107 ●
68 WASHER; LK,CUSHION RUBBER
ID=14.2 		0-91510-814-0 10 1 1108- ● ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
ID=14.2 		0-91510-514-0 04 1 0710-0907 ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
ID=14.2 		0-91510-814-0 04 1 0908- ● ●
76 STOPPER; ENG MTG RUBBER 1-53229-056-1 02 1 0710-1107 ●
76 STOPPER; ENG MTG RUBBER 1-53229-056-1 02 1 1108- ● ●
77 BOLT; STOPPER
M8X16 FLANGE 		0-28050-816-0 04 1 0710-1107 ●
77 BOLT; STOPPER
M8X16 FLANGE 		0-28050-816-0 04 1 1108- ● ●
104 WASHER; PL,CUSHION RUBBER
ID=15 		9-09651-069-0 10 1 0710-0907 ●
104 WASHER; PL,CUSHION RUBBER
ID=15 		8-98010-627-1 10 1 0908- ● ●
111 WASHER; LK,CUSHION RUBBER TO BRKT
ID=22.5 		0-91510-622-0 02 1 0710-1107 ●
111 WASHER; LK,CUSHION RUBBER TO BRKT
ID=22.5 		0-91510-622-0 02 1 1108- ● ●
125 NUT; ENG FOOT
M18 		0-91110-518-0 08 1 0710-1107 ●
125 NUT; ENG FOOT
M18 		0-91110-518-0 08 1 1108- ● ●
198 WASHER; PL,CUSHION TO BRKT,RR 9-09164-622-0 02 1 0710-0909 ●
198 WASHER; PL,CUSHION TO BRKT,RR
ID=22 		0-91614-622-0 02 1 0910- ● ●
