6-01 — FRONT BUMPER (#147123) — 24 parça

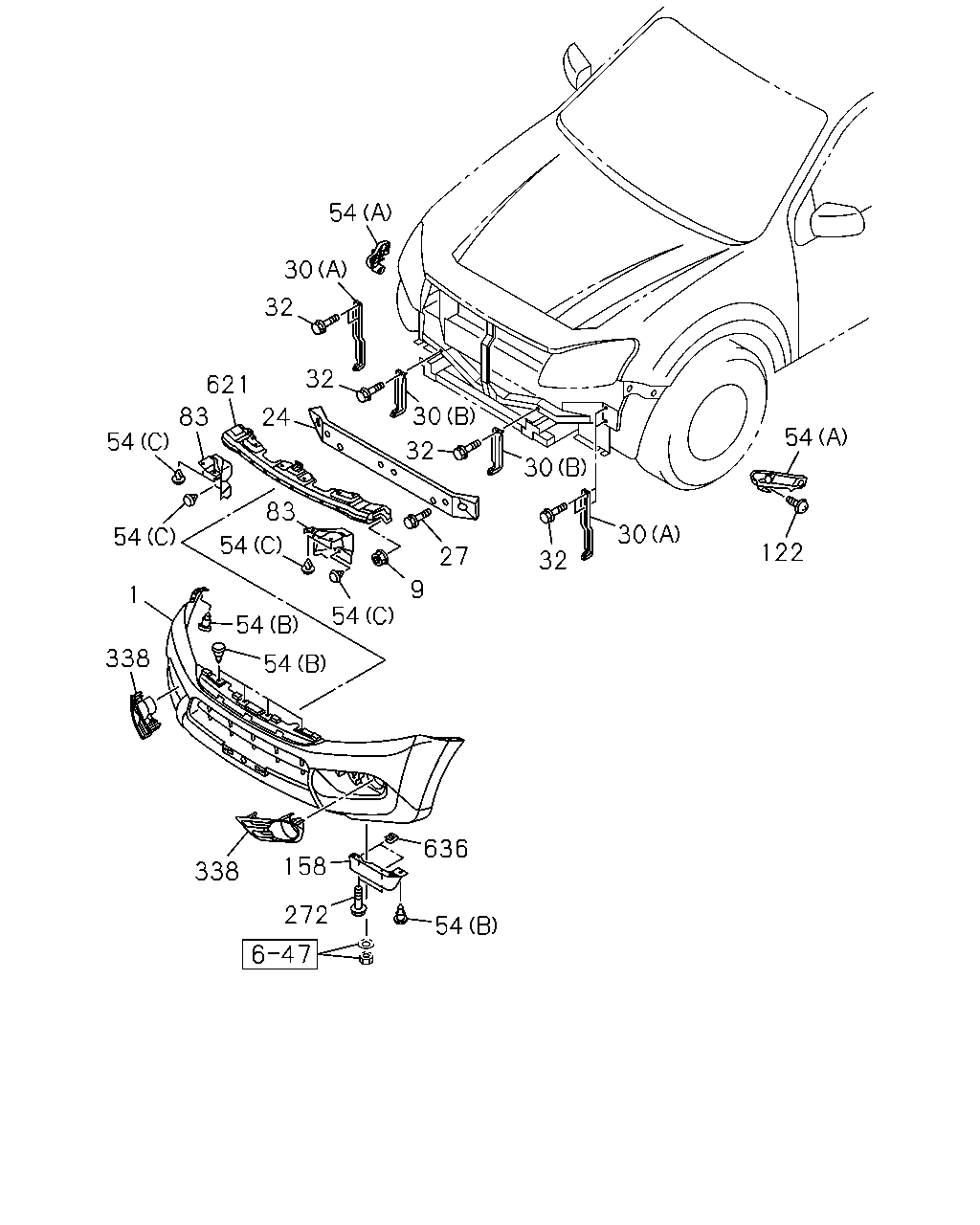

çizim 439099
54 30 32 621 83 54 54 1 338 338 272 54 636 158 54 54 54 54 24 32 30 32 30 27 32 30 122 54 83 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 07.831 BUMPER ASM; FRT
COLOR KEYED BUMPER<VT4> PRIMER 		8-98249-950-2 01 1 1408- ● ●
1 07.831 BUMPER ASM; FRT
EXC. COLOR KEYED BUMPER<VT4> UPR; PRIMER,LWR; COLOR PAINTED DARK GRAY 		8-98253-374-1 01 1 1408- ● ●
9 07.840 NUT; REINF,FRT BUMPER
01.062 M6 FLANGE 		0-91180-106-0 06 1 1408- ● ●
24 07.869 BAR; FRT BUMPER 8-98165-112-1 01 1 1408- ● ●
27 07.833 BOLT; BUMPER TO BACK BAR
M10X25 FLANGE 		0-28661-025-0 04 1 1408- ● ●
30 07.869 BRACKET; FRT BUMPER
(A) 		8-98087-391-2 02 1 1408- ● ●
30 07.869 BRACKET; FRT BUMPER
(B) 		8-98087-392-0 02 1 1408- ● ●
32 07.874 BOLT; BRKT,BUMPER
02.343 M6X16 FLANGE 		0-28650-616-0 06 1 1408- ● ●
54 07.832 RETAINER; FRT BUMPER
(B) 		8-97301-188-0 10 1 1408- ● ●
54 07.832 RETAINER; FRT BUMPER
08.155 (C) 		8-98050-462-0 06 1 1408- ● ●
54 07.832 RETAINER; FRT BUMPER
(A) 		8-98210-025-0 01 1 1408- ● ●
54 07.832 RETAINER; FRT BUMPER
(A) 		8-98210-026-0 01 1 1408- ● ●
83 07.833 GUIDE; AIR,FRT BUMPER 8-98139-694-0 01 1 1408- ● ●
83 07.833 GUIDE; AIR,FRT BUMPER 8-98139-695-0 01 1 1408- ● ●
122 07.874 BOLT; RET,FRT BUMPER
M6X16 TAPPING W/PL WASHER 		0-74160-616-0 02 1 1408- ● ●
158 07.833 EXTENSION; FRT BUMPER 8-98101-950-0 01 1 1408- ● ●
158 07.833 EXTENSION; FRT BUMPER 8-98101-951-0 01 1 1408- ● ●
272 07.874 BOLT; BUMPER TO EXT
M6X15 TAPPING W/PL WASHER 		8-98164-799-0 04 1 1408- ● ●
338 07.832 BEZEL; FOG LAMP
FOG LAMP<T96> 		8-98187-265-0 01 1 1408- ● ●
338 07.832 BEZEL; FOG LAMP
FOG LAMP<T96> 		8-98187-266-0 01 1 1408- ● ●
338 07.832 BEZEL; FOG LAMP
EXC. FOG LAMP<T96> 		8-98187-267-0 01 1 1408- ● ●
338 07.832 BEZEL; FOG LAMP
EXC. FOG LAMP<T96> 		8-98187-268-0 01 1 1408- ● ●
621 07.831 SUPPORT; FRT BUMPER 8-98087-390-1 01 1 1408- ● ●
636 07.833 NUT; EXT,FRT BUMPER 8-98072-786-0 04 1 1408- ● ●
