◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXY ▶ 11113 - CXY AUST EURO5/JAPAN NEW LONG TERM 2005 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-20 - TIMING GEAR CASE AND FLYWHEEL HOUSING ▶
0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#14712) — 98 parça

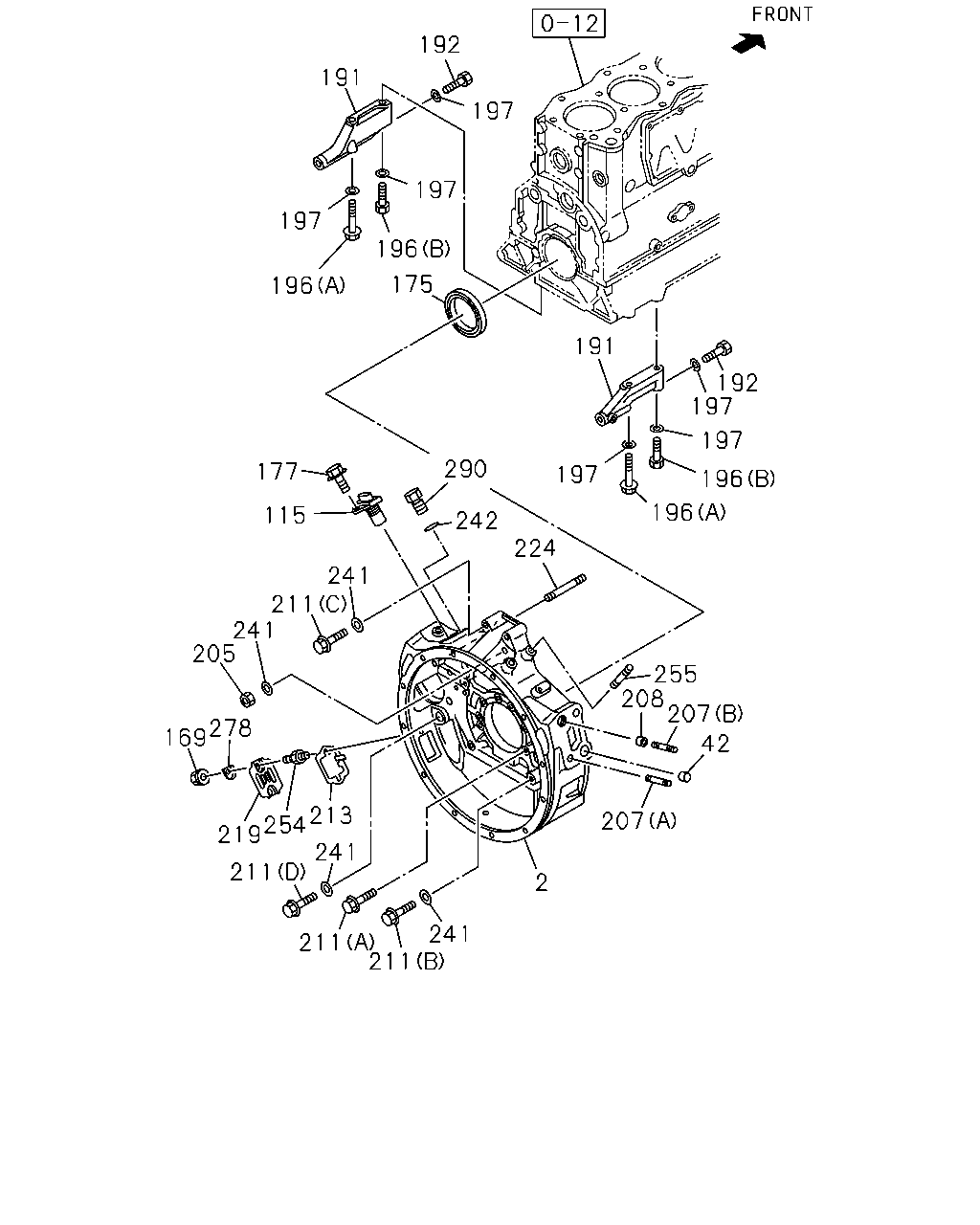

çizim 141966
192 191 197 197 197 196 175 196 191 192 197 197 290 177 197 196 196 115 242 224 241 211 241 205 255 208 207 42 278 169 213 254 219 241 211 207 2 241 211 211
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOUSING; FLYWHEEL 1-11340-311-2 01 1 0710-1103 ●
2 HOUSING; FLYWHEEL 8-98182-194-0 01 1 1104-1107 ●
2 HOUSING; FLYWHEEL 8-98182-194-0 01 1 1108-1403 ● ●
2 HOUSING; FLYWHEEL 8-98182-183-2 01 1 1404- ● ●
42 DOWEL; GEAR CASE COVER 1-13119-004-0 01 1 0710-1107 ●
42 DOWEL; GEAR CASE COVER 1-13119-004-0 01 1 1108- ● ●
115 SENSOR; REVOLUTION,ENG SPD 8-94390-279-0 01 1 0710-1107 ●
115 SENSOR; REVOLUTION,ENG SPD 8-94390-279-0 01 1 1108- ● ●
169 NUT; COVER
M8 FLANGE 		0-91180-108-0 02 1 0710-1107 ●
169 NUT; COVER
M8 FLANGE 		0-91180-108-0 02 1 1108- ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). GRAY 		8-97617-309-0 01 1 0710-1107 ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). GRAY 		8-97617-309-0 01 1 1108- ● ●
177 BOLT; SENSOR
M6X16 FLANGE 		0-28650-616-0 01 1 0710-1107 ●
177 BOLT; SENSOR
M6X16 FLANGE 		0-28650-616-0 01 1 1108- ● ●
191 STAY; FLYWHEEL HSG 1-11349-195-1 01 1 0710-1107 ●
191 STAY; FLYWHEEL HSG 1-11349-195-1 01 1 1108- ● ●
191 STAY; FLYWHEEL HSG 1-11349-196-1 01 1 0710-1107 ●
191 STAY; FLYWHEEL HSG 1-11349-196-1 01 1 1108- ● ●
192 BOLT; STAY TO HSG
M14X135 		1-09020-055-0 02 1 0710-1107 ●
192 BOLT; STAY TO HSG
M14X135 		1-09020-055-0 02 1 1108- ● ●
196 BOLT; STAY TO C/BL
(A) M14X100 		0-16956-400-0 02 1 0710-1107 ●
196 BOLT; STAY TO C/BL
(A) M14X100 		0-16956-400-0 02 1 1108- ● ●
196 BOLT; STAY TO C/BL
(B) M14X70 		9-91666-470-0 02 1 0710-1107 ●
196 BOLT; STAY TO C/BL
(B) M14X70 		9-91666-470-0 02 1 1108- ● ●
197 WASHER; PL,STAY
ID=15 OD=26 		9-09164-514-0 06 1 0710-1107 ●
197 WASHER; PL,STAY
ID=15 OD=26 		9-09164-514-0 06 1 1108- ● ●
205 NUT; HSG
M14 		0-91110-514-0 01 1 0710-1107 ●
205 NUT; HSG
M14 		0-91110-514-0 01 1 1108- ● ●
207 STUD; ENG FOOT
(B) M18X60 L=96 		0-43211-860-0 04 1 0710-1107 ●
207 STUD; ENG FOOT
(B) M18X60 L=96 		0-43211-860-0 04 1 1108- ● ●
207 STUD; ENG FOOT
(A) M18X80 L=116 		0-43211-880-0 04 1 0710-1107 ●
207 STUD; ENG FOOT
(A) M18X80 L=116 		0-43211-880-0 04 1 1108- ● ●
208 DOWEL; ENG FOOT 1-43249-001-0 04 1 0710-1107 ●
208 DOWEL; ENG FOOT 1-43249-001-0 04 1 1108- ● ●
211 BOLT; HSG
(B) M14X50 		0-16956-450-0 02 1 0710-1107 ●
211 BOLT; HSG
(B) M14X50 		0-16956-450-0 02 1 1108- ● ●
211 BOLT; HSG
(A) M8X35 FLANGE 		0-28050-835-0 08 1 0710-1107 ●
211 BOLT; HSG
(A) M8X35 FLANGE 		0-28050-835-0 08 1 1108- ● ●
211 BOLT; HSG
(C) M14X70 		9-91666-470-0 02 1 0710-1107 ●
211 BOLT; HSG
(C) M14X70 		9-91666-470-0 02 1 1108- ● ●
211 BOLT; HSG
(D) M14X45 		9-92361-445-0 10 1 0710-1107 ●
211 BOLT; HSG
(D) M14X45 		9-92361-445-0 10 1 1108- ● ●
213 POINTER; FLYWHEEL HSG 1-11327-045-1 01 1 0710-1107 ●
213 POINTER; FLYWHEEL HSG 1-11327-045-1 01 1 1108- ● ●
219 COVER; POINTER 1-11349-131-0 01 1 0710-1107 ●
219 COVER; POINTER 1-11349-131-0 01 1 1108- ● ●
224 STUD; STARTER
M14X35 L=56 		0-44011-435-0 03 1 0710-1107 ●
224 STUD; STARTER
M14X35 L=56 		0-44011-435-0 03 1 1108- ● ●
241 WASHER; PL,HSG
ID=15 OD=26 		9-09164-514-0 15 1 0710-1107 ●
241 WASHER; PL,HSG
ID=15 OD=26 		9-09164-514-0 15 1 1108- ● ●
242 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=20.5 OD=28.0 		9-09571-420-0 01 1 0710-1107 ●
242 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=20.5 OD=28.0 		9-09571-420-0 01 1 1108- ● ●
254 STUD; POINTER & COVER
M8X14,M8X14 L=33 		1-09300-058-1 02 1 0710-1107 ●
254 STUD; POINTER & COVER
M8X14,M8X14 L=33 		1-09300-058-1 02 1 1108- ● ●
255 STUD; RELAY LEVER BRKT
M12X30 L=48 		8-98059-951-0 03 1 0710-1107 ●
255 STUD; RELAY LEVER BRKT
M12X30 L=48 		8-98059-951-0 03 1 1108- ● ●
278 WASHER; COVER FIX 1-11349-127-0 01 1 0710-1107 ●
278 WASHER; COVER FIX 1-11349-127-0 01 1 1108- ● ●
290 PLUG; SENSOR HOLE
M20X10.5 		9-09662-005-0 01 1 0710-0805 ●
290 PLUG; SENSOR HOLE
M20X10.5 		8-98009-333-0 01 1 0806-1107 ●
290 PLUG; SENSOR HOLE
M20X10.5 		8-98009-333-0 01 1 1108- ● ●

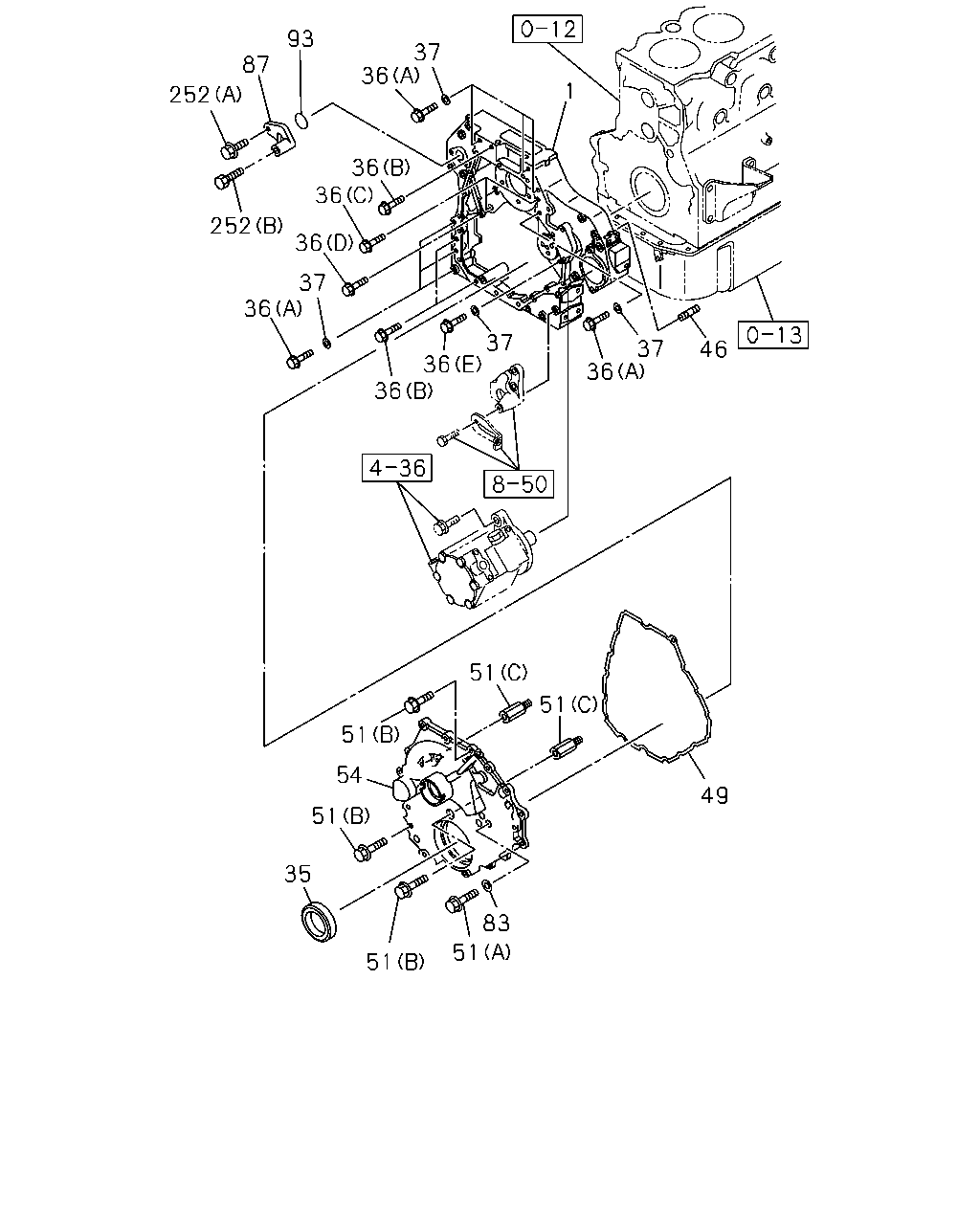

çizim 141974
93 37 87 36 1 252 36 36 252 36 37 36 37 36 36 37 46 36 51 51 51 54 49 51 35 83 51 51
BalonParca AdiParca NoAdetTipApplied Date A B
1 CASE; TIMING GEAR 8-98032-286-5 01 1 0710-1107 ●
1 CASE; TIMING GEAR 8-98032-286-5 01 1 1108-1309 ● ●
1 CASE; TIMING GEAR 8-98249-369-0 01 1 1310- ● ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). SILVER 		8-97617-308-0 01 1 0710-1107 ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). SILVER 		8-97617-308-0 01 1 1108- ● ●
36 BOLT; GEAR CASE
(B) M10X100 FLANGE 		0-28151-000-0 03 1 0710-1107 ●
36 BOLT; GEAR CASE
(B) M10X100 FLANGE 		0-28151-000-0 03 1 1108- ● ●
36 BOLT; GEAR CASE
(C) M10X25 FLANGE 		0-28151-025-0 04 1 0710-1107 ●
36 BOLT; GEAR CASE
(C) M10X25 FLANGE 		0-28151-025-0 04 1 1108- ● ●
36 BOLT; GEAR CASE
(D) M10X35 FLANGE 		0-28151-035-0 01 1 0710-1107 ●
36 BOLT; GEAR CASE
(D) M10X35 FLANGE 		0-28151-035-0 01 1 1108- ● ●
36 BOLT; GEAR CASE
(A) M14X110 		1-09020-007-0 07 1 0710-1107 ●
36 BOLT; GEAR CASE
(A) M14X110 		1-09020-007-0 07 1 1108- ● ●
36 BOLT; GEAR CASE
(E) M14X60 		1-09020-146-0 01 1 0710-1107 ●
36 BOLT; GEAR CASE
(E) M14X60 		1-09020-146-0 01 1 1108- ● ●
37 WASHER; PL,GEAR CASE
ID=15 OD=26 		9-09164-514-0 08 1 0710-1107 ●
37 WASHER; PL,GEAR CASE
ID=15 OD=26 		9-09164-514-0 08 1 1108-1301 ● ●
37 WASHER; PL,GEAR CASE
ID=15 OD=26 		0-91614-514-0 08 1 1302- ● ●
46 STUD; BRG COVER,RR
M14X45 L=66 		0-44011-445-0 01 1 0710-1107 ●
46 STUD; BRG COVER,RR
M14X45 L=66 		0-44011-445-0 01 1 1108- ● ●
49 GASKET; GEAR CASE TO COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-98061-423-0 01 1 0710-1107 ●
49 GASKET; GEAR CASE TO COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-98061-423-0 01 1 1108- ● ●
51 BOLT; GEAR CASE COVER
(A) M8X40 		0-10955-840-0 03 1 0710-1107 ●
51 BOLT; GEAR CASE COVER
(A) M8X40 		0-10955-840-0 03 1 1108- ● ●
51 BOLT; GEAR CASE COVER
(B) M10X30 FLANGE 		0-28151-030-0 17 1 0710-1107 ●
51 BOLT; GEAR CASE COVER
(B) M10X30 FLANGE 		0-28151-030-0 17 1 1108- ● ●
51 BOLT; GEAR CASE COVER
(C) M10X90 		8-97603-482-0 03 1 0710-1107 ●
51 BOLT; GEAR CASE COVER
(C) M10X90 		8-97603-482-0 03 1 1108- ● ●
54 COVER; GEAR CASE 1-11321-174-3 01 1 0710-1107 ●
54 COVER; GEAR CASE 1-11321-174-3 01 1 1108- ● ●
83 WASHER; PL,COVER
ID=8.5 OD=20 		5-09503-111-0 03 1 0710-1107 ●
83 WASHER; PL,COVER
ID=8.5 OD=20 		5-09503-111-0 03 1 1108- ● ●
87 COVER; TACHOMETER DRIVE 1-11349-151-2 01 1 0710-1001 ●
93 GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7 		1-09623-416-0 01 1 0710-1001 ●
252 BOLT; GEAR BOX
(A) M8X20 FLANGE 		0-28050-820-0 01 1 0710-1001 ●
252 BOLT; GEAR BOX
(B) M8X60 FLANGE 		0-28050-860-0 01 1 0710-0907 ●
252 BOLT; GEAR BOX
(B) M8X65 FLANGE 		1-09044-072-1 01 1 0908-1001 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
