5-01 — FRAME AND OTHER PARTS (#147117) — 40 parça

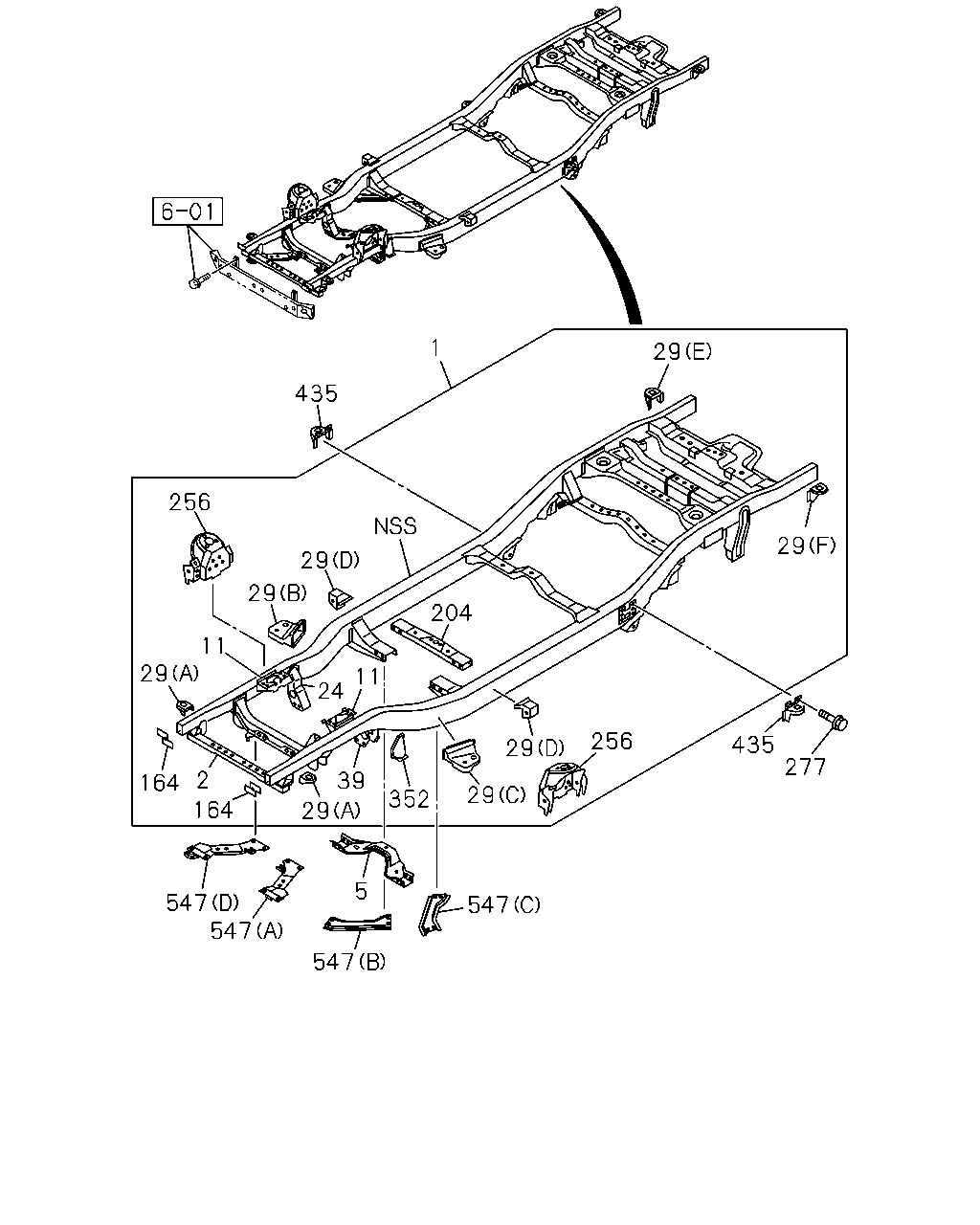

çizim 439189
277 435 29 29 1 435 29 29 256 29 164 164 547 547 547 547 29 29 256 352 39 24 11 11 29 5 2 204
BalonParca AdiParca NoAdetTipApplied Date A B
1 07.003 FRAME ASM
A/T 5 SPEED-AISIN(MA1) 		8-98278-017-0 01 1 1408- ●
1 07.003 FRAME ASM
M/T MUA 5 SPEED 5H(MWQ) 		8-98216-683-1 01 1 1408- ●
1 07.003 FRAME ASM
A/T 5 SPEED-AISIN(MA1) 		8-98278-018-0 01 1 1408- ●
2 07.010 MEMBER; CROSS,1ST 8-98106-701-1 01 1 1408- ● ●
5 07.010 MEMBER; CROSS,SUSPENSION 8-98173-915-1 01 1 1408- ●
5 07.010 MEMBER; CROSS,SUSPENSION 8-98229-450-0 01 1 1408- ●
11 00.029 BRACKET; ENG MTG 8-98106-794-2 01 1 1408- ● ●
11 00.029 BRACKET; ENG MTG 8-98106-796-2 01 1 1408- ● ●
24 07.105 BRACKET; FRT SPR,FRT 8-98106-807-1 01 1 1408- ● ●
29 07.330 BRACKET; CAB MTG
(A) 		8-97942-341-3 02 1 1408- ● ●
29 07.330 BRACKET; CAB MTG
(B) 		8-98106-784-3 01 1 1408- ● ●
29 07.330 BRACKET; CAB MTG
(C) 		8-98106-791-3 01 1 1408- ● ●
29 07.330 BRACKET; CAB MTG
(D) 		8-98107-534-0 02 1 1408- ● ●
29 07.330 BRACKET; CAB MTG
(E) 		8-98217-263-0 01 1 1408- ● ●
29 07.330 BRACKET; CAB MTG
(F) 		8-98217-264-0 01 1 1408- ● ●
39 07.112 BRACKET; FRT SPR,RR 8-98106-809-1 01 1 1408- ● ●
164 07.112 PLATE; FRT 8-98106-814-0 01 1 1408- ● ●
164 07.112 PLATE; FRT 8-98106-815-0 01 1 1408- ● ●
204 07.010 MEMBER; CROSS,TRANS MTG
A/T 5 SPEED-AISIN(MA1) 		8-98106-760-5 01 1 1408- ●
204 07.010 MEMBER; CROSS,TRANS MTG
M/T MUA 5 SPEED 5H(MWQ) 		8-98106-759-4 01 1 1408- ●
204 07.010 MEMBER; CROSS,TRANS MTG
A/T 5 SPEED-AISIN(MA1) 		8-98106-762-4 01 1 1408- ●
256 07.395 BRACKET; S/ABS 8-98106-801-6 01 1 1408- ● ●
256 07.395 BRACKET; S/ABS 8-98106-803-4 01 1 1408- ● ●
277 16.714 BOLT; CAB MTG BRKT 8-98196-741-0 12 1 1408- ● ●
352 07.039 BRACKET; BUMPER RUBBER 8-98106-835-3 01 1 1408- ● ●
352 07.039 BRACKET; BUMPER RUBBER 8-98106-836-3 01 1 1408- ● ●
435 07.330 BRACKET; CAB MTG 8-98205-085-0 02 1 1408- ● ●
547 07.039 BRACE; C/MBR
(B) 		8-98173-913-0 01 1 1408- ●
547 07.039 BRACE; C/MBR
(C) 		8-98173-914-0 01 1 1408- ●
547 07.039 BRACE; C/MBR
(D) 		8-98177-568-3 01 1 1408- ●
547 07.039 BRACE; C/MBR
(A) 		8-98177-569-1 01 1 1408- ●
547 07.039 BRACE; C/MBR
(B) 		8-98173-911-0 01 1 1408- ●
547 07.039 BRACE; C/MBR
(C) 		8-98173-912-0 01 1 1408- ●
547 07.039 BRACE; C/MBR
(D) 		8-98229-465-0 01 1 1408- ●
547 07.039 BRACE; C/MBR
(A) 		8-98229-466-0 01 1 1408- ●
çizim 439205
497 497 497 497 485
BalonParca AdiParca NoAdetTipApplied Date A B
485 07.039 NUT; TRANS MTG MBR,FRAME
04.085 M10 FLANGE 		0-91180-210-0 04 1 1408- ● ●
497 07.006 BOLT; C/MBR
02.277 (C) M10X120 FLANGE 		0-28066-012-0 04 1 1408- ● ●
497 07.006 BOLT; C/MBR
07.395 (D) M12X30 FLANGE 		0-28651-230-0 08 1 1408- ● ●
497 07.006 BOLT; C/MBR
03.023 (B) M10X35 FLANGE 		0-28661-035-0 06 1 1408- ● ●
497 07.006 BOLT; C/MBR
EXC. SKID PLATE<7WE> 01.267 (A) M10X28 W/LK&PL WASHER 		8-97945-706-0 02 1 1408- ●
