51520 - UCR/UCS(MIDDLE EAST)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-60 - REAR SUSPENSION
▶

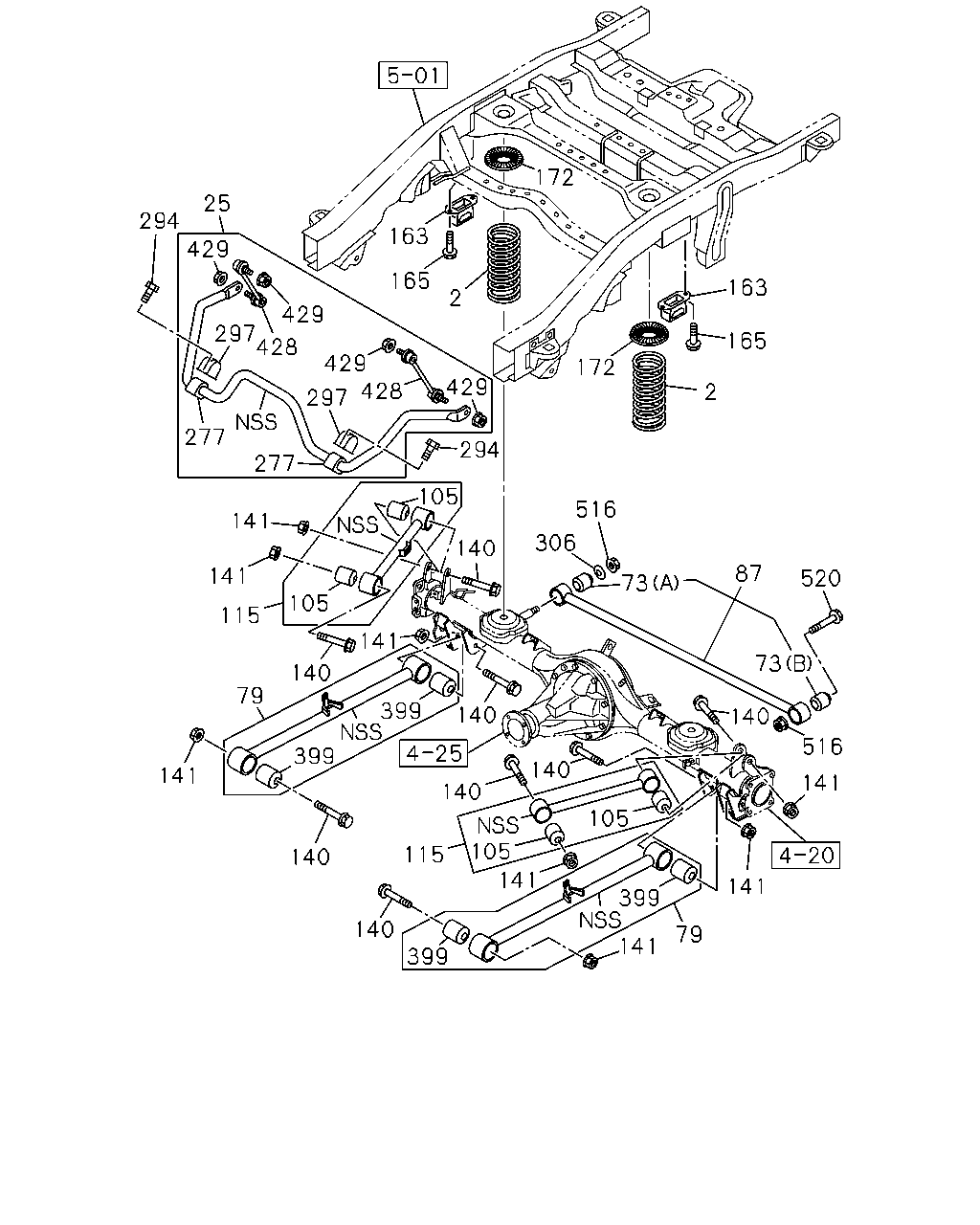

4-60 — REAR SUSPENSION
(#147114) — 22 parça
Tümü
A - UCB6VC
B - UCS6VC
163
165
429
429
297
428
297
429
25
294
277
141
277
428
294
429
2
172
2
165
163
516
306
140
105
105
141
115
140
79
399
141
140
140
115
140
105
141
399
105
140
140
399
141
73
87
520
73
140
516
141
141
79
141
399
172
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
07.503 SPRING; COIL,RR SUSP
8-97947-799-2
02
1
1408-
●
●
25
07.241 BAR ASM; STAB,RR SUSP
8-97947-792-0
01
1
1408-
●
●
73
07.243 BUSHING; LATERAL ROD,RR SUSP
(A)
8-97947-785-1
01
1
1408-
●
●
73
07.243 BUSHING; LATERAL ROD,RR SUSP
(B)
8-97947-786-0
01
1
1408-
●
●
79
07.240 LINK; TRAILING,RR SUSP
07.242
8-97947-369-0
02
1
1408-
●
●
87
17.204 LINK; LATERAL,RR SUSP
07.241
8-97947-365-2
01
1
1408-
●
●
105
07.240 BUSHING; UPR LINK
8-97947-787-0
04
1
1408-
●
●
115
07.240 LINK; UPR,W/BUSHING
07.242
8-97947-367-1
02
1
1408-
●
●
140
07.242 BOLT; CONT ARM TO BODY
8-97947-834-0
08
1
1408-
●
●
141
07.242 NUT; CONT ARM TO BODY
8-98217-474-0
08
1
1408-
●
●
163
07.529 RUBBER; HELPER,RR SPR
8-97947-790-0
02
1
1408-
●
●
165
07.529 BOLT; HELPER RUBBER
07.833 M10X25 FLANGE
0-28661-025-0
04
1
1408-
●
●
172
07.545 INSULATOR; RR SPR UPR
8-97947-789-0
02
1
1408-
●
●
277
07.243 BUSHING; STAB,RR UPR
8-97247-083-0
02
1
1408-
●
●
294
07.242 BOLT; STAB BAR TO RR AXLE
01.531 M8X20 FLANGE
0-28650-820-0
04
1
1408-
●
●
297
07.242 CAP; STAB BAR
8-97947-948-0
02
1
1408-
●
●
306
07.242 WASHER; ROD
8-97947-826-0
01
1
1408-
●
●
399
07.243 BUSHING; TRAILING ROD
8-97947-788-0
04
1
1408-
●
●
428
07.240 LINK; RR STABILIZER
8-97947-794-0
02
1
1408-
●
●
429
07.242 NUT; LINK
M12 LOCK NUT FLANGE
0-91380-012-0
04
1
1408-
●
●
516
07.242 NUT; ROD
8-98217-474-0
02
1
1408-
●
●
520
07.242 BOLT; ROD
0-29261-490-0
01
1
1408-
●
●
