4-50 — FRONT SUSPENSION (#147113) — 48 parça

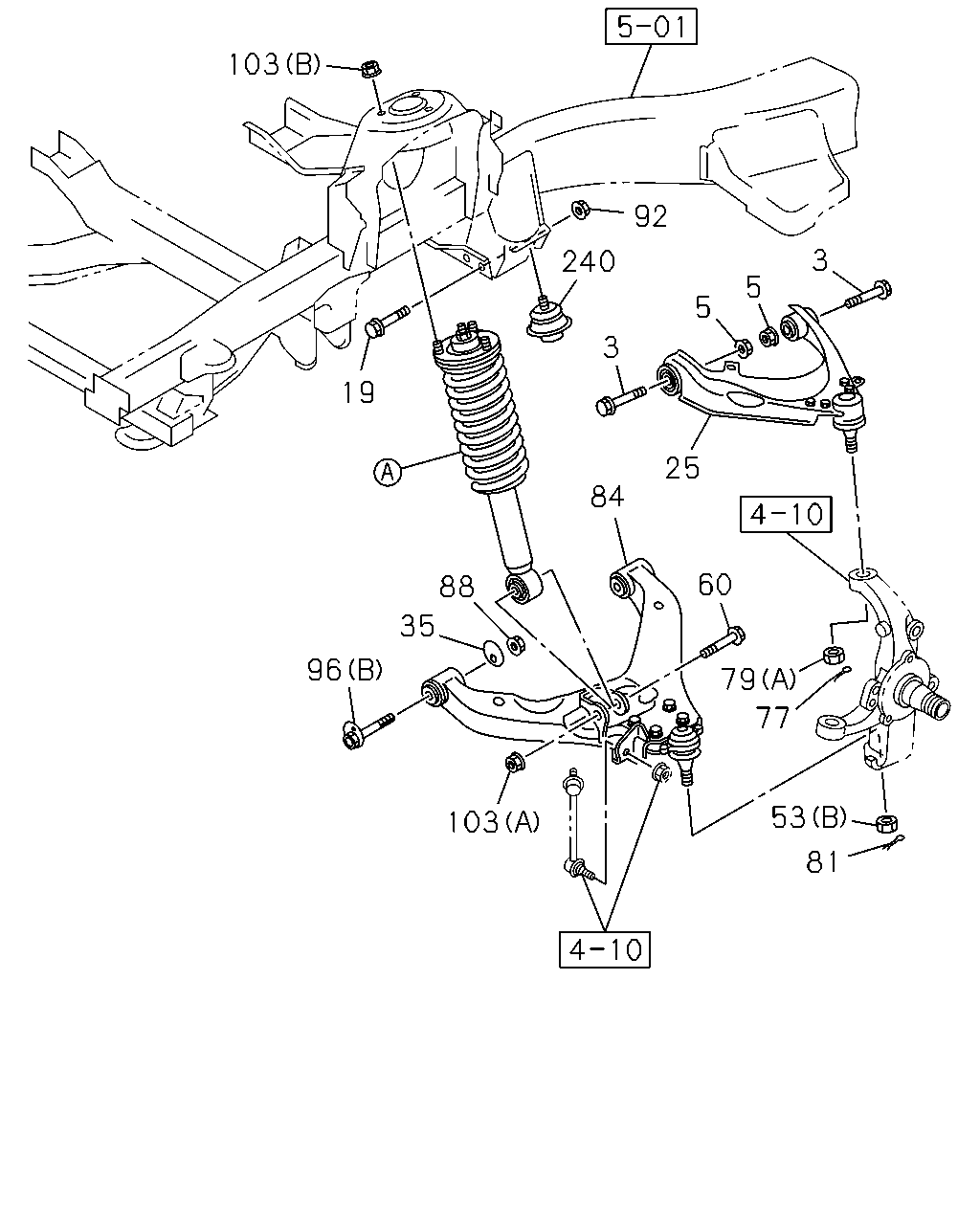

çizim 439129
103 92 3 5 5 240 3 19 84 25 60 79 77 53 81 103 96 35 88
BalonParca AdiParca NoAdetTipApplied Date A B
3 06.164 BOLT; UPR LINK TO FRAME
M14X74 		8-97947-455-0 04 1 1408- ● ●
5 06.164 NUT; UPR LINK TO FRAME
07.529 M14 FLANGE 		8-97245-635-0 04 1 1408- ● ●
19 07.425 BOLT; FRT SUSP TO C/MBR
M10X100 		0-28061-000-0 04 1 1408- ● ●
25 06.168 ARM; UPR CONT 8-97945-841-2 01 1 1408- ● ●
25 06.168 ARM; UPR CONT 8-97945-842-2 01 1 1408- ● ●
35 06.170 PLATE; BUSHING SUPPORT
06.164 		8-97214-814-0 04 1 1408- ● ●
53 06.174 NUT; LWR LINK
07.529 (B) M18 		0-91110-518-0 02 1 1408- ● ●
53 06.174 NUT; LWR LINK
05.816 (A) M12 FLANGE 		0-91180-212-0 08 1 1408- ● ●
60 07.347 BOLT; S/ABS TO LWR LINK
06.164 M14X74 		8-97947-455-0 02 1 1408- ● ●
77 06.174 PIN; SPLIT,LINK END TO KNUCKLE
OD=2.8 L=28 		0-81123-028-0 02 1 1408- ● ●
79 06.174 NUT; UPR LINK END TO KNUCKLE
07.833 (A) M14 		0-91110-514-0 02 1 1408- ● ●
79 06.174 NUT; UPR LINK END TO KNUCKLE
01.540 (B) M8 FLANGE 		0-91180-208-0 08 1 1408- ● ●
81 06.174 PIN; SPLIT,LWR LINK TO KNUCKLE
OD=2.8 L=28 		0-81123-028-0 02 1 1408- ● ●
84 06.168 ARM; LWR CONT 8-97945-843-1 01 1 1408- ● ●
84 06.168 ARM; LWR CONT 8-97945-844-1 01 1 1408- ● ●
88 06.174 NUT; LWR LINK
M16 FLANGE 		8-97245-631-0 04 1 1408- ● ●
92 06.164 NUT; FRT SUSP
04.085 M10 FLANGE 		0-91180-210-0 04 1 1408- ● ●
96 06.174 BOLT; LWR LINK
(A) M12X37 FLANGE 		8-97245-639-0 08 1 1408- ● ●
96 06.174 BOLT; LWR LINK
(B) M16X102 W/PLATE 		8-98186-404-0 04 1 1408- ● ●
103 07.347 NUT; S/ABS TO LWR LINK
07.529 (A) M14 FLANGE 		8-97245-635-0 02 1 1408- ● ●
103 07.347 NUT; S/ABS TO LWR LINK
(B) M10 FLANGE 		8-97245-637-0 06 1 1408- ● ●
240 07.395 BUMPER; LWR CONT ARM 8-97946-180-0 02 1 1408- ● ●

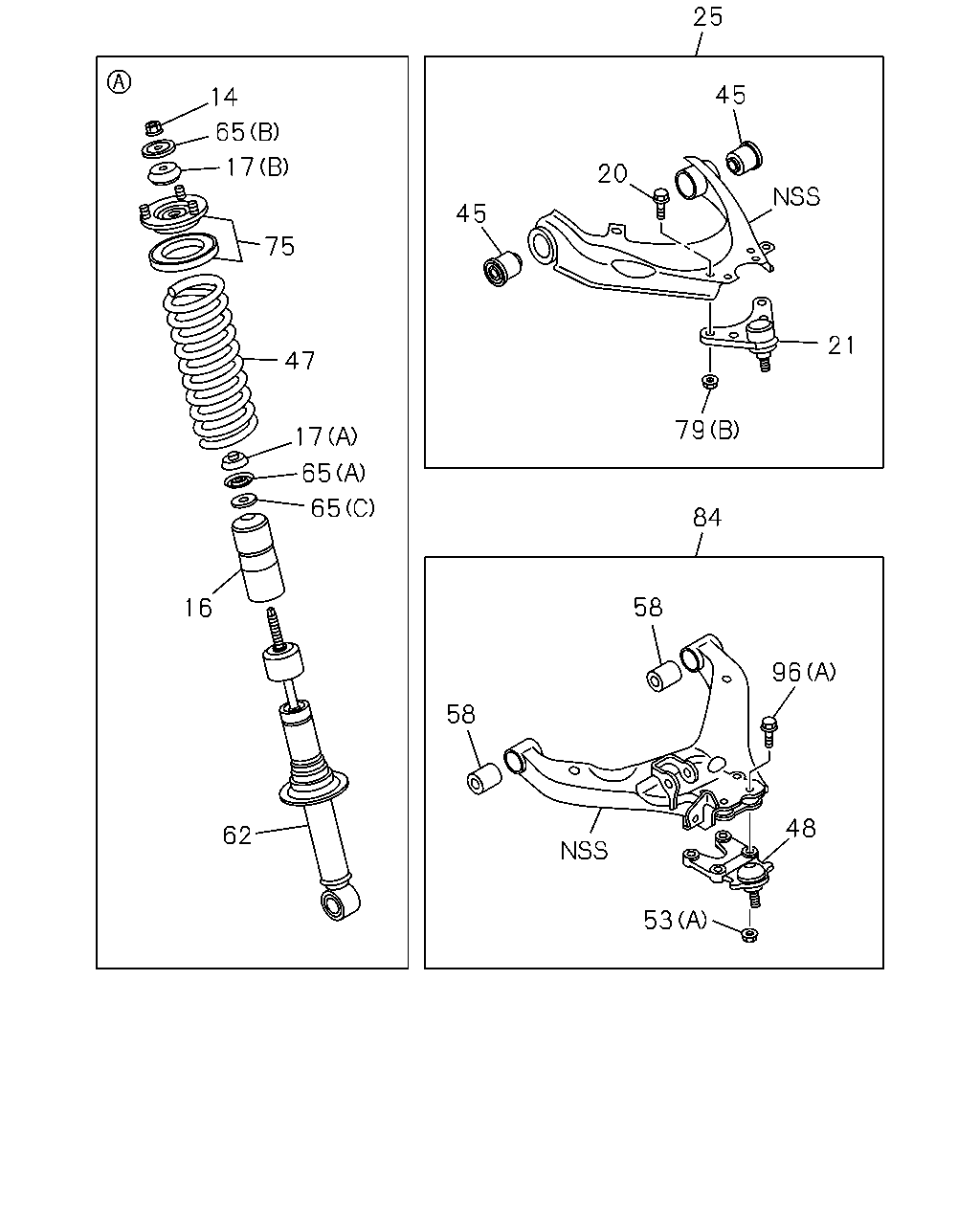

çizim 439135
25 45 21 20 79 45 14 65 17 75 47 17 65 65 16 62 58 58 96 48 53 84
BalonParca AdiParca NoAdetTipApplied Date A B
14 07.389 NUT; S/ABS,UPR
M12 FLANGE 		8-97236-304-0 02 1 1408- ● ●
16 07.395 COVER; DUST,FRT S/ABS 8-97947-100-0 02 1 1408- ● ●
17 07.388 BUSHING; RUBBER,S/ABS
(A) 		8-97236-303-0 02 1 1408- ● ●
17 07.388 BUSHING; RUBBER,S/ABS
(B) 		8-97264-184-0 02 1 1408- ● ●
20 06.174 BOLT; UPR LINK END TO UPR LINK
M8X25 FLANGE 		0-28060-825-0 08 1 1408- ● ●
21 06.168 JOINT ASM; BALL,UPR CONT ARM 8-98005-827-0 02 1 1408- ● ●
25 06.168 ARM; UPR CONT 8-97945-841-2 01 1 1408- ● ●
25 06.168 ARM; UPR CONT 8-97945-842-2 01 1 1408- ● ●
45 06.164 BUSHING; UPR LINK,FRT 8-97947-419-0 04 1 1408- ● ●
47 07.412 SPRING; COIL,FRT SUSP 8-97947-205-3 02 1 1408- ●
47 07.412 SPRING; COIL,FRT SUSP 8-97947-960-1 02 1 1408- ●
48 06.174 JOINT ASM; BALL,LWR CONT ARM 8-98005-875-0 02 1 1408- ● ●
53 06.174 NUT; LWR LINK
07.529 (B) M18 		0-91110-518-0 02 1 1408- ● ●
53 06.174 NUT; LWR LINK
05.816 (A) M12 FLANGE 		0-91180-212-0 08 1 1408- ● ●
58 06.170 BUSHING; LWR LINK 8-97947-087-1 04 1 1408- ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT 8-97947-796-1 02 1 1408- ● ●
65 07.347 WASHER; S/ABS
(C) 		8-97944-892-0 02 1 1408- ● ●
65 07.347 WASHER; S/ABS
(B) 		8-98005-971-0 02 1 1408- ● ●
65 07.347 WASHER; S/ABS
(A) 		8-98005-972-0 02 1 1408- ● ●
75 07.380 BRACKET; FRT S/ABS 8-98177-899-1 02 1 1408- ● ●
79 06.174 NUT; UPR LINK END TO KNUCKLE
07.833 (A) M14 		0-91110-514-0 02 1 1408- ● ●
79 06.174 NUT; UPR LINK END TO KNUCKLE
01.540 (B) M8 FLANGE 		0-91180-208-0 08 1 1408- ● ●
84 06.168 ARM; LWR CONT 8-97945-843-1 01 1 1408- ● ●
84 06.168 ARM; LWR CONT 8-97945-844-1 01 1 1408- ● ●
96 06.174 BOLT; LWR LINK
(A) M12X37 FLANGE 		8-97245-639-0 08 1 1408- ● ●
96 06.174 BOLT; LWR LINK
(B) M16X102 W/PLATE 		8-98186-404-0 04 1 1408- ● ●
