Isuzu WW
▶
SUV
▶
UCR
▶
51520 - UCR/UCS(MIDDLE EAST)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-31 - STEERING COLUMN AND SHAFT
▶
4-31 — STEERING COLUMN AND SHAFT
(#147107) — 38 parça
Tümü
A - UCB6VC
B - UCS6VC
◀

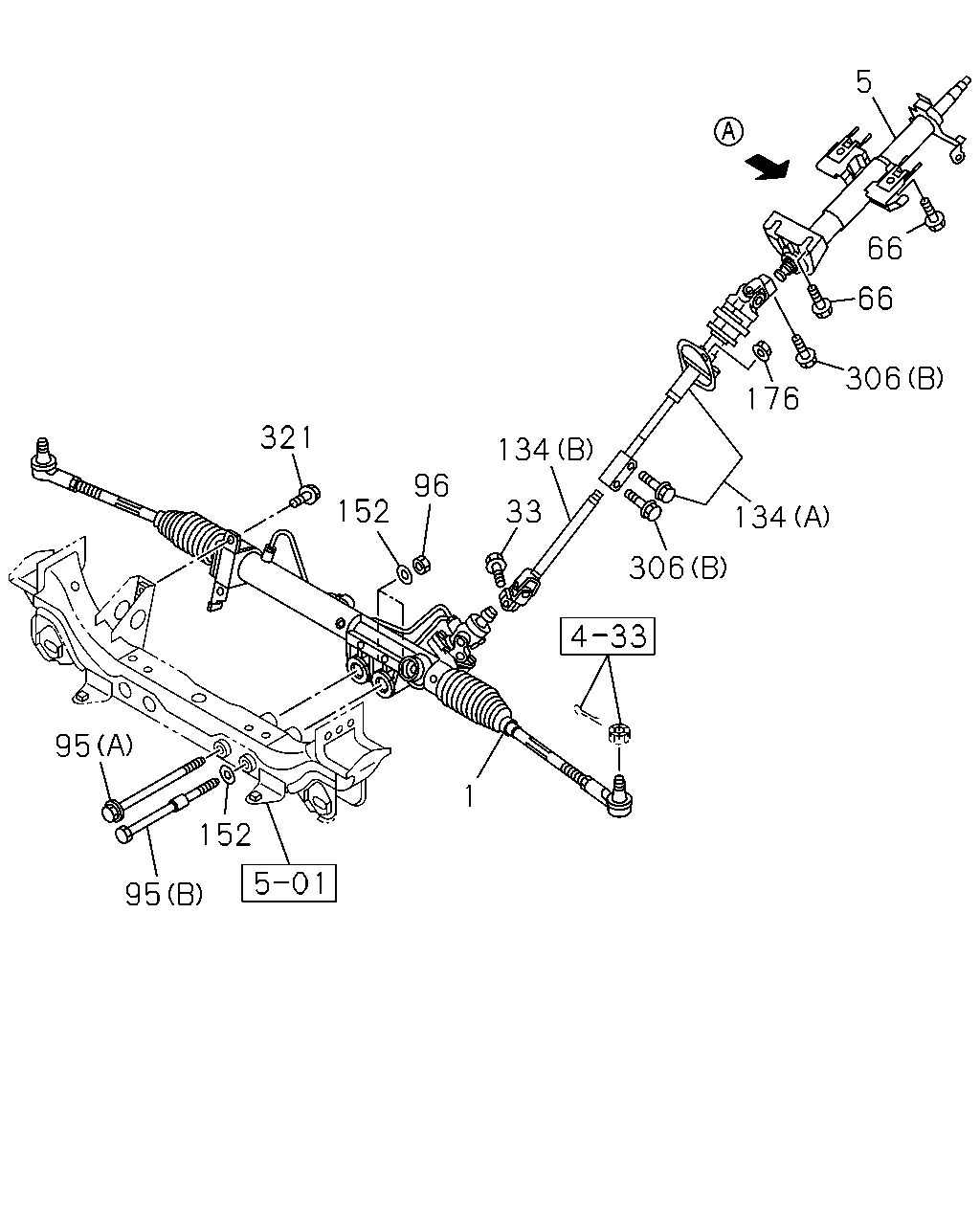

[431A] STEERING UNIT AND SHAFT (21 parça)

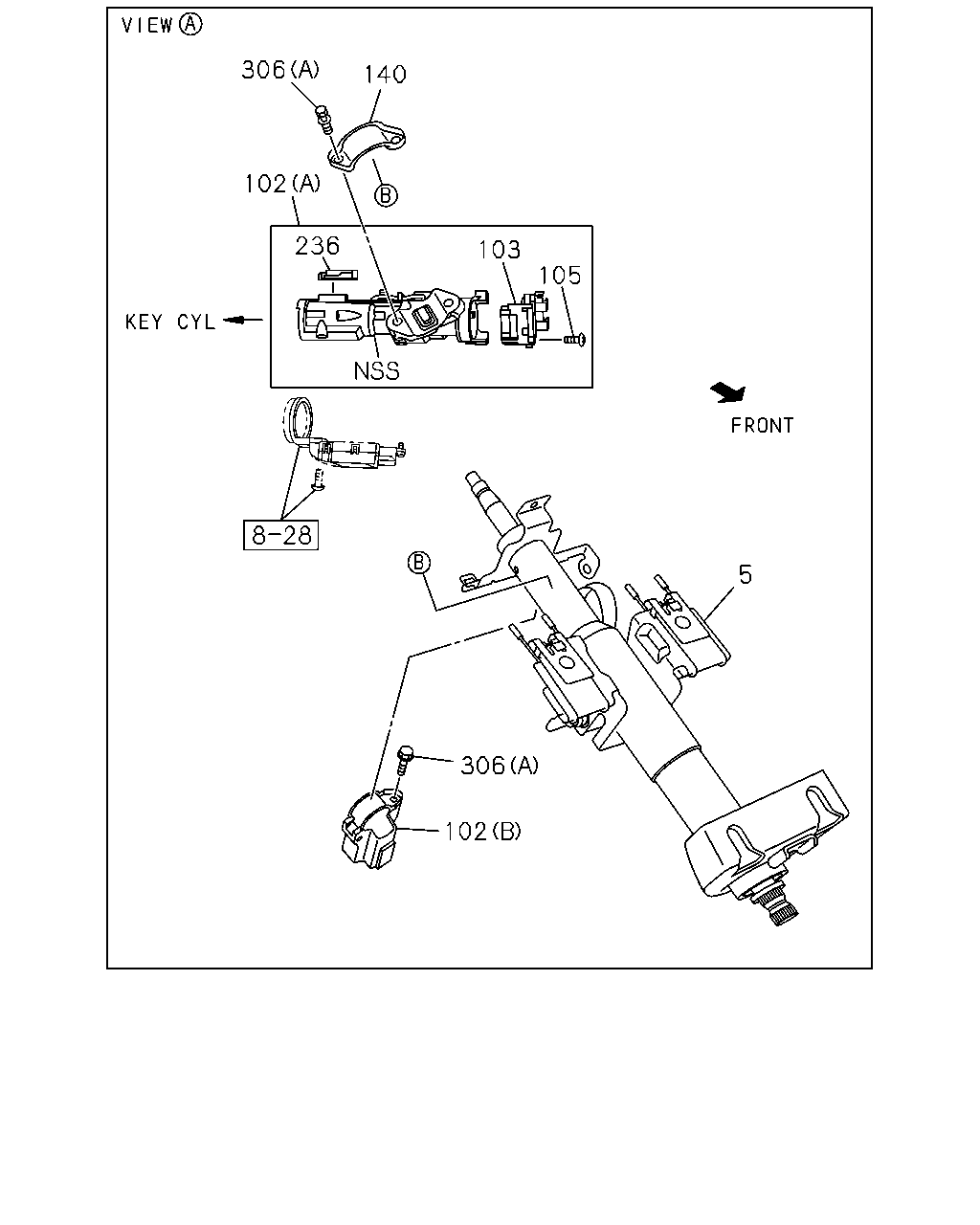

[431A] STEERING LOCK (17 parça)
▶
321
152
96
134
33
306
5
66
66
306
176
134
95
152
95
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT.
8-98231-300-0
01
1
1408-
●
●
5
06.518 COLUMN; STRG
PASSIVE ENTRY AND START SYSTEM<AP3> TILT STEERING<N33>
8-98226-628-1
01
1
1408-
●
5
06.518 COLUMN; STRG
PASSIVE ENTRY AND START SYSTEM<AP3>
8-98226-628-1
01
1
1408-
●
5
06.518 COLUMN; STRG
TILT STEERING<N33> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>
8-98273-325-0
01
1
1408-
●
5
06.518 COLUMN; STRG
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>
8-98273-325-0
01
1
1408-
●
5
06.518 COLUMN; STRG
EXC. TILT STEERING<N33>
8-98273-326-0
01
1
1408-
●
33
06.525 BOLT; STRG SHAFT TO UNIT
M8X35 FLANGE
8-97249-320-0
01
1
1408-
●
●
66
06.514 BOLT; STRG COLUMN
06.216 M8X25 FLANGE
0-28650-825-0
04
1
1408-
●
●
95
06.509 BOLT; STRG UNIT
(B) M16X186.5
8-97947-503-0
01
1
1408-
●
●
95
06.509 BOLT; STRG UNIT
(A) M16X186.5 W/PL WASHER
8-98162-884-1
01
1
1408-
●
●
96
06.509 NUT; STRG UNIT
M16
0-91110-516-0
02
1
1408-
●
●
134
06.524 SHAFT; STRG,2ND
(A)
8-97946-128-1
01
1
1408-
●
●
134
06.524 SHAFT; STRG,2ND
(B)
8-97946-136-0
01
1
1408-
●
●
152
00.796 WASHER; LK,STRG UNIT
ID=17
8-97947-501-0
03
1
1408-1504
●
●
152
00.796 WASHER; LK,STRG UNIT
ID=17
8-98296-670-0
03
1
1505-
●
●
176
06.509 NUT; STRG
01.062 M6 FLANGE
0-91180-106-0
02
1
1408-
●
●
306
06.525 BOLT; STRG SHAFT
PASSIVE ENTRY AND START SYSTEM<AP3> 06.500 (A) M8X18.5 TWISTED OFF
8-97945-749-0
01
1
1408-
●
306
06.525 BOLT; STRG SHAFT
A/T 5 SPEED-AISIN(MA1) PASSIVE ENTRY AND START SYSTEM<AP3> 06.500 (A) M8X18.5 TWISTED OFF
8-97945-749-0
01
1
1408-
●
306
06.525 BOLT; STRG SHAFT
(B) M8X35 FLANGE
8-97249-320-0
02
1
1408-
●
●
306
06.525 BOLT; STRG SHAFT
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 06.500 (A) M8X18.5 TWISTED OFF
8-97945-749-0
02
1
1408-
●
●
321
06.514 BOLT; BRKT,STRG
06.509 M12X30 FLANGE
0-28661-230-0
02
1
1408-
●
●
306
140
102
236
103
306
102
5
105
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
5
06.518 COLUMN; STRG
PASSIVE ENTRY AND START SYSTEM<AP3> TILT STEERING<N33>
8-98226-628-1
01
1
1408-
●
5
06.518 COLUMN; STRG
PASSIVE ENTRY AND START SYSTEM<AP3>
8-98226-628-1
01
1
1408-
●
5
06.518 COLUMN; STRG
TILT STEERING<N33> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>
8-98273-325-0
01
1
1408-
●
5
06.518 COLUMN; STRG
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>
8-98273-325-0
01
1
1408-
●
5
06.518 COLUMN; STRG
EXC. TILT STEERING<N33>
8-98273-326-0
01
1
1408-
●
102
06.500 LOCK ASM; STRG
PASSIVE ENTRY AND START SYSTEM<AP3> (B)
8-98226-269-0
01
1
1408-
●
102
06.500 LOCK ASM; STRG
A/T 5 SPEED-AISIN(MA1) PASSIVE ENTRY AND START SYSTEM<AP3> (B)
8-98226-269-0
01
1
1408-
●
102
06.500 LOCK ASM; STRG
A/T 5 SPEED-AISIN(MA1) EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (A)
8-98076-120-0
01
1
1408-
●
●
102
06.500 LOCK ASM; STRG
M/T MUA 5 SPEED 5H(MWQ) EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (A)
8-98076-117-0
01
1
1408-
●
103
02.188 SWITCH; IGNITION
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>
8-98132-719-0
01
1
1408-
●
●
105
06.500 SCREW; IGN SW
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>
8-98192-449-0
02
1
1408-
●
●
140
06.524 BRACKET; STRG COWL
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>
8-98134-652-0
01
1
1408-
●
●
236
02.195 SWITCH; DOOR WARNING,STRG LOCK
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>
8-98132-720-0
01
1
1408-
●
●
306
06.525 BOLT; STRG SHAFT
PASSIVE ENTRY AND START SYSTEM<AP3> 06.500 (A) M8X18.5 TWISTED OFF
8-97945-749-0
01
1
1408-
●
306
06.525 BOLT; STRG SHAFT
A/T 5 SPEED-AISIN(MA1) PASSIVE ENTRY AND START SYSTEM<AP3> 06.500 (A) M8X18.5 TWISTED OFF
8-97945-749-0
01
1
1408-
●
306
06.525 BOLT; STRG SHAFT
(B) M8X35 FLANGE
8-97249-320-0
02
1
1408-
●
●
306
06.525 BOLT; STRG SHAFT
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 06.500 (A) M8X18.5 TWISTED OFF
8-97945-749-0
02
1
1408-
●
●
