3-55 — BRAKE PIPING; OIL,REAR (#147096) — 28 parça

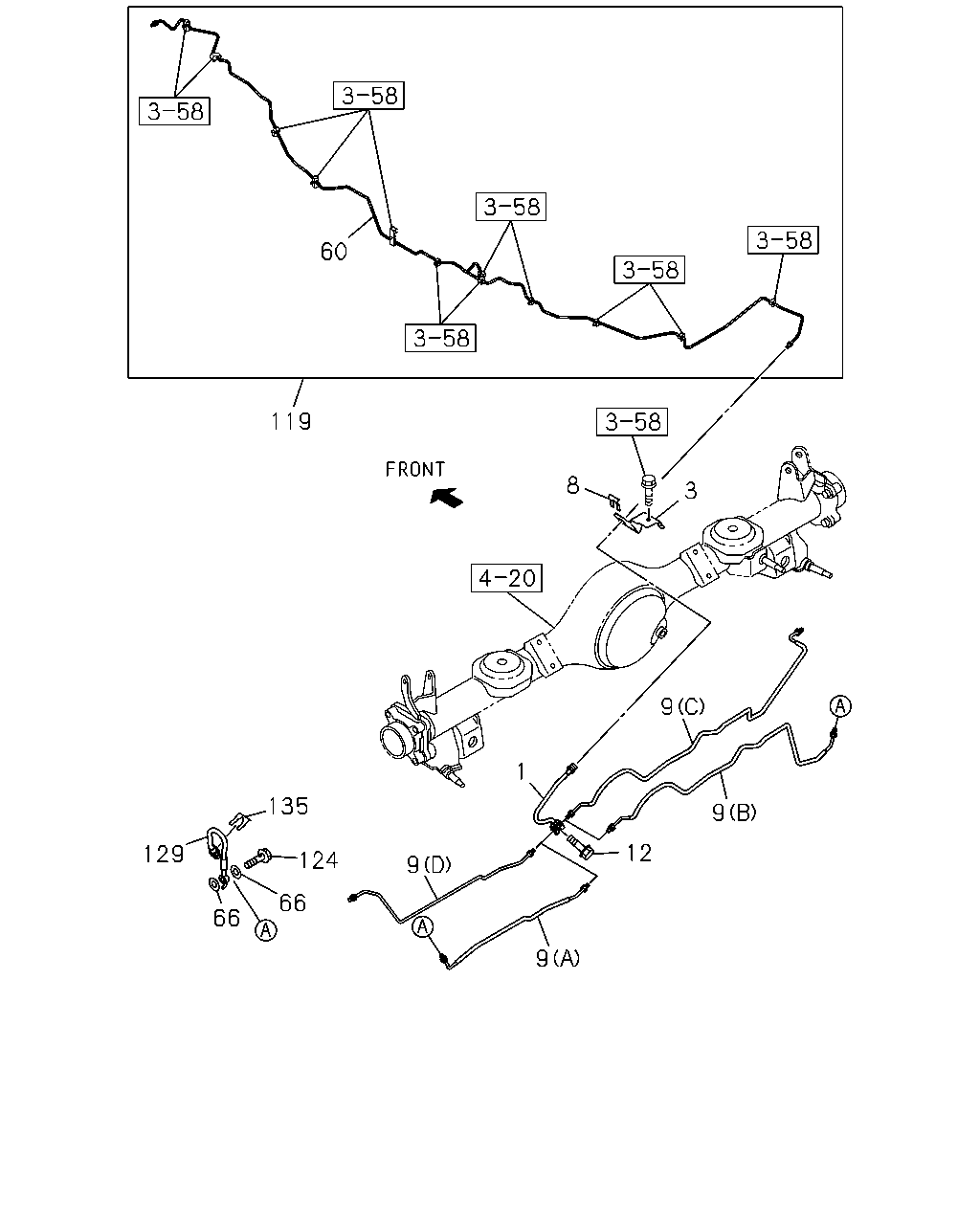

8 3 135 129 124 66 66 9 9 9 9 60 12 1 119

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.680 HOSE; FLEX,RR BRK	8-98198-320-0	01	1	1408-	●	●
3	04.681 BRACKET; FLEX HOSE,RR BRK	8-98198-326-0	01	1	1408-	●	●
8	04.686 CLIP; RR BRK	8-97360-054-0	01	1	1408-	●	●
9	04.685 PIPE; BRK,RR AXLE EXC. VAC POWER 4 WHL DISC BRAKE<JF8> (C)	8-98191-437-0	01	1	1511-	●
9	04.685 PIPE; BRK,RR AXLE EXC. VAC POWER 4 WHL DISC BRAKE<JF8> (D)	8-98191-438-0	01	1	1511-	●
9	04.685 PIPE; BRK,RR AXLE (B)	8-98191-435-0	01	1	1408-1510	●	●
9	04.685 PIPE; BRK,RR AXLE VAC POWER 4 WHL DISC BRAKE<JF8> (B)	8-98191-435-0	01	1	1511-	●
9	04.685 PIPE; BRK,RR AXLE (B)	8-98191-435-0	01	1	1511-		●
9	04.685 PIPE; BRK,RR AXLE (A)	8-98191-436-0	01	1	1408-1510	●	●
9	04.685 PIPE; BRK,RR AXLE VAC POWER 4 WHL DISC BRAKE<JF8> (A)	8-98191-436-0	01	1	1511-	●
9	04.685 PIPE; BRK,RR AXLE (A)	8-98191-436-0	01	1	1511-		●
12	04.685 BOLT; FLEX HOSE TO RR AXLE 03.403 M8X30 FLANGE	0-28650-830-0	01	1	1408-	●	●
60	04.685 PIPE ASM; BRK	8-98197-852-0	01	1	1408-	●	●
66	04.686 GASKET; BRK HOSE 08.955 ID=10.2 OD=16.0	9-09571-410-0	04	1	1408-1510	●	●
66	04.686 GASKET; BRK HOSE VAC POWER 4 WHL DISC BRAKE<JF8> 08.955 ID=10.2 OD=16.0	9-09571-410-0	04	1	1511-	●
66	04.686 GASKET; BRK HOSE 08.955 ID=10.2 OD=16.0	9-09571-410-0	04	1	1511-		●
119	04.685 PIPE; BRK,2WAY TO RR	8-98197-849-0	01	1	1408-	●	●
124	04.685 BOLT; EYE,FLEX HOSE,RR BRK 04.681 M10X22	8-98014-005-0	02	1	1408-1510	●	●
124	04.685 BOLT; EYE,FLEX HOSE,RR BRK VAC POWER 4 WHL DISC BRAKE<JF8> 04.681 M10X22	8-98014-005-0	02	1	1511-	●
124	04.685 BOLT; EYE,FLEX HOSE,RR BRK 04.681 M10X22	8-98014-005-0	02	1	1511-		●
129	04.680 HOSE; FLEX,RR DISC	8-98198-323-0	02	1	1408-1510	●	●
129	04.680 HOSE; FLEX,RR DISC VAC POWER 4 WHL DISC BRAKE<JF8>	8-98198-323-0	02	1	1511-	●
129	04.680 HOSE; FLEX,RR DISC	8-98198-323-0	02	1	1511-		●
135	04.686 CLIP; FLEX HOSE	8-97360-054-0	02	1	1408-1510	●	●
135	04.686 CLIP; FLEX HOSE VAC POWER 4 WHL DISC BRAKE<JF8>	8-97360-054-0	02	1	1511-	●
135	04.686 CLIP; FLEX HOSE	8-97360-054-0	02	1	1511-		●

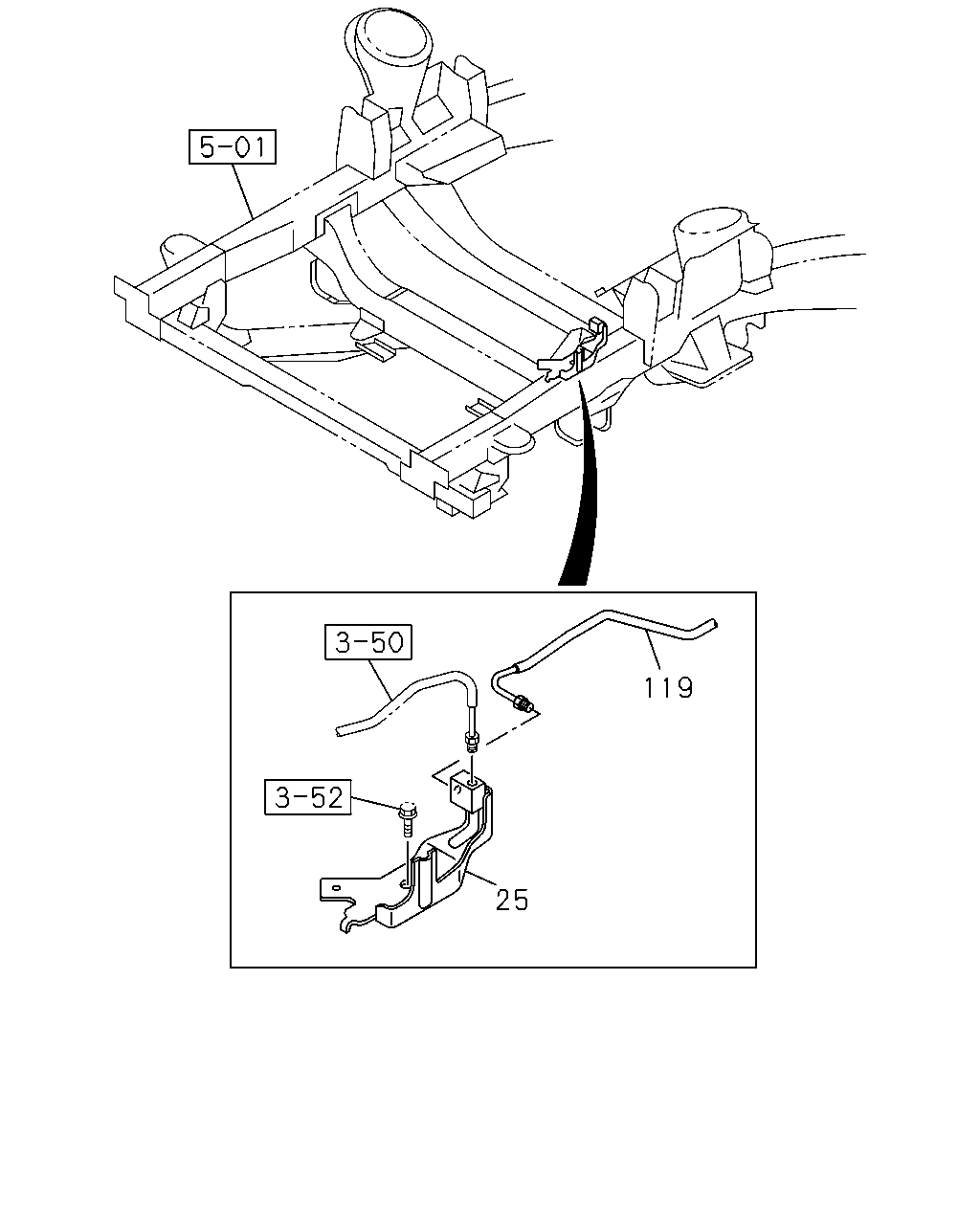

119 25

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	25	04.686 CONNECTOR	8-98099-784-1	01	1	1408-	●	●
	119	04.685 PIPE; BRK,2WAY TO RR	8-98197-849-0	01	1	1408-	●	●
