3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#147094) — 81 parça

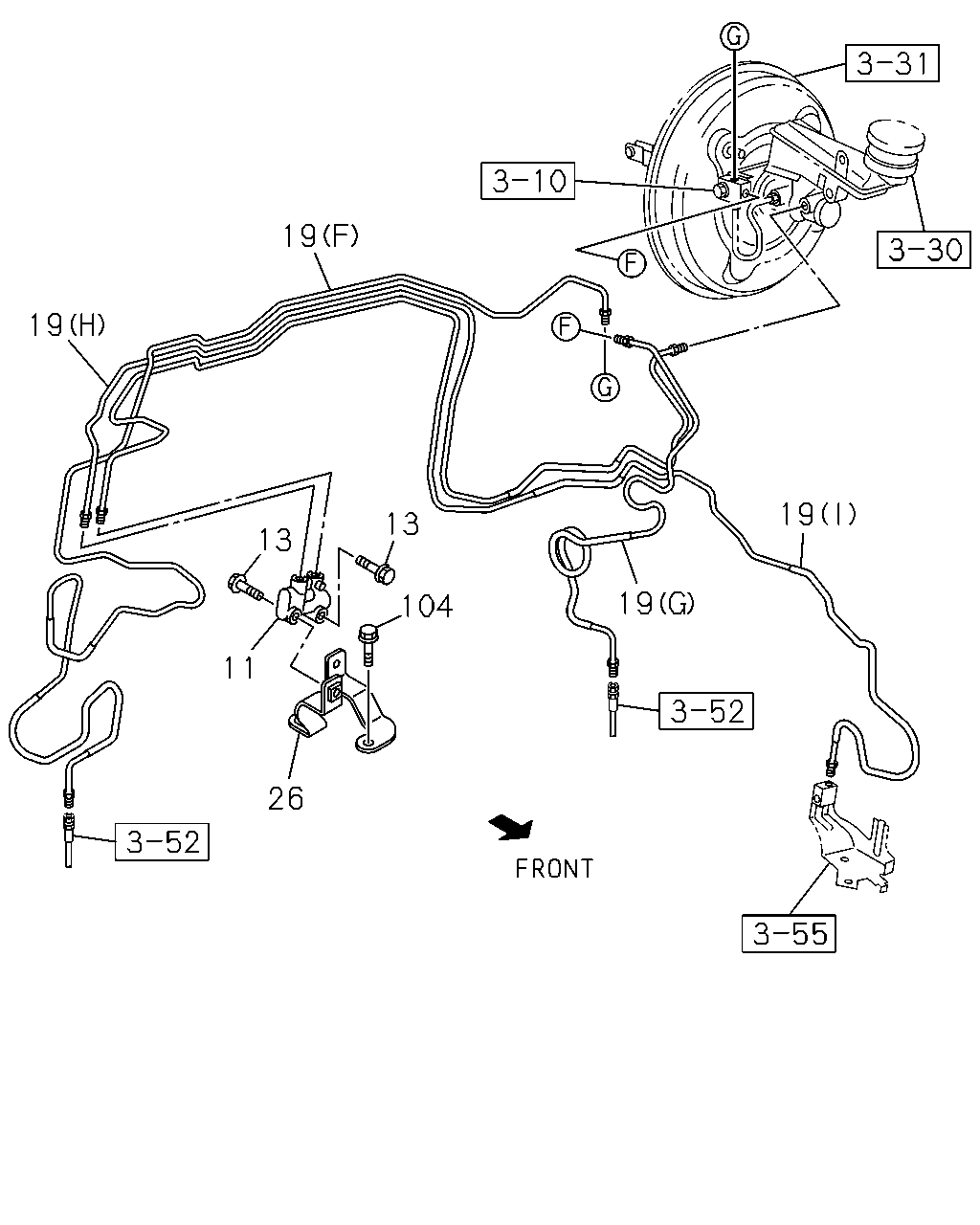

19 19 13 13 104 11 26 19 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	04.686 VALVE; BRK CONT EXC. ABS W/EBD BRAKE ASSIST<JE5>	8-97235-339-2	01	1	1511-	●
13	04.686 BOLT; VLV TO BRKT EXC. ABS W/EBD BRAKE ASSIST<JE5> M8X45 FLANGE	0-29260-845-0	02	1	1511-	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. ABS W/EBD BRAKE ASSIST<JE5> (H)	8-98185-884-0	01	1	1511-	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. ABS W/EBD BRAKE ASSIST<JE5> (F)	8-98185-885-1	01	1	1511-	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. ABS W/EBD BRAKE ASSIST<JE5> (I)	8-98185-886-0	01	1	1511-	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. ABS W/EBD BRAKE ASSIST<JE5> (G)	8-98221-723-0	01	1	1511-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (D)	8-98099-751-0	01	1	1408-1510	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ABS W/EBD BRAKE ASSIST<JE5> (D)	8-98099-751-0	01	1	1511-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (D)	8-98099-751-0	01	1	1511-		●
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-98099-756-1	01	1	1408-1510	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ABS W/EBD BRAKE ASSIST<JE5> (B)	8-98099-756-1	01	1	1511-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-98099-756-1	01	1	1511-		●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98099-757-1	01	1	1408-1510	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ABS W/EBD BRAKE ASSIST<JE5> (A)	8-98099-757-1	01	1	1511-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98099-757-1	01	1	1511-		●
19	04.685 PIPE; BRK,M/CYL TO UNION (E)	8-98159-941-1	01	1	1408-1510	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ABS W/EBD BRAKE ASSIST<JE5> (E)	8-98159-941-1	01	1	1511-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (E)	8-98159-941-1	01	1	1511-		●
19	04.685 PIPE; BRK,M/CYL TO UNION (C)	8-98202-432-0	01	1	1408-1510	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ABS W/EBD BRAKE ASSIST<JE5> (C)	8-98202-432-0	01	1	1511-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (C)	8-98202-432-0	01	1	1511-		●
26	04.730 BRACKET; PROPORTIONING VLV EXC. ABS W/EBD BRAKE ASSIST<JE5>	8-98194-685-0	01	1	1511-	●
104	04.730 BOLT; BRKT TO BODY EXC. ABS W/EBD BRAKE ASSIST<JE5> 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1511-	●

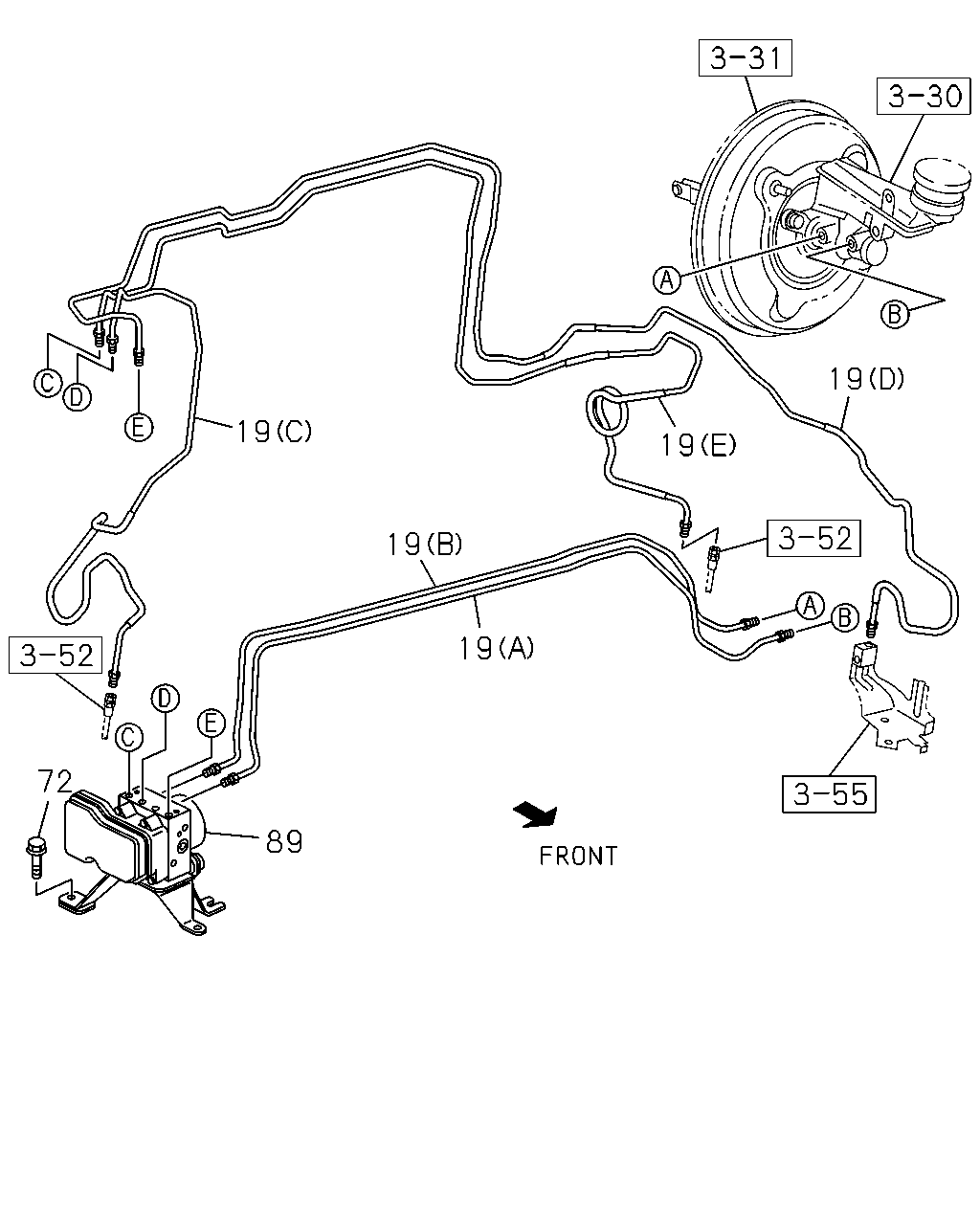

19 19 19 19 19 89 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. ABS W/EBD BRAKE ASSIST<JE5> (H)	8-98185-884-0	01	1	1511-	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. ABS W/EBD BRAKE ASSIST<JE5> (F)	8-98185-885-1	01	1	1511-	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. ABS W/EBD BRAKE ASSIST<JE5> (I)	8-98185-886-0	01	1	1511-	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. ABS W/EBD BRAKE ASSIST<JE5> (G)	8-98221-723-0	01	1	1511-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (D)	8-98099-751-0	01	1	1408-1510	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ABS W/EBD BRAKE ASSIST<JE5> (D)	8-98099-751-0	01	1	1511-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (D)	8-98099-751-0	01	1	1511-		●
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-98099-756-1	01	1	1408-1510	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ABS W/EBD BRAKE ASSIST<JE5> (B)	8-98099-756-1	01	1	1511-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-98099-756-1	01	1	1511-		●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98099-757-1	01	1	1408-1510	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ABS W/EBD BRAKE ASSIST<JE5> (A)	8-98099-757-1	01	1	1511-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98099-757-1	01	1	1511-		●
19	04.685 PIPE; BRK,M/CYL TO UNION (E)	8-98159-941-1	01	1	1408-1510	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ABS W/EBD BRAKE ASSIST<JE5> (E)	8-98159-941-1	01	1	1511-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (E)	8-98159-941-1	01	1	1511-		●
19	04.685 PIPE; BRK,M/CYL TO UNION (C)	8-98202-432-0	01	1	1408-1510	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ABS W/EBD BRAKE ASSIST<JE5> (C)	8-98202-432-0	01	1	1511-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (C)	8-98202-432-0	01	1	1511-		●
72	04.686 BOLT; BRKT TO BODY 02.343 M6X16 FLANGE	0-28650-616-0	03	1	1408-1510	●	●
72	04.686 BOLT; BRKT TO BODY ABS W/EBD BRAKE ASSIST<JE5> 02.343 M6X16 FLANGE	0-28650-616-0	03	1	1511-	●
72	04.686 BOLT; BRKT TO BODY 02.343 M6X16 FLANGE	0-28650-616-0	03	1	1511-		●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK	8-98197-803-0	01	1	1408-1508	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK	8-98285-188-0	01	1	1509-1510	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK ABS W/EBD BRAKE ASSIST<JE5>	8-98285-188-0	01	1	1511-	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK	8-98197-804-0	01	1	1408-1508		●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK	8-98285-189-0	01	1	1509-		●

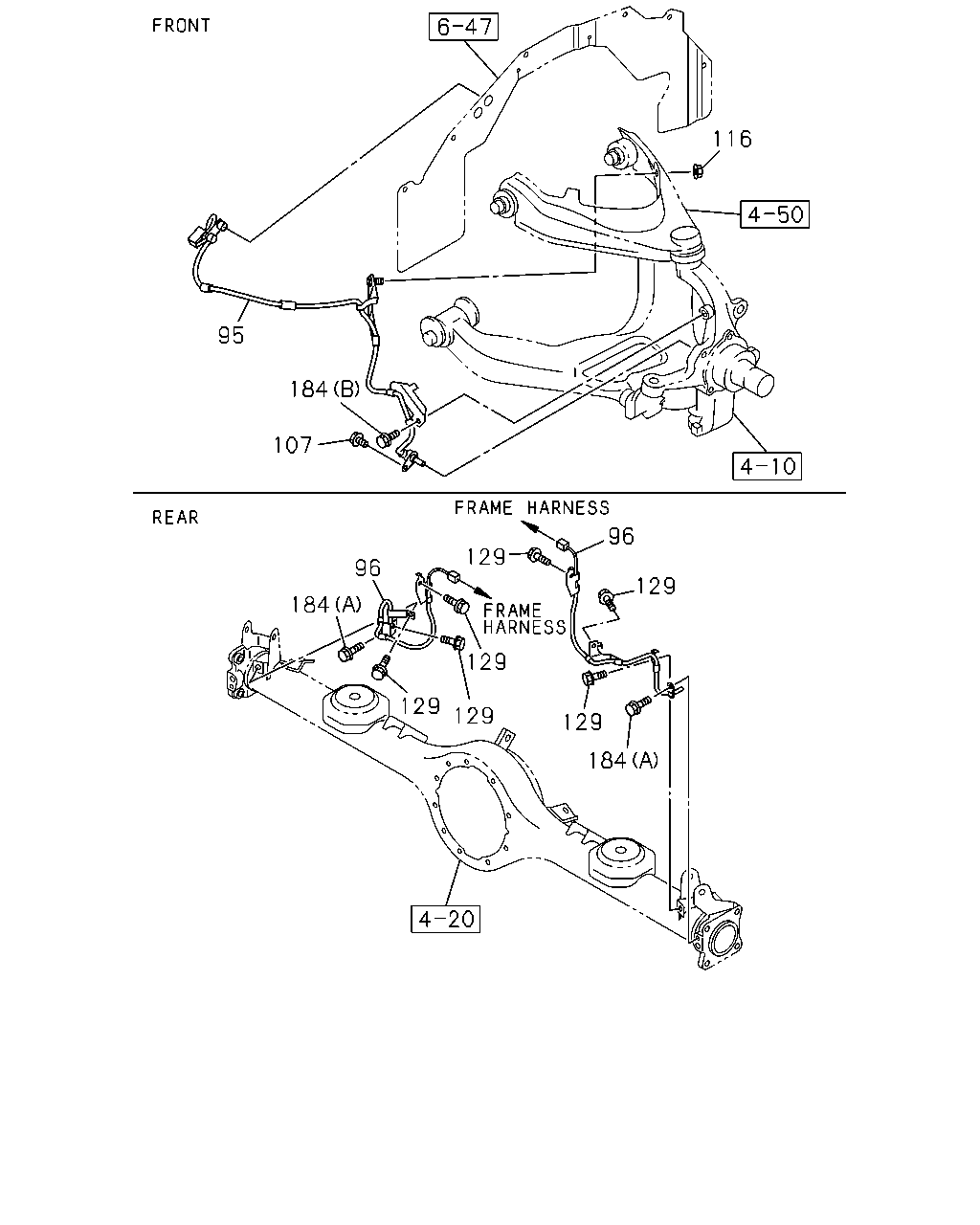

95 116 184 107 96 184 129 96 129 129 129 129 129 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
95	04.710 SENSOR; SPD,FRT WHEEL	8-98052-119-1	01	1	1408-1509	●	●
95	04.710 SENSOR; SPD,FRT WHEEL	8-98292-432-0	01	1	1510-1510	●	●
95	04.710 SENSOR; SPD,FRT WHEEL ABS W/EBD BRAKE ASSIST<JE5>	8-98292-432-0	01	1	1511-	●
95	04.710 SENSOR; SPD,FRT WHEEL	8-98292-432-0	01	1	1511-		●
95	04.710 SENSOR; SPD,FRT WHEEL	8-98052-120-1	01	1	1408-1509	●	●
95	04.710 SENSOR; SPD,FRT WHEEL	8-98292-433-0	01	1	1510-1510	●	●
95	04.710 SENSOR; SPD,FRT WHEEL ABS W/EBD BRAKE ASSIST<JE5>	8-98292-433-0	01	1	1511-	●
95	04.710 SENSOR; SPD,FRT WHEEL	8-98292-433-0	01	1	1511-		●
96	04.710 SENSOR; SPD,RR WHEEL	8-98196-302-0	01	1	1408-1510	●	●
96	04.710 SENSOR; SPD,RR WHEEL ABS W/EBD BRAKE ASSIST<JE5>	8-98196-302-0	01	1	1511-	●
96	04.710 SENSOR; SPD,RR WHEEL	8-98196-302-0	01	1	1511-		●
96	04.710 SENSOR; SPD,RR WHEEL	8-98196-303-0	01	1	1408-1510	●	●
96	04.710 SENSOR; SPD,RR WHEEL ABS W/EBD BRAKE ASSIST<JE5>	8-98196-303-0	01	1	1511-	●
96	04.710 SENSOR; SPD,RR WHEEL	8-98196-303-0	01	1	1511-		●
107	04.710 BOLT; WHEEL SPD SENSOR 03.671 M6X10 FLANGE	0-28050-610-0	02	1	1408-1509	●	●
107	04.710 BOLT; WHEEL SPD SENSOR 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1510-1510	●	●
107	04.710 BOLT; WHEEL SPD SENSOR ABS W/EBD BRAKE ASSIST<JE5> 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1511-	●
107	04.710 BOLT; WHEEL SPD SENSOR 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1511-		●
116	04.686 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	1408-1510	●	●
116	04.686 NUT ABS W/EBD BRAKE ASSIST<JE5> 01.062 M8 FLANGE	0-91180-108-0	02	1	1511-	●
116	04.686 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	1511-		●
129	04.710 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	06	1	1408-1510	●	●
129	04.710 BOLT; BRKT ABS W/EBD BRAKE ASSIST<JE5> 02.343 M6X16 FLANGE	0-28650-616-0	06	1	1511-	●
129	04.710 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	06	1	1511-		●
184	04.681 BOLT; CLIP 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	1408-1509	●	●
184	04.681 BOLT; CLIP 03.162 (B) M6X12 FLANGE	0-28050-612-0	02	1	1510-1510	●	●
184	04.681 BOLT; CLIP ABS W/EBD BRAKE ASSIST<JE5> 03.162 (B) M6X12 FLANGE	0-28050-612-0	02	1	1511-	●
184	04.681 BOLT; CLIP 03.162 (B) M6X12 FLANGE	0-28050-612-0	02	1	1511-		●
184	04.681 BOLT; CLIP 02.343 (A) M6X16 FLANGE	0-28650-616-0	02	1	1408-1510	●	●
184	04.681 BOLT; CLIP ABS W/EBD BRAKE ASSIST<JE5> 02.343 (A) M6X16 FLANGE	0-28650-616-0	02	1	1511-	●
184	04.681 BOLT; CLIP 02.343 (A) M6X16 FLANGE	0-28650-616-0	02	1	1511-		●
