0-13 — OIL PAN AND LEVEL GAUGE (#14709) — 56 parça

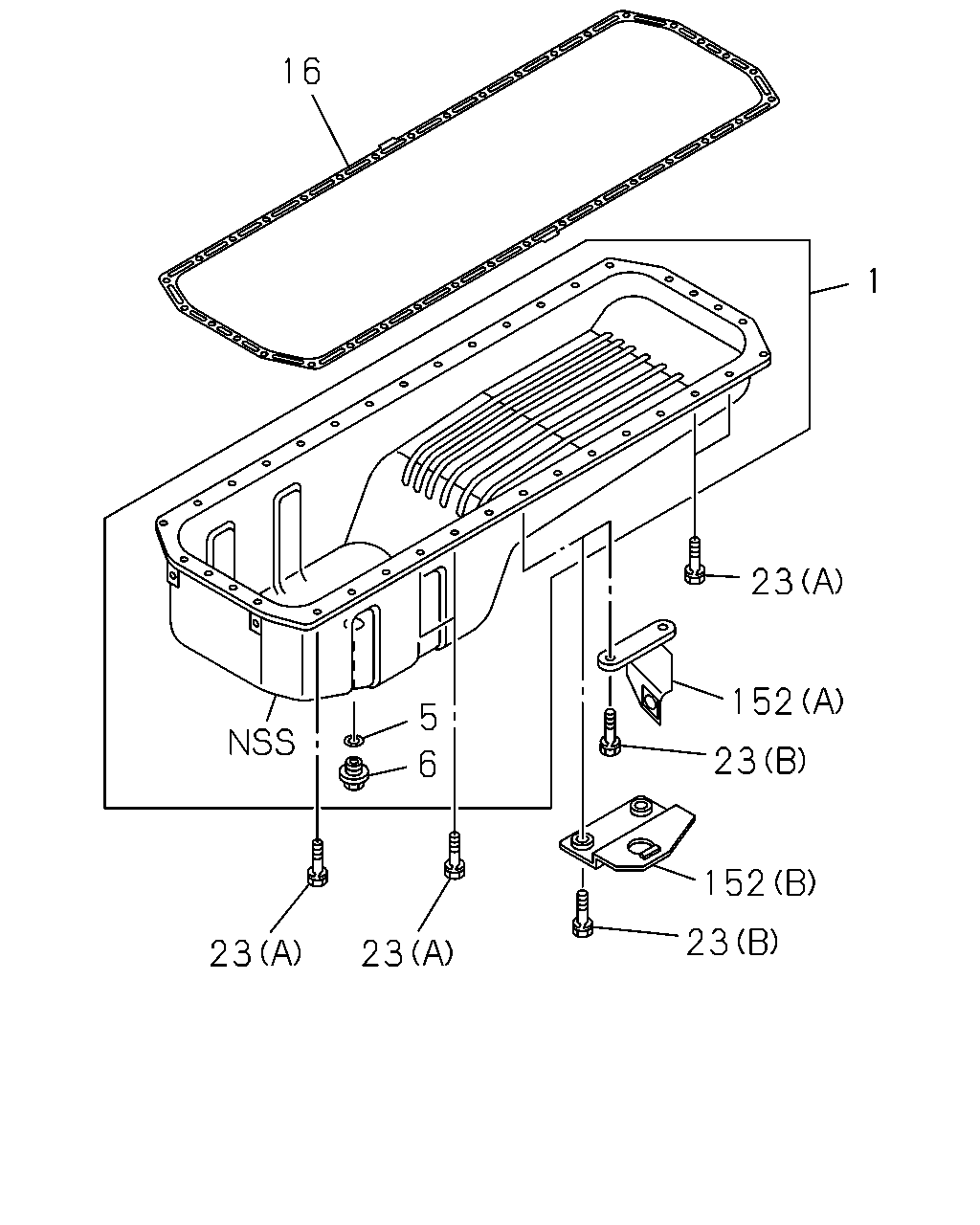

çizim 141954
16 1 23 152 5 23 6 152 23 23 23
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAN ASM; OIL 1-11360-912-0 01 1 0710-1107 ●
1 PAN ASM; OIL 1-11360-912-0 01 1 1108- ● ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-057-0 01 1 0710-1107 ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-057-0 01 1 1108- ● ●
6 PLUG; OIL DRAIN
M20X16.5 		9-09662-012-0 01 1 0710-1107 ●
6 PLUG; OIL DRAIN
M20X16.5 		9-09662-012-0 01 1 1108- ● ●
16 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11367-130-0 01 1 0710-1107 ●
16 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11367-130-0 01 1 1108- ● ●
23 BOLT; OIL PAN
(A) M10X20 FLANGE 		0-28151-020-0 34 1 1108- ● ●
23 BOLT; OIL PAN
(A) M10X28 W/LK&PL WASHER 		0-50151-028-0 34 1 0710-0906 ●
23 BOLT; OIL PAN
(A) M10X28 W/LK&PL WASHER 		0-50651-028-0 34 1 0907-0909 ●
23 BOLT; OIL PAN
(A) M10X20 FLANGE 		0-28151-020-0 34 1 0910-1107 ●
23 BOLT; OIL PAN
(B) M10X35 FLANGE 		0-28151-035-0 02 1 1108- ●
23 BOLT; OIL PAN
(B) M10X40 W/LK&PL WASHER 		0-50651-040-0 02 1 0710-0909 ●
23 BOLT; OIL PAN
(B) M10X35 FLANGE 		0-28151-035-0 02 1 0910-0912 ●
23 BOLT; OIL PAN
(B) M10X30 FLANGE 		0-28151-030-0 02 1 1001- ●
152 BRACKET; CLIP POWER STRG PIPE
(B) 		8-97618-553-0 01 1 1108- ●
152 BRACKET; CLIP POWER STRG PIPE
(A) 		1-21119-130-1 01 1 0710- ●

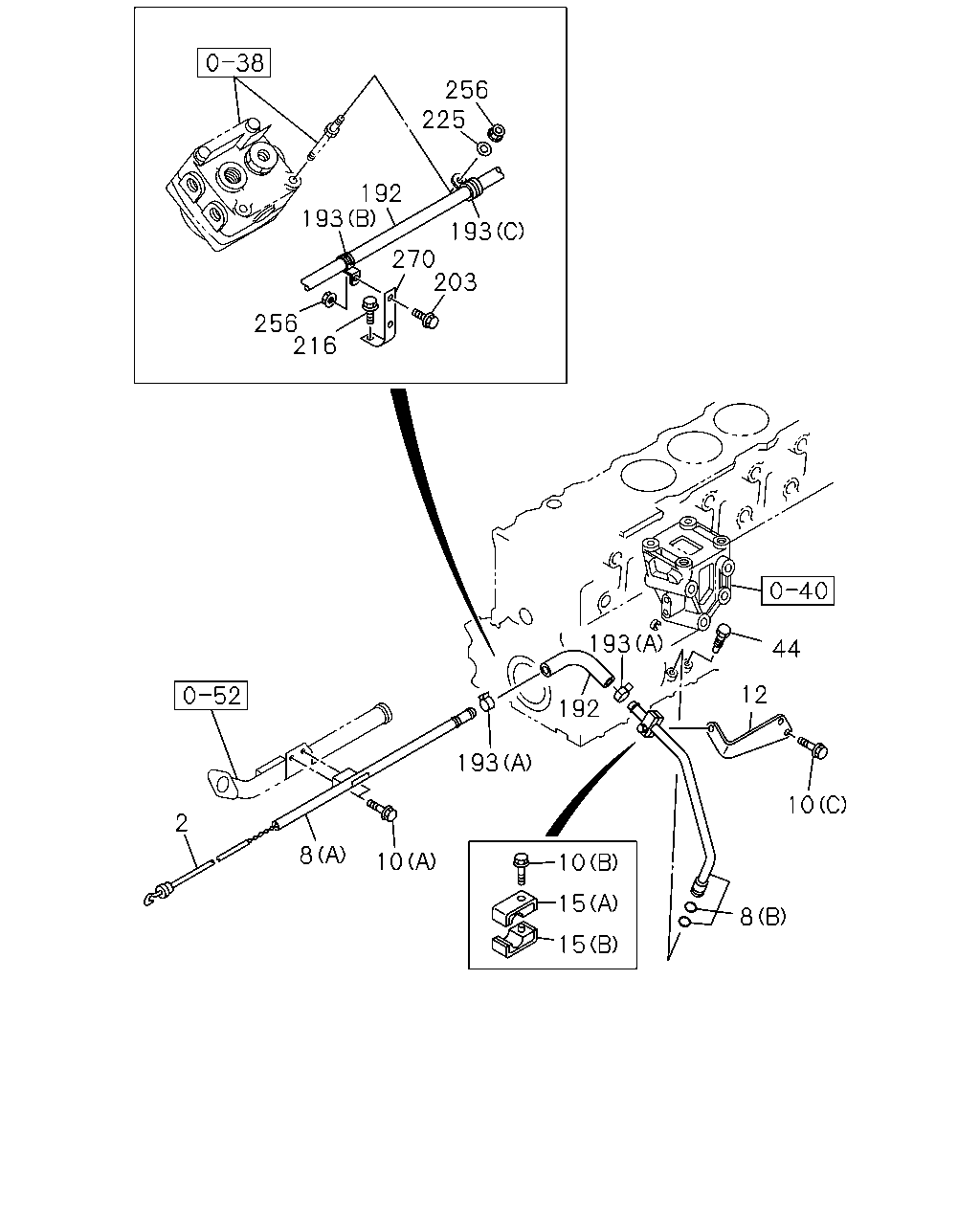

çizim 141956
256 225 192 193 193 270 203 256 216 193 44 12 192 193 10 2 8 10 10 15 8 15
BalonParca AdiParca NoAdetTipApplied Date A B
2 GAUGE; OIL LEVEL 1-11760-459-0 01 1 0710-1107 ●
2 GAUGE; OIL LEVEL 1-11760-459-0 01 1 1108- ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		8-97616-230-0 01 1 0710-1107 ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		8-97616-230-0 01 1 1108- ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		8-97617-015-0 01 1 0710-1107 ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		8-97617-015-0 01 1 1108- ● ●
10 BOLT; GUIDE TUBE
(B) M6X40 FLANGE 		0-28050-640-0 01 1 0710-1107 ●
10 BOLT; GUIDE TUBE
(B) M6X40 FLANGE 		0-28050-640-0 01 1 1108- ● ●
10 BOLT; GUIDE TUBE
(C) M10X20 FLANGE 		0-28151-020-0 02 1 0710-1107 ●
10 BOLT; GUIDE TUBE
(C) M10X20 FLANGE 		0-28151-020-0 02 1 1108- ● ●
10 BOLT; GUIDE TUBE
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0710-1107 ●
10 BOLT; GUIDE TUBE
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1108- ● ●
12 BRACKET; TUBE,OIL LEVEL GAUGE 8-97617-016-1 01 1 0710-1107 ●
12 BRACKET; TUBE,OIL LEVEL GAUGE 8-97617-016-1 01 1 1108- ● ●
15 CLIP; GUIDE TUBE
(A) ID=8 L=14 		8-98060-970-0 01 1 0710-1107 ●
15 CLIP; GUIDE TUBE
(A) ID=8 L=14 		8-98060-970-0 01 1 1108- ● ●
15 CLIP; GUIDE TUBE
(B) ID=8 L=14 		8-98060-971-0 01 1 0710-1107 ●
15 CLIP; GUIDE TUBE
(B) ID=8 L=14 		8-98060-971-0 01 1 1108- ● ●
44 PLUG
M22X41 		1-09604-098-0 01 1 0710-1107 ●
44 PLUG
M22X41 		1-09604-098-0 01 1 1108- ● ●
192 HOSE; GUIDE TUBE
L=620 SERVICED BY L=3000 		0-02361-300-0 01 1 0710-1107 ●
192 HOSE; GUIDE TUBE
L=620 SERVICED BY L=3000 		0-02361-300-0 01 1 1108- ● ●
193 CLIP; HOSE,GUIDE TUBE
(C) ID=19 L=28 		0-95235-856-0 01 1 0710-1107 ●
193 CLIP; HOSE,GUIDE TUBE
(C) ID=19 L=28 		0-95235-856-0 01 1 1108- ● ●
193 CLIP; HOSE,GUIDE TUBE
(B) ID=19 L=39 H=21 		1-09700-972-1 01 1 0710-1107 ●
193 CLIP; HOSE,GUIDE TUBE
(B) ID=19 L=39 H=21 		1-09700-972-1 01 1 1108- ● ●
193 CLIP; HOSE,GUIDE TUBE
(A) ID=17 		1-09707-158-0 02 1 0710-1107 ●
193 CLIP; HOSE,GUIDE TUBE
(A) ID=17 		1-09707-158-0 02 1 1108- ● ●
203 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0710-1107 ●
203 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1108- ● ●
216 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0710-1107 ●
216 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1108- ● ●
225 WASHER; PL
ID=8.4 OD=22 		0-91610-708-0 01 1 0710-1107 ●
225 WASHER; PL
ID=8.4 OD=22 		0-91610-708-0 01 1 1108- ● ●
256 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0710-1107 ●
256 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1108- ● ●
270 BRACKET ASM; TUBE,OIL LEVEL GAUGE 1-47479-855-0 01 1 0710-1107 ●
270 BRACKET ASM; TUBE,OIL LEVEL GAUGE 1-47479-855-0 01 1 1108- ● ●
