◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51520 - UCR/UCS(MIDDLE EAST) ▶ 3 - Brakes, Brake System ▶ 3-08 - PARKING BRAKE ▶
3-08 — PARKING BRAKE (#147089) — 32 parça

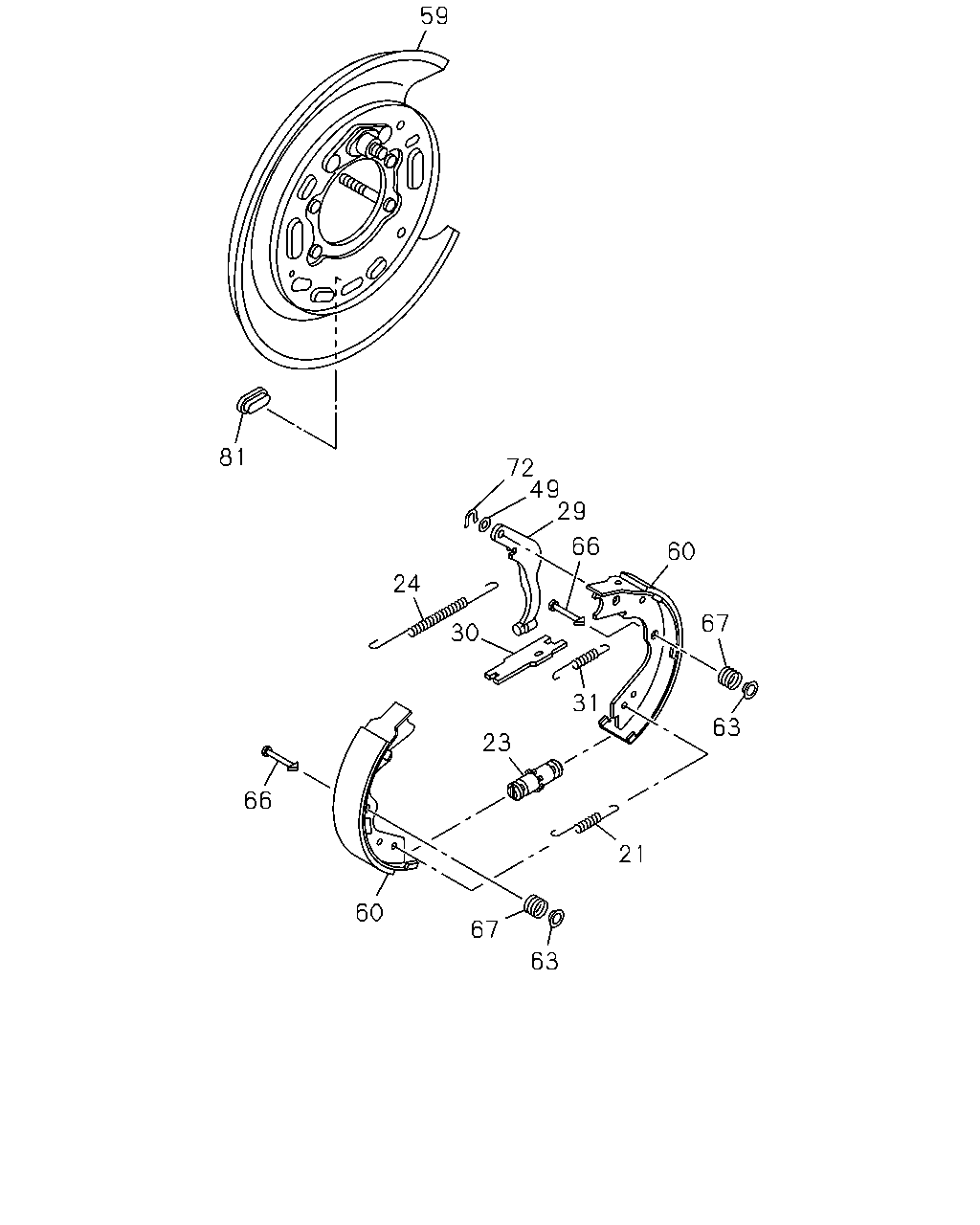

çizim 439182
59 81 72 49 29 66 60 67 63 31 30 24 23 21 63 67 60 66
BalonParca AdiParca NoAdetTipApplied Date A B
21 05.606 SPRING; RETURN,PARKING BRK SHOE 8-98244-657-0 02 1 1408-1510 ● ●
21 05.606 SPRING; RETURN,PARKING BRK SHOE
ABS W/EBD BRAKE ASSIST<JE5> VAC POWER 4 WHL DISC BRAKE<JF8> 		8-98244-657-0 02 1 1511- ● ●
23 05.615 SCREW; ADJ,PARKING BRK SHOE 8-98244-658-0 02 1 1408-1510 ● ●
23 05.615 SCREW; ADJ,PARKING BRK SHOE
ABS W/EBD BRAKE ASSIST<JE5> VAC POWER 4 WHL DISC BRAKE<JF8> 		8-98244-658-0 02 1 1511- ● ●
24 05.605 SPRING; BRK SHOE 8-98244-656-0 02 1 1408-1510 ● ●
24 05.605 SPRING; BRK SHOE
ABS W/EBD BRAKE ASSIST<JE5> VAC POWER 4 WHL DISC BRAKE<JF8> 		8-98244-656-0 02 1 1511- ● ●
29 04.591 LEVER; PARKING BRK 8-98244-651-0 01 1 1408-1510 ● ●
29 04.591 LEVER; PARKING BRK
ABS W/EBD BRAKE ASSIST<JE5> VAC POWER 4 WHL DISC BRAKE<JF8> 		8-98244-651-0 01 1 1511- ● ●
29 04.591 LEVER; PARKING BRK 8-98244-652-0 01 1 1408-1510 ● ●
29 04.591 LEVER; PARKING BRK
ABS W/EBD BRAKE ASSIST<JE5> VAC POWER 4 WHL DISC BRAKE<JF8> 		8-98244-652-0 01 1 1511- ● ●
30 05.605 STRUT; PARKING BRK 8-98244-659-0 02 1 1408-1510 ● ●
30 05.605 STRUT; PARKING BRK
ABS W/EBD BRAKE ASSIST<JE5> VAC POWER 4 WHL DISC BRAKE<JF8> 		8-98244-659-0 02 1 1511- ● ●
31 05.605 SPRING; SHOE TO STRUT 8-98244-660-0 02 1 1408-1510 ● ●
31 05.605 SPRING; SHOE TO STRUT
ABS W/EBD BRAKE ASSIST<JE5> VAC POWER 4 WHL DISC BRAKE<JF8> 		8-98244-660-0 02 1 1511- ● ●
49 04.591 WASHER; PARKING BRK LEVER 8-98244-654-0 02 1 1408-1510 ● ●
49 04.591 WASHER; PARKING BRK LEVER
ABS W/EBD BRAKE ASSIST<JE5> VAC POWER 4 WHL DISC BRAKE<JF8> 		8-98244-654-0 02 1 1511- ● ●
59 05.610 COVER; DUST,PARKING BRK 8-98244-647-1 01 1 1408-1510 ● ●
59 05.610 COVER; DUST,PARKING BRK
ABS W/EBD BRAKE ASSIST<JE5> VAC POWER 4 WHL DISC BRAKE<JF8> 		8-98244-647-1 01 1 1511- ● ●
59 05.610 COVER; DUST,PARKING BRK 8-98244-648-1 01 1 1408-1510 ● ●
59 05.610 COVER; DUST,PARKING BRK
ABS W/EBD BRAKE ASSIST<JE5> VAC POWER 4 WHL DISC BRAKE<JF8> 		8-98244-648-1 01 1 1511- ● ●
60 05.610 SHOE; PARKING BRK,PRIMARY 8-98244-650-0 04 1 1408-1510 ● ●
60 05.610 SHOE; PARKING BRK,PRIMARY
ABS W/EBD BRAKE ASSIST<JE5> VAC POWER 4 WHL DISC BRAKE<JF8> 		8-98244-650-0 04 1 1511- ● ●
63 04.591 RETAINER; PARKING BRK LEVER 8-98244-663-0 04 1 1408-1510 ● ●
63 04.591 RETAINER; PARKING BRK LEVER
ABS W/EBD BRAKE ASSIST<JE5> VAC POWER 4 WHL DISC BRAKE<JF8> 		8-98244-663-0 04 1 1511- ● ●
66 05.610 PIN; SHOE HOLD,PARKING BRK 8-98244-662-0 04 1 1408-1510 ● ●
66 05.610 PIN; SHOE HOLD,PARKING BRK
ABS W/EBD BRAKE ASSIST<JE5> VAC POWER 4 WHL DISC BRAKE<JF8> 		8-98244-662-0 04 1 1511- ● ●
67 05.610 SPRING; SHOE HOLD,PARKING BRK 8-98244-661-0 04 1 1408-1510 ● ●
67 05.610 SPRING; SHOE HOLD,PARKING BRK
ABS W/EBD BRAKE ASSIST<JE5> VAC POWER 4 WHL DISC BRAKE<JF8> 		8-98244-661-0 04 1 1511- ● ●
72 05.605 RING; SNAP 8-98244-655-0 02 1 1408-1510 ● ●
72 05.605 RING; SNAP
ABS W/EBD BRAKE ASSIST<JE5> VAC POWER 4 WHL DISC BRAKE<JF8> 		8-98244-655-0 02 1 1511- ● ●
81 05.606 COVER; CHECK HOLE,PARKING BRK 8-98244-664-0 02 1 1408-1510 ● ●
81 05.606 COVER; CHECK HOLE,PARKING BRK
ABS W/EBD BRAKE ASSIST<JE5> VAC POWER 4 WHL DISC BRAKE<JF8> 		8-98244-664-0 02 1 1511- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
