Isuzu WW
▶
SUV
▶
UCR
▶
51520 - UCR/UCS(MIDDLE EAST)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-53 - TRANSMISSION OIL COOLER SYSTEM
▶

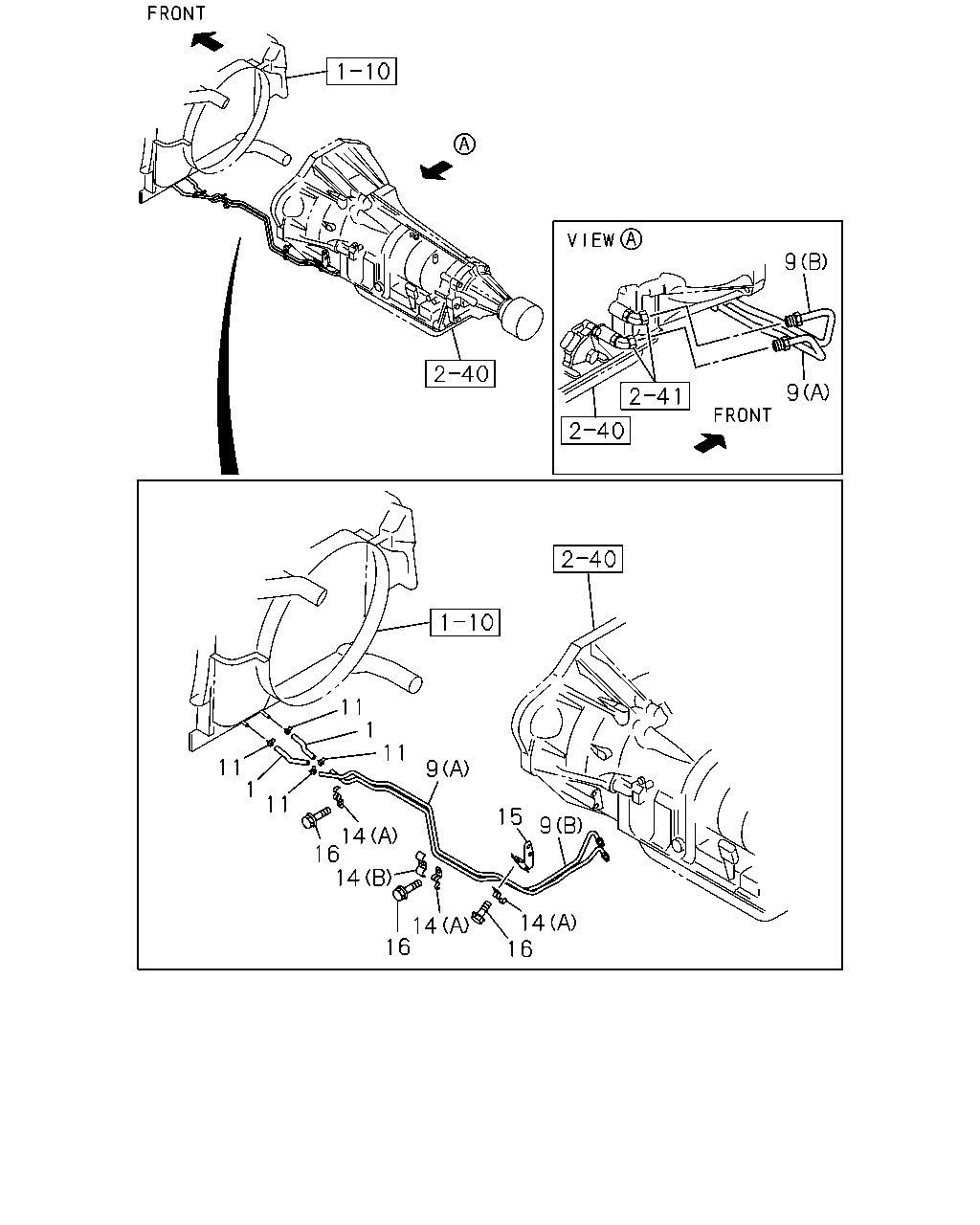

2-53 — TRANSMISSION OIL COOLER SYSTEM
(#147079) — 11 parça
9
9
11
1
11
9
15
9
14
16
14
16
14
16
11
14
1
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.128 HOSE; ATF
L=180 SERVICED BY L=3000
0-02259-300-0
02
1
1408-
9
04.128 PIPE; ATF,INL,A/T
4X2(UCB***) (A) INLET
8-98100-272-1
01
1
1408-
9
04.128 PIPE; ATF,INL,A/T
4X2(UCB***) (B) RETURN
8-98100-274-1
01
1
1408-
9
04.128 PIPE; ATF,INL,A/T
4X4(UCS***) (A) INLET
8-98221-531-1
01
1
1408-
9
04.128 PIPE; ATF,INL,A/T
4X4(UCS***) (B) RETURN
8-98221-532-1
01
1
1408-
11
04.128 CLIP; PIPE
8-98008-165-0
04
1
1408-
14
04.128 CLIP; PIPE TO ENG SIDE
4X2(UCB***) (A)
8-98008-163-0
03
1
1408-
14
04.128 CLIP; PIPE TO ENG SIDE
4X4(UCS***) (A)
8-98008-163-0
02
1
1408-
14
04.128 CLIP; PIPE TO ENG SIDE
4X4(UCS***) (B)
8-98232-374-0
01
1
1408-
15
04.128 BRACKET; ATF PIPE
8-98100-277-0
01
1
1408-
16
04.128 BOLT; CLIP,ENG SIDE
02.343 M8X16 FLANGE
0-28050-816-0
03
1
1408-
