2-26 — MANUAL TRANSMISSION GEAR (#147068) — 80 parça

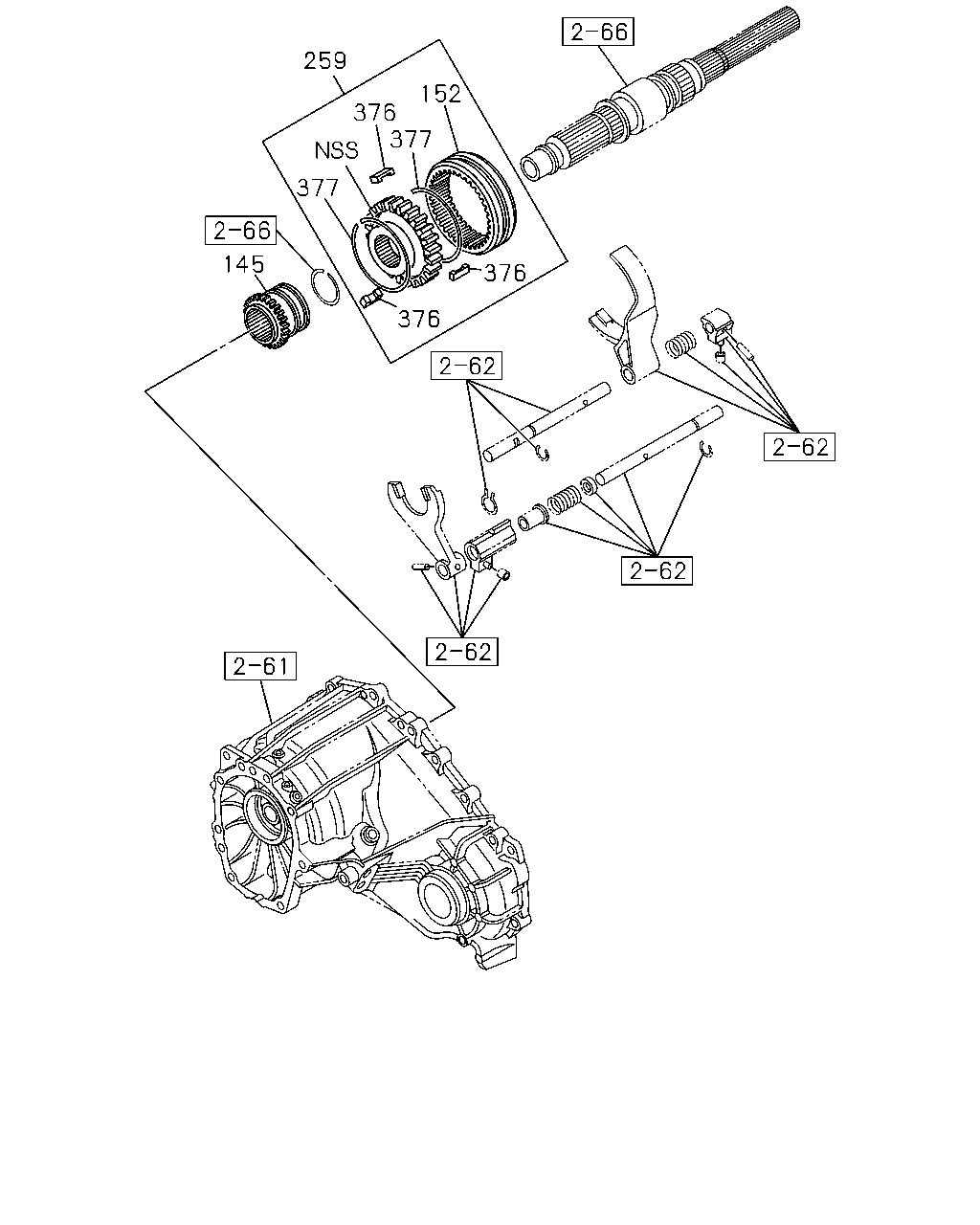

376 376 152 377 376 377 259 145

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
145	04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER 4X4(UCS***)	8-98063-369-1	01	1	1408-	●
152	04.535 SLEEVE; 4X2-4X4 SHIFT,TRANSFER 4X4(UCS***)	8-94363-060-0	01	1	1408-	●
259	04.538 SYNCHRONIZER; 4X2-4X4,TRANSFER 4X4(UCS***)	8-97234-225-0	01	1	1408-	●
376	04.384 INSERT; 4X2-4X4 SYN,TRANSFER 4X4(UCS***)	8-97238-590-0	03	1	1408-	●
377	04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS 4X4(UCS***)	8-94448-045-0	02	1	1408-	●

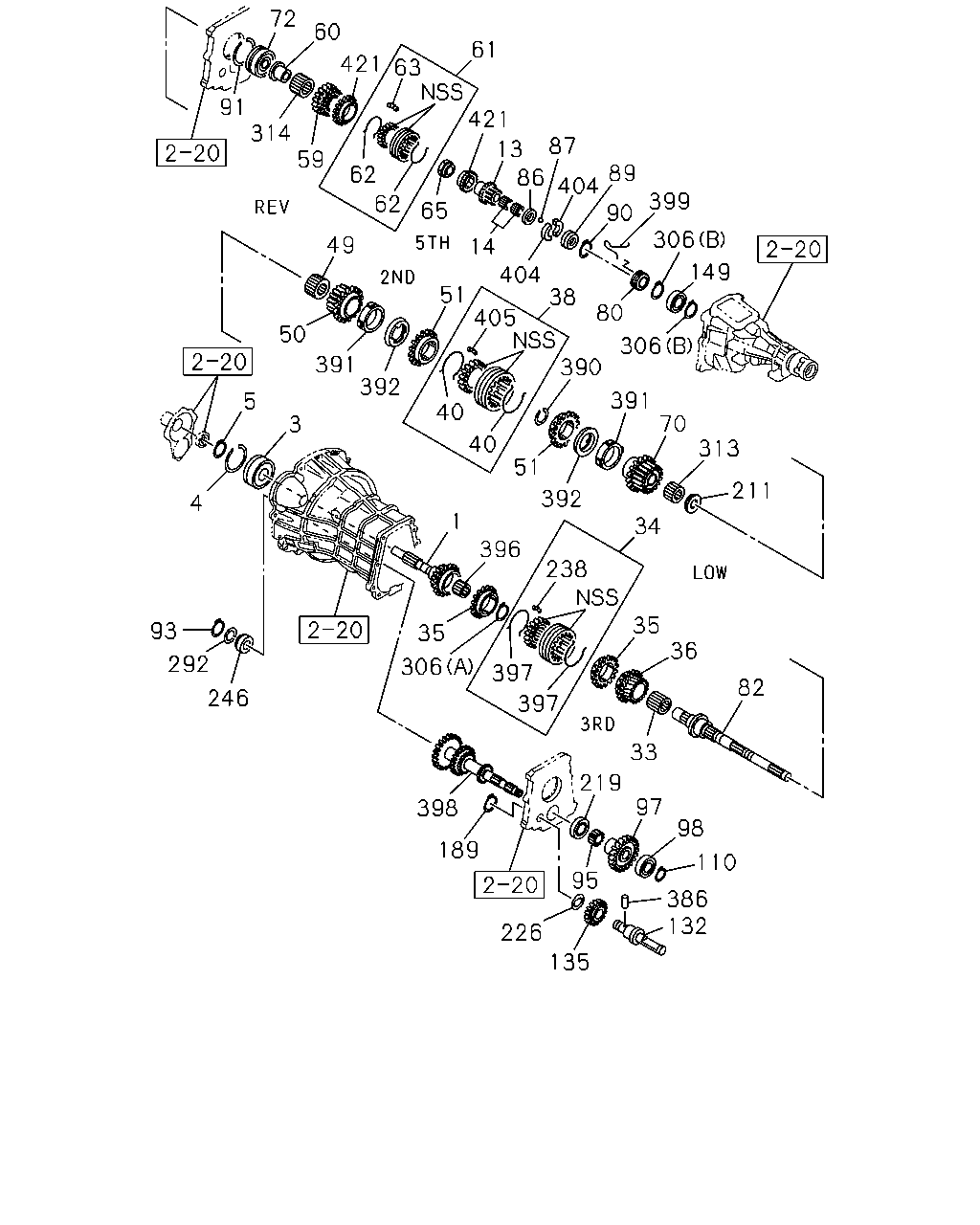

135 132 386 226 95 98 110 97 219 189 398 397 33 36 82 35 238 397 306 396 35 1 246 292 93 4 3 5 391 50 392 40 40 51 34 392 211 313 70 391 390 405 51 65 49 62 62 59 314 91 72 42 60 61 63 421 86 87 13 14 38 404 404 89 90 399 149 306 80 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
1	04.351 SHAFT; TOP GEAR,TRANS Z=26	8-98210-247-0	01	1	1408-	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-94380-015-1	01	1	1408-	●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	1408-	●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.525 ID=37.4	8-97254-316-0	01	1	1408-	●
13	04.415 GEAR; 5TH,MAINSHAFT Z=22	8-98210-227-0	01	1	1408-	●
14	04.419 BEARING; NEEDLE,5TH NTN	8-98172-356-0	01	1	1408-	●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NSK	1-09811-028-1	01	1	1408-	●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-97104-027-0	01	1	1408-	●
35	04.383 RING; BLOCK,4TH & 3RD Z=45	8-94151-510-3	02	1	1408-	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=27	8-98210-226-0	01	1	1408-	●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94363-059-1	01	1	1408-	●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	1408-	●
49	04.352 BEARING; NEEDLE,2ND GEAR JTEKT	9-00096-625-0	01	1	1408-	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=34	8-97300-953-1	01	1	1408-	●
51	04.383 RING; BLOCK,LOW & 2ND Z=36	8-98115-804-0	02	1	1408-	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-98210-228-0	01	1	1408-	●
60	04.419 COLLAR; REV MAIN	8-97031-079-0	01	1	1408-	●
61	04.380 SYNCHRONIZER; REV & 5TH	8-97030-106-1	01	1	1408-	●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-012-0	02	1	1408-	●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	1408-	●
65	04.356 NUT; MAINSHAFT M34	8-94422-071-1	01	1	1408-	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97300-952-1	01	1	1408-	●
72	04.352 BEARING; BALL,MAINSHAFT NSK	8-94380-017-1	01	1	1408-	●
80	04.343 GEAR; SPD DRIVE Z=6	8-94472-608-1	01	1	1408-	●
82	04.403 SHAFT; MAIN,TRANS Z=28-34-26-27	8-97300-981-0	01	1	1408-	●
86	04.416 WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	1408-	●
86	04.416 WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	1408-	●
86	04.416 WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	1408-	●
86	04.416 WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	1408-	●
87	04.416 BALL; THRUST WASHER	8-94201-356-0	01	1	1408-	●
89	04.416 RING; RET,THRUST RING ID=31.8	8-94422-395-0	01	1	1408-	●
90	04.416 RING; SNAP,THRUST RING 04.422 ID=29.6	9-09180-032-0	01	1	1408-	●
91	04.416 RING; SNAP,CENTER BRG,MAINSHAFT ID=76.2	8-94322-411-0	01	1	1408-	●
93	04.422 RING; SNAP,COUNTER FRT BRG 08.934 ID=23.2	9-09180-025-0	01	1	1408-	●
95	04.417 GEAR; REV,COUNTER Z=19	8-94377-433-0	01	1	1408-	●
97	04.415 GEAR; 5TH,COUNTER Z=50	8-94377-434-0	01	1	1408-	●
98	04.422 BEARING; BALL,COUNTER END NSK	8-97018-535-1	01	1	1408-	●
110	04.422 RING; SNAP,COUNTER BRG T=1.10 WHITE	8-94422-103-0	01	1	1408-	●
110	04.422 RING; SNAP,COUNTER BRG T=1.20 YELLOW	8-94422-104-0	01	1	1408-	●
110	04.422 RING; SNAP,COUNTER BRG T=1.30 BLUE	8-94422-105-0	01	1	1408-	●
110	04.422 RING; SNAP,COUNTER BRG T=1.40 PINK	8-94422-106-0	01	1	1408-	●
110	04.422 RING; SNAP,COUNTER BRG T=1.50 GREEN	8-94422-107-0	01	1	1408-	●
110	04.422 RING; SNAP,COUNTER BRG T=1.60 BROWN	8-94422-108-0	01	1	1408-	●
132	04.433 SHAFT; REV	8-98249-849-0	01	1	1408-	●
135	04.430 GEAR; REV IDLER Z=33	8-98146-726-1	01	1	1408-	●
149	04.352 BEARING; NEEDLE,MAINSHAFT,RR 04.422 NSK	8-94173-863-0	01	1	1408-	●
189	04.435 RING; SNAP,REV,GEAR T=1.20 WHITE	8-94422-100-0	01	1	1408-	●
189	04.435 RING; SNAP,REV,GEAR T=1.30 YELLOW	8-94422-101-0	01	1	1408-	●
189	04.435 RING; SNAP,REV,GEAR T=1.40 BLUE	8-94422-102-0	01	1	1408-	●
211	04.419 BEARING; THRUST NEEDLE,1ST GEAR NSK	8-94148-935-0	01	1	1408-	●
219	04.422 BEARING; BALL,CLUSTER,RR NSK	8-94436-929-0	01	1	1408-	●
226	04.437 WASHER; THRUST,REV GEAR,COUNTER ID=30.0	8-94223-069-1	01	1	1408-	●
238	04.384 INSERT	8-94448-202-2	03	1	1408-	●
246	04.422 BEARING; ROLLER,COUNTER SHAFT FR NSK	8-97029-600-4	01	1	1408-	●
292	04.422 RING; SNAP,BRG OUTER NSK	8-94422-081-0	01	1	1408-	●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.90 BLUE	8-97129-615-0	01	1	1408-	●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.85 YELLOW	8-97129-616-0	01	1	1408-	●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.80 WHITE	8-97129-617-0	01	1	1408-	●
306	04.416 RING; SNAP,MAINSHAFT (B) ID=27.9	9-09180-030-0	02	1	1408-	●
313	04.419 BEARING; NEEDLE,LOW GEAR NSK	1-09811-028-1	01	1	1408-	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-94422-064-0	01	1	1408-	●
314	04.419 BEARING; NEEDLE,REV GEAR JTEKT	8-94422-065-1	01	1	1408-	●
386	04.435 PIN; REV SHAFT OD=6 L=40	9-08150-640-0	01	1	1408-	●
390	04.383 RING; SNAP,CLU HUB T=1.80 WHITE	8-94422-088-2	01	1	1408-	●
390	04.383 RING; SNAP,CLU HUB T=1.85 YELLOW	8-94422-089-1	01	1	1408-	●
390	04.383 RING; SNAP,CLU HUB T=1.90 BLUE	8-94422-090-2	01	1	1408-	●
391	04.383 RING; INSIDE,SYN OD=95.8	8-94363-056-0	02	1	1408-	●
392	04.383 RING; OUTSIDE,SYN OD=90.0	8-98115-793-0	02	1	1408-	●
396	04.352 BEARING; NEEDLE,MAINSHAFT NSK	8-98172-355-0	01	1	1408-	●
397	04.384 SPRING; INSERT,4TH & 3RD	8-94422-075-0	02	1	1408-	●
398	04.421 GEAR; COUNTER Z=44-32-25-19	8-97216-164-1	01	1	1408-	●
399	04.345 CLIP; SPEEDOMETER DRIVE GEAR	8-94310-229-0	01	1	1408-	●
404	04.307 PLATE; THRUST	8-94421-892-0	02	1	1408-	●
405	04.384 INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	1408-	●
421	04.383 RING; BLOCK,REV & 5TH Z=36	8-97071-688-0	02	1	1408-	●
