2-25 — SPEEDOMETER DRIVEN GEAR (#147067) — 45 parça

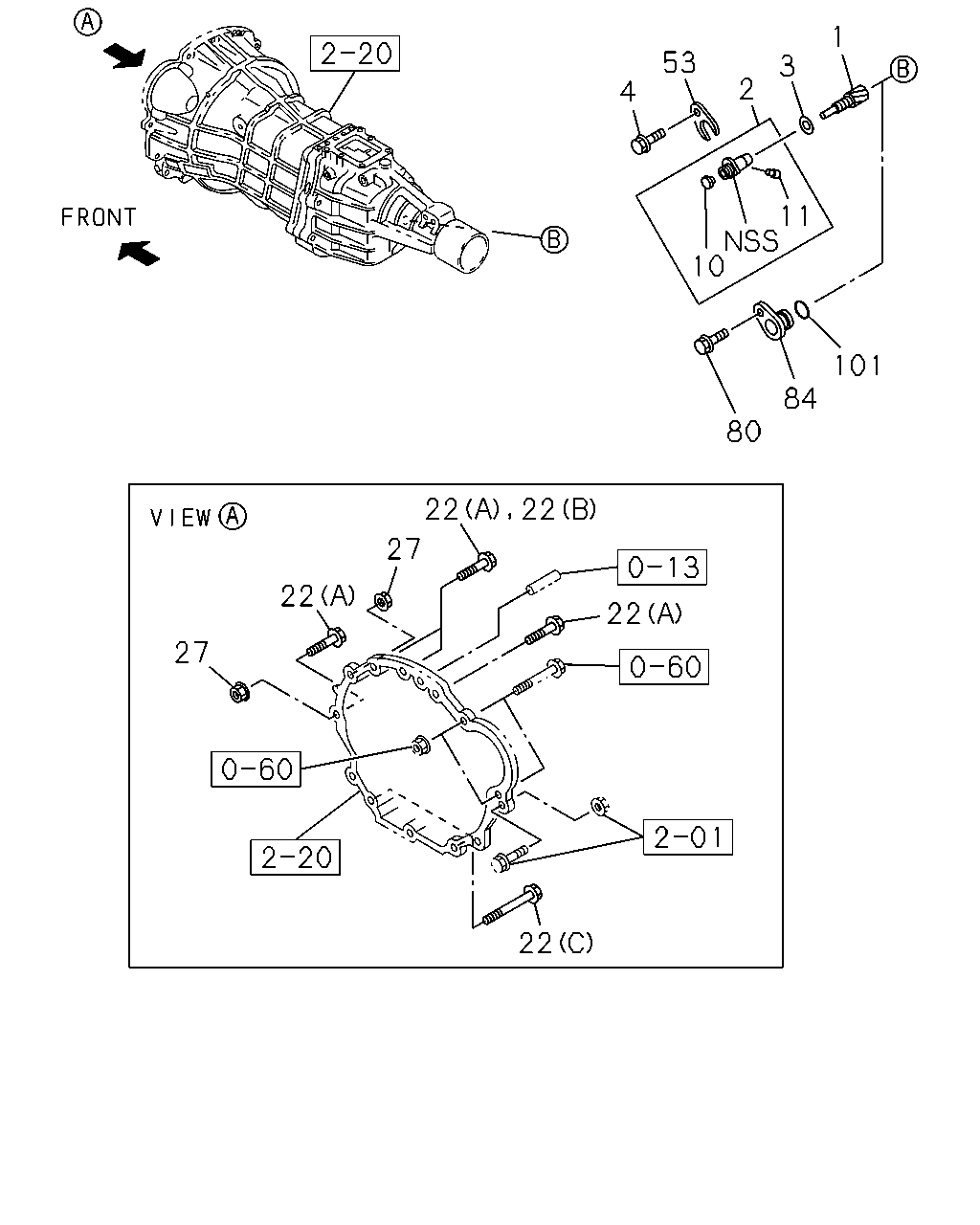

53 2 3 1 4 11 10 101 84 80 22 22 27 22 27 22 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.337 GEAR; DRIVEN,SPD EXC. ABS W/EBD BRAKE ASSIST<JE5> Z=17	8-97012-085-2	01	1	1511-	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER EXC. ABS W/EBD BRAKE ASSIST<JE5>	8-97021-133-4	01	1	1511-	●
3	04.338 GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). EXC. ABS W/EBD BRAKE ASSIST<JE5> ID=21.7 OD=28.7	9-09921-100-0	01	1	1511-	●
4	04.338 BOLT; RET,DRIVEN GEAR EXC. ABS W/EBD BRAKE ASSIST<JE5> M8X20 FLANGE	0-28050-820-0	01	1	1511-	●
10	04.338 SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). EXC. ABS W/EBD BRAKE ASSIST<JE5> NOK	8-97131-328-1	01	1	1511-	●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV EXC. ABS W/EBD BRAKE ASSIST<JE5>	8-94446-571-1	01	1	1511-	●
22	00.685 BOLT; TRANS CASE TO ENG 00.724 (D) M12X50 FLANGE	0-28051-250-0	08	1	1408-		●
22	00.685 BOLT; TRANS CASE TO ENG (A) M10X40 FLANGE	0-28051-040-0	04	1	1408-	●
22	00.685 BOLT; TRANS CASE TO ENG (C) M10X60 FLANGE	0-28051-060-0	02	1	1408-	●
22	00.685 BOLT; TRANS CASE TO ENG (B) M12X40 FLANGE	0-28051-240-0	01	1	1408-	●
27	00.685 NUT; CLU HSG TO TRANS 02.042 M12 FLANGE	0-91180-112-0	02	1	1408-		●
27	00.685 NUT; CLU HSG TO TRANS 03.162 M10 FLANGE	0-91180-110-0	02	1	1408-	●
53	04.338 PLATE; LOCK,DRIVEN GEAR EXC. ABS W/EBD BRAKE ASSIST<JE5>	8-98035-572-0	01	1	1511-	●
80	04.329 BOLT; SPD SENSOR 04.338 M8X20 FLANGE	0-28050-820-0	01	1	1408-1510	●
80	04.329 BOLT; SPD SENSOR 4X4(UCS***) 04.338 M8X20 FLANGE	0-28050-820-0	01	1	1408-1510		●
80	04.329 BOLT; SPD SENSOR ABS W/EBD BRAKE ASSIST<JE5> 04.338 M8X20 FLANGE	0-28050-820-0	01	1	1511-	●
80	04.329 BOLT; SPD SENSOR 4X4(UCS***) 04.338 M8X20 FLANGE	0-28050-820-0	01	1	1511-		●
84	04.104 CAP; BUSH,SPEEDOMETER GEAR	8-98103-318-0	01	1	1408-1510	●
84	04.104 CAP; BUSH,SPEEDOMETER GEAR 4X4(UCS***)	8-98103-318-0	01	1	1408-1510		●
84	04.104 CAP; BUSH,SPEEDOMETER GEAR ABS W/EBD BRAKE ASSIST<JE5>	8-98103-318-0	01	1	1511-	●
84	04.104 CAP; BUSH,SPEEDOMETER GEAR 4X4(UCS***)	8-98103-318-0	01	1	1511-		●
101	04.338 GASKET; CAP ID=21.7 OD=28.7	9-09921-100-0	01	1	1408-1510	●
101	04.338 GASKET; CAP 4X4(UCS***) ID=21.7 OD=28.7	9-09921-100-0	01	1	1408-1510		●
101	04.338 GASKET; CAP ABS W/EBD BRAKE ASSIST<JE5> ID=21.7 OD=28.7	9-09921-100-0	01	1	1511-	●
101	04.338 GASKET; CAP 4X4(UCS***) ID=21.7 OD=28.7	9-09921-100-0	01	1	1511-		●

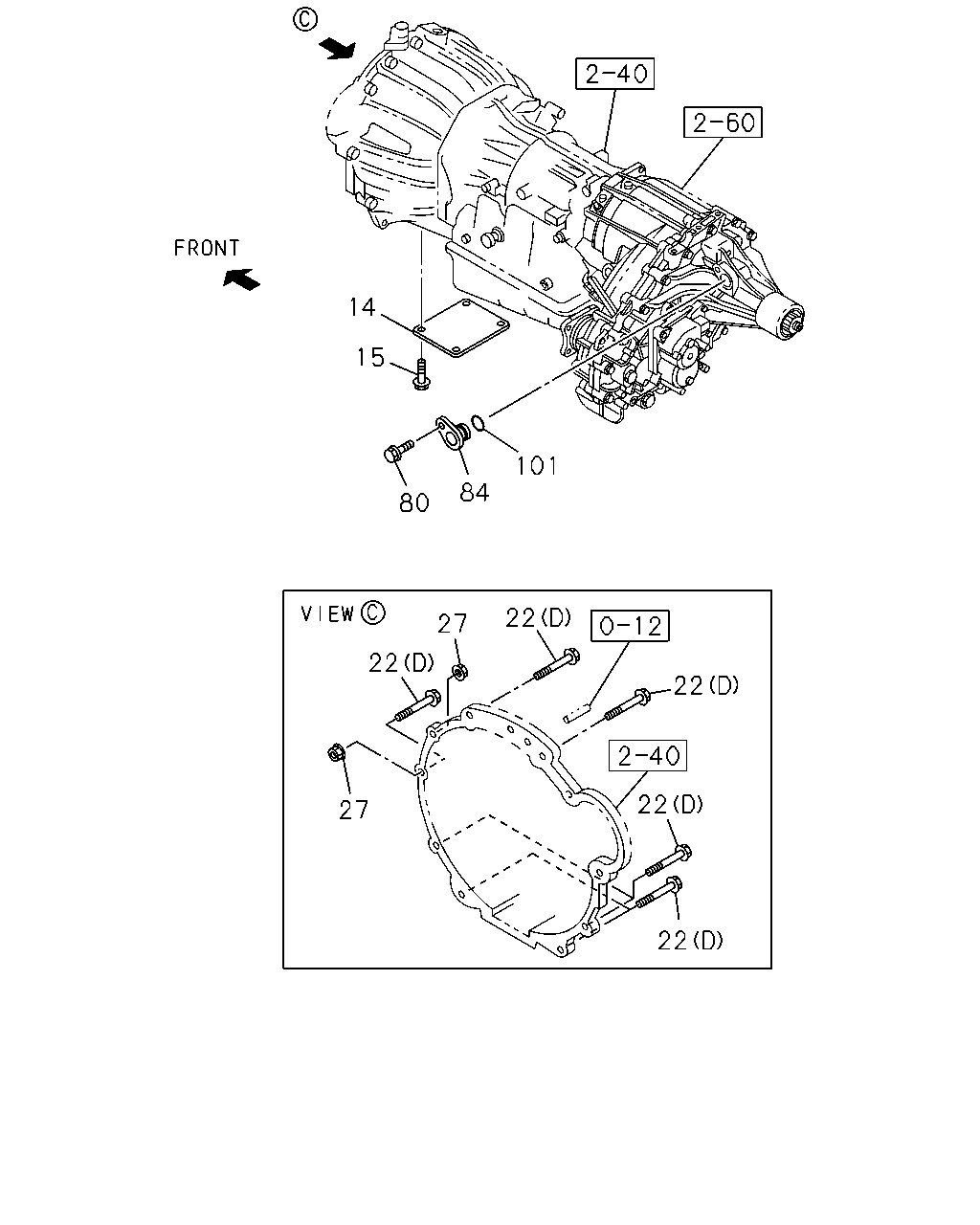

14 15 80 84 101 22 27 22 27 22 22 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	00.679 COVER; UNDER,TRANS	8-98049-857-0	01	1	1408-		●
15	00.685 BOLT; UNDER COVER TO TRANS 02.343 M6X16 FLANGE	0-28650-616-0	04	1	1408-		●
22	00.685 BOLT; TRANS CASE TO ENG 00.724 (D) M12X50 FLANGE	0-28051-250-0	08	1	1408-		●
22	00.685 BOLT; TRANS CASE TO ENG (A) M10X40 FLANGE	0-28051-040-0	04	1	1408-	●
22	00.685 BOLT; TRANS CASE TO ENG (C) M10X60 FLANGE	0-28051-060-0	02	1	1408-	●
22	00.685 BOLT; TRANS CASE TO ENG (B) M12X40 FLANGE	0-28051-240-0	01	1	1408-	●
27	00.685 NUT; CLU HSG TO TRANS 02.042 M12 FLANGE	0-91180-112-0	02	1	1408-		●
27	00.685 NUT; CLU HSG TO TRANS 03.162 M10 FLANGE	0-91180-110-0	02	1	1408-	●
80	04.329 BOLT; SPD SENSOR 04.338 M8X20 FLANGE	0-28050-820-0	01	1	1408-1510	●
80	04.329 BOLT; SPD SENSOR 4X4(UCS***) 04.338 M8X20 FLANGE	0-28050-820-0	01	1	1408-1510		●
80	04.329 BOLT; SPD SENSOR ABS W/EBD BRAKE ASSIST<JE5> 04.338 M8X20 FLANGE	0-28050-820-0	01	1	1511-	●
80	04.329 BOLT; SPD SENSOR 4X4(UCS***) 04.338 M8X20 FLANGE	0-28050-820-0	01	1	1511-		●
84	04.104 CAP; BUSH,SPEEDOMETER GEAR	8-98103-318-0	01	1	1408-1510	●
84	04.104 CAP; BUSH,SPEEDOMETER GEAR 4X4(UCS***)	8-98103-318-0	01	1	1408-1510		●
84	04.104 CAP; BUSH,SPEEDOMETER GEAR ABS W/EBD BRAKE ASSIST<JE5>	8-98103-318-0	01	1	1511-	●
84	04.104 CAP; BUSH,SPEEDOMETER GEAR 4X4(UCS***)	8-98103-318-0	01	1	1511-		●
101	04.338 GASKET; CAP ID=21.7 OD=28.7	9-09921-100-0	01	1	1408-1510	●
101	04.338 GASKET; CAP 4X4(UCS***) ID=21.7 OD=28.7	9-09921-100-0	01	1	1408-1510		●
101	04.338 GASKET; CAP ABS W/EBD BRAKE ASSIST<JE5> ID=21.7 OD=28.7	9-09921-100-0	01	1	1511-	●
101	04.338 GASKET; CAP 4X4(UCS***) ID=21.7 OD=28.7	9-09921-100-0	01	1	1511-		●
